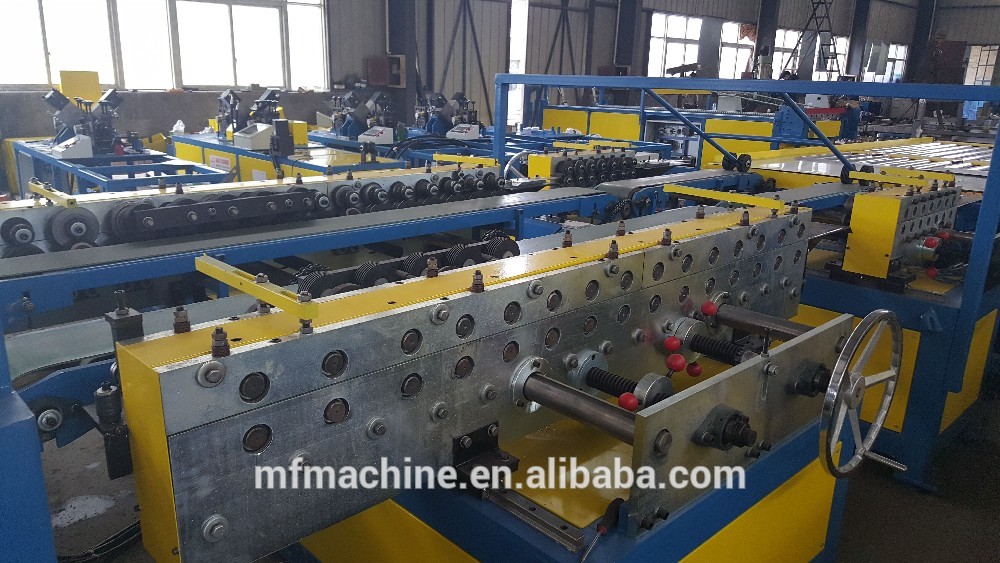

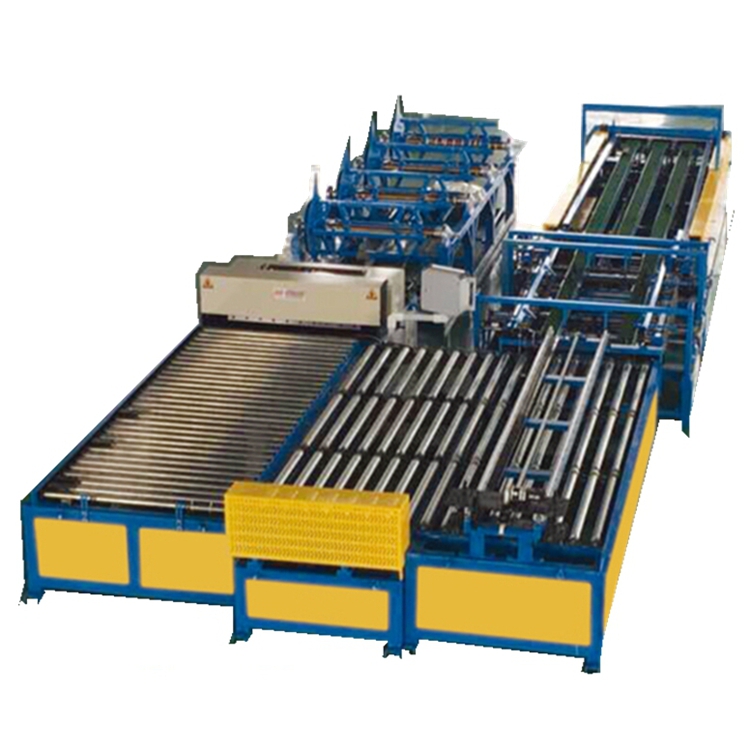

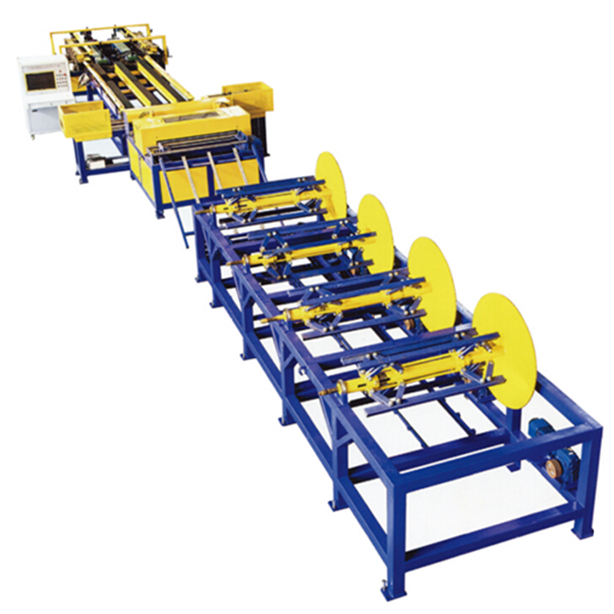

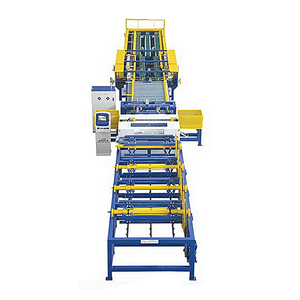

CNC auto duct manufacture line v
* Linear structure reduces sheets transferring time and improve production efficiency.
* The material frame is controlled by the speed adjustable converter motor
* 10 Rollers for leveling and grooving which ensure the flatness of sheet metal for various thickness
* with material processing saving mode, users can reduce the waste of sheet metal significantly to less than 20mm per material coiler.
* with features of servo motor driven in folding process and accurate positioning, it has the obvious advantage especially when produce the square shaped duct.
* The input adopt two modes: screen tough and keyboard input which ensure stability of the system.
* require only one person to operate the machine, two persons can take away the ducts.
* The speed of each part can be adjusted as needed.
* A processing counting function for statistics and management with day count and total count.
* support print function for production management.

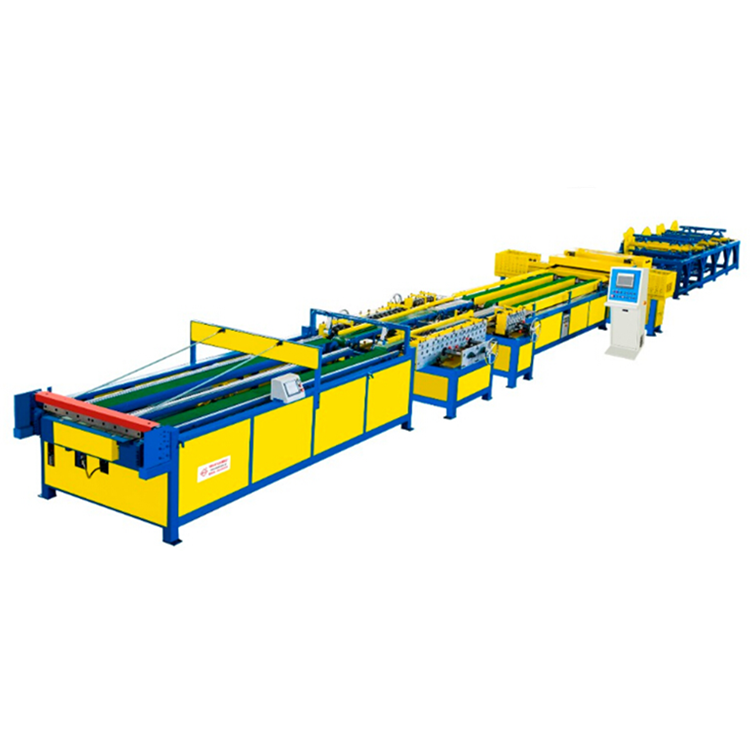

Basic Equipment for Duct Manufacturing Auto Line V:
1. Electric feeding rack two (3000*1900*950mm * 2)
2. Leveling, beading, punch, die opening, cutting plate machine
3. Displacement type joint angle reel bone machine
4. An electric feeding platform
5. Double linkage flange machine
6. A double linkage single bone (angle iron flange machine) machine
7. A servo feeding platform
8. Hydraulic bending machine
9. A set of computer control system and software production
10. An electrical cabinet

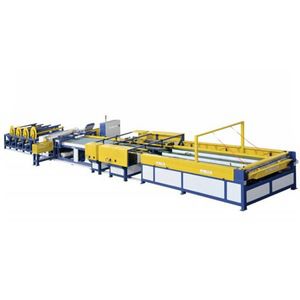

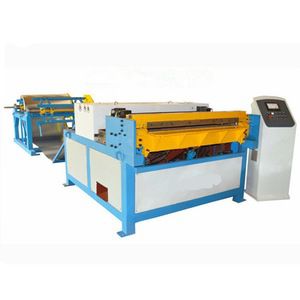

Air duct line 2
1.Electric feeding rack 1 set(2620*1850*1450mm)
2.Leveling ,beading equipment one group
3.Hydraulic angle shearing machine 4 sets including die
4.Hydraulic plate shearing machine
5.CNC control, software

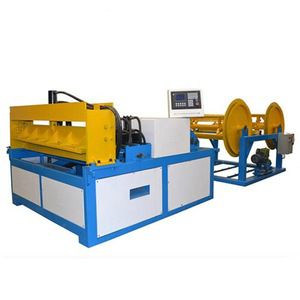

Air duct line 3
1.Electric feeding rack 1 set(2620*1850*1450mm)
2.Leveling ,beading equipment one group
3.Hydraulic angle shearing machine 4 sets including die
4.Hydraulic plate shearing and hydraulic bending device
5.CNC control, software
Air duct line 4
1. Two electric coil cradles,4 material trays/5-7t each roll 2. A rack
3. A host machine
4. A mechanical arm with clutching,locating and transferring platform
5. A displacement type lock forming machine
6. A duplex TDF flange forming machine
7. A duplex angle steel flange forming machine
8. A set of computer control system
Air duct line 5
1. Two electric coil cradles,4 material trays/5-7t each roll
2. A rack 3. A host machine
4. A mechanical arm with clutching,locating and transferring platform
5. A displacement type lock forming machine
6. A duplex TDF flange forming machine
7. A duplex angle steel flange forming machine
8. A servo feeding platform
9. Hydraulic bending machine
10. A set of computer control system
| Air duct line 6 1, U type structure, equipment covers an small area, suitable for small and medium-sized factories. 2, Driven by servo pneumatic manipulator pushing, cooperate with joint bite, not only faster, but also more precise positioning. 3, Nip machine changes tradition, eliminating the mobile time repeatedly, greatly improve production efficiency 4, Provincial labor, high efficiency, the speed can be fastest to complete section L in 22 seconds. 5, With the function of production management. It can be used to do day count and total count. 6, With the touch keyboard and dual mode, to guarantee the stability of the operation. 7, Support bar punching and lamination optional. |
| Plastic film Wrapping, or by customers special requests | |||
| Payment Terms | T/T | FOB | 30% T/T in advance, paid the balance before shipment |
| Trade Insurance | CIF | ||
| L/C | L/C at sight or L/C 30 days is also accepted | ||
| D/P | D/P is available for long-term cooperated customer |
Maanshan Mao Feng Heavy Machinery Co.,Ltd

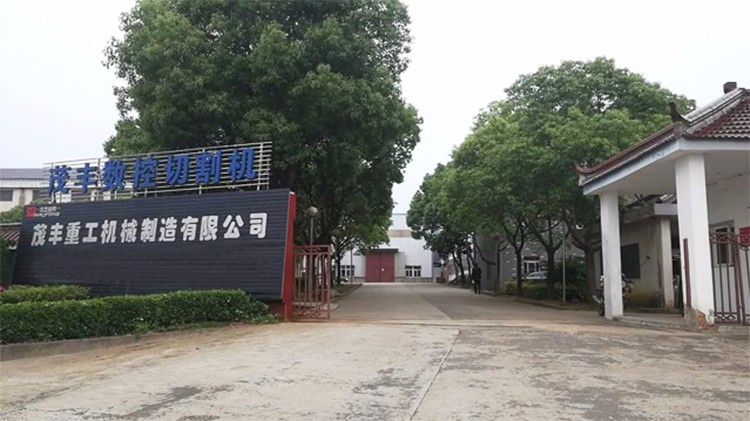

Was established in 2006 with a registered capital of 15 million yuan. It is Located in Maanshan Bowang Industrial Zone in Anhui province of China (Mainland) near the Nanjing Lukou airport. At present, the company covers an area of 30,000 square meters and has building area up to 18,000 square meters. MF passed the ISO 9001:2008 quality management system standard in 2008, and obtained CE certificate in 2011.
Technician Team Photo
MF's team has more than 150 staffs in which 16 people are senior engineers and technicians . Our team of Service technicians are trained specialists available to answer your call, and to provide machinery installation, repairs, upgrades, maintenance and more. We are dedicated to create greater value for global customers to enhance the international competitiveness of China metal fabrication machine industry.

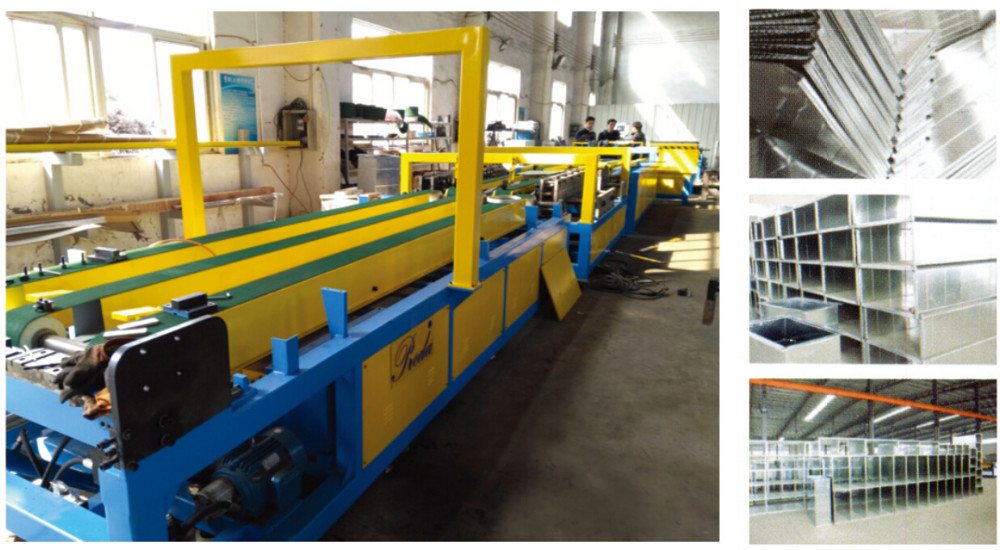

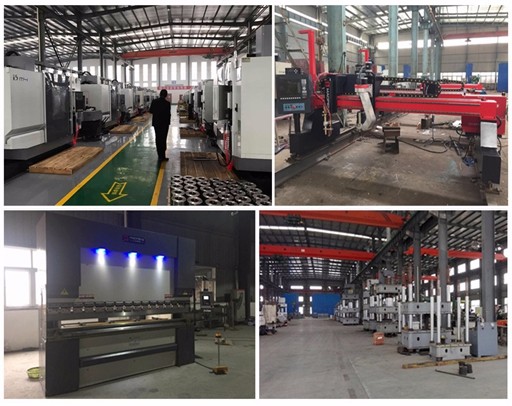

Workshop Photo
We are standing by to help you get more out of your metal. Give MF the opportunity to show what our quality tools & services can do for you and your businesses success today and beyond
