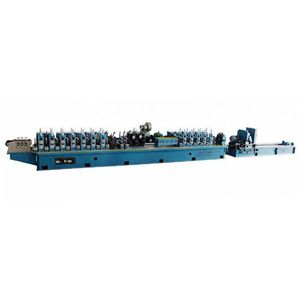

High Speed Stainless Steel Pipe Round &Square Pipe Tube Production Line
What is ERW Pipe Mill Machine
This equipment is specially used for producingΦ20-Φ76mm,δ0.8-2.0mm high frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe(δ≤2.0mm). The composition of equipment is from decoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.
Suitable material
(1) Steel coil
(2) Thickness of material: 0.8-3.0mm
(3) Width of material:63~238mm
(4) Inside Diameter of coil: 450-550mm
(5) Outside Diameter of coil: 800~1200mm
(6) The range of pipe diameter : Φ20-Φ76mm
(7) The thickness of Pipe :0.8-2.0mm
(8) The length :4m-8m
Line Machine Components
Serial No. | Commodity & Description | Quantity |
1 | Double Head Decoiler | 1 set |
2 | Cutting and Welding machine | 1 set |
3 | Vertical Accumulator | 1 set |

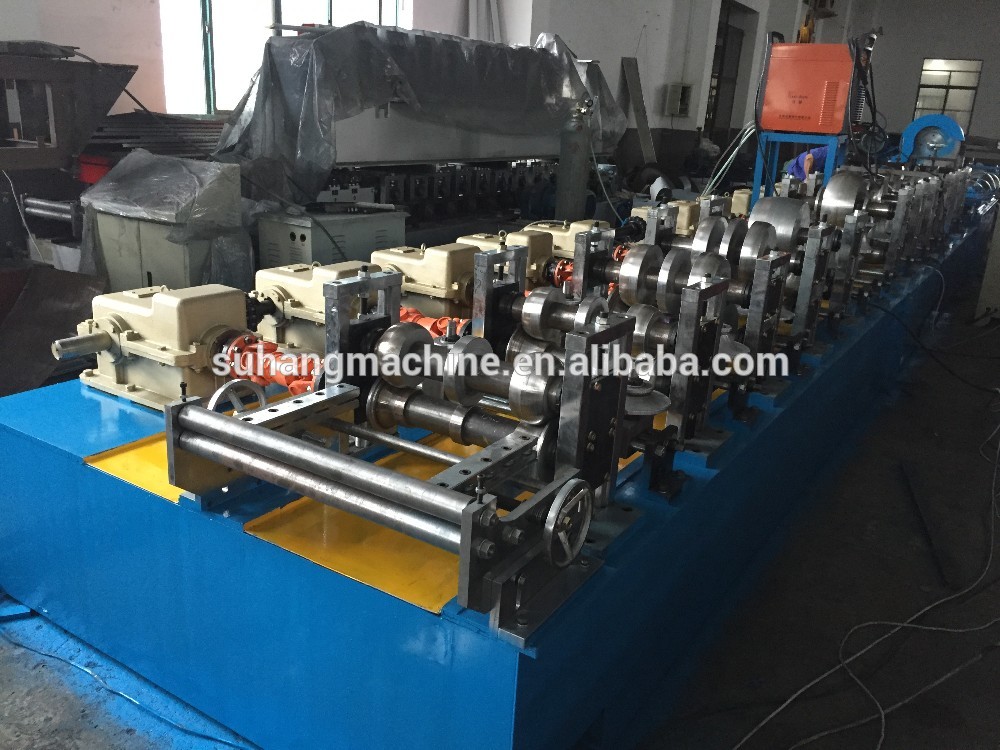

4 | Forming, welding and sizing unit: | 1 set |
5 | Main drive gear box | 1 set |

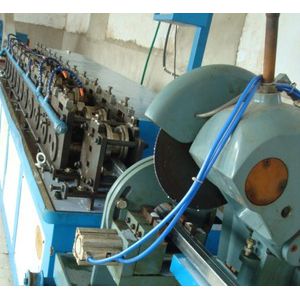

6 | Cutting saw | 1 set |
7 | Run-out table | 1 set |
8 | 150kw tubes high frequency and DC dragger | 1 set |
9 | Control System | 1 set |

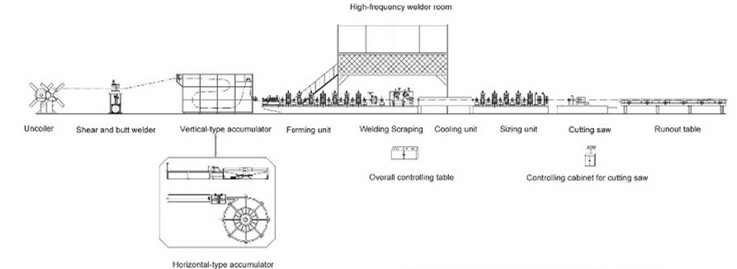

Productiino Line work flow:
Slit Coil ---- Un-Coiler ---- Shearing And Butter Welder ---- Storage/ Accumulator ---- Forming ---- Welding ---- Cooling ---- Sizing ---- Cutting Saw ---- Run Out Table ---- Finishing ---- Pipe Collecting and Packaging

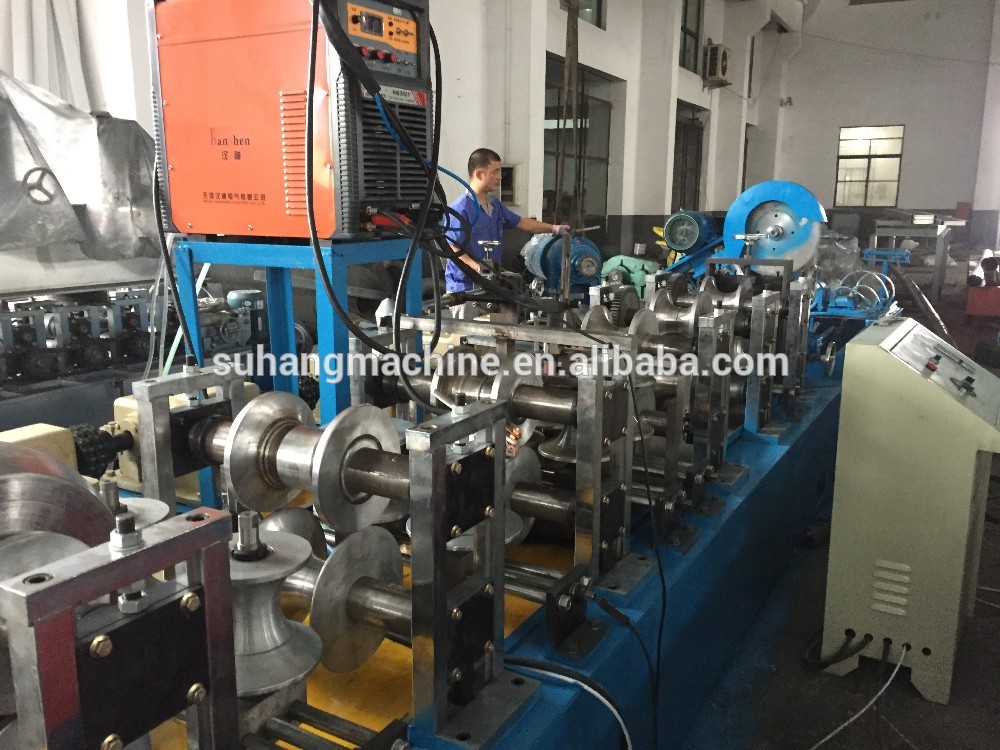

Photo Gallery
