Automatic square air duct production line V
About us
*RBZG is the expert in kinds of sheet metal processing machines, like bending machine, shearing machine, iron worker, hydraulic press, punching machine, duct manufacturing auto line, cutting machine and so on

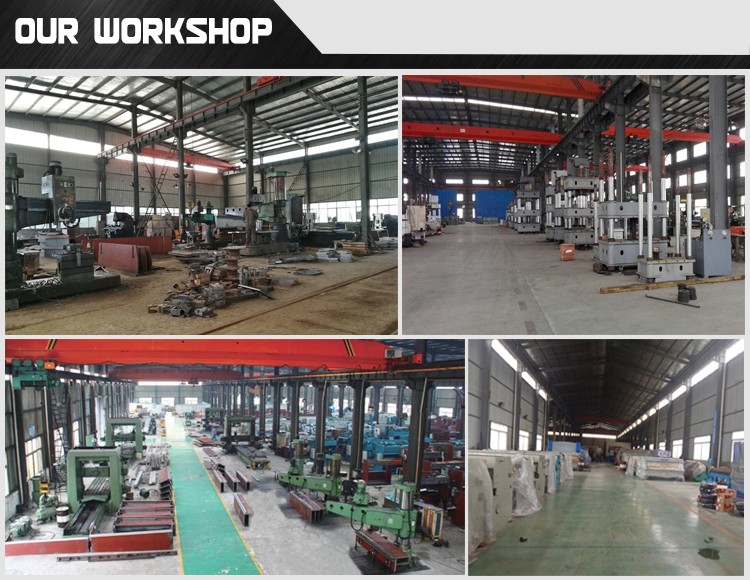

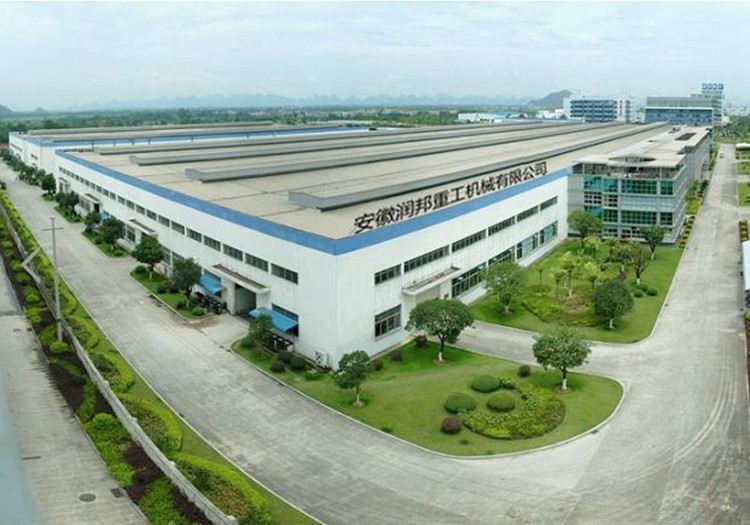

*With an expert team in R&D for more than 20 years, occupied the work shop of over 30,000 square meters, Runbang is able to support you with best quality machines
*With CE/ISO/SGS certification
Product Main Features

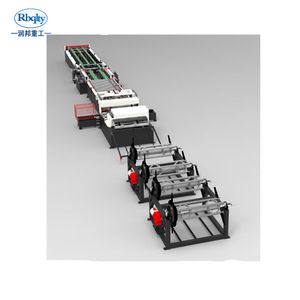

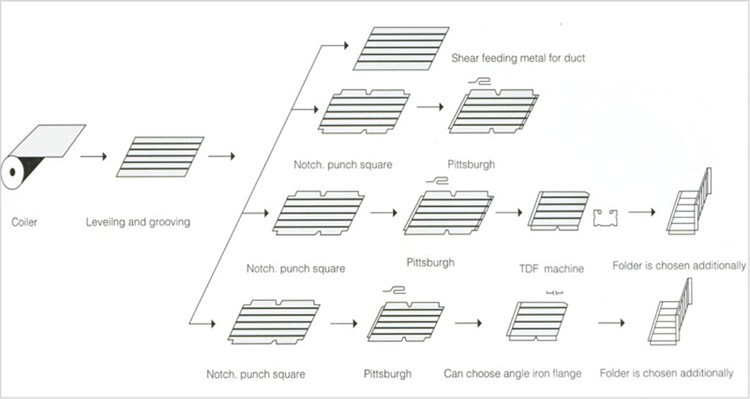

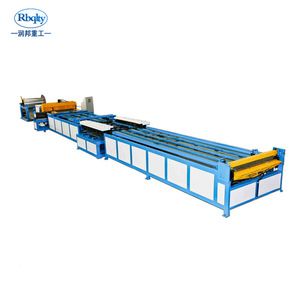

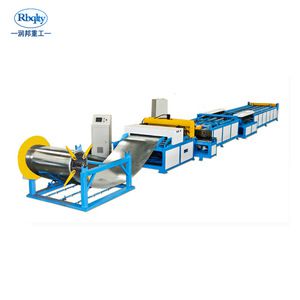

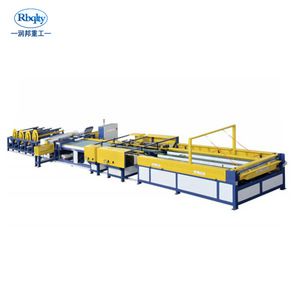

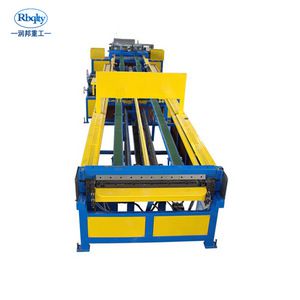

Duct V production line is composed of rack, leveling embossing, hydraulic pointed mouth and square opening, hydraulic shearing machine, joint angle displacement type nip machine, manipulator grabbing assumed a feeding platform, plate double joint flange and double linked list bone molding machine, servo feeding platform, TDF hydraulic crimping machine, electric control part adopts full computer control, bending servo feeding, positioning precision, especially the “ ” word processing line, guarantee the precision of bending. The max feed speed is 16m/min. The length error is ±0.5mm. The line can be used to process TDF flange and angle steel flange duct, with simple and rapid exchange.
The line covers small area, with linear processing and high production efficiency. It can produce a small section of the “ ” word wind pipe. The min section of TDF flange can be as small as 200*200mm.
Basic equipment: (V)
* 2 sets of electric feeding rack
* Leveling, beading, punching, die opening, cutting plate machine (each 1 set)
* Displacement type joint angle reel bone machine
* An electric feeding platform
* Double linkage flange machine
* A double linkage single bone (angle iron flange machine) machine
* A servo feeding platform
* Hydraulic bending machine
* A set of computer control system and software production
* An electrical cabinet
Technical data
| Model | Plate thickness range (mm) | Plate width (mm) | Max working speed (m/min) | Max coiler weight (Kg) | Weight (Kg) | Dimensions (mm) |
| SDJL-V | 0.5-1.2 | 1300 | 16 | 6000*2 | 9500 | 24000*3500*1300 |
| 1600 | 10000 | 24000*3800*1300 |

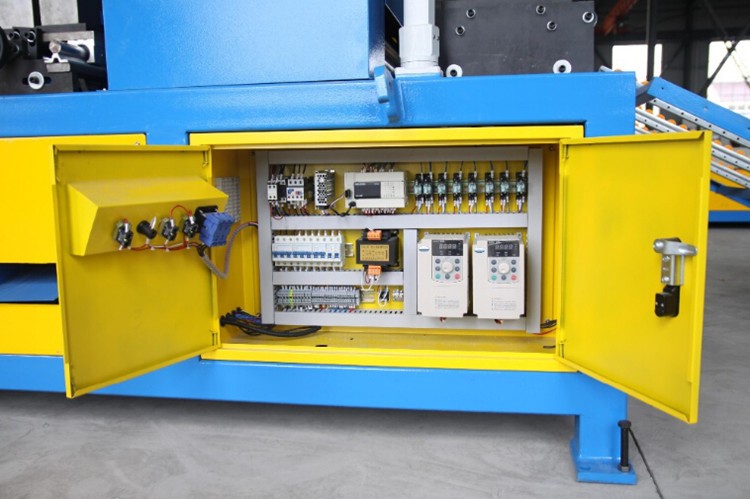

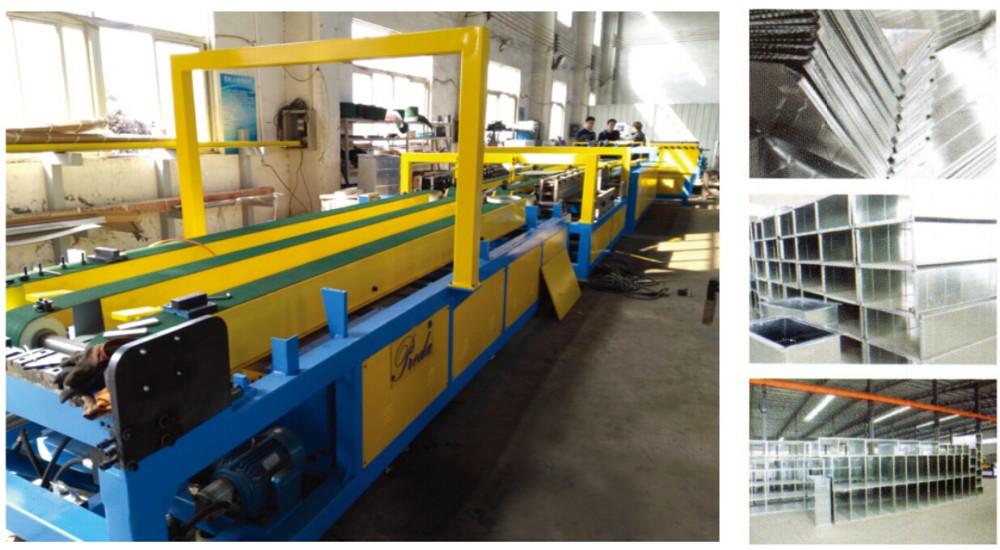

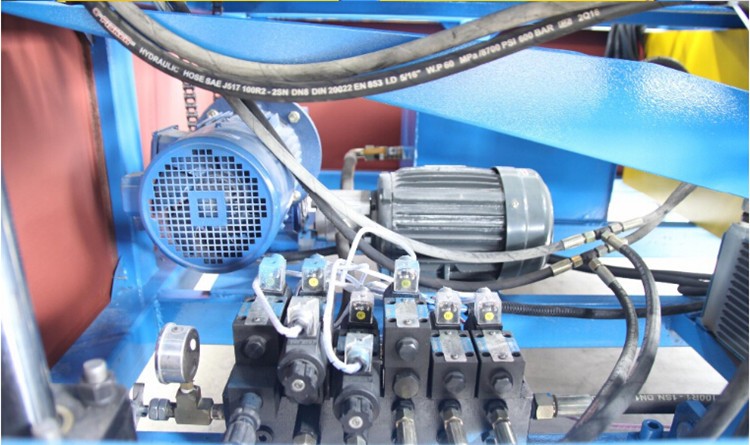

The details photos:

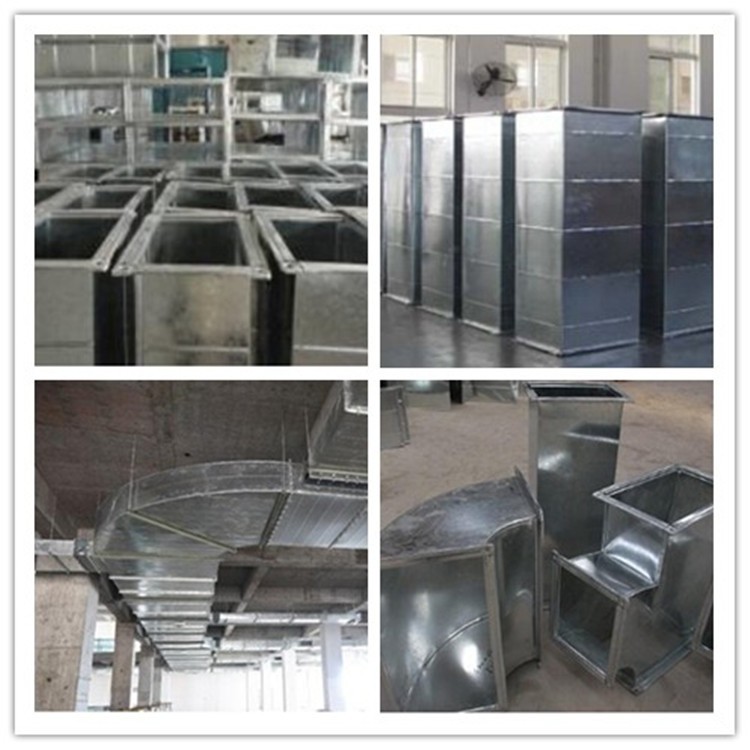

The ending products show:
Our Certificate
FAQ
*RBZG has our own factory and brand; Our machines can match all the CE standard or more strict ones.
*Quality assurance: 2 years warranty and 100% quality inspection before packing.
*Service:Impeccable after-sale service, and all your problem will be solved within 24 hours.
*Price: Can be negotiable according to the qty.
*MOQ:1 set.
*Howtovisit:You can fly to NanJing LuKou airport directly,you can also take highspeed train to Nanjing South Station from other city in China.We will pick you up in the airport or Train station.
