hotsale stainless steel driking water pipe making machine tube product line

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition

New

Type

Pipe Mill

Pipe Material

Stainless Steel

Application

Energy Supply Pipe

Production Capacity

1-10m/min

Place of Origin

Hunan, China (Mainland)

Brand Name

huaxialisen

Model Number

ZG30/ZG40/ZG50/ZG60/ZG80/ZG100/ZG120

Voltage

220/380/415/420/440V

Power(W)

7.5KW

Dimension(L*W*H)

Machine Configuration

Weight

5-15T

Certification

ISO

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Color

Customizable

DETAIL DESCRIPTION

Product Description

Product

The major products in our company is stainless steel pipe making machine including industrial pipe making machine,automotive exhaust pipe making machine,large caliber oil pipe making machine,water pipe making machine, heat-exchange pipe making machine,precision composite pipe making machine,high precision mould,polishing machine,light solution equipment,shear welder and cutting disk,which gain a leading position in the indusrty.Following is the main parameter of ZG series industrial stainless steel pipe making machine in our company.

model	ZG30	ZG40	ZG50	ZG60	ZG80	ZG100	ZG120
horizontal axis diameter(mm)	30	40	50	60	80	100	120
pipe range (mm)	Φ6-Φ25	Φ12-Φ38	Φ31-Φ63	Φ38-Φ76	Φ63-Φ159	Φ101-Φ219	Φ159-Φ325
pipe thickness (mm)	0.2~1.0	0.3~2.5	0.4~3.0	0.5~4.0	1.0~6.0	1.5~8.0	2.0~10.0
speed (m/min)	0.5~6.0	0.4~5.0	0.4~4.0	0.4~3.0	0.4~3.0	0.3~2.0	0.3~1.0
pipe length (m)	6	6	6	6	6	6	6
main motor power (kw)	4*2	5.5*2	7.5*2	11*2	15*2	22*2	30*2
grinding motor power (kw)	3*3	3*3	3*3	3*3	3*3	3*3	3*3
cutting motor power(kw)	1.1/1.5	1.1/1.5	1.5/2.2	1.5/2.2	2.5	2.5	2.5
welder current(A)	350-400	350-400	500-600	500-600	600A+ plasmatron	600A+ plasmatron	600A+ plasmatron
host length (mm)	7200	7900	9000	9500	15000	19000	24000
main accessories	feeding racks,grinding machine,cutting machine,stockrack.

Main Features

1.High level intelligent industrial pipe making machine.

2.Good welding mechanical properties.

3.High finished rate with low product cost.

4.Users-friendly and easy to maintain.

5.Well-structured and complete in specification.

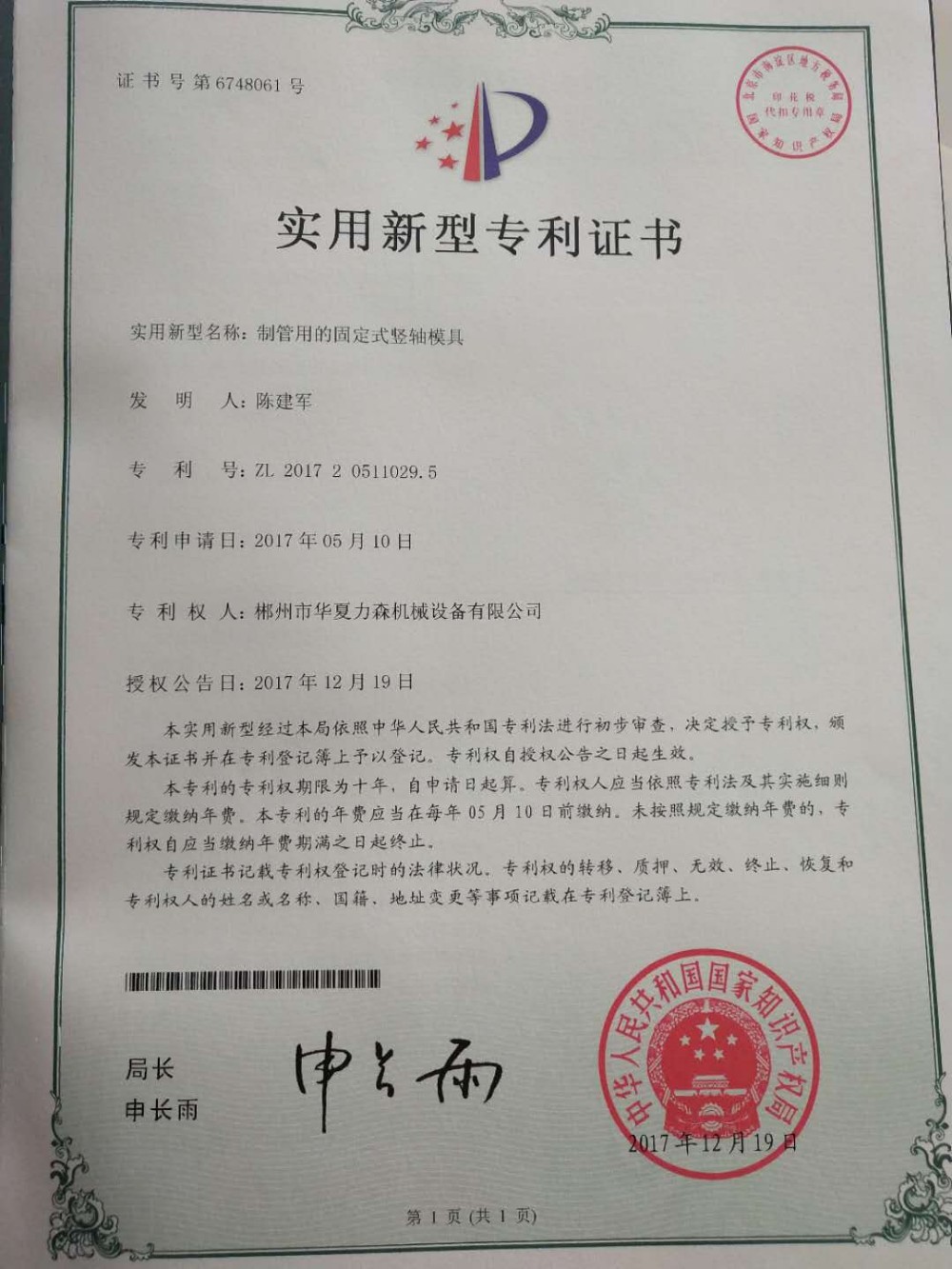

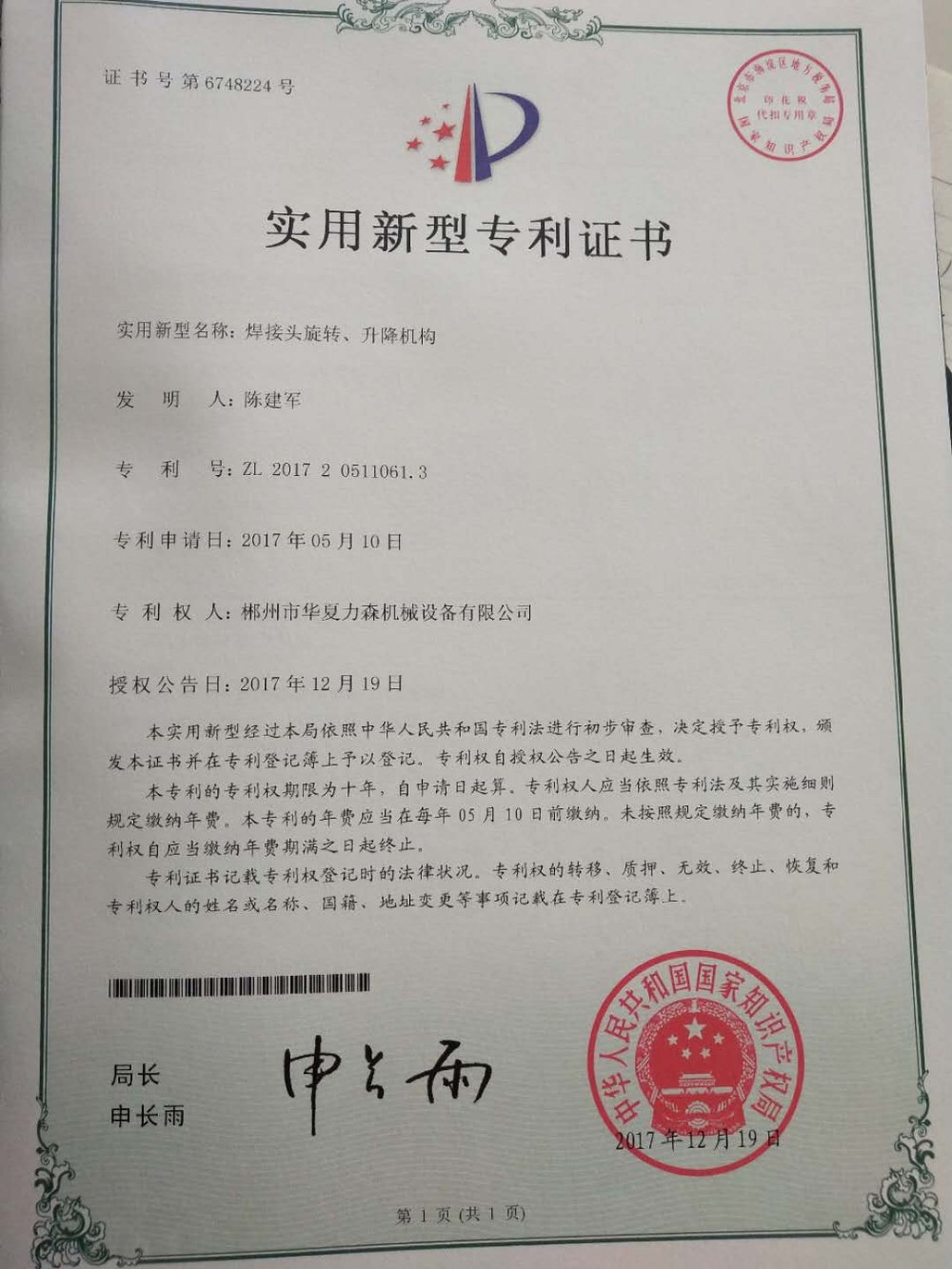

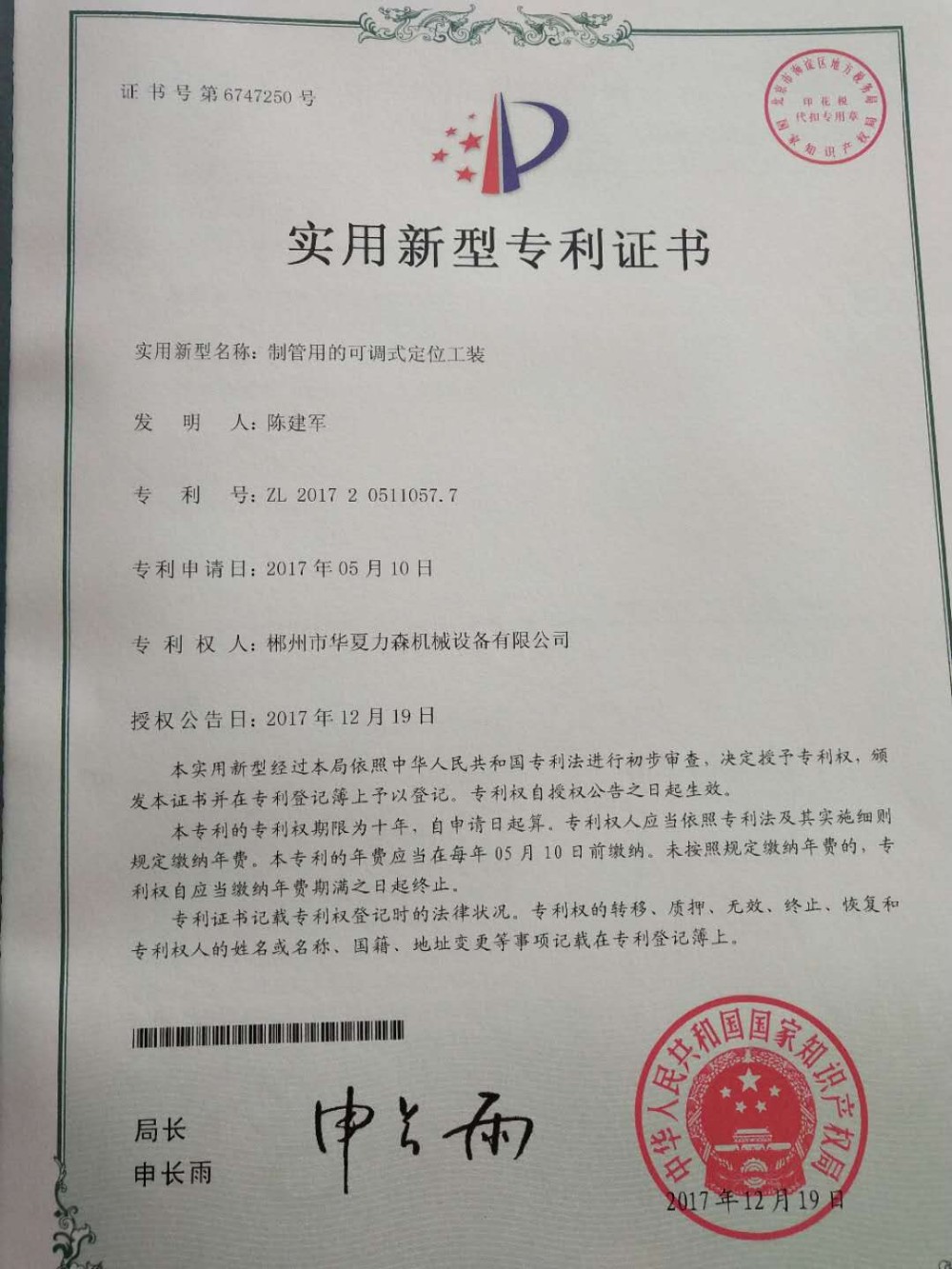

patents

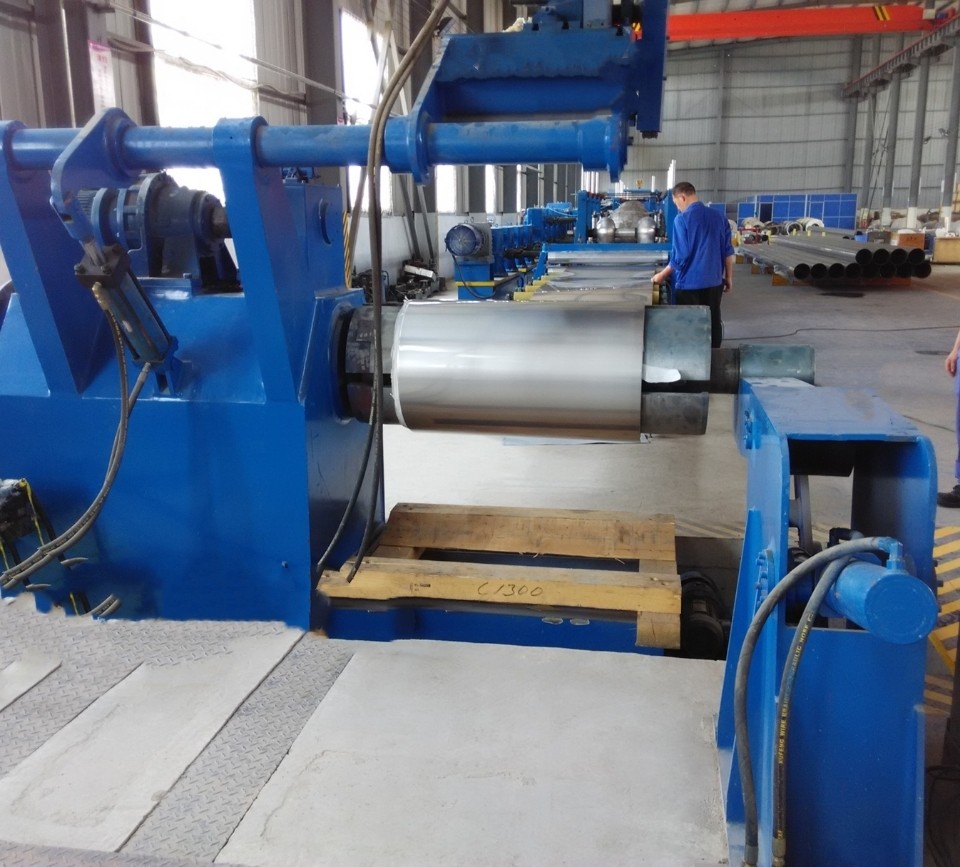

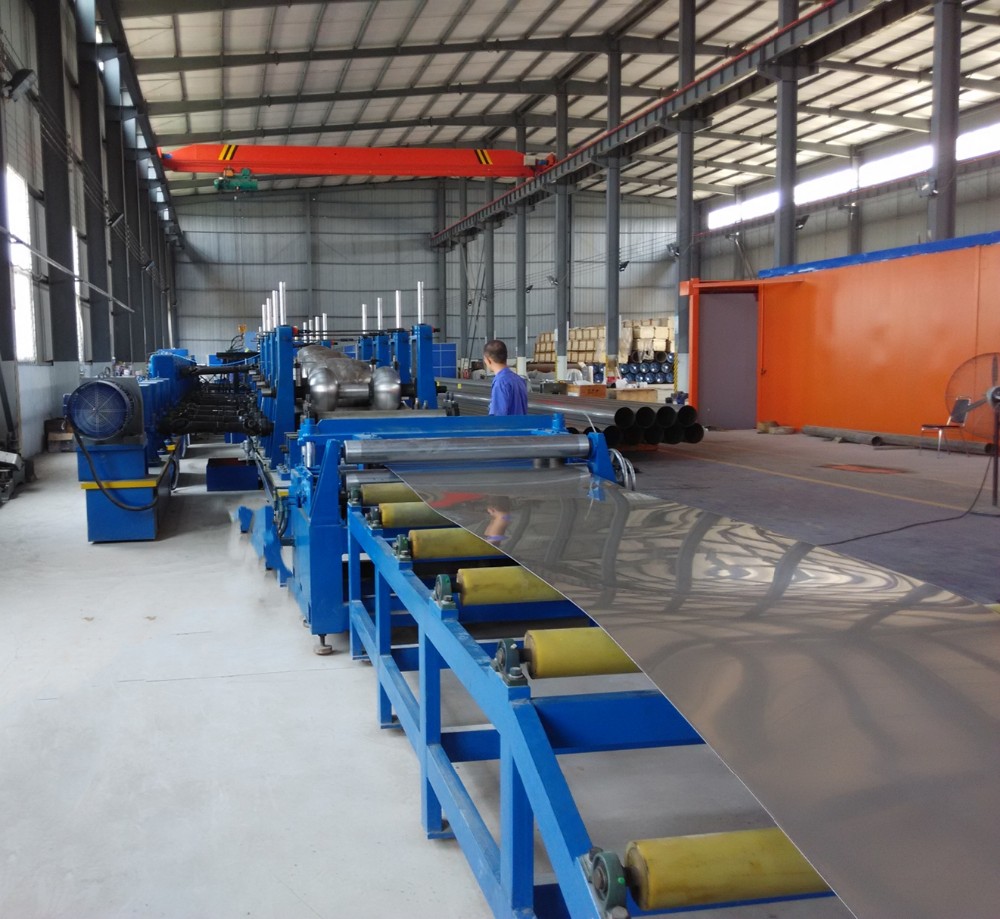

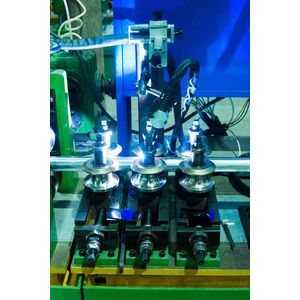

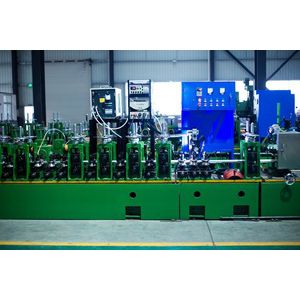

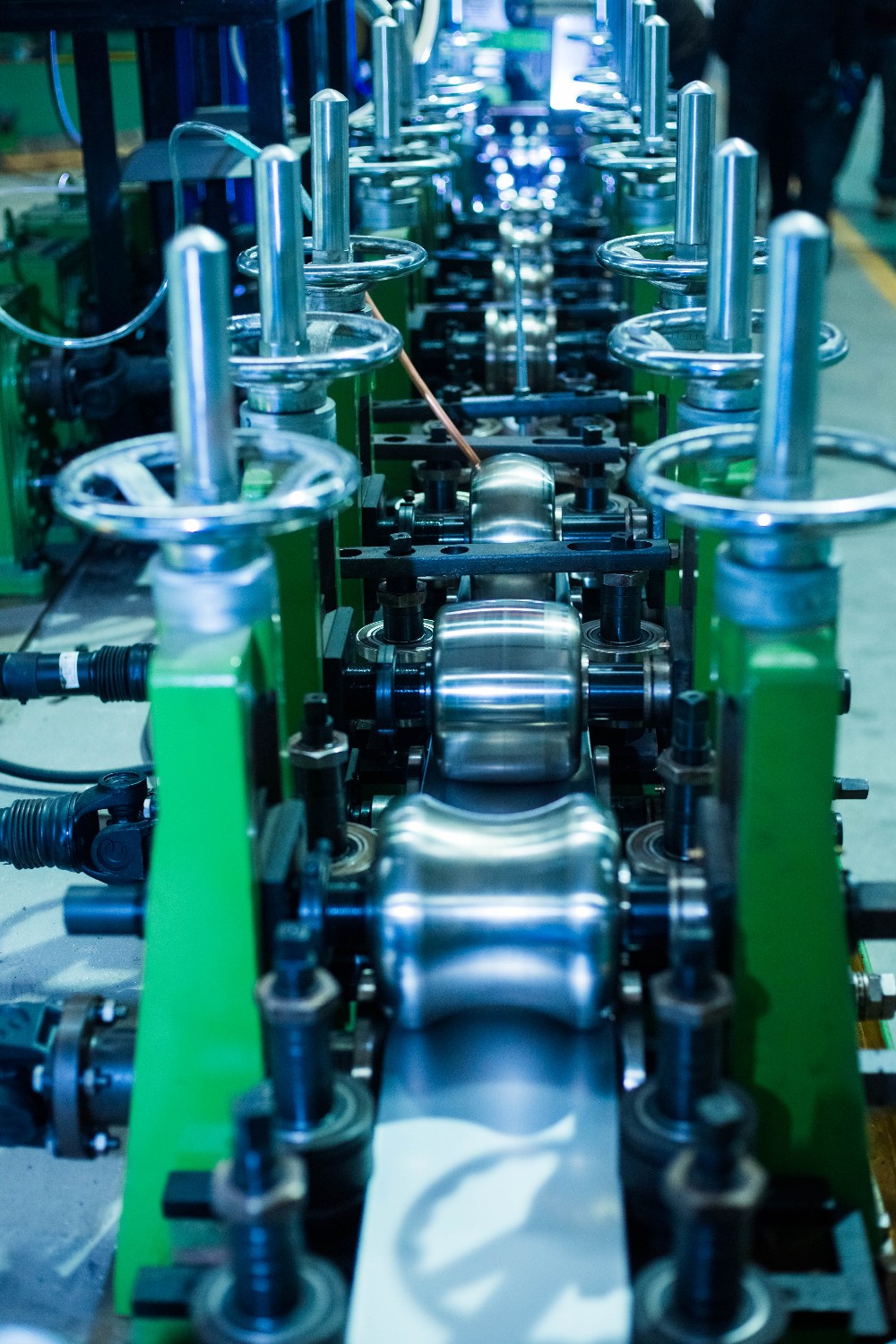

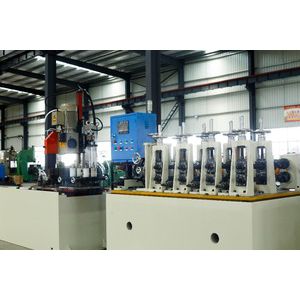

Detailed Images

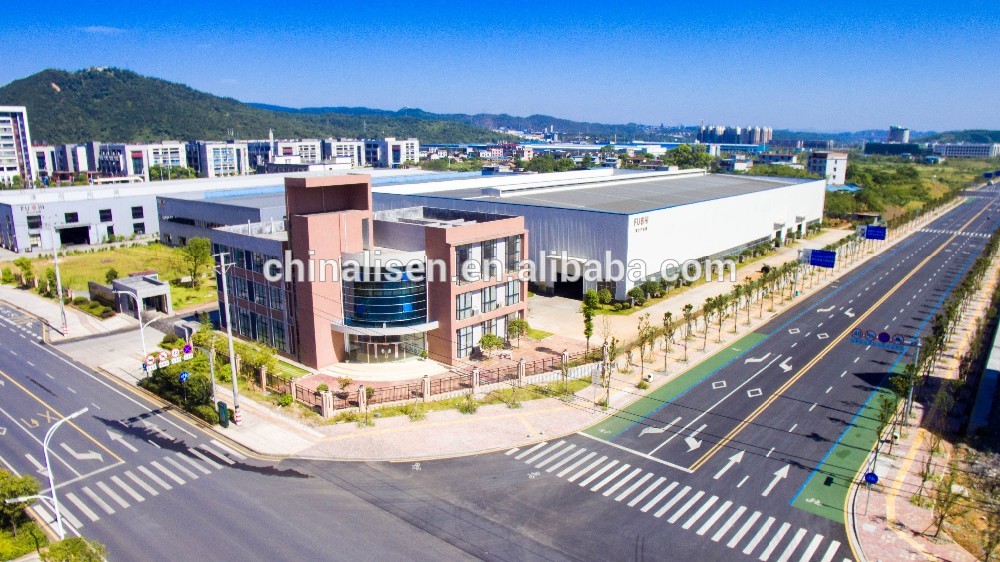

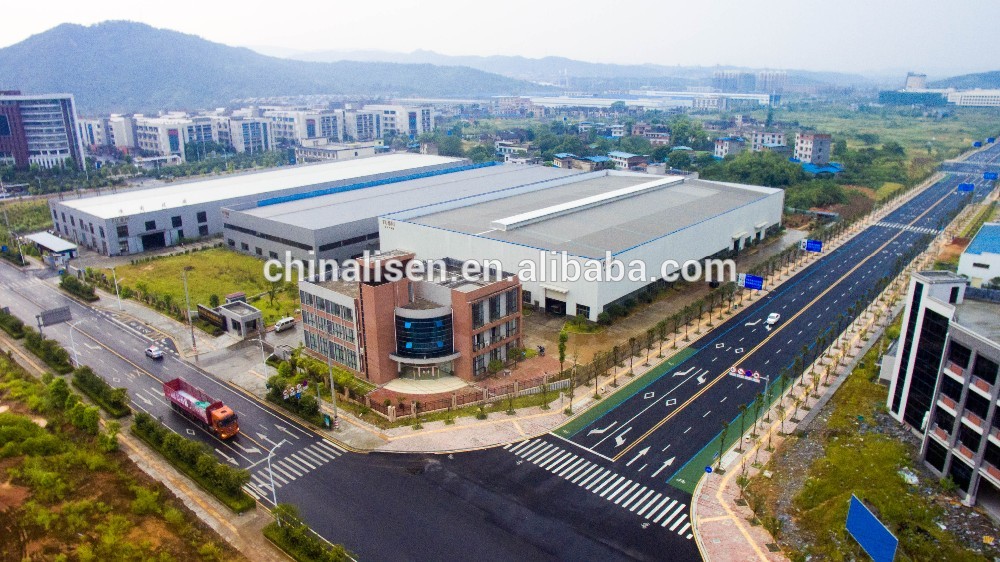

excellent geographic location

Be in traffic fortress,connecting home and abroad.Easy to contact customers deeply and satisfy their demand.At the same time,the convenient transportation cut the logistics cost quite drastically,that means a lot for buyers to reduce purchase cost.

Elite team

We have professional R&D group and experienced technical talents as well as high-quality administrator.Our production equipment and facilities are sound.And we focus on creating perfect quality and in building up top brand in stainless steel pipe making machine.

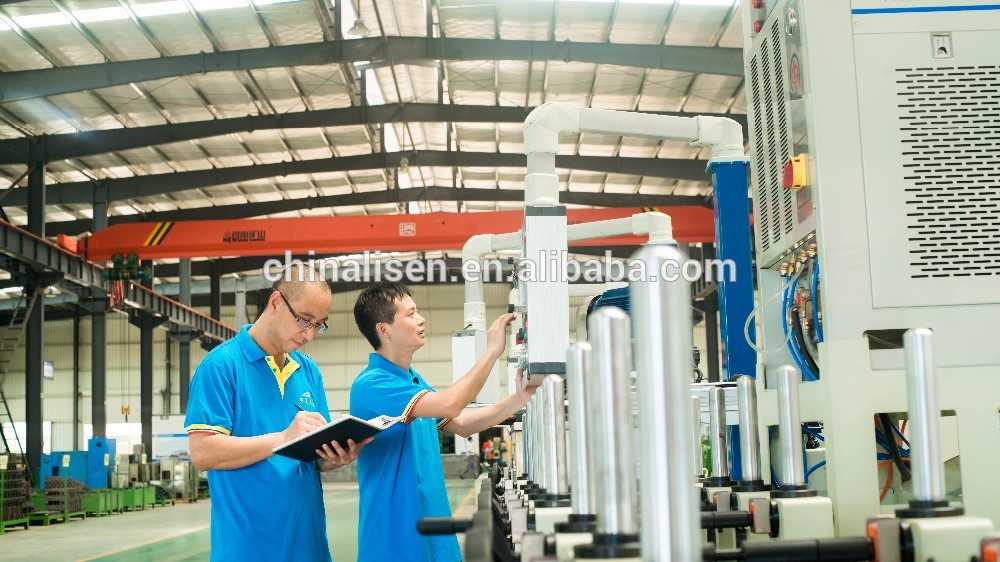

New-age products

New-age industrial welding pipe making machine is mature in technology,and the technique is delicate,which is well-known home and abroad for the characteristics of high intelligence,easy-adjusted,superior property and high precision.

Pursuit for excellence

In order to satisfy customers' demand better,we never hold our step to innovate.Integrating R&D,design,sales,service,we provide customers with high-quality products as well as good purchasing experience.And you will find it's totally right to cooperate with us.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	25m (L) * 1.4 m (W) * 2 m (D)
Weight	3T
Packaging Details	As per the export standard packing, safety for transportation by container.

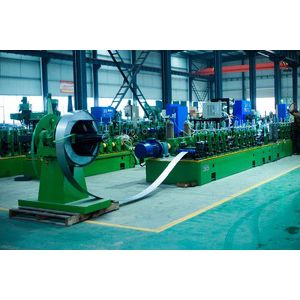

Large caliber oil pipe mill

91.8% Response Rate

Large caliber oil pipe mill

91.8% Response Rate

Large caliber oil pipe mill

91.8% Response Rate

HOW TO CONTACT US?

Tel:0735-2654922

Fax:0735-2654955

Contact Person:Ms.brisk wang

Mob:+86 18173517903

URL:www.chinalisen.com

24 hours online service

FAQ

FAQ

1. Q: What is our factory product range?

A: Stainless Steel Pipe Making Machine, Stainless Steel Tube Mill, water pipe making machine,industrial pipe making machine,large caliber pipe making machine,automotive exhaust pipe making machine,decorative pipe making machine,polishing machine,cutting machine,shear welder ,light solution quipment,cutting disk etc.

2. Q: How to order?

A: Please send us your purchase order by Email or Fax, or you can ask us to send you Proforma Invoice for your order. We need to know the following information for your order:

1) Product information: Pipe material, Pipe sizes ( Pipe diameter range and thickness range), Pipe Application, Price Item, Destination Port

2) Delivery time required.

3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.

3. Q: What are the payment terms?

A: For orders, we can accept T/T, D/P, or L/C at sight.

4. Q: What is the whole process for doing business with us ?

A:1) Firstly, please provide details of the products you need we quote for you.

2) If clients require order, we will provide Proforma Invoice for clients, and we will arrange to produce at once when we get 30% deposit.

3) We will send photos of all goods, packing, details, and B/L copy for client after goods are finished. We will arrange shipment and provide original B/L when the client pay the balance.

5. Q: What advantages we have?

A: Long-term business experience:

We have decades of experience in this industry. That means, we can preview the problems for the orders and products. Therefore, it will make sure to reduce the risk of bad situation to happen.

Point to point service:

There is one sale who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him/her for all problems and the way saves much time.

Free customization:

If our standard machine models cannot meet your requirements, the professional customization will be supplied based on your practical needs freely. and we will arrange to produce at once when we get 30% deposit.

Strict QC:

For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoid within door.

Shipping:

We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.

6. Q: Can the logo or company name to be printed on the products or package?

A:Sure.Your logo or company name can be printed on your products by stamping, printing,embossing,die cast, coating or sticker.
