High Speed Best Selling Pneumatic Marking Machine Control System
Main Features Of Pneumatic Marking Machine Control System
1 Pneumatic marking machine is automatically incremented and the value optional.
2 The software can be auto updated with auto adjustment and trace.
3 As the marking location changes,the marking needle can move to the new location.
4 Input methods using manual input, made by different contents of different type of print documents.
5 This machine with graphics editor print function, the user can use AUTOCAD editing some simple graphics
6 Many characters for optional, as more than 200 types English characters.
7 It can mark different characters same time with the rotary angles.
8 There is external routine interface in the software.Through the SQL script,it can connect the external database.
9 Automatically marking function after start without human intervention.
Technical Parameter Of Pneumatic Marking Machine Control System
Marking range | 90x110/90x180 mm |
Marking speed | 1-180 characters/s |
Marking content | Number, character, common symbols, all kinds of graphic, Chinese characters. etc |
Equipment power | 300w |
Air pressure rate | >0.25MPa |
Impact force | 0-25kg |
Impact frequency | 300Hz |
Control system | 380mmx425mmx160mm |
NO | NAME | MAIN CONFIGURATION | QUANTITY | REMARKS |
1 | Control Box | Micro Stepping Driver | 1 set |
|
Photo Electric Control Board Imports of Industrial Control Chip and Electronic Components | ||||
Transformer | ||||
2 | Mark head | Taiwan HIWIN Linear Guide | 1 set |
90x110/90x150/90x180 mm
|
Tooth Belt | ||||
United States MAC Solenoid Valve | ||||
Japan SANYO Stepping Motor | ||||
3 | Software | ThorX 6 Mark Software | 1set |
|
4 | Electric cable | 19 core cable | 4pic |
|
Communication Cable | 1set | |||
Japan Omron Detection Switch Inductive Sensor Remote Control Switch | 1pcs | |||
5 | Pneumatic accessories | Imports of solid carbide Marking Pin | 1set |
|

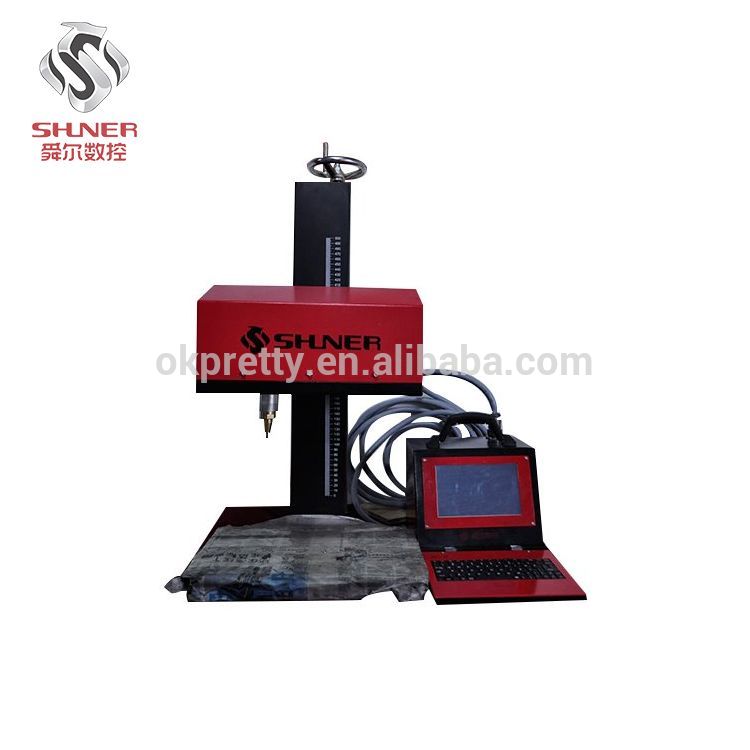

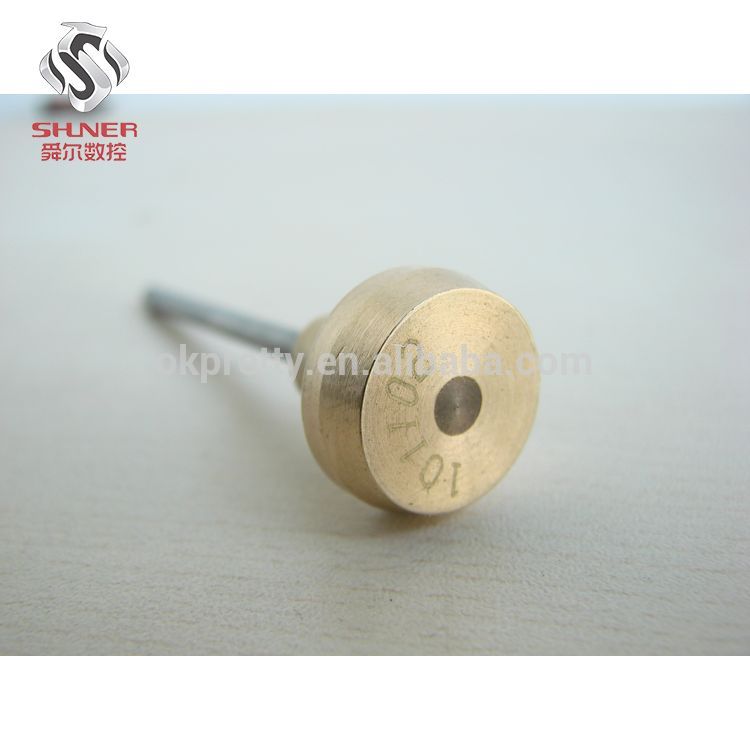

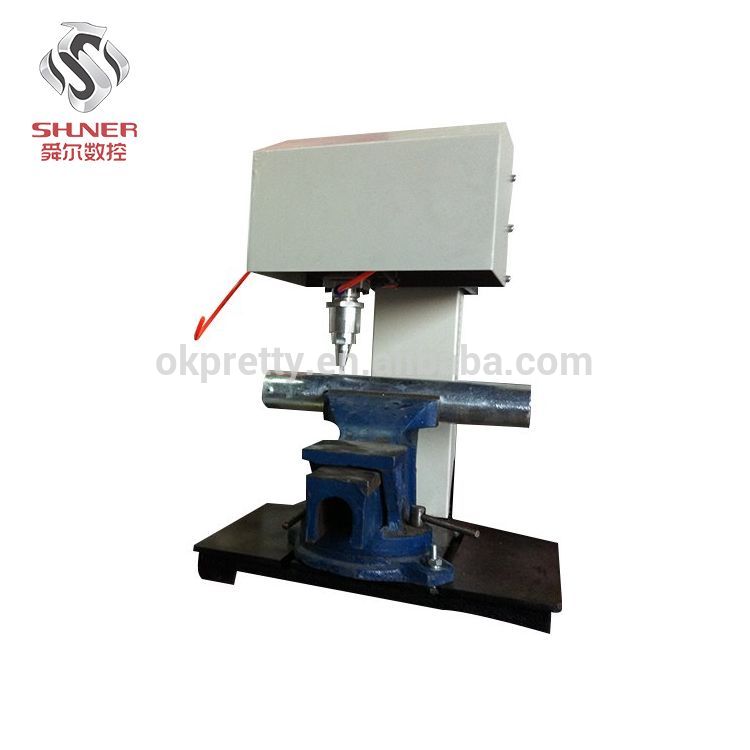

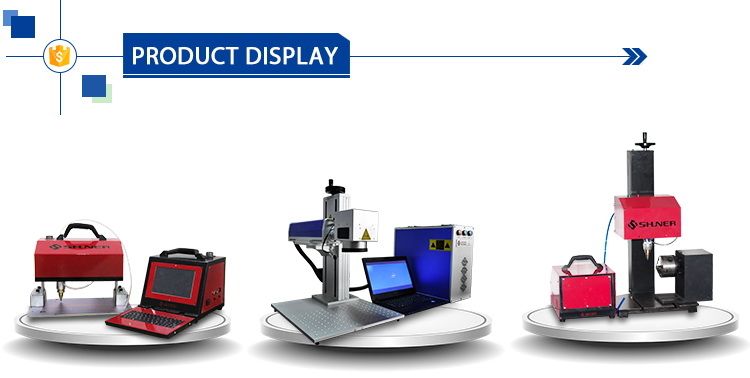

Product Picture Of Pneumatic Marking Machine Control System
