1)Purpose of QTY series pneumatic pressure reducing valve is regulating pressure to make air source in stable state to reduce damege to valve and actuator
2)Medium applied: Compressed air
3)Ambient temperature: 5~60°c
4)Nominal inlet pressure: 1Mpa
5)Max outlet pressure:0.8 Mpa

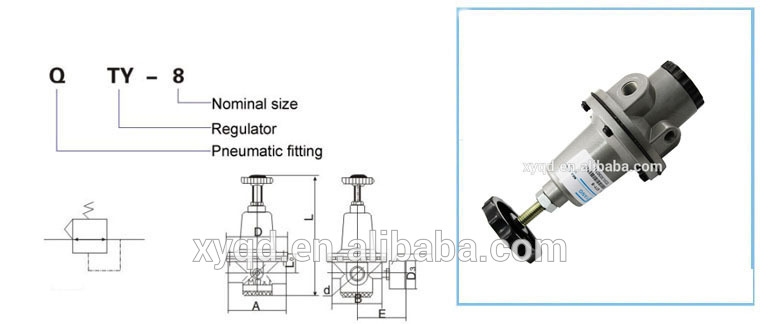

*Ordering code of Pneumatic Pressure Reducing Valve*

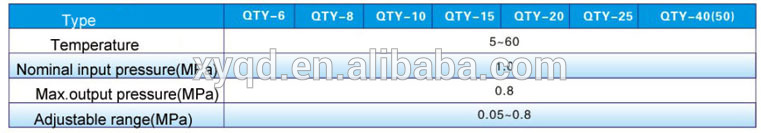

*Parameter of Pneumatic Pressure Reducing Valve*

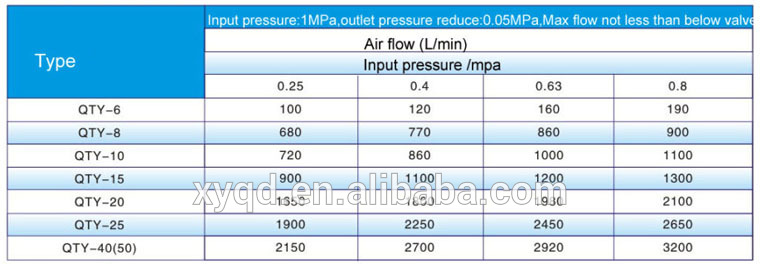

*Pressure drop and airflow characteristic of QTY Reducing Valve*

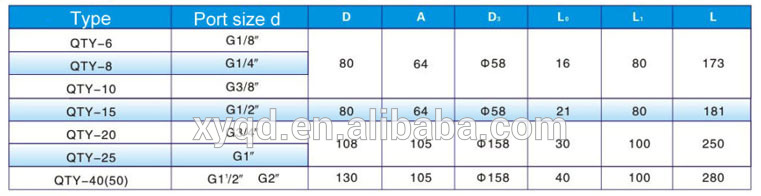

*Outline dimension of Pneumatic Pressure Reducing Valve*
Why to choose us?
1)We have own factory which has more than 150 enployees.We not only have advanced processing equipment,but also equipped with a consummate testing facilities and strong technical force.
2)We have sufficient stock for your purchase.
3)Our products are packed with solid carton and wooden case.
*Exhibition*

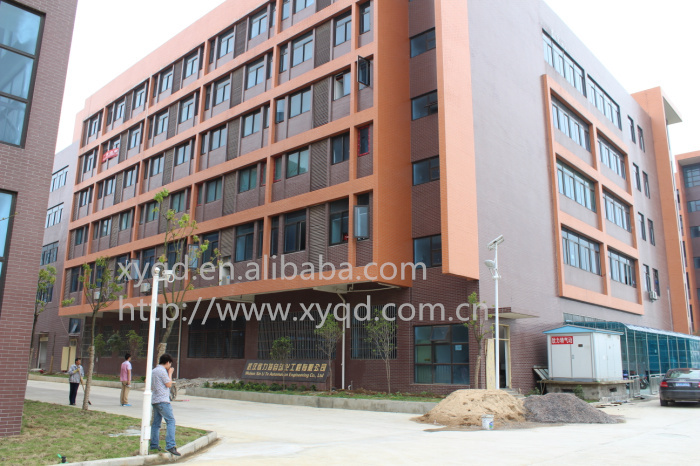

*Regular Customers Come to Visit Our Factory*
*Delivery Method of You Purchased Items*
Welcome contact me by email, i will reply you within 12 hours.
