ID card community pedestrian control turnstile

Red and green light to show pass or stop, leisure to exit and entrance.

Technical Feature

  • Guangdong, China (Mainland)
  • HMW
  • HM-TP18
  • Door Access Control System
  • Stainless Steel 304
  • 420 * 330 * 930mm
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
HMW
Model Number
HM-TP18
Product name
Door Access Control System
Material
Stainless Steel 304
Dimension
420 * 330 * 930mm
Length of the bar
510mm
Width of passage
u2264550mm
Power Supply
AC220u00b110%,50Hz
Communication
TCP/IP
Type
Semi-automatic
Application
Subway
Controller
ID/IC/RIFD card, barcode, fingerprint etc

DETAIL DESCRIPTION

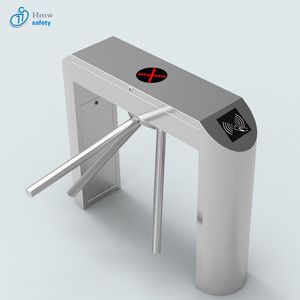

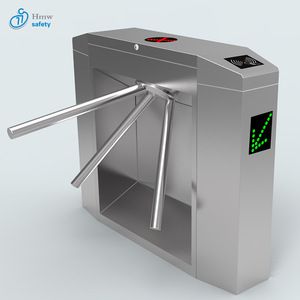

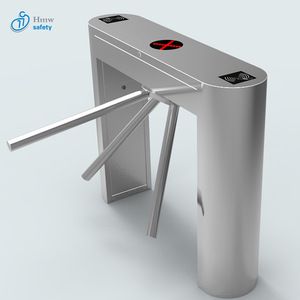

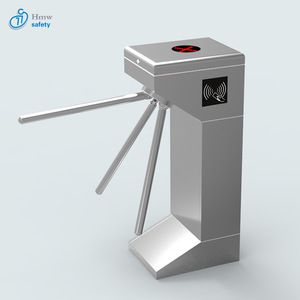

HW-TP18 Tripod turnstile gate for access control

Product Description

  Performance& features:

1.Auto replacement function, re-position after person pass by

2.Anti tail function auto-lock once turn 120° .

3.Arms auto drop when power off , insure unblocked when accident

4.Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work

5.Diverse control mode optional, changeable due to varying, convenient for your manage

6.Auto alert error function, comfort for user maintain and operate

7.Manual button or remote control ,Bio-directional passage

8.Open signal with memory or with out set function

9.Red and green light to show pass or stop, leisure to exit and entrance.



 Technical Parameter:

Power voltage AC220±10%,50/60Hz
 Drive voltage  DC12V+AC18V
 Operation condition  -15°C~+60°C
 Relative humidity None-condensation
  Input signal 12V DC level or 12V pulse>100ms
 Working Current less than 2000mA
 Length of the bar 510mm
 Service life ≥5 million
 Open angle 120°
 Pass speed less than 30 person/minutes
 Structure 304 Stainless steel
  Open direction Single and Double(optional)
 Work environment Outdoor and indoor
 Width of passage ≤550mm

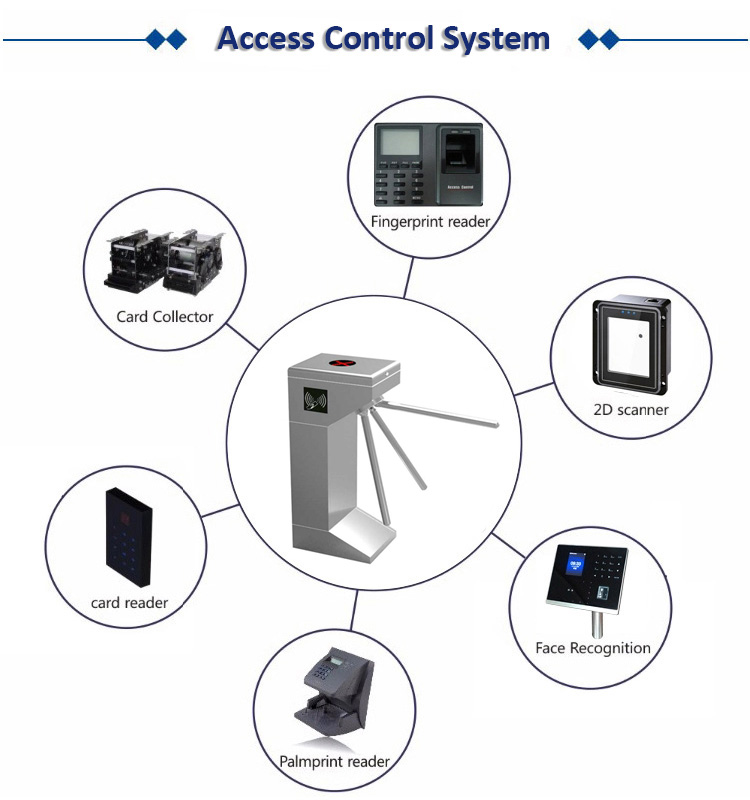

 Access controller RFID, Fingerprint, Biometric, IC/ID Card, ticket system etc

 Product application:

1.Tripod turnstile gate are compact and cost-effective entrance solutions.
2.The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
3.Tripod turnstile gate is ideal for indoor and outdoor settings.
4.It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Bio-metric device).
6.In case of emergency, the tripod turnstile gate will drop down when power off.
7.It is suitable for all kinds of places.

Packaging & Shipping

 Packing: Wooden box:130*38*108cm  G/W:55kg   N/W:35kg

Company Information

Product Lines

Certifications

Our Services

1. Any Inquiry will be replied within 24 hours.

2. Professional manufacture. Welcome to visit our wesite: www.hmwsafety.com.

3. OEM/ODM available:

1) Silk print logo on the handheld metal detector.

2) Customized the shape and color.

3) Any idea you have in mind on the metal detector, we can held you to design and put it into production.

4. Hight quality, fashion design,  reasonable&competitive price, fast lead time.

5. After-sale Service:

1) All product will have been strictly Quality Checked in house before packing.

2)All product will be well packed before shipping.

3)All our product have one year warranty, and we are sure the product will be free from maintain within warranty period.

6. Fast delivery: Sample order in stock, and 7-15 days for bulk production.

7. Payment: You can pay for the order via: T/T, Western Union, Paypel&Money Gram.

8. Shipping: We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS and shipping company.

You also can choose your own shipping forwarder.
