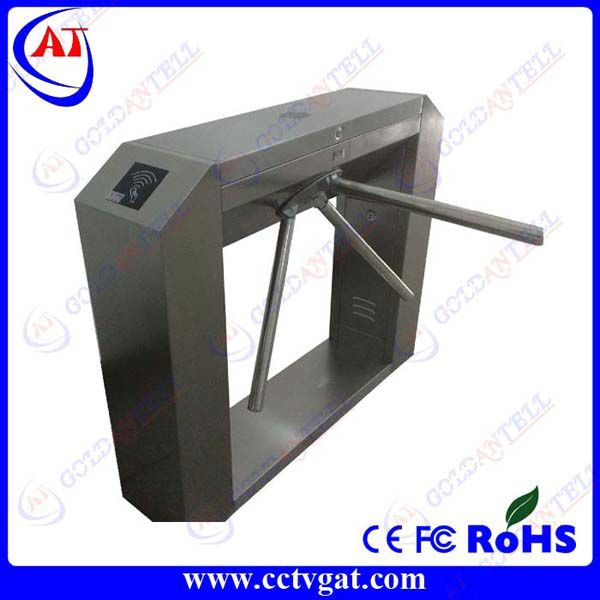

New styles stainless steel gate smart control system supermarket entrance wasit high semi-automatic auto tripod turnstile access
Auto tripod turnstile access specifications:
Size | 1200×280×1000 |
Housing Material | 2mm 304 Grade stainless steel |
G.W. | about 90kg |
Passage Width | 600mm |
Power supply | 220/110VAC±20%,50HZ |
Power consumption | about 260W |
Working temperature | -15°c ~75°c |
Working humidity | 20% ~95% non-condensing |
Service Life | above 5 million continuous opening and closing operation |
Passage efficiency | 30-40persons/minute |
Display type | 6.4" LCD with audio |
Card reader | 1D & 2D Barcode, RFID card or magnetic card |
Interface | TCP/IP or RS232/485 or dry contactor |

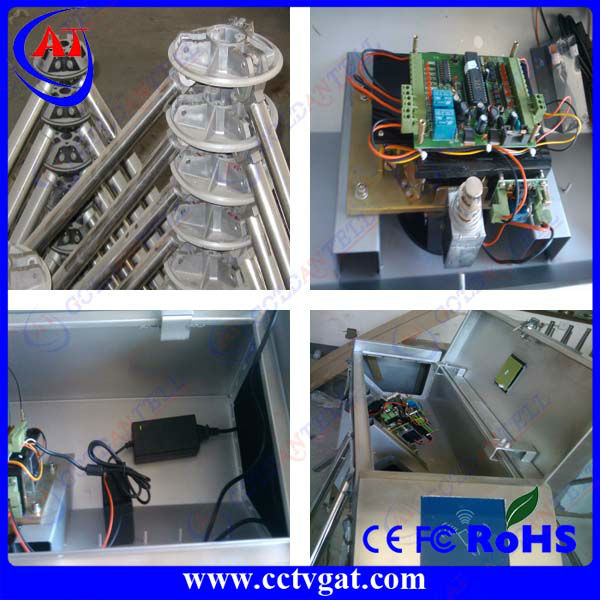

Details picture:
Auto tripod turnstile access functions and features:
1. Problem-self-checking function.
2. Many options of working ways: bi-direction cards reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm until passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interfaces for long-distance control concern.
8. Anti-rush function: if there is no open single, arm will be holding tightly.
9. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.
When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatically or stop working for a while with very slight force. Also it will alarm.
10. Swing barrier is with standard electrical interface for the integration of various readers and writers.
11. Swing barrier can count how many passengers have passed and will show it in the LED display.
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Swing barrier can control the population inside in the control of software.
15. Stable running with little noise.

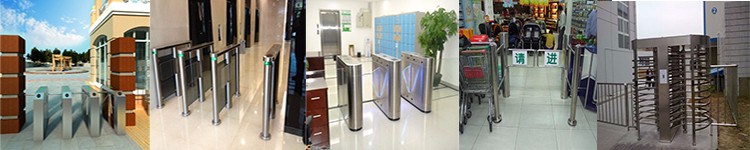

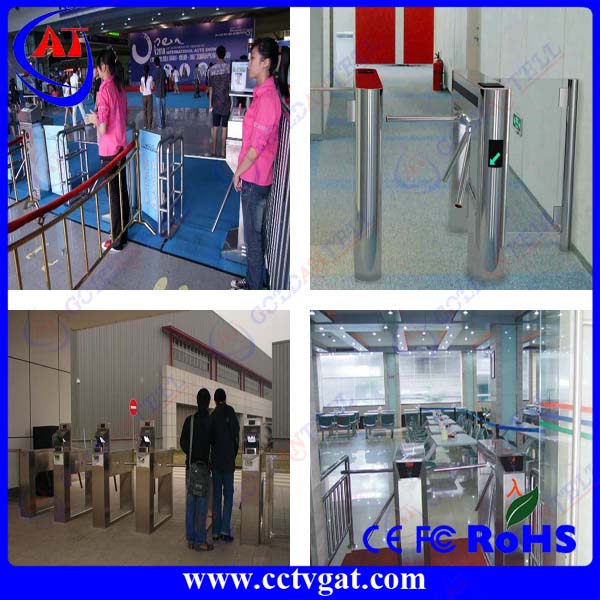

Project of tripod turnstile:

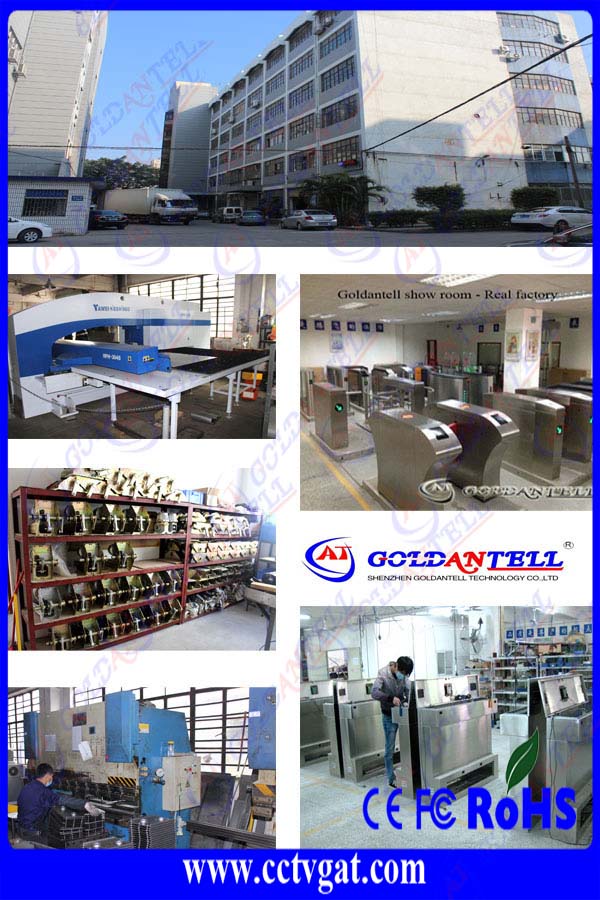

Who we are?
Our Shenzhen Goldantell Technologies Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years’ experience.
Our main products include intelligent turnstiles, parking barrier, RFID card, sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Our certificate:
Where are our customers?
We have sold turnstiles to more than 50 countries, like Brazil, Chile, Pure, Colombia,
United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, German, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar and so on.
We like to show some of our Customers as below:
Trade Term:
1. This offer is valid with 30 days.
2. Delivery time: Within 7 days after receive the payment.
3. Item of payment: T/T, LC, Western Union, Escrow, PayPal total payment before delivery.
4. Carton box + wooden case/crate.
Delivery detail:
1.When ship by sea, it normally takes 15-60 days depend on different countries.
2. We ship goods by UPS/DHL/FEDEX/TNT express which is door to door, it normally takes 3~ 5 days to arrive;
3. We can also help you ship by air cargo, it takes about 2-7 days to arrive;
No matter what delivery way, depending on your actual requirements.
Our services:
1. For all your inquires about us or our turnstiles, we will reply you in detail within 24 hours.
2. We own well-trained and passional sales & after- sale services who can speak fluent English language.
3. We offer OEM services. Can print your own logo on turnstile, can customize the retail box packing and other things.
4. We have very experienced engineers, can help you better use turnstiles.
Our contact details:
We got several kinds of communicate ways, just hope to keep good touch with you.
Goldantell turnstiles, factory price, high quality, welcome your inquiry!
