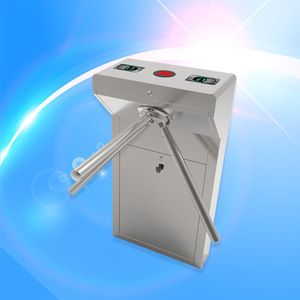

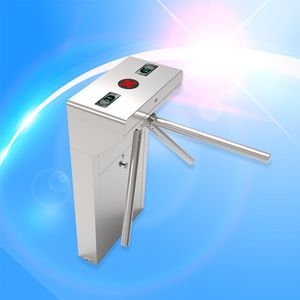

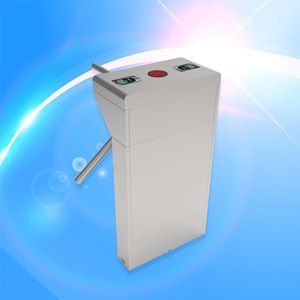

Security access control semi automatic turnstile/Fingerprint optional 304 stainless steel vertical tripod turnstile

Fingerprint and RFID Semi automatic bi-direction vertical tripod turnstile.

Technical Feature

  • Shanghai, China (Mainland)
  • Granding
  • TS300
  • AC 220V/110V, 50/60Hz
  • 520mm*980mm*280mm
  • 500mm
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Shanghai, China (Mainland)
Brand Name
Granding
Model Number
TS300
Power Suppy
AC 220V/110V, 50/60Hz
Overall dimension
520mm*980mm*280mm
Tripod Arm Length
500mm
Housing Material
SUS(304#)
Passing Speed
25-48 passage/Minute
Protection Grade
IP45
Emergency Button Input
YES
Optional Function1
Alternative material or shape, third-party access control intergration
Optional Function2
Ticket system integration, passage counter
Control system
Input controlled by dry contact

DETAIL DESCRIPTION




Product Description

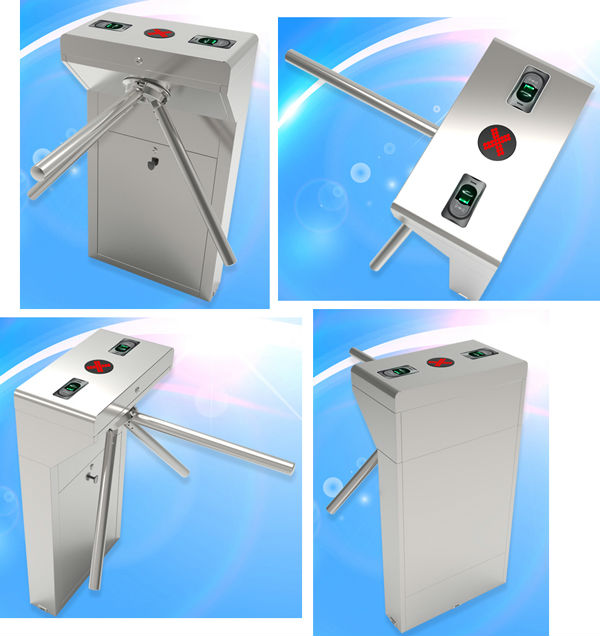

1. Fingerprint and RFID Semi automatic bi-direction vertical tripod turnstile.

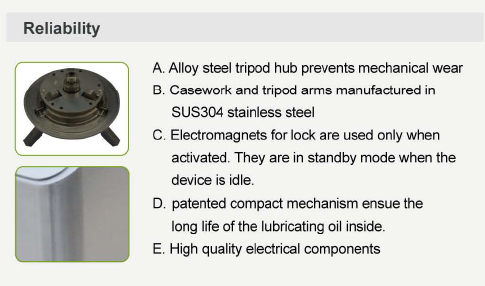

2. The housing of our tripod turnstile adopts SUS304 stainless steel materials; it is robust and durable design.

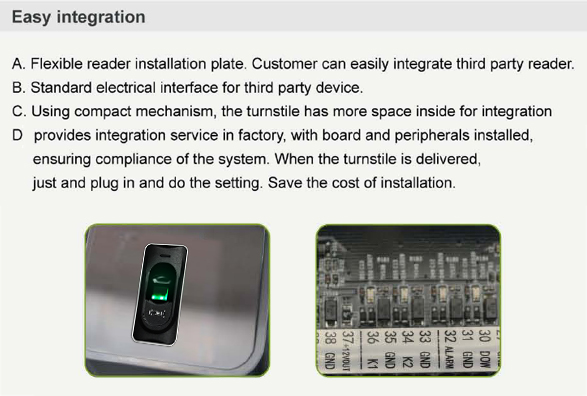

3. The standard electrical interfaces are flexible for integration with external systems; they could be integrated 4. with multiple devices like card and fingerprint readers. Meanwhile, they are equipped with specialized    interface for firefighting linkage.
5. Our tripod turnstiles can be used for access control, time attendance management applications and suitable for stations, wharfs, tourist attractions, exhibition and convention centers or special channel control for communities, factories, enterprises and public institutions etc.
6. Unified quality standards are implemented to ensure overall reliability, stability and fluency.





Features











Specification



Power Supply

AC 220V/110V, 50/60Hz

Operating Temperature

-28°C-60°C

Operating Humidity

5%-85%

Working Environment

Indoor/Outdoor(shelter)

Rated Power

60w

Flow Rate

25-48 passage/minute

Ingress Protection

IP54

Casework Material

USU304

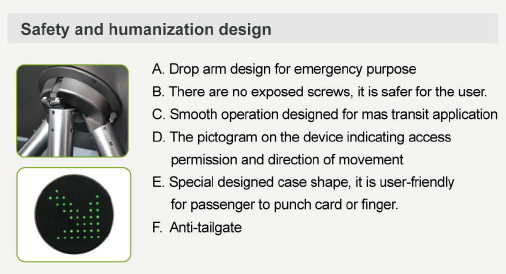

Pictogram Indication

YES

Control System

Input controlled by dry contact

Emergency Button Input

YES

Dimension

52CM*98CM*28CM+ Arm Length 50CM

Package Dimension

60CM*108CM*38CM

Net Weight

34KG

Gross Weight with Package

40KG

Optional Function

Alternative Material or shape,

third-party access control integration,

ticket system integration, passage counter

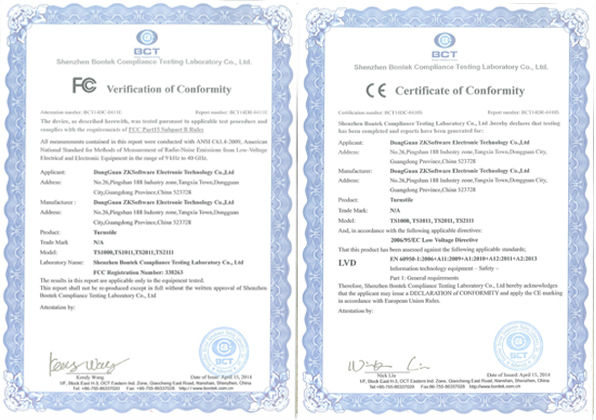

Certifications






Packaging & Shipping
