Semi-automatic strong vertical heavy duty gym waterproof tri-pod turnstile gate/door

Semi-automatic strong vertical heavy duty gym waterproof tri-pod turnstile gate/door  Product Description The tripod turnstiles efficiently guide high-volume throughput. With the possibility of indoor or outdoor installation, the tur

Technical Feature

  • Guangdong, China (Mainland)
  • SST
  • SST-N1005
  • 304 Grade Stainless Steel
  • 1200*280*980mm
  • tripod turnstile gate
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
SST
Model Number
SST-N1005
Framework
304 Grade Stainless Steel
Specification
1200*280*980mm
Type
tripod turnstile gate
Arms length
510mm
Logic voltage
24v
Interface
one standard port-RS485
Transit speed
30 to 40 persons per minute
Work environment
Indoor/outdoor
Warranty
1year
thickness
1.5mm

DETAIL DESCRIPTION

Semi-automatic strong vertical heavy duty gym waterproof tri-pod turnstile gate/door



Product Description



The tripod turnstiles efficiently guide high-volume throughput.

With the possibility of indoor or outdoor installation, the turnstiles are equipped with an anti-panic system that makes the horizontal arm blocking the passage drop in the case of anemergency evacuation or power cut.

Main Benefits
1. Bi-directional turnstile made especially for quick access control in areas with high traffic but limited space
2. An anti-panic system moves the arm from the horizontal to vertical position, thereby completely freeing the lane in the case of an emergency evacuation
3. Non-removable stainless steel arms to prevent vandalism
4. Durable, corrosion-resistant, heavy-duty mechanism for extended service life









Technical Parameter



1

Power

AC220C±10V, 50HZ

2

Commu.Distance.

≤1200m

3

Passing Speed

40 Persons/min(IC Card)

4

Motor

DC Brushless Motor, 0.5NM/24V(Fully Automatic)

5

Input Connection

+12V Level Signal or Pulse Wide>100ms

DC12V pulse,

6

Communication Connection

RS485 Communication Interface

7

Material

SUS304 or Carbon Steel Powder Coating

8

Protection Grade

IP54

9

Colour

SSB(US32D)- Stainless Steel Brushed / Powder Coating/

10

Applications

Subway Station,Hoverport,Tourism,Exhibition,Swimming Hall,

Residence Area

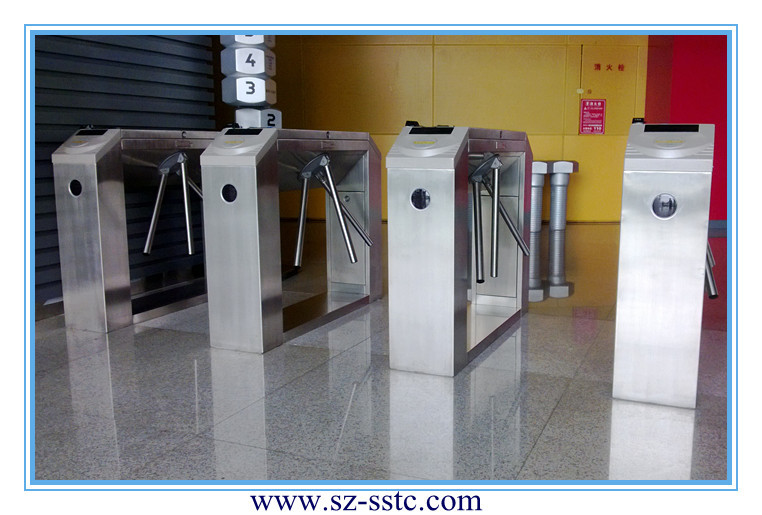

Product shows:











Solution

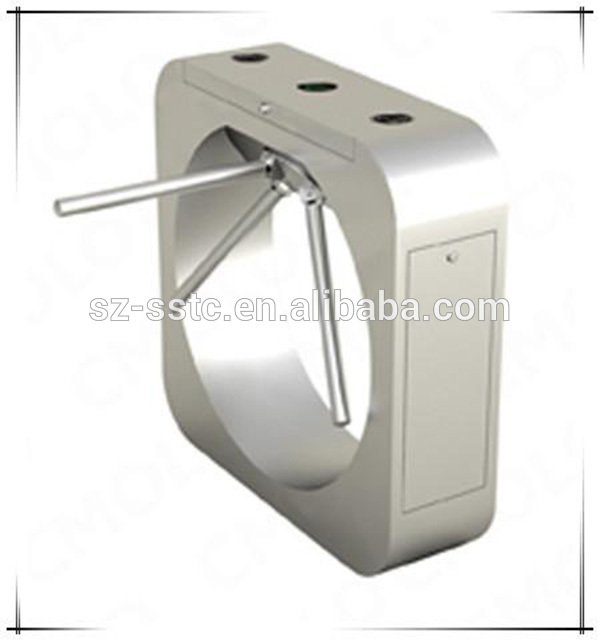

Dimension

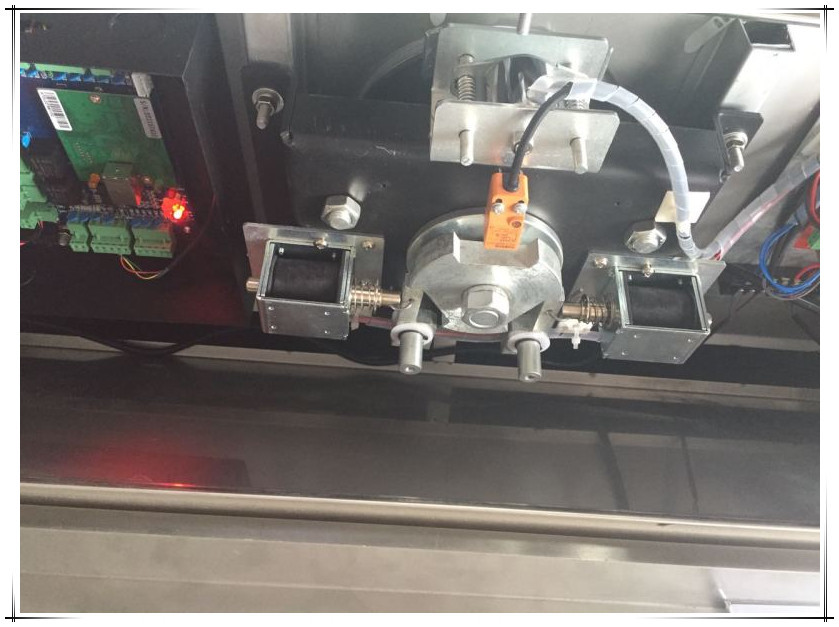

Detail shows

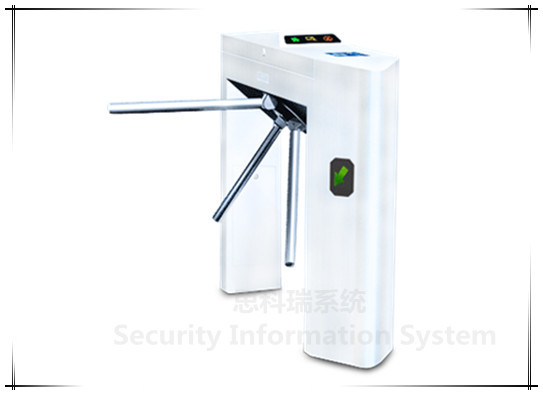

 Semi-automatic



Full automatic

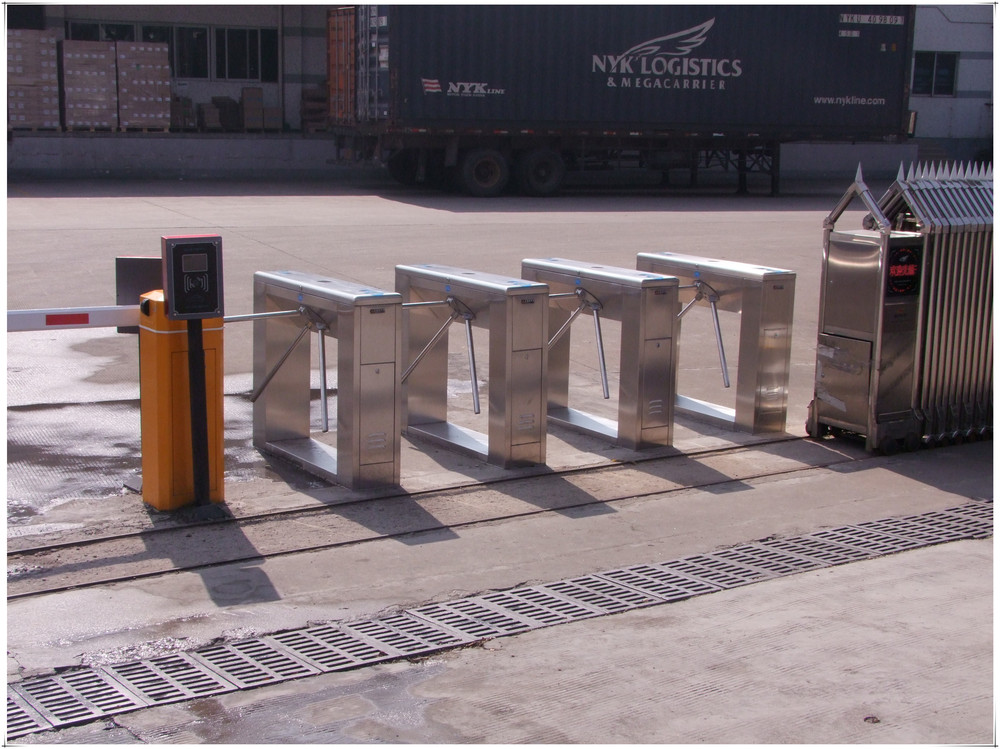

Application











Packaging & Shipping

Turnstile Package in standard export carton,

but we strongly suggest pack the turnstiles in wooden cage to protect the products.



First Step



Second step:



Last step:









Our Services



Any inquiries will be replied within 24hours.

Professional manufacturer. Welcome to visit our website: www.sz-sstc.com .

OEM/ODM available:
 1) Silk print logo on the products
 2)Customized design and color are available.
 3) Any idea on the products, we can help you to design and produce.

High quality, fashion designs,reasonable&competitive price and fast lead time.

After-sale service:
  1) All products will be strictly Quality Controlled in house before package.
  2) All products will be well packed with wooden case before shipping.
  3) All our products have 1 year warranty. The product will be free
from maintenance during  warranty period.
  4) If there is any problem when installing the products,please feel
free to contact me. We are here to support you.

Fast delivery
Sample order in stock,5-7days for bulk production

Payment
We can accept T/T,Western Union,Paypal&L/C

Shipping
As our products are big volume,and heavy duty, we suggest you to ship by sea.
You can also choose your own shipping forwarder







Our Advantage:



1.One-stop procurement service is available.
2.Quickest delivery and best aftersales service.
3.Veteran technician solves all your problems.
4.Passionate and professional sales makes a wonderful team.
5.Competitive and reasonable price with high quality products and advanced technology.
6.Providing the most professional solution as soon as possible according to your requirements.

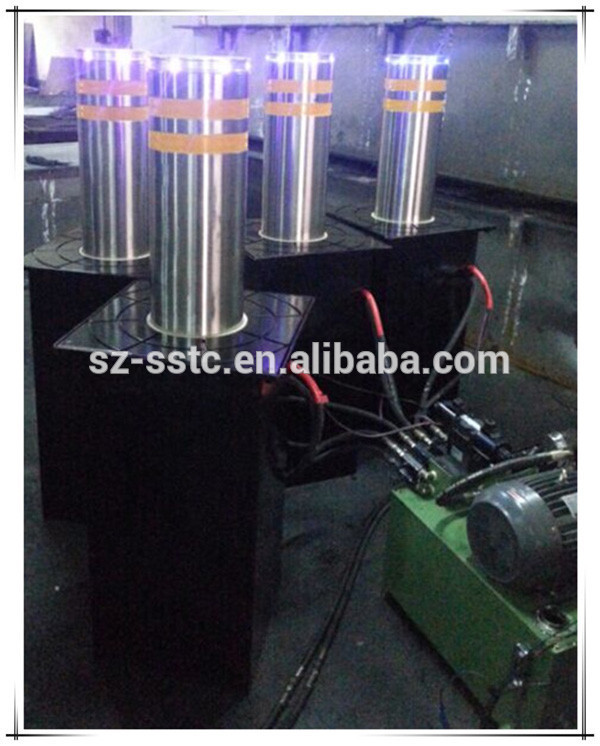

Product Variety about turnstiles:
