TEC-215 tripod turnstile semi-automatic tripod turnstile for access control system

The turnstile provides a basic tripod to control access smoothly and effectively by basic operation, and also prevent illegal in and out.

Technical Feature

  • Guangdong, China (Mainland)
  • TEC
  • TEC-215
  • red/yellow/blue
  • stainless steel
  • vertical tripod turnstile
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
TEC
Model Number
TEC-215
color
red/yellow/blue
material
stainless steel
type
vertical tripod turnstile
type-2
auto

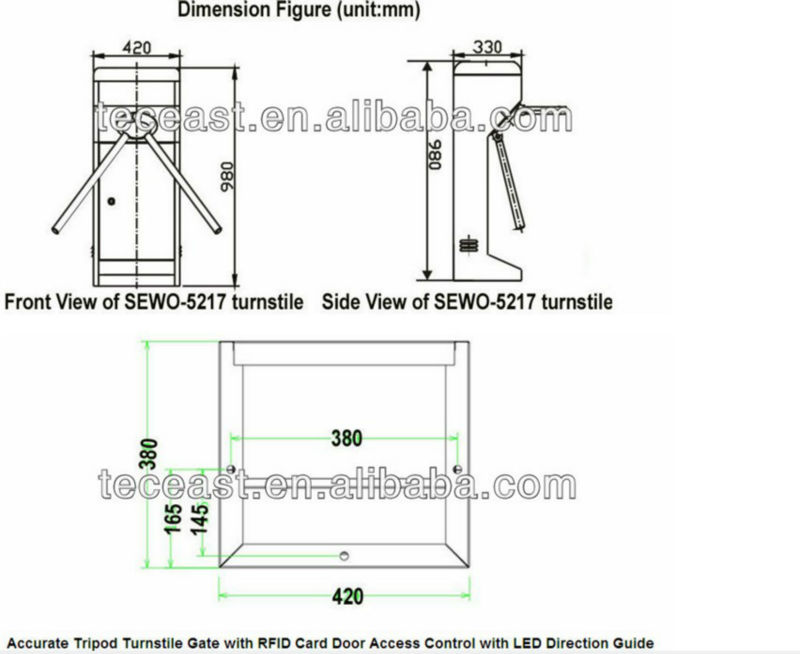

Dimensions
420 * 330 * 980 (mm)
MOQ
1
Express
DHL/UPS/EMS/Fedex
package
Wooden Box/Carton Box
payment
T.T/Western Union
warranty
12months

DETAIL DESCRIPTION

TEC-215 tripod turnstile semi-automatic tripod turnstile for access control system





1.Technical Parameters



 The turnstile provides a basic tripod to control access smoothly and effectively by basic operation, and also prevent illegal in and out. The machine is well in design, rustproof, durable and can resist external destroy.



 Technical data

Housing Size

420x330x980mm

Passing speed

30 person/min

Housing  Material

304#stainless steel

Working  power

AC220V±10V,50HZ

Thickness:1.5mm

Net  Weight

35 kg

Gross Weight

50kg

Control  type

IC/ID/Barcode

Communication interface

Standard RS485

control/Fingerprint

accepted

Max channel width

≤600mm

Operation life

≥5 million times

Logic voltage

24v

Working  temperature

-25°C--+60°C

Operation mode

one directional or

Operating  humidity

≤90% non-condensing

bi-directional optional

Machine center

 imported Germanic

Working environment

indoor or outdoor

technological motor



Application:



Tripod turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!

etc.

Operating mode:

1), free access

2), permanently locked

3), Locked, but free to rotate in case of power failure

4), electrically controlled

5), electrically controlled, but free to rotate in case of power off



Product features

1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.

2. Running stable, little noise and no mechanical impact

3. Self-checking-power-on function, if power on, turnstile will auto get to be held.

4. Various working means can be set in the control panel menu, 5. If power off, arm will fall automatically while power on later, arm should be lift by hand. First press the arm with a little force and then lift it manually.

5. RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.

7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.

8. It will count the pedestrian and will show the number on LED display directly. (LED is optional)

9. LED direction guide

10. Card reading memory or card reading without memory function can be set.

11. If working with software, the total-in-population can be set to satisfy special request.

12. Re-position function.

13. Card mounting is available.

14. Uncompleted wheel turning system is adopted for locking the turnstile in zero, and unlocking will be more reliable and accurate.

15. Extend:

1), Voice prompt

2), dual color, 4 words LED display

3), fingerprint card

4), spit vote

5), remote mode

16,Audio prompt function is optional.

17,Effective railing barrier opening signal with memory and without memory can be set (adjustable).



Best package for long distance transportation
