Semi-automatic electric security round pillar high speed swing barrier gate
Main Specification
| Power voltage | AC220 ±10% V/50 ±10% HZ |
| Drive voltage | DC 24V |
| Pass speed | 50person/minute(always open),35-40person/minute(always close) |
| Dimension | 1400*1040*141mm |
| Cover thickness | 1.5mm |
| Cabinet thickness | 1.2mm |
| Open direction | unidirectional or bidirectional |
| input interface | Dry contact signal or 12v DC level or 12v pulse≥100ms,drive current≥10mA |
| Length of the bar | ≤300mm, Standard bar length 260MM |
| Channel width | ≤600mm |
| Open angle | 180° |
| Running life | Continuous Opening and Closing operationMore than 3 million times |
| Relative humidity | ≤90%,None-condensation |
Communication port | TCP/IP |
Features
1.Fault self-test and alarm functions,convenient user maintenance and using
2.Via the control board Built in a small dish,Programmable devices running status
3.Anti-Pinch mechanical structure,anti-bumps function, when the swing arm reset process meet resistance, within a limited time automatically stops the motor, the default delay after the reset again (until reset), and the force is very small (≤2Kg )
4.Break into protection function, when the gate signal is not received, the arm automatically locked
5.Relative with a variety of reader device attached,working when receive relay switch signal

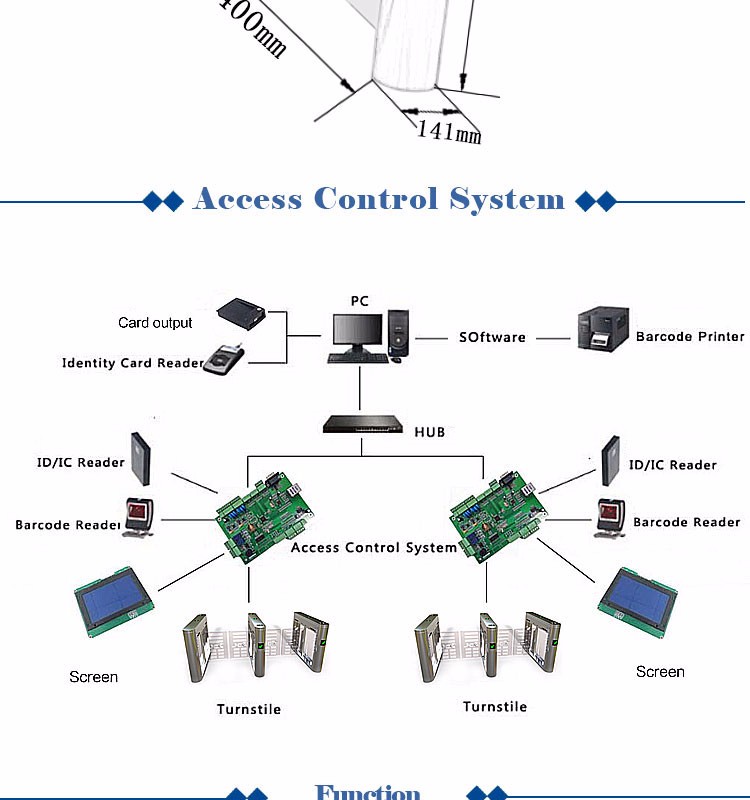

6.Remote control and management by the management computer
7.Power-off arm Automatic open,turn on automatically closed, can meet fire safety requirements
8.Pinch function (bridge type four pairs of infrared optional)
9.Accurate logic judgment and infrared reset function (4 or 6 pairs of infrared)
10.Counting function (optional)
Q:1.What’s the different between Single core and double core?
A:Flap gates: Single core only with one retractable Flap bar, Double core with two retractable flap bar on both side.
Swing gates: single core is one side with Swing bar, Double core with two swing bar on both side.
Q:2.Can we connect your access control system to the Original system?
A:Yes, we can provide SDK development or Software Data base connection port.
Q:3.Can your barrier gates using at outdoor, and can it waterproof?
A:Yes, the barrier gates with the design for waterproof.
Q:4.Do you have CE,ROHS,FCC,ISO9001 certification?
A:Yes, we have testing report and the certification, and also can send you the copy one with the goods.
Q:5.How we install the barrier gate? Is it easy to install the gates?
A:Yes,its easy to install the gates, we have do most of the jobs before send the gates to you. You just need use screw to fix the gates, and connect the power cable and the internet cable.
1.Trade assurance---You will get refund up to 100% Trade assurance order amount if the goods is not ship on time or don't meet the quanlity requirement.
2.24 hours online---You will get our quotation within 24 hours.
3.One year warranty---You will get the spare parts if any break down.
