Access control system Factory Price Tripod Turnstile Gate, Electric Semi Automatic Tripod Turnstile

Access control system Factory Price Tripod Turnstile Gate, Electric Semi Automatic Tripod Turnstile  Product Attribute  ModelFJC-Z3318AItem Semi-auto Tripod turnstilePower consumption50WHousing Size1200x280x950mmHousing material1.5--2mm, #30

Technical Feature

  • Guangdong, China (Mainland)
  • FUJICA
  • FJC-Z3318A
  • AC110V / AC220V
  • 1.5--2mm, 304# stainless steel, corosion resistant
  • dry contact, 12V level signal
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
FUJICA
Model Number
FJC-Z3318A
Voltage
AC110V / AC220V
housing material
1.5--2mm, 304# stainless steel, corosion resistant
turnstile input singal
dry contact, 12V level signal
turnstile channel width
550--600mm
working environments
indoor,outdoor
Arm drop while power off
Yes

DETAIL DESCRIPTION

Access control system Factory Price Tripod Turnstile Gate, Electric Semi Automatic Tripod Turnstile



Product Attribute



Model

FJC-Z3318A

Item

 Semi-auto Tripod turnstile

Power consumption

50W

Housing Size

1200x280x950mm

Housing material

1.5--2mm, #304 Stainless Steel, Matt finish

Channel width

550--600mm

Arm length

500mm

Arm turning angle

120°

Pass speed

25 persons/min.

Power supply

220Vac 50Hz or 110Vac 60Hz

Input signal optional

DC12V level signal or DC12V pulse signal

Communication interface

RS485

Arm drop while power off

Yes

Working temperature

-30°C~+70°C

Working environments

Indoor, outdoor

Relative humidity

≤95% coagulation free

MCBF

2,000,000 cycles

Warranty

1 year

Outside packing

Plywood box 1320x400x1120 mm

Pieces per box

1 pcs / box

Gross weight

98KG



Product Display





Dimension



Products details



Fujica pedestrian control tripod turnstile, can be easily to integrate with other read/write devices and systems, can fulfill functions like entrance control, time attendance, pedestrian volume control etc. It is widely used for applications like stadium, apartment, gym, museum, station, library and factory etc.



  1.  Provide normally open / normally close to satisfy management request.
  2.  Compatible with RF card readers, bar code readers, biometric readers, push button...
  3.  Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.
  4.  Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.
  5.  Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the turnstile opened. The passing time is adjustable.
  6.  Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
  7. (Optional) Support arm drop while power failure.
  8.  (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
  9.  One direction or bi-direction is optional.

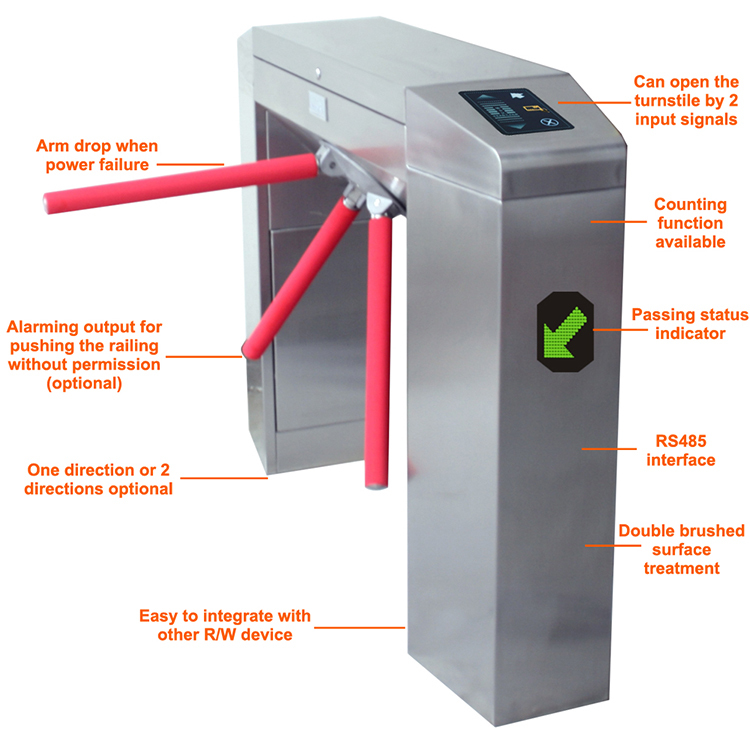

Matt finished housing surface,  dustproof and rainproof design for outdoor use.



Highly integrated solenoid mechanism, 100% heavy duty operation.



Drop arm when power off, for emergency use.



Compatible with other access control system.



Convenient installation and maintenance.

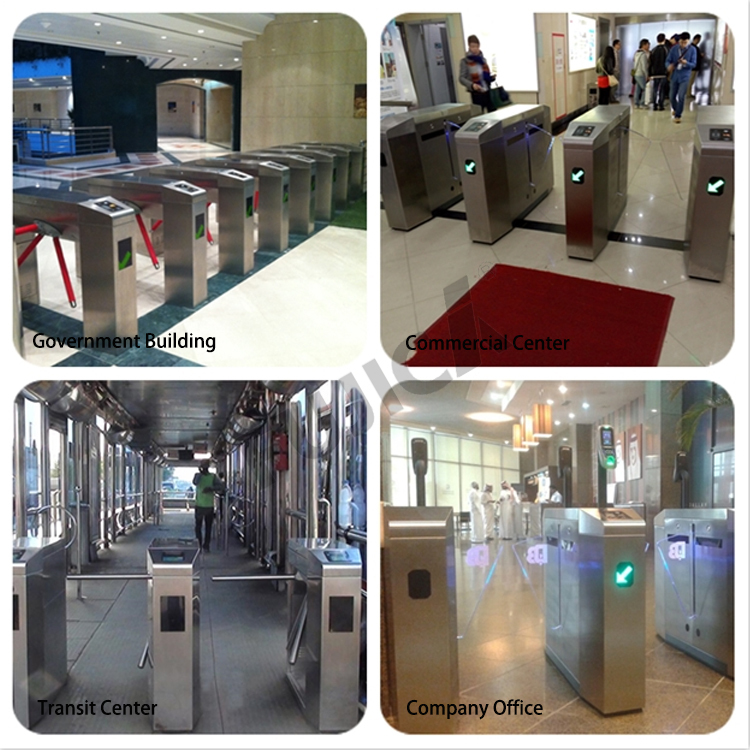

Application Fields



Government

Banking

Education

Office building

Gym/Stadium

Factory

FAQ

 1.Can we use our access control system?

   Yes, equipped with international interface, can be easily integrated with other recognition devices.



2. If we buy your products, can you train us?

   Yes, we can provide training free of charge. You can send your engineers to us, we will train them in our factory.



3. Can you make it bi-directional? Any extra cost?

   One direction or bi-direction is available, no extra cost.



4. Can it use for outdoor?

   Yes, can be used for outdoor and indoor.



5. What's you warranty?

   We provide one year warranty. After that, we can supply chargeable spare parts.

Packaging & Shipping



  • Size: 1320x400x1120mm
  • Gross Weight: 98KG
  • Package: Export packing, plywood box.
Company Information



Established in 2004, Fujica is dedicated in developing and producing car parking system, pedestrian gate system and door access control system, products including barrier gates, turnstiles, flap barriers, swing gates, etc.



Our products are competitive in design, craftsmanship, quality and cost performance. After a decade of efforts in intelligent system applications, we have broken the traditional rules to achieve revolution in hi-tech intelligentized system applications by using new concept which turns technology into fashion life. Our company is ISO 9001 approved and products are CE certified. We are exporting to more than 60 countries, and exhibiting in some famous security shows all over the world, such as Intersec, Secutech, IFSEC.

FUJICA is awarded as:







Top 10 Chinese Security Brands (2008)



National Hi-tech Enterprise (2012)



Shenzhen Top Brand (2011)



We have totally 500 staff members, including a very strong R&D team with 50 engineers and technicians. They are always ready to meet your particular requests of productivity and OEM/ODM, to supply standardized products with success specific and humanized design.
