Security gate finger print read baffle gate for metro tripod turnstile for access control system

The electric control adopts DC motor to drive stable and reliable, and has low failure rate.

Technical Feature

  • Guangdong, China (Mainland)
  • Bester Smart
  • SG01
  • SUS304 thickness(1.5mm)
  • ≤600mm
  • 420*330*980(mm)/free of case 510(mm)
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
Bester Smart
Model Number
SG01
Material
SUS304 thickness(1.5mm)
Channel width
u2264600mm
Size/Stick length
420*330*980(mm)/free of case 510(mm)
Input Voltage
AC220u00b110V,50HZ
Driving motor
DC motor50W/24V
Failure-free operation
Five million times
Weight
35kg
Motor speed
1600r/m
Traffic speed
35 persons/min

DETAIL DESCRIPTION

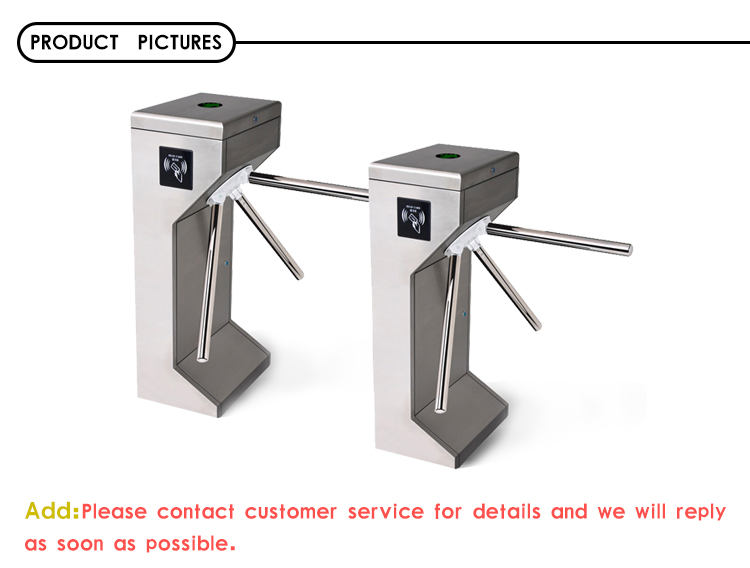

Security gate finger print read baffle gate for metro tripod turnstile for access control system

 PRODUCT INFORMATION
 Model BS-PY02
 Brand BESTER SMART

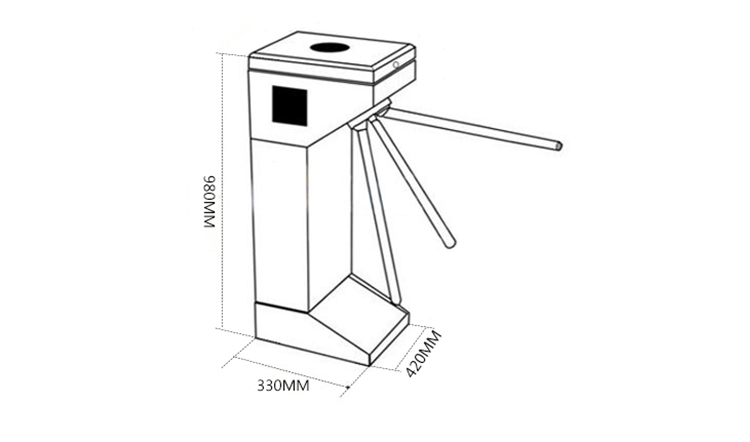

 Size 420*330*980(mm)
 Arm length 500mm(norm)
 Material SUS304  thickness(1.5mm)
 Input Voltage AC220±10%,50HZ
Driving motor 24V
 Failure-free operation 5 million/time
 Weight 35kg
 Traffic speed 35 persons/min
 Flap Opening/Closing Time 0.2s
Channel width≤600mm
 Operating temperature -30℃-70℃
Communication interface RS485/TCP/IP
Working environmentindoor and outdoor



Product Description







1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;

2.In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.

3.The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.

4.Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.

5.The bicycle delay function: prevent the gate from hitting the bicycle;

6.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.

7.The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.

8.Various control functions: external button, remote control, bar code, IC or ID, etc. 9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.

10.Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.



FAQ



1.Will you install the channel lock for the first time?

Answer: on channel brake installation is very simple, just put the product fixed well, main machine and insert 110V/220V power supply, can normal use, if you need to connected to the Internet, only need to use a network line can be received from the main computer, we will provide all the one-on-one phone technology Guidance services.

2.Can machines be used outside?

Answer:It can be used outside. We all have waterproof function.

3.What is the warranty for the machine?

Answer:(1) we guarantee all goods quality assurance for two years.

(2) within the two years warranty time,if the machine have problem,we can offer you the accessories(but you pay the freight cost)

4.When will you make the delivery?

Answer:regular products:(3-5 days),irregular products:communication when you place the order.

5.How does your factory control the quality?

Answer:We always attach great importance to quality controlling from the beginning to the ending.

6.What is your MOQ?

Answer:Any quantity is acceptable for your order. And the price is negotiable for big quantity.

7.payment term?

Answer:30% by T/T in advance.70% by T/T before delivery.



Product case



Packaging & Shipping



Company Information





Bester (Foshan Bester Smart Access Co.,Ltd) is the enterprise integrating intelligent machinery and electronic technology in road safety machines.

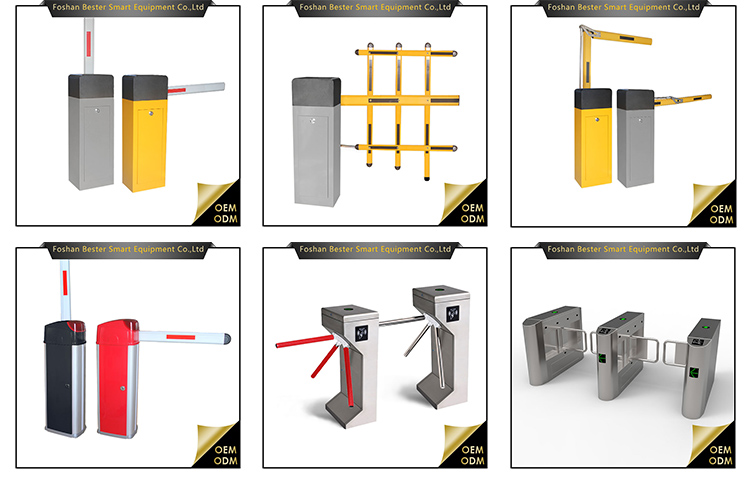

Our main products are turnstile,automatic turnstile,tripod turnstiles,full height turnstiles,sliding gate operators, swing gate operators,flap barriers,swing barriers,speed gates,automatic barrier gate(barrier,barrier gate,boom barrier,automatic barrier,traffic barrier,car park barrier,road barrier) for car parking lot.
The company have experience with more than 15 years, have been sold to more than 100 countries and regions. The company has sold more than 150,000 units a year.
Besides,we are also professional on providing OEM/ODM service for overseas customers,warmly welcome you to visit our factory and hope we can work together to supply you our high-quality system,offer you the factory cost price,provide you the best service,looking forward to serving you in the near future.
