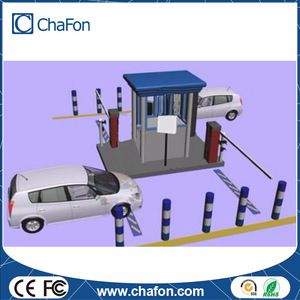

Low cost simple UHF automatic parking management
Application feature:
1.Access to automatic access, no need hand scan cards.
2.Convenient installation, low cost, no need software installation, security and reliable
3.Only need UHF long range reader and barrier can let it come true.

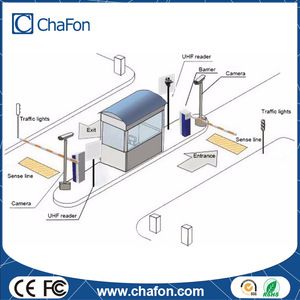

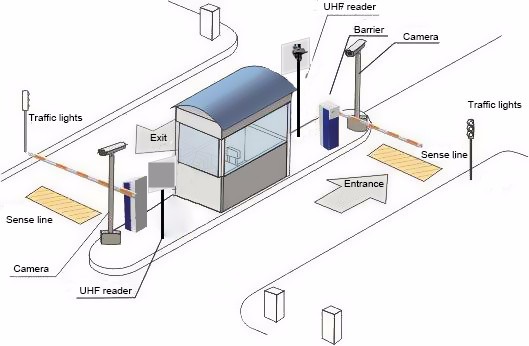

Solution description:
1.Install UHF long range reader
2.Reader connect with barrier controller through WG26
3.Use UHF USB desktop writer to authorize tag
4.Install tag on vehicle windshield
5.When vehicle driving close to parking lot, reader can read tag information,barrier will open,after vehicle enter to parking lot, barrier will close,if tag invalid and without authorization,then can’t enter.
CF-RU5102,USB UHF RFID desktop reader/writer
Frequency:902MHz~928MHz (FCC),865~868MHz(CE)
Protocol: ISO18000-6B/ EPC G2
Reading Range: 0~50cm
Interface:USB
Size:104mm*68mm*10mm
Product link:
http://www.chafon.com/productdetails.aspx?pid=384
CF-RU5112-P,UHF RFID long range integrated reader
Frequency: 902MHz~928MHz (FCC),865~868MHz(CE)
Protocol: ISO18000-6B/ EPC G2
Reading Range: 10~20m
Size:445mm*445mm*55mm
Interface:RS232/RS485/WG26
Product link:
http://www.chafon.com/productdetails.aspx?pid=383

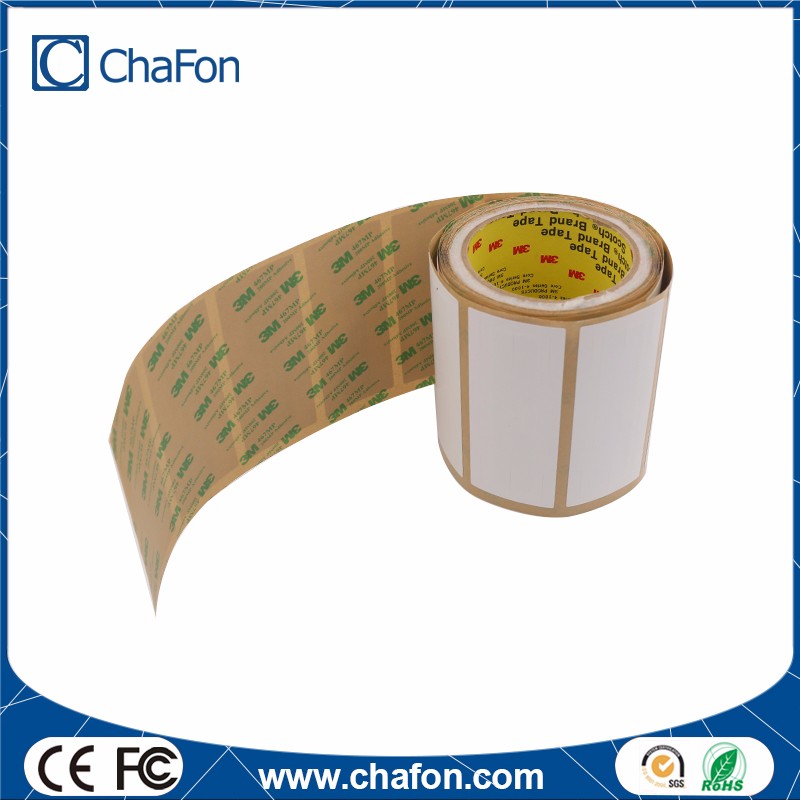

G9305,UHF RFID windshield tag
Frequency:UHF (860~960MHz )
Chip type:Alien H3
Size:110mm*45mm
Material:PP synthetic paper
Glue:3M
Product link:
http://www.chafontag.com/productdetails.aspx?pid=512
| Product model number | Package standard | Weight | Dimension |
| CF-RU5102 | 1pc/box | 0.15kg | 13*9*4cm |
| CF-RU5112 | 1pc/box | 5.5kg | 63*50*13cm |
| G9305 | 1000pcs/roil | 3kg | 23*23*18cm |
Company profile:
Shenzhen Chafon Technology Co, Ltd mainly take charge of RFID reader and writer device research, production and sales, mainly products include 125KHz, 134.2KHz, 13.56MHz and 860~960MHz frequency, the products conform ISO7816, ISO11784/5, ISO14443, ISO15693, ISO18000-6B/6C etc international standard protocols.

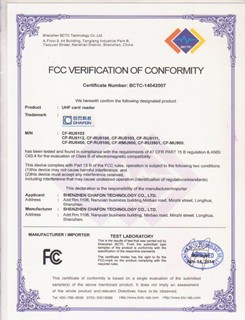

Company products have won the United States FCC certification, European CE/ETSI certification, and China will WuWei CMII certification.
Q1. Are you manufacturer?
Yes, we are 10 years professional RFID hardware manufacturer.
Q2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
include 125KHz , 13.56MHz and UHF three frequency.
Q3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
Q4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
