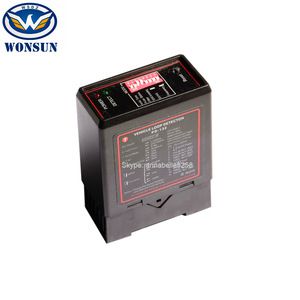

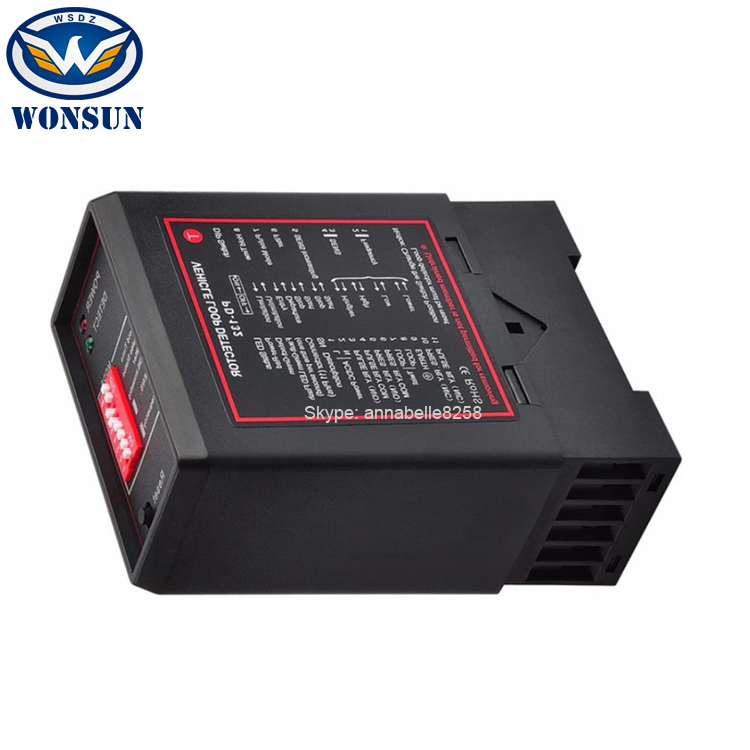

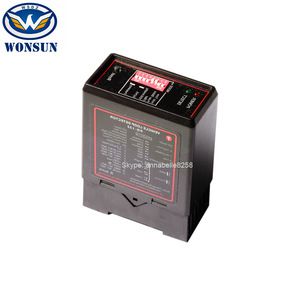

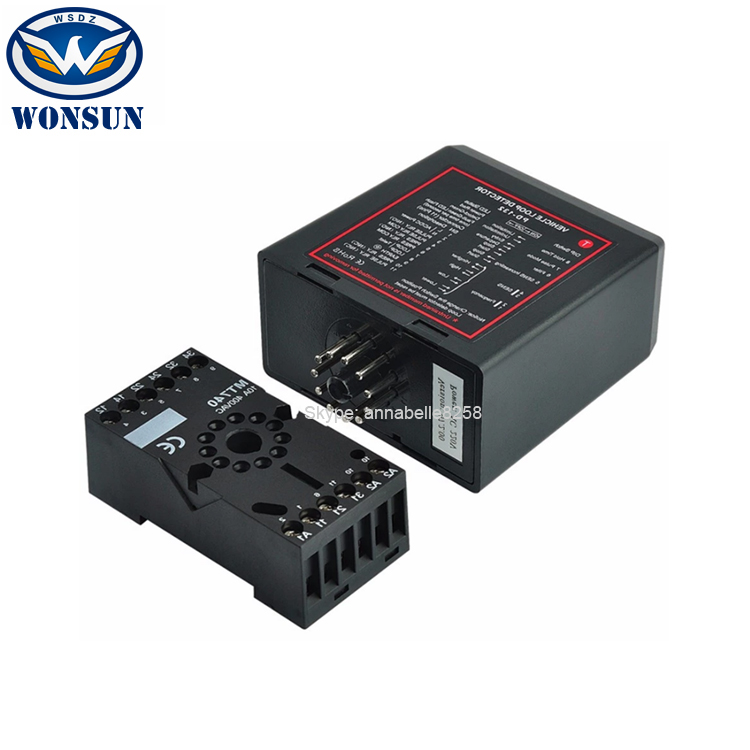

PD132 Inductive Single Vehicle Loop Traffic Detector in Automatic Gate Door Access Parking Access Control Management System

Fast finishing time for you to become more competitive at your local market :3-5 days for small order.

Technical Feature

  • Guangdong, China (Mainland)
  • WONSUN
  • WSLP-02
  • 4.5VA
  • 240V/5A
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
WONSUN
Model Number
WSLP-02
Supply voltage
Power Consumption
4.5VA
Output relays
240V/5A
Frequency Range
20 kHz to 170 kHz
Storage temperature
-40u00b0to +85u00b0
Motor power
120W
Reaction time
100ms

DETAIL DESCRIPTION

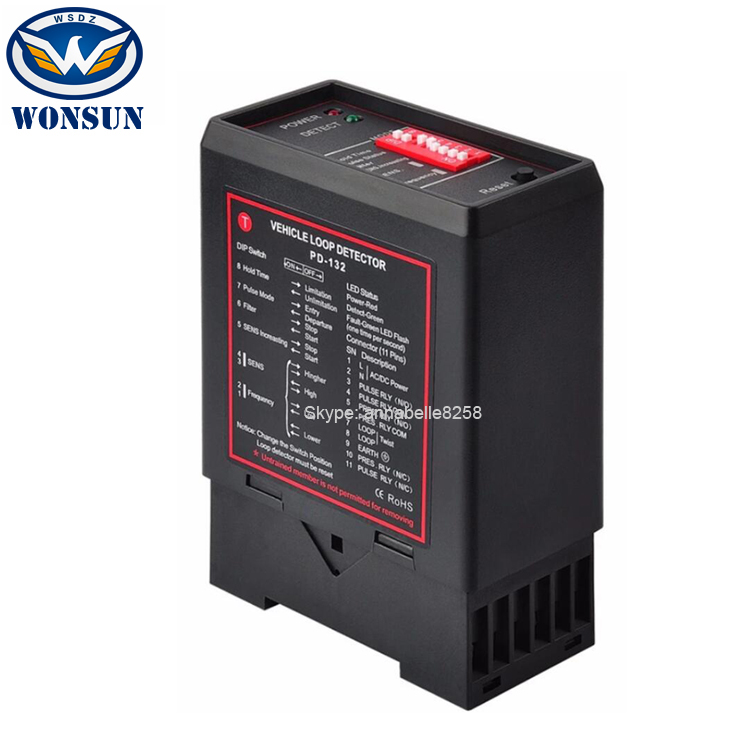

PD132 Inductive Single Vehicle Loop Traffic Detector in Automatic Gate Door Access Parking Access Control Management System



Our Advantages:



1. Single Channel/Dual Channel available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support: Skype:annabelle8258,WhatsApp:+86 13682581314
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.



Supply voltage:220V AC , 115V AC,24VDC/AC,12V DC/AC
( See the label on the detector)
Voltage tolerance AC+10% / -15%
Voltage tolerance DC±15%
Power Consumption4.5VA
Output relays240V/5A
Operating temperature-220°C to +65°C
Storage temperature-40°C to +85°C
Frequency range20 kHz to 170 kHz
Reaction time100ms
Signal holding timeUnlimited
SensitivityAdjustable in 3 increments
Loop inductanceTotal loop plus connection wiring:
50μH to 1000μH. Ideal is 100μH to 300μH
Loop connection wiringMaximum length 20 meters,
twisted at least 20 times per meter
Size of Housing78x40x108 mm (L x W x H)



The WSTV-410 is a single channel inductive loop detector designed for parking and access control applications.



The detector is connected to an inductive loop mounted in the road surface. When vehicles pass over the loop the detector switches on an output.



The use of microprocessor and surface mount technology enables a large
number of functions to be incorporated into a small package. The WSTV-410 is compatible with most single channel detectors on the market and is easy to set-up and install.

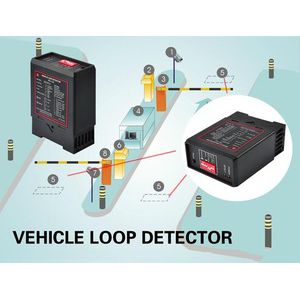

Vehicle loop detector Application:



Loop detectors are used wherever vehicles have to be detected. Like monitoring and safe guarding access ways to counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.



The WSLP-01 is a single channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.
