Automatic IC Card Vehicle Access Control Parking Management System
Car Parking System for Entrance and Exit
Guangzhou Coma Ltd.offers a reliable range of automated access control systems tailored to car park application. The integrated solutions includs ticket systems,swipe cards,Automatic Number Plate Recognition(ANPR) or Radio Frequency Identification(RFID) A well designed car parking system can be a successful revenue generator.

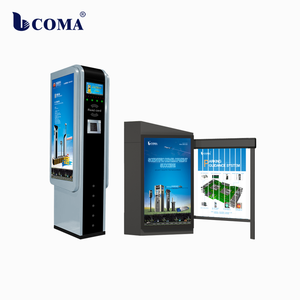

| Auto Ticket/Card Cabinet | |
| Environmental temperature: | -40℃- +75℃ |
| Power consumption: | 120W |
| Power voltage: | 110V/220V,AC,50HZ |
| Applicable scope: | IC card,EMID card,Paper ticket |
| IC/ID reads and writes the distance: | 8-15 cm |
| Offline data storing capacity: | 2000 (can expand) |
| Ingress Protection : | IP54 |
| Certificate : | CE, ISO9001:2000, the design of the case is our patented product |
| Card dispenser capacity: | 250-450 pieces |
| Communication port: | RS232,RS485,CAN |
| Surface handle : | important (spray) |
| Control Case material: | A3 steel |
| Control Case thickness: | 2mm |
| Control Case appearance treatment: | imported paint baking |
| Case size: | 520*300*1450 mm |
Working process
Entrance
1.LED display gives word welcome and remind driver to enter
2.Voice prompt reminds driver to take a card or ticket ,
3.Driver needs to get a ticket/card from the dispenser in the cabinet,
for monthly card holder, he just needs to swipe the card in the reading area.
4.After the driver takes the card/ticket or swiping the card , the barrier gate will automatically open, then the driver can drive his car into the parking lot.
5.When the vehicle detector cannot detect a car's coming, the control cabinet and barrier will never start working, in this case, even a man press the green button, the Entrance cabinet will never dispense a card/ticket.
Exit
1.LED display gives word byebye and reminds driver to leave
2.The card/ticket should be passed to toll collector if there is charge at the exit
for monthly card holder, he just needs to swipe the card in the reading area.
3.After payment, the barrier gate will automatically open, then the driver can drive his car out of the parking lot.
4.When the vehicle detector cannot detect a car's coming, the control cabinet will never start working, the barrier will never open.

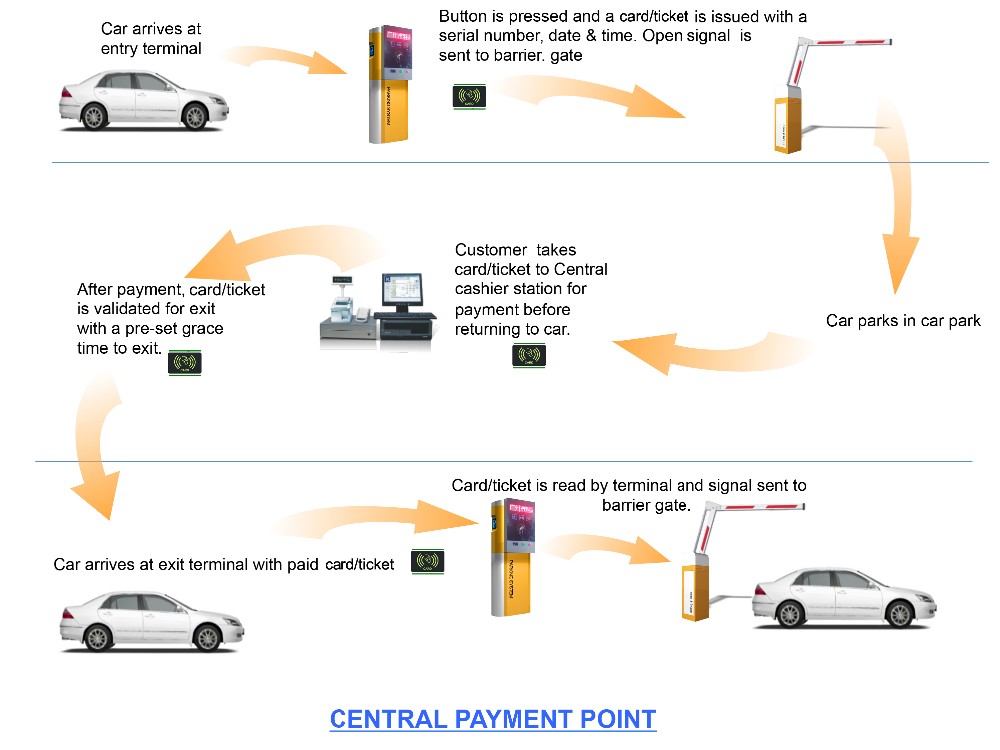

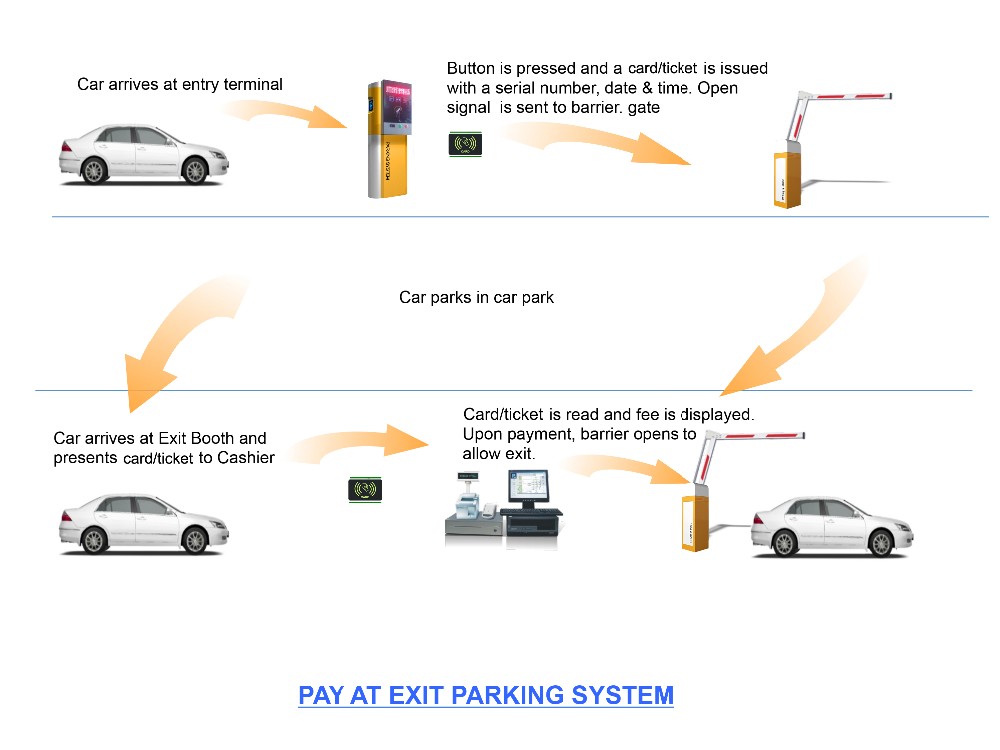

Picture illustrating the process 1) exit payment method 2)center payment method

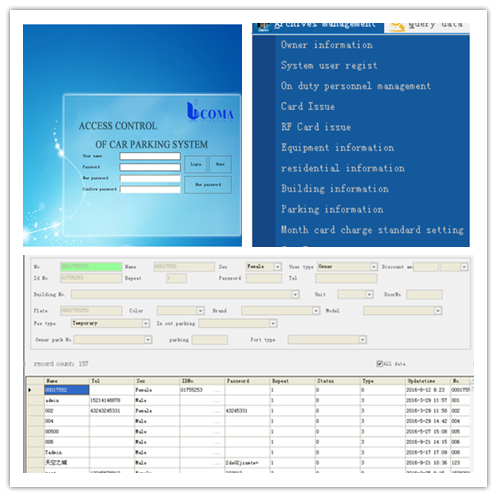

The toll station software and background software
Toll station software
P.S. The software is English version, if customer would like to change to other language, please consult us.
Please tell below information for working out a solution
1 How many extrance and exit for your parking lot?
2 Do you prefer RFID or ticket parking system?
3 Do you have visitors and long term parker separately?
4 Do you need charging for the parking, if yes, what is the charging standard?
5 Do you have special requirement for the system?
Suitable for the parking lot in residential communities, enterprises and institutions, hotels, commercial buildings, government organizations, logistics company, hospitals, villages, shopping markets, and so on.
1. What is the MOQ?
The MOQ is one set.
2. How about the warranty and after-sales service?
We provide 1~2years free warranty and lifelong paid services.
3. What about the delivery time?
15~20 working days upon receipt of your deposit.
4.About the OEM and ODM
Our company have technology research and development
