World first automatic zigbee control system for street light

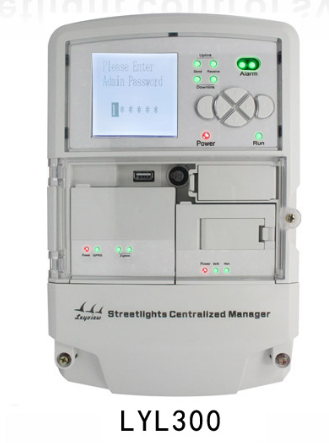

Model No.: LYL300
1. Introduction of the system
With the advanced wireless ZigBee technology, combined with GPRS, WiFi technology and embedded system, proposed wireless networking, single&multi point control solution for city LED streetlight lighting control system status, energy saving and actual demand of accurate control to realize remote control single lamp switch, dimming and detection,etc.In the client side to adopt mobile phones, tablet PCs, computers, convenient for different personnel to control the important data in the street. The system is widely used, such as: intelligent residential area (Park) lighting, intelligent landscape lighting, tunnel lighting, highway and other intelligent lighting occasions.

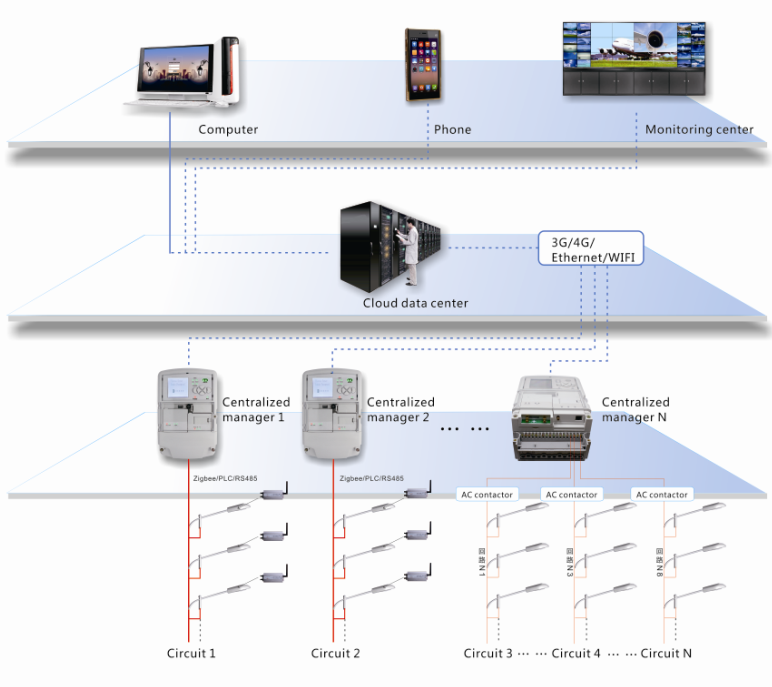

2.The Structrure of zigbee system
3.Main parameters
| Working temperature: | -20-60℃ |
| Supply voltage: | AC85-225V |
| Communication mode: | GPRS, WIFI, Ethernet |
| External dimension: | L202.17*W133.12*H96mm |
| Package size: | L450*W440*H185mm |
| Net weight: | 1800g |
| Gross weight: | 1960.7g |
| Static power consumption: | less than 3.5w |
| Wireless spectrum: | 2.4G |
| Communication sistance: | 200m |
| Network capacity: | 0-500nodes |
| Circuit load: | 1-8 circuits/5A |
Communication interface: | GPRS, RT-NET, USB, 485, CAN bus optional |
Lightning protection level: | anti surge 6000v single-phase |
Sensor access (cable access) | snow and rain, light, vehicle flow, and temperature |
| Electric meter access | support access to the smart electric meter 485 interface |
4.Main functions
1. Button selection control (convenient to configure, menu selection to query view information, select send strategy).
2. Receiving timing strategy from server and stored in the local, report data the server need to query, can realize local and remote query and configuration, and realize the query and modification of the strategies at the same time, also can carry out manually real-time control and queries commands.
3. Timing control: : a multilevel timing control can realize local and remote modification of the regular.
4. Latitude and longitude control: with the latitude and longitude automatic control function.
5. Alarm function: after failure occurs, system center can accurately obtain the location of the trouble light, staff can rushed to the scene and maintain in the shortest possible time. Anomalies buzzer alarm (can set the upper limit and lower limit of the alarm, and alarm when query abnormal data information ).
6. Record and show clock calendar information (timing query, control, effectively record time of the data ).
7. LCD display (can choose information what you want to display, color with back light )
8. Spare lithium batteries (3.6 v, 80Mah)
9. Device reference voltage detection ( low voltage detection )
10. Status signal indicator ( show the real-time operating state of the reaction subsystem)
11. Intelligent function: combine with a variety of sensors (temperature, rain and snow, light ) to automatically analyze the local weather conditions, environmental conditions automatically control the lights switch, brightness.
12. The reserved function) : abnormal data alarm of text messaging on mobile phones; smart phones query embedded web through WIFI access, realize monitoring to the lights.
13. Energy saving: timing control function can be set on the system, in case of much traffic, 100% brightness; When less traffic in p.m of the night , brightness can be set to 50%, thus to save electricity.
14. Map monitoring: to add Centralized Manager, video equipment, sensors in the platform to the map, can see real-time data of these equipment, select the equipment need to control, can control the equipment directly and read data.
15. Data query functions: system can generate curves and reports of current, voltage, power factor, rate of lights and the analysis of the switching time.

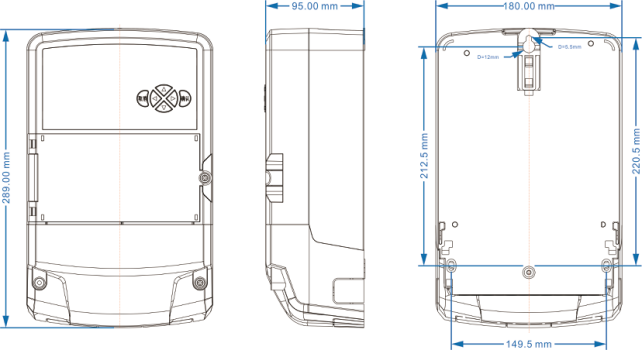

5.External dimension:

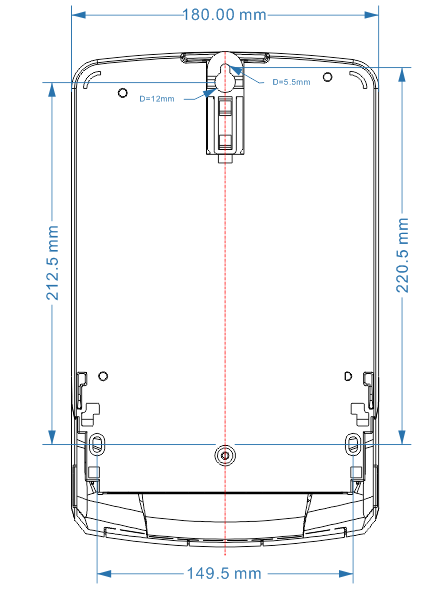

6.Mounting holes
1.Power 1-1/1-2 module power
2.Run: System operation indicator
3.Up link: Send
4.Up link: Receive
5.Down link: Send
6.Down link: Receive
7.GPRS
8.8-1 WIFI 8-2 WIFI Work
9.9-1 Zigbee 9-2 Zigbee Work
10.Alarm: Warning indicator

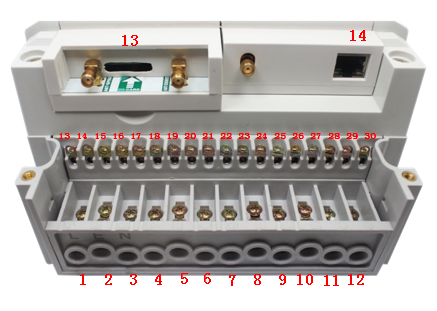

7.Interface Specification

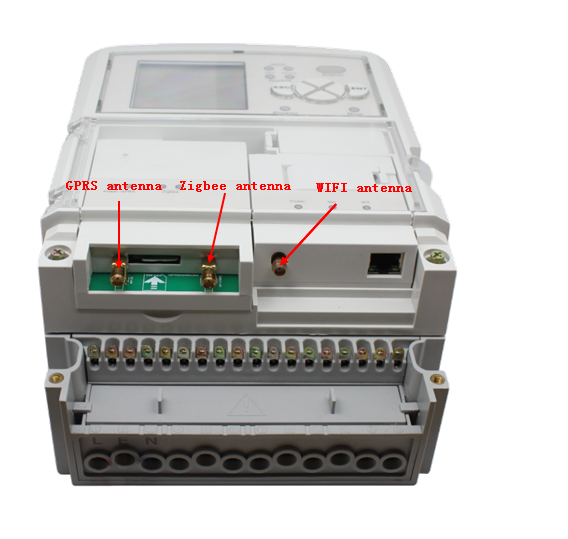

8. Antenna instruction
