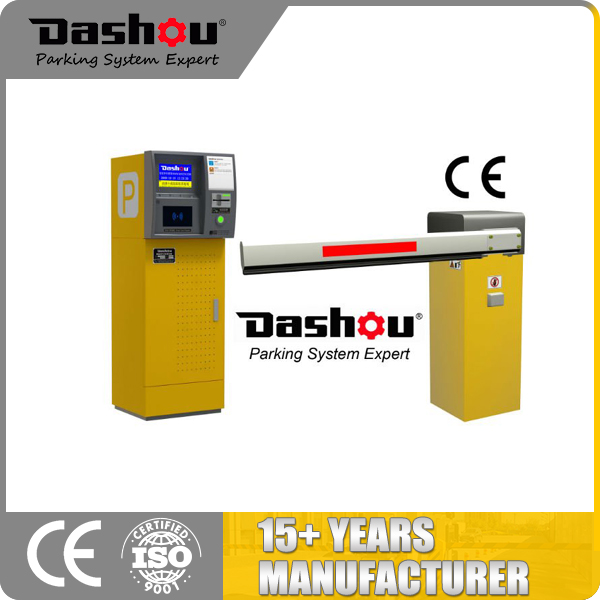

Cosf-effective Intelligent Automatic Parking Control System

PM910F Luxury Pay at Exit is a luxury series barcode ticket dispensing Parking Management System for managing pay-at-exit facilities with high traffic flow, for both hourly parkers (visitors) and season parkers (members). It is ideal solution for parking lots of premises such as shopping mall, airports, hotel, exhibition center, hospital and apartment etc.

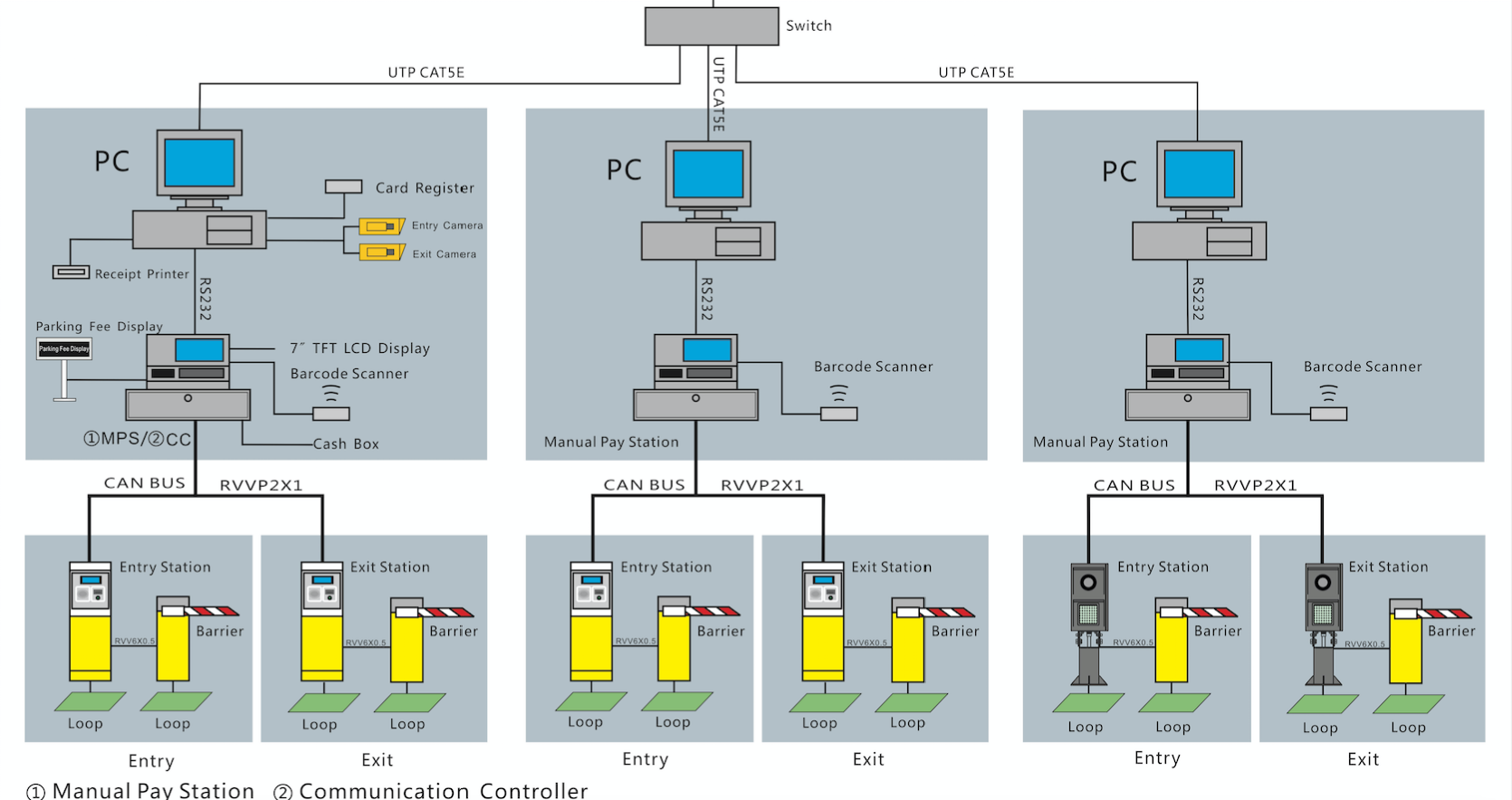

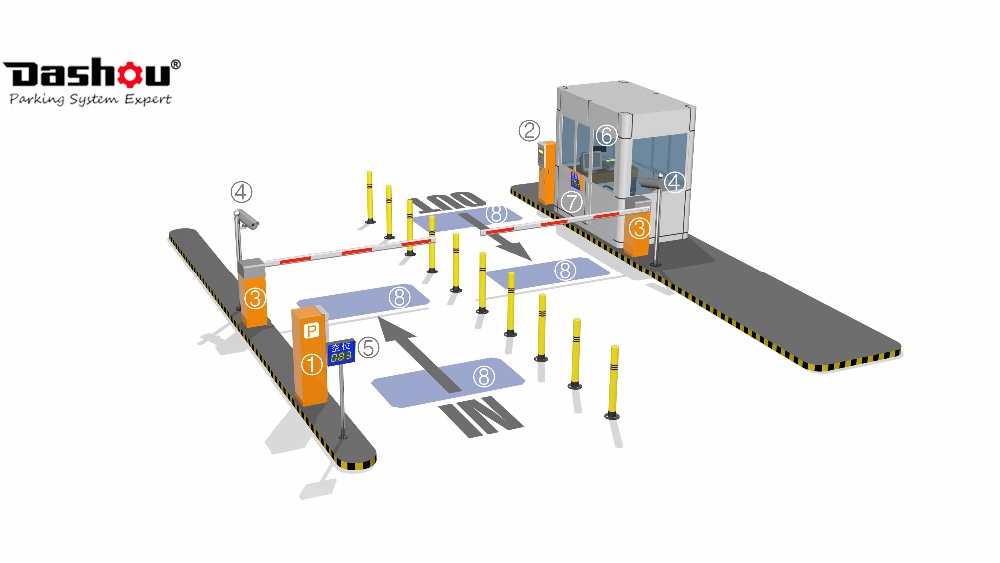

System Components

How does Parking System works---For Hourly Parkers (Visitors)

----- A vehicle approaches entry and triggers Loop Coil of Entry Station

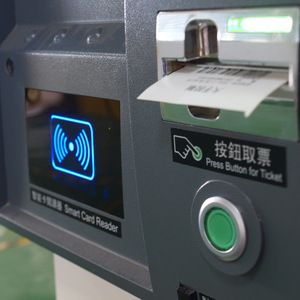

----- The visitor presses ticket button of Entry Station to get a barcode ticket

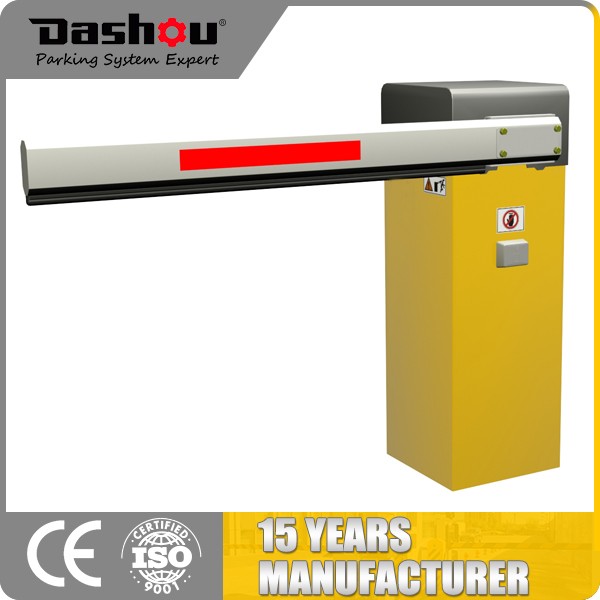

----- Entry Barrier opens automatically, and it closes automatically after the vehicle passes loop coil of Entry Barrier

----- The visitor drives to the MPS located at exit, and gives the ticket to the cashier

----- The cashier scans the ticket by a barcode scanner, and information of ticket and payment will be shown on the display

----- The visitor pays cash, then the cashier clicks "open" button to open Exit Barrier
----- Exit Barrier closes automatically after the vehicle passes the loop coil of Exit Barrier.

How does Parking System works---For Season Parkers (Members)

----- A vehicle approaches entry and triggers Loop Coil of Entry Station
----- The visitor swipes proximity card onto the proximity card reader built-in Entry Station
       Or long range RFID tag on window shield was read by long range RFID Reader
----- Entry Barrier opens automatically, and it closes automatically after the vehicle passes loop coil of Entry Barrier
----- Same will happen at exit

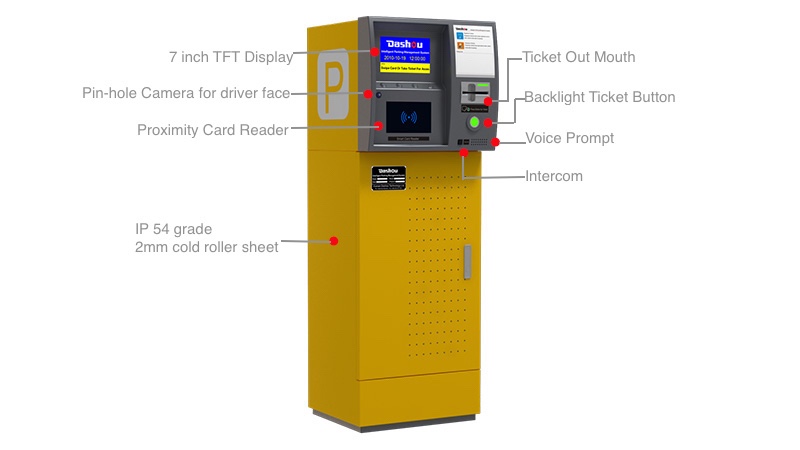

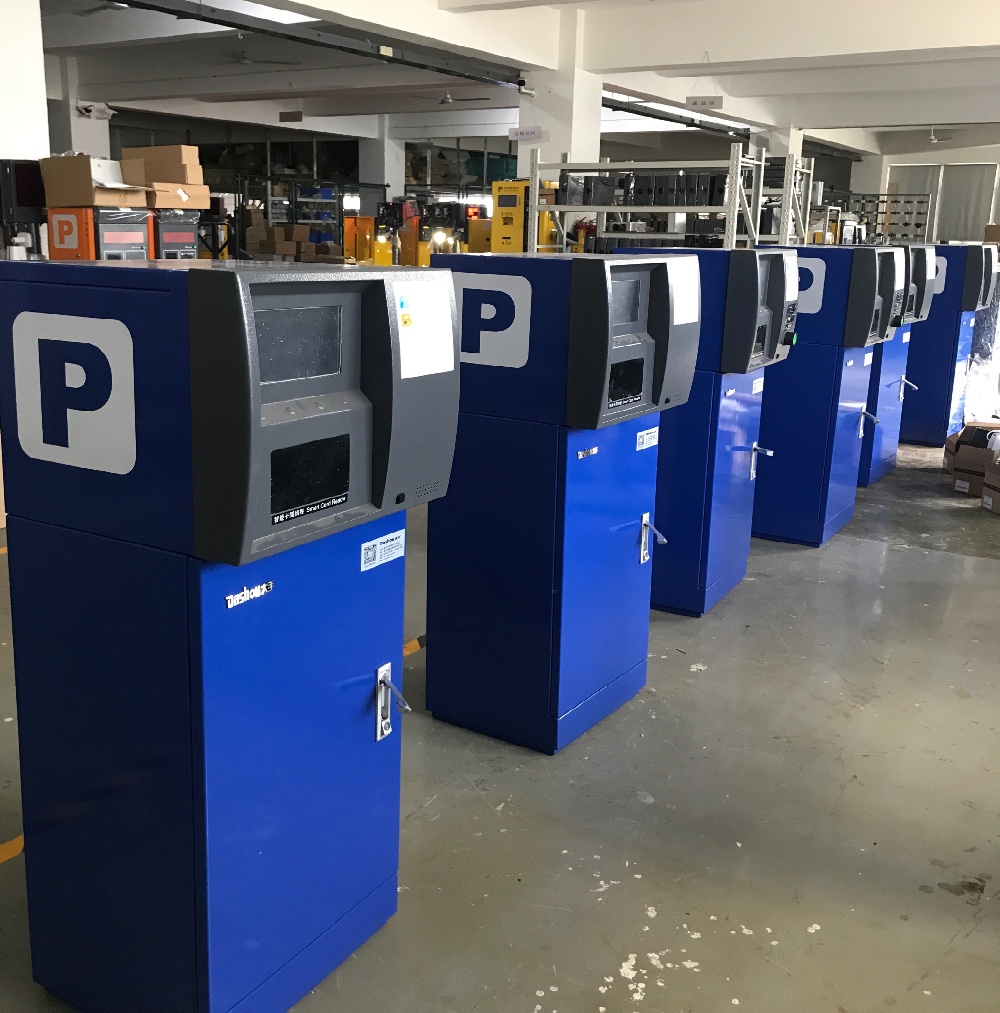

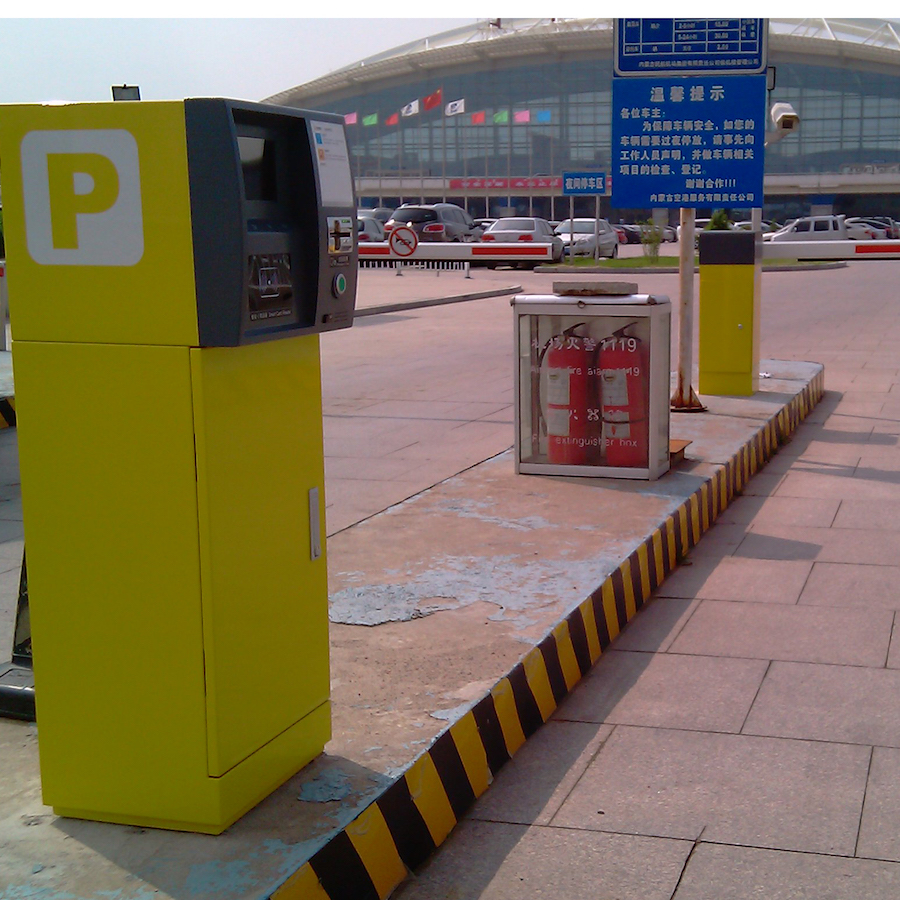

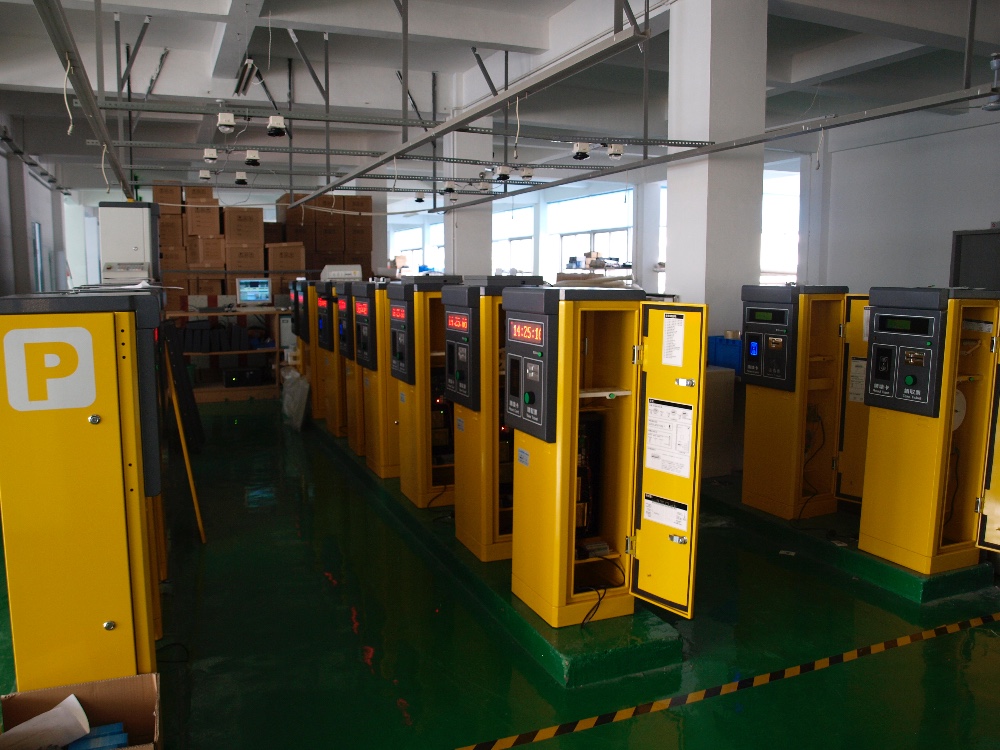

Heavy duty IP54 cabinet in luxury design

The cabinet adopts 2mm precise machining cold-rolled plate and static electricity sprayed anti-UV surface which is non- scale and unfading, conformed to the IP54 dust-proof and water-proof. Luxury design also decorates your premises. Yellow (default), orange, red, blue, white or customized color of cabinet for your options.

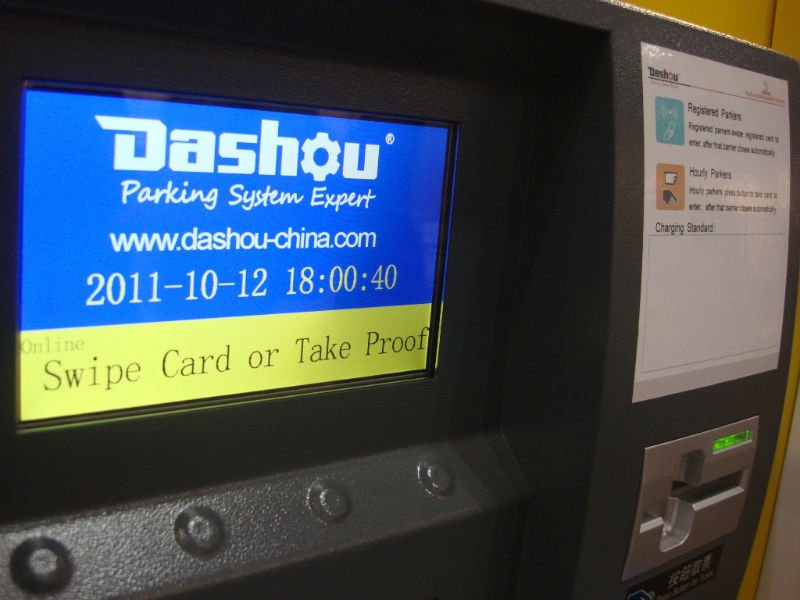

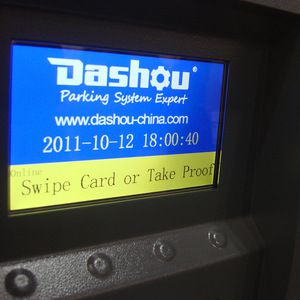

User-friendly LCD/LED and Voice Prompt

The entry & exit station can be equipped with LCD or LED screen on which detailed operation and system info. are simply and friendly shown. Voice Prompt gives a warm-hearted welcome and operation guide to parkers.

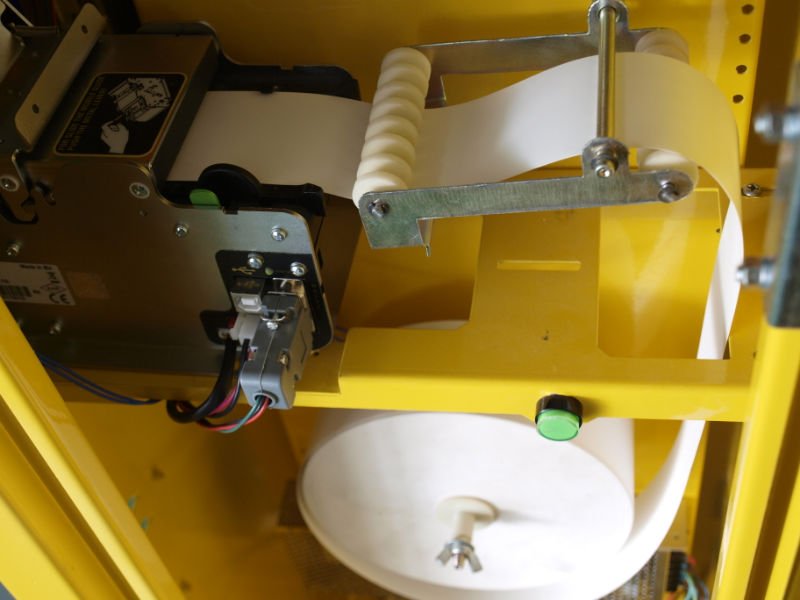

High Capacity Ticket Box

High capacity of 3000 thermal tickets (80g) makes it unnecessary to change paper in the ticket box frequently. Ticket box can also dispense tickets quickly and steadily at speed of 0.5 second.

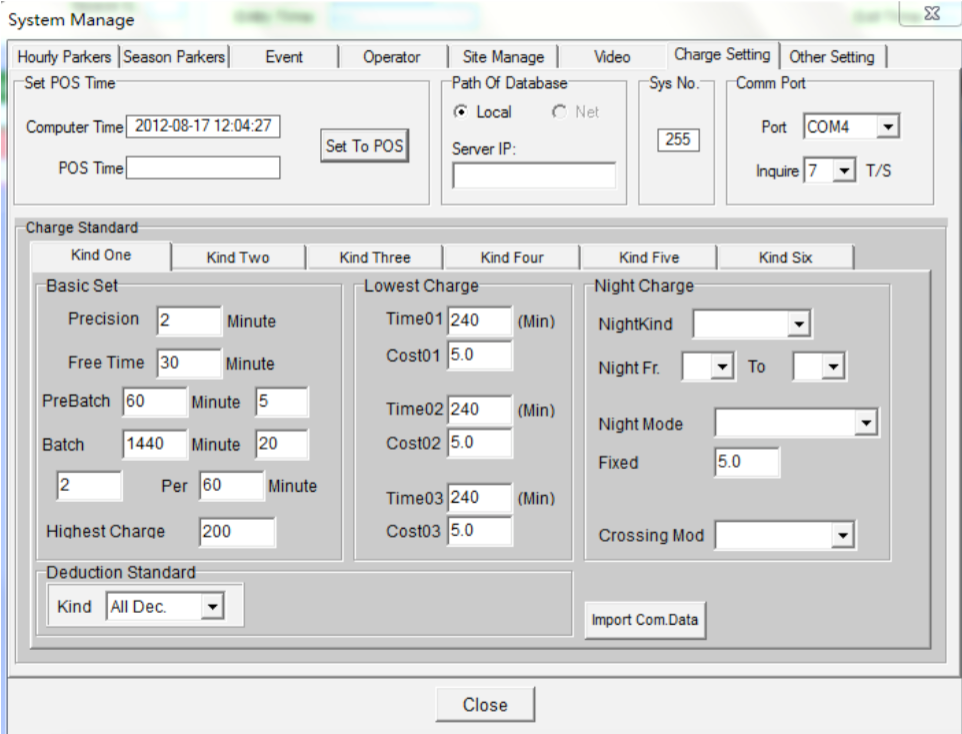

Customizable Charging Standards

The software provides six categories of customized charging standards, each comprises of several sub items such as free time, charging rates during different periods, charging fee during the night, batch charging and maximum amount. Customized charging standards matches all your charging requirements.

“Image Comparison” Make Parking Safe (optional)

When vehicle leaves at the exit, two photos respectively taken by CCTV cameras (installed at entry and exit) will be shown together side by side on PC for comparison, to ensure it is the same vehicle in and out.

Capture Driver`s face for Safety (optional)

When vehicle leaves at the exit, two face photo respectively taken by cameras (built-in Entry/Exit Station) will be shown together side by side on PC for comparison, to ensure it is the same driver.

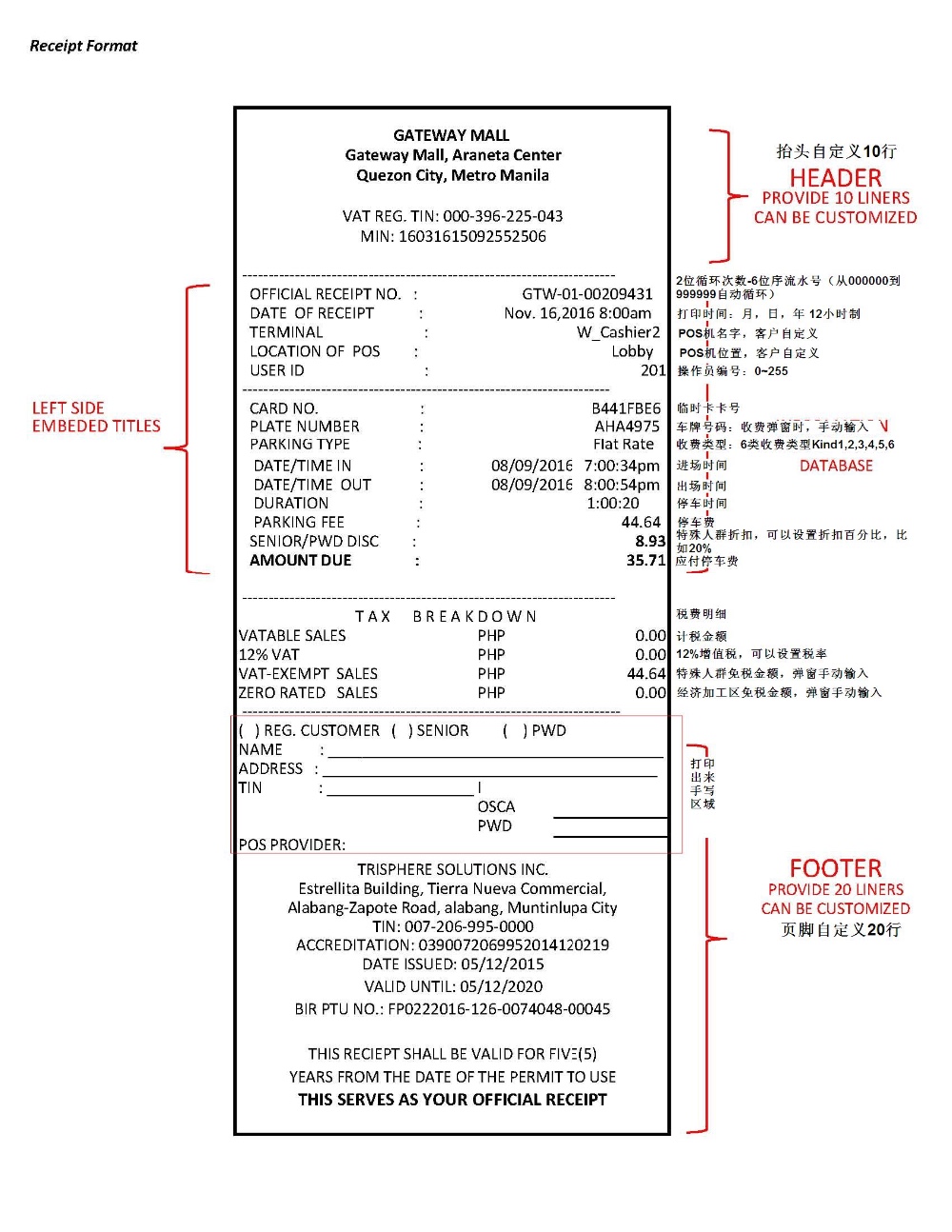

Customizable Receipt (optional)

By connecting a printer to MPS (Manual-pay-station), you can print out receipt which can be customized upon your unique requirements, even receipt required by your tax bureau.

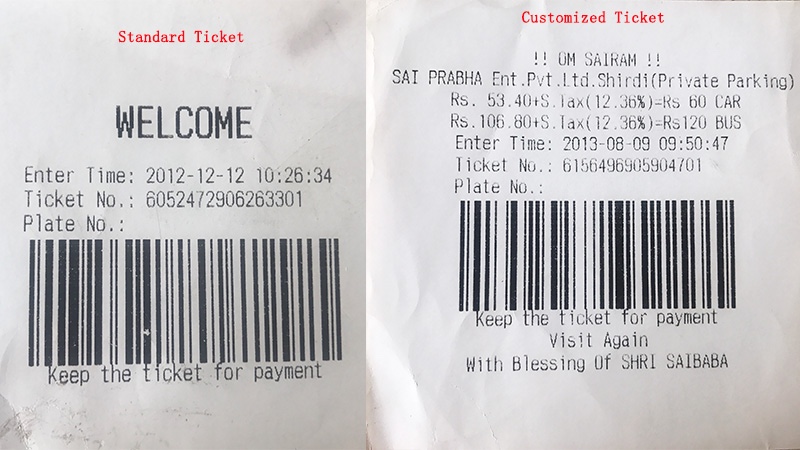

Customizable Ticket (optional)

Some parking lots may require different ticket format which conform with reading habit of natives, some may want the ticket to show charging rate, some want to put their name or blessing on the ticket for advertisement and attract more customers. Customizable ticket now matches all your unique needs.

MPS, Entry/Exit Station and PC Work Separately

Manual-pay-station, Entry Station and Exit Station separately work fine without connecting to a PC. The data stored in Manual-pay-station, Entry Station and Exit Station will be automatically uploaded to a computer if connected.

'One-card-one-vehicle'

With this function, other season parkers can not use the same card to enter before the owner of this card leave parking lot. It ensures safety for season parkers` vehicle and avoids loss of parking fee for owner of parking lot.
