1.Rating Voltage: 120V/250 V
2.Color : Any color is ok
3. custom-design
4. High quality and competitive price
5. The open temperature tolerance is ±5 °C,
6. Maximum Contact Rating: 10A / 250 V.
7.The open temperature of RY thermal fuse ranges from 50 °C to 380°C in 5 °C increments.
8.Lead wire:RY thermal fuse # silver; custom-designed calble is also avaiable

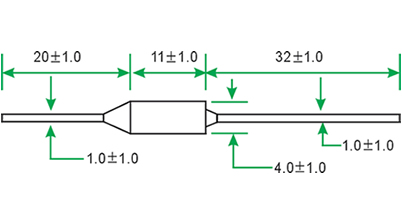

Product Dimension Picture

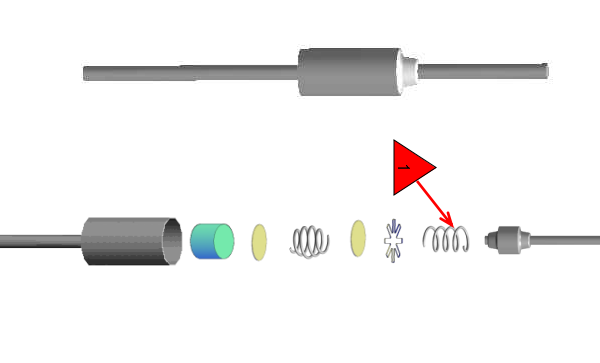

Product Detail Picture
| RY**series technical of parameter list | |||||||
| Model No | Rated functioning temp(Tf ) | Fusing-off temp | Hold temp(Th) | Maximum temp.limit(Tm) | Rated current(Ir) | Rated voltage(Ur) | Safely Approval |
| RY72 | 72℃ | 69±2℃ | 42℃ | 180℃ | |||
| RY77 | 77℃ | 74±2℃ | 47℃ | 180℃ | |||
| RY84 | 84℃ | 81±2℃ | 54℃ | 180℃ | |||
| RY92 | 92℃ | 89±2℃ | 62℃ | 180℃ | |||
| RY98 | 98℃ | 96±2℃ | 68℃ | 180℃ | |||
| RY110 | 110℃ | 107±2℃ | 80℃ | 200℃ | |||
| RY115 | 115℃ | 112±2℃ | 85℃ | 200℃ | |||
| RY117 | 117℃ | 114±2℃ | 85℃ | 200℃ | |||
| RY121 | 121℃ | 118±2℃ | 91℃ | 200℃ | |||
| RY128 | 128℃ | 125±2℃ | 100℃ | 250℃ | |||
| RY130 | 130℃ | 127±2℃ | 100℃ | 250℃ | |||
| RY139 | 139℃ | 136±2℃ | 109℃ | 250℃ | |||
| RY141 | 141℃ | 138±2℃ | 109℃ | 250℃ | CCC、UL、 | ||
| RY150 | 150℃ | 147±2℃ | 120℃ | 280℃ | 110V/250V | RY** 10A | TUV、CB、 |
| RY152 | 150℃ | 149±2℃ | 120℃ | 280℃ | PSE、RoHS | ||
| RY157 | 157℃ | 154±2℃ | 127℃ | 280℃ | |||
| RY169 | 169℃ | 166±2℃ | 139℃ | 280℃ | |||
| RY172 | 172℃ | 169±2℃ | 139℃ | 280℃ | |||
| RY184 | 184℃ | 182±2℃ | 155℃ | 280℃ | |||
| RY185 | 185℃ | 182±2℃ | 155℃ | 280℃ | |||
| RY192 | 192℃ | 189±2℃ | 162℃ | 280℃ | |||
| RY216 | 216℃ | 213±2℃ | 176℃ | 450℃ | |||
| RY227 | 227℃ | 224±2℃ | 187℃ | 450℃ | |||
| RY230 | 230℃ | 227±2℃ | 187℃ | 450℃ | |||
| RY240 | 240℃ | 237±2℃ | 200℃ | 450℃ | |||
| RY250 | 250℃ | 247±2℃ | 210℃ | 450℃ | |||
| RY260 | 260℃ | 257±2℃ | 130℃ | 450℃ |
Features
★Extremely sensitive to ambient remperature.
★Turn off the power at once.
★Precise and stable functioning characteristic.
★Compact,exoxy-sealed construction.

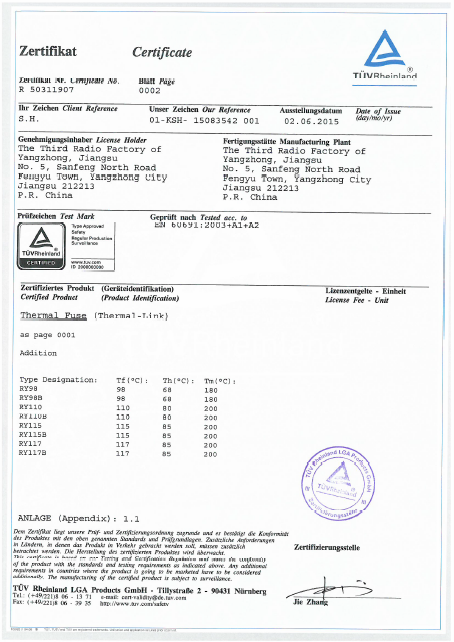

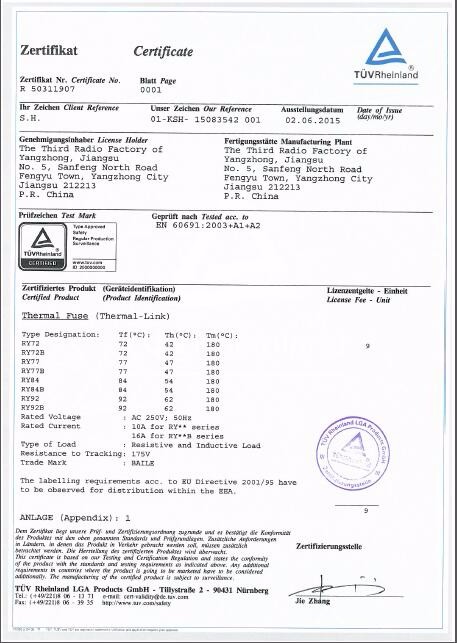

★Reliable,Approved by various international safety standards.
(ISO90012008/UL/CUL/TUV/PSE/CCC/CB)
★Make the whole process of strict quality management.
★Manufacturing process using the most advanced automation equipment.
★Painted with the most advanced automated test equipment, 100% after the inspection.
★It meets the environmental requirements of ROHS/REACH.
Applicatuin.
★Appliance: Electronicion, Hair dryer, Heater, Coffeemaker, Water dispenser, Baker, Electric cooker Electric pressure cooker. Electric kettle, Microwave oven, Air-Conditioner, Refrigerators,Washing machine, Water heater, Range hood, Disinfection cabinet, and so on.
★Office Appliances: Photocopier Fax machine, Scanner, Printer, Paper shreader.
★Appliances Accessories: Voltage transformer, Adaptor, Electricmotors, PC boards, Connector, and so on.
★Electronics Components: Capacitor, Resistor, Batteries and so on.
★Others: Massage appliances, Pharmaceuticale equipments, Electronic toys, and so on.

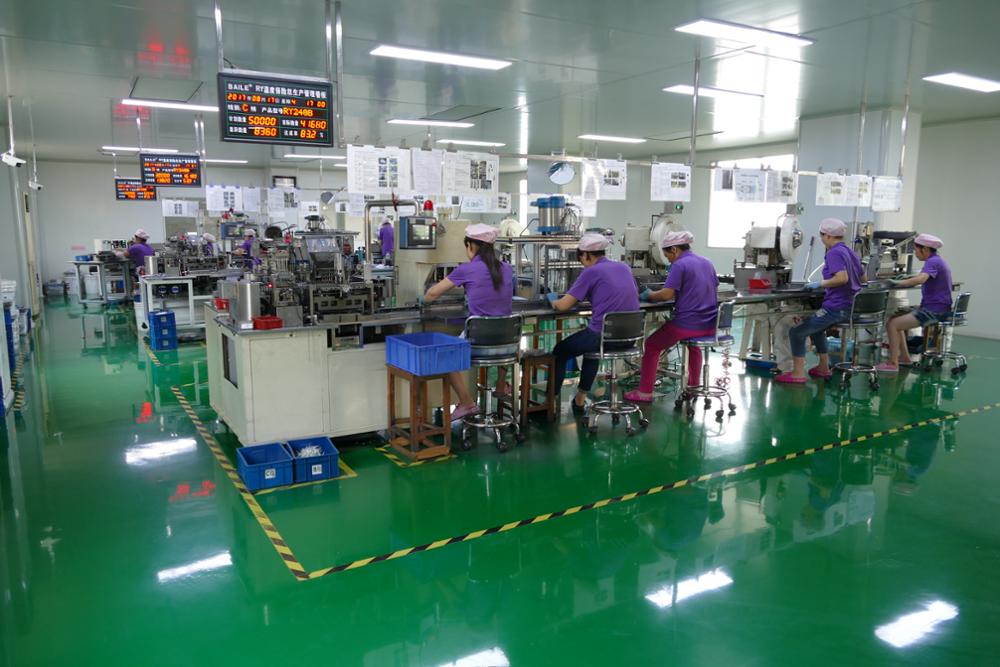

Automatic Production Line

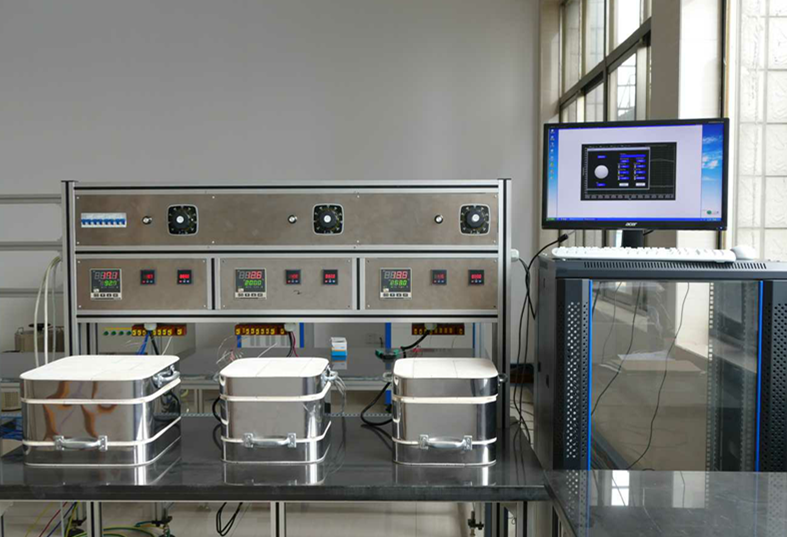

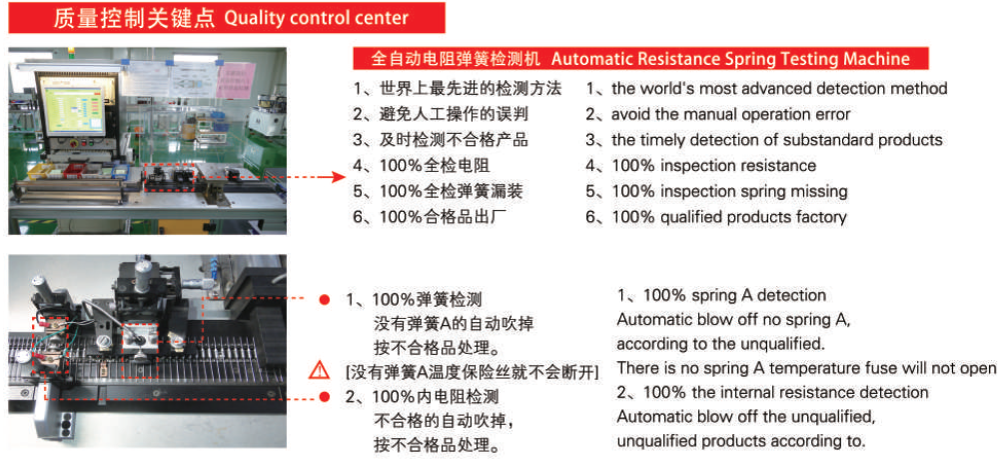

Computer automatic test for thermal fuse

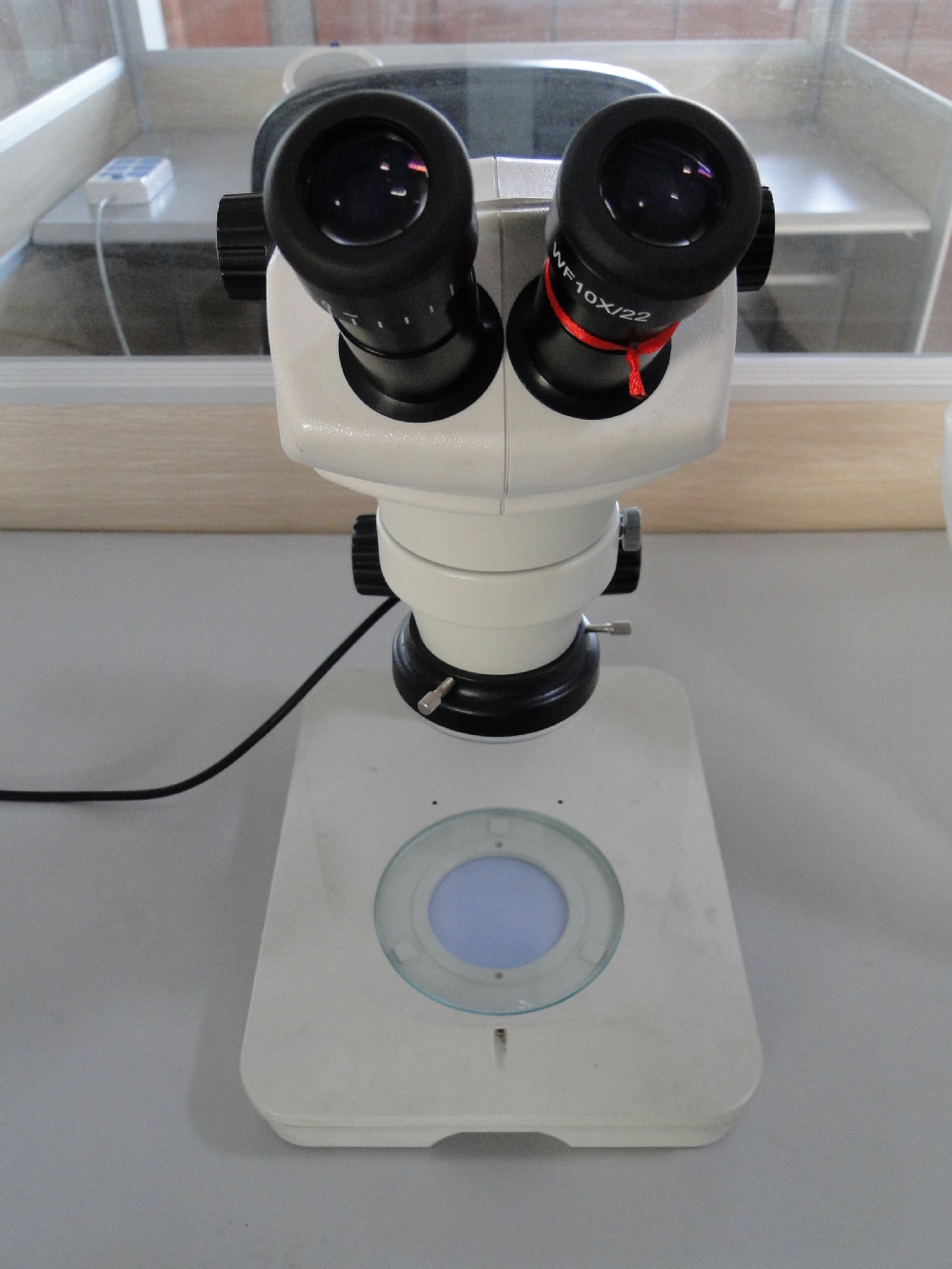

Optical microscope
Thermostatic moisturizer
Warehouse
Q1. Can I have a sample order for Thermal fuse?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 2 days, mass production time needs 3-4 days for order quantity more than
Q3. Do you have any MOQ limit for thermal fuse order?
A: Low MOQ, 5pcs for samples checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
