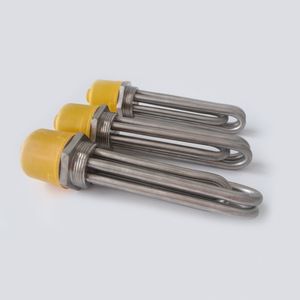

Technical Details of Immersion Water Heater
Sheath Material | Material Max. Temp. °C | Application |
Copper | 150 | Water, non-corrosive liquids |
Steel | 400 | Oil immersion |
Stainless Steel 304 | 650 | Water,Corrosive liquids, food processing |
Stainless Steel 316 | 650 | Corrosive liquids, |
Stainless Steel 321 | 650 | intergranular corrosion situation |
Incoloy 800 | 800 | Water ,Corrosive liquids, air, clamp on |
Sheath Dia. ±0.15mm | 6.4 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 |
Sheath Length Max. (mm) | 6000 | 6000 | 6500 | 6500 | 7000 | 7000 | 7000 | 7000 | 7000 |
Maximum Voltage | 250 | 277 | 480 | 550 | 550 | 550 | 550 | 550 | 550 |
Wattage Tolerance | +5% -10% | ||||||||
Resistance Tolerance | +10% -5% |
Note:Other diameter and length heaters are available, Please consult Susan For more details.

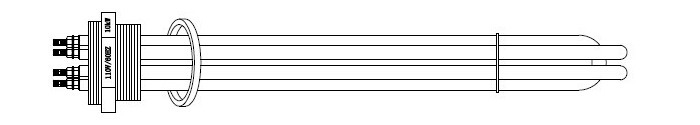

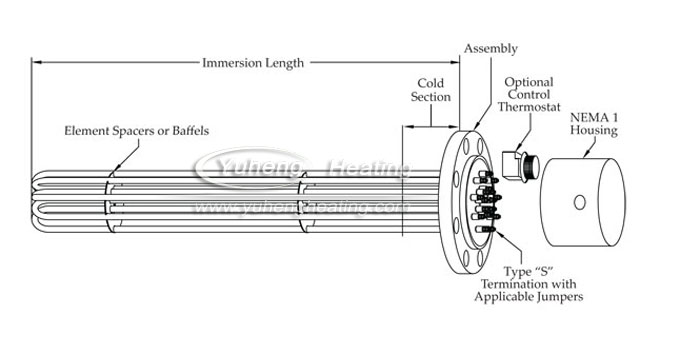

Drawings of Immersion Water Heater
Found in 2008,Yancheng Yuheng Electric Heating Technology Co.,Ltd.is a professional element manufacturer in
Jiangsu province, China. Our main products are various heating elements,for example, electric heating wires, ceramic
heaters, tubu heaters and silicone rubber heaters, and etc.
With products development, material analysis and mold making facilities, we have improved OEM capacity invarious
fileds. We have focused on management and strictly control the quality to ISO9001:2000 and ISO14000 standards.
Warmly welcome you join in us to do business together profitable.
