battery cabinet / Electric Control Cabinet, IP65 outdoor cabinet with air conditioner

Inverter battery cabinet / Electric Control Cabinet, IP65 outdoor cabinet with air conditioner    Product Description1. The Dimensions can be customized as clients.2.The cabinet is adopted double wall type design which is composed with

Technical Feature

  • Zhejiang, China (Mainland)
  • SANDI
  • SBC
  • IP65, IP55 / IP65
  • Distribution Box, outdoor cabinet
  • depend
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
SANDI
Model Number
SBC
Protection Level
IP65, IP55 / IP65
Type
Distribution Box, outdoor cabinet
External Size
depend
Material
Stainless Steel,aluminum alloy or galvanized sheet
Cooling System
Heat exchanger, air conditioner or fans
Application
Outdoor Electronic Equipment

DETAIL DESCRIPTION

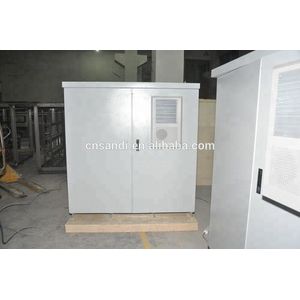

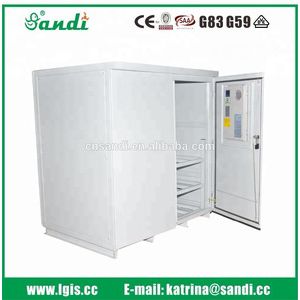

Inverter battery cabinet / Electric Control Cabinet, IP65 outdoor cabinet with air conditioner





Product Description

1. The Dimensions can be customized as clients.

2.The cabinet is adopted double wall type design which is composed with main body, roof, rear and side panels.

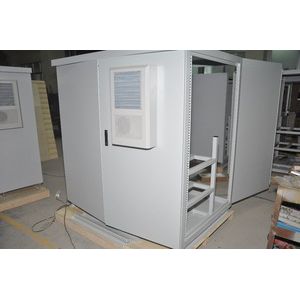

3.Cooling system:Air conditioner or Heat exchanger which could be fixed on the front or back door,

top fan units.The top and bottom roof with vented holes are for ventilation.

4.Material:SPCC cold rolled steel,stainless steel,galvanized steel or as customer’s requirements

5.Protection level:IP55

6.Waterproof, dust proof:

7.Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection

8.Temperature and humidity solution:we adopt different components to control temperature and humidity

to ensure the best working condition inside the cabinet.

9.Machine protection solution:the cabinet is designed specifically to protect it from human damage,

earthquick and other damages.10.Monitor system:can monitor internal temperature,humidity,fire/smoke,

door opened state.

11.Light:one piece LED tube light is for lighting insde and fixed on the top cover.

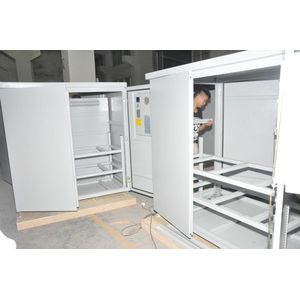

12.The cabinet is divided into 2 parts,each room have respective door and mounting panels for UPS and

other cabling equipments.4pcs zinc plating 19’’ mounting rails are for 19’’ equipments,9U height,also the

sizes could be customized as clients’ requirement.

13.Copper earthing bars for every room,

14.The cabinet is adopted double wall type design which is composed with main body,roof,rear and side

panels.

Model

SBC-305 Telecom Equipment Outdoor Cabinet

Type

Outdoor Cabinet/Outdoor telecom Cabinet

Internal Capacity

25U, 19 inch rack

Cooling System

Heat exchanger/air conditioner/fans

Size Weight Color

650*852*1500mm

170kg

RAL9002

according to your demand

MOQ

2 sets

Packing Detail

Wooden case with pallet, according to your demand

Mount method

On the ground

Structural Materials

SPCC(cold rolled steel),aluminum , stainless steel, galvanized steel, according to your demand

Structure Characteristics

Double-layer heat insulation structure

Protection Grade

IP55

Certificate

ISO 9001:2000

Place of Origin

Wenzhou, China(mainland)

Product features



Cable Gland;

2*PG29+2*PG11.5(At the bottom of the cabinet);

Low Working Noise;

Redundancy Control Interface;

RS 386 Communication Interface.

according to your demand
