Electric Barcode/Card Tripod Turnstile Access Control System

Custom design shape and logo,for large amount, custom logo available for free.

Technical Feature

  • Guangdong, China (Mainland)
  • SEWO
  • SEWO-5216
  • Electric Barcode/Card Tripod Turnstile Access Control System
  • SEWO-5212/SEWO-5215/SEWO-5216/SEWO-5217/SEWO-5218/SEWO-5219
  • Tripod Turnstile
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
SEWO
Model Number
SEWO-5216
Name
Electric Barcode/Card Tripod Turnstile Access Control System
Model
SEWO-5212/SEWO-5215/SEWO-5216/SEWO-5217/SEWO-5218/SEWO-5219
Style
Tripod Turnstile
Feature
Arms auto rise up when power on and auto stop on obstacle
Function
Bi-direction pass
Design
RFID interface
Socket
RS232 socket ,LAN socket
Protection grade
IP 54
Option
Traffic light indicator
Supplier
Direct Factory

DETAIL DESCRIPTION



  Electric Barcode/Card Tripod Turnstile Access Control System ;Door Access Control:Tripod Turnstile Gate with RFID Card

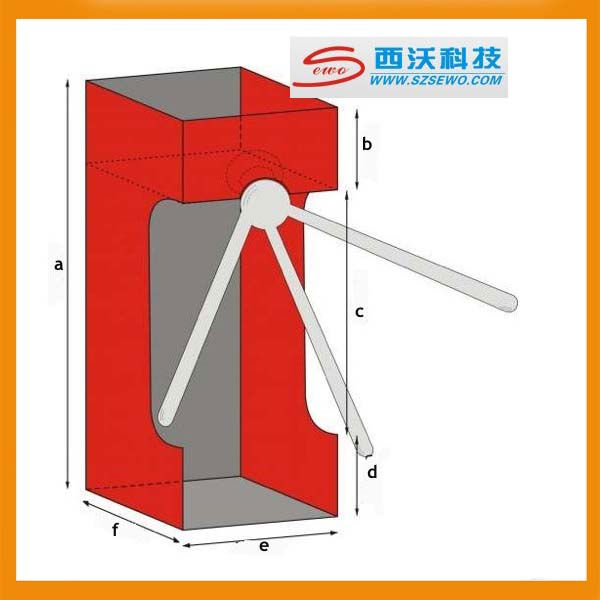

                                      Turnstile Tripod Diagram





Accurate Tripod Turnstile Gate with RFID Card Door Access Control with LED Direction Guide



Specifications:

Name

Tripod Turnstile

Model

SEWO

Housing Size

Different Options

Passing speed

30 person/min

Housing  Material

202or304 grade stainless steel optional

Working  Voltage

AC220V±10V, 50HZ

Net  Weight

35kg

Motor  voltage

220V

Gross Weight

42kg

Rated  Power

80W

Control  type

IC/ID/Barcode control
accepted

Transmission

Sine Linkage

Boom length

≤700mm

Frequency

50~60Hz

Logic voltage

24v

Working  temperature

-30°C--+70°C

Working mode

one directional or
bi-directional optional

Operating  humidity

≤90% non-condensing

Communication Interface

RS485/RS232

Operation life

≥5 million times

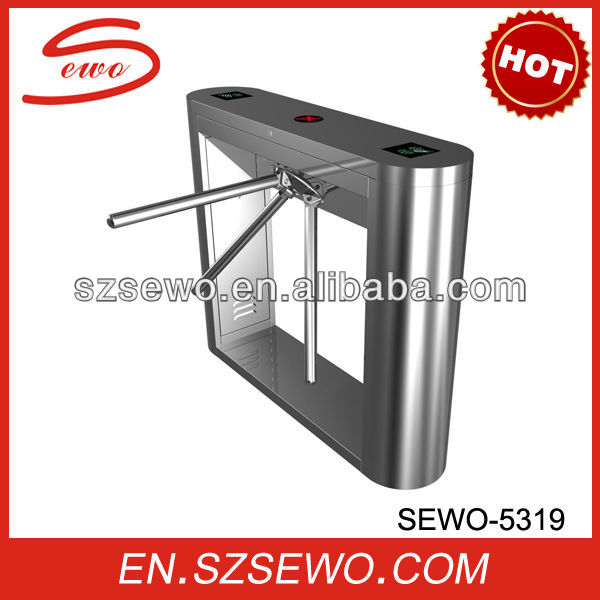

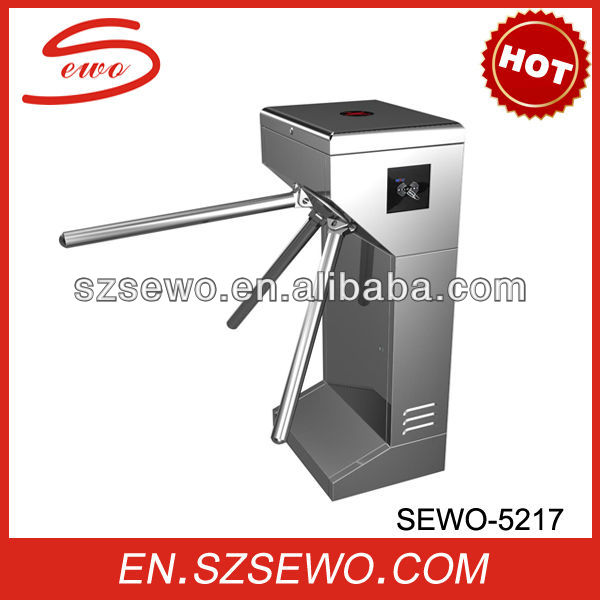

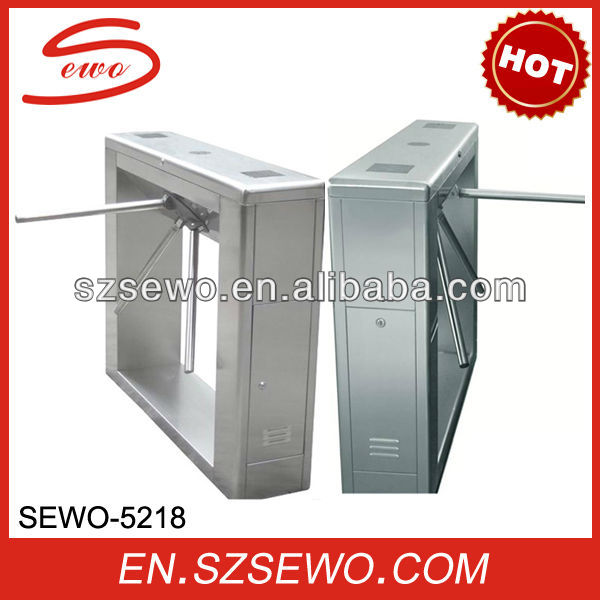

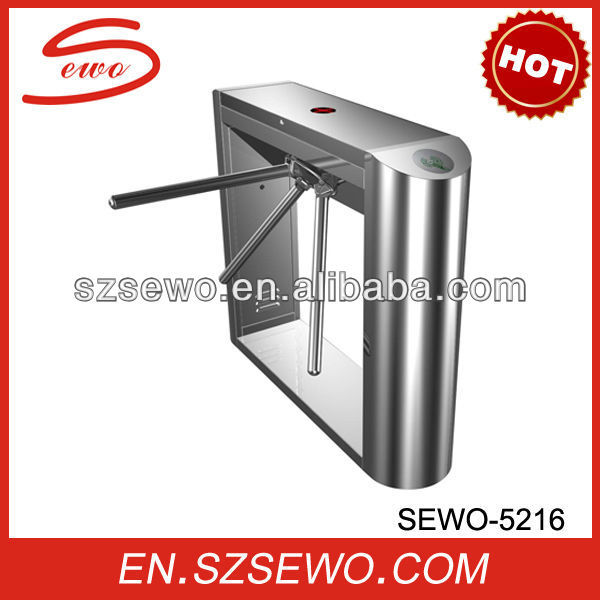

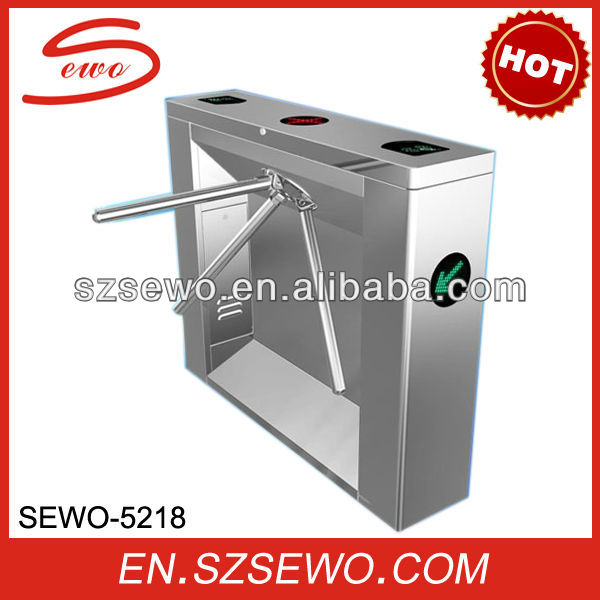

Pictures Showing:







Competitive Advantage:

1.1.5mm thickness 304 stainless steel

2. RFID card (IC/ID),  Barcode,  fingerprint,  control accepted

3. CE and ISO 9001-2008 certified

4. OEM and ODM are welcome.



Description:

1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and

reliable.

2. Running stable,  little noise and no mechanical impact

3. Self-checking-power-on function,  if power on,  turnstile will auto get to be held.

4. Various working means can be set in the control panel menu,

5. If power off,  arm will fall automatically while power on later,  arm should be lift by hand. First press the arm with a little force and then lift it manually.

5. RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.

7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also

computer far control and management can be realized by computer.

8. It will count the pedestrian and will show the number on LED display directly. (LED is optional)

9. LED direction guide

10. Card reading memory or card reading without memory function can be set.

11. If working with software,  the total-in-population can be set to satisfy special request.

12. Re-position function.

13. Card mounting is available.

14. Uncompleted wheel turning system is adopted for locking the turnstile in zero,  and unlocking will be more reliable and accurate.

15. Extend:

1),  Voice prompt

2),  dual color,  4 words LED display

3),  fingerprint card

4),  spit vote

5),  remote mode

16, Audio prompt function is optional.

17, Effective railing barrier opening signal with memory and without memory can be set (adjustable).



Applications:

Tripod turnstiles are mainly used in parks,  subway,  customers,  airport,  bus station,  office building,  scenic spot,  community,  attractions,  and exhibition hall doors,  residential,  Construction Sites,  Industrial Plants,  Marquee Golf Tournaments,  State Fairs,  Special Sporting Events and Festivals!

Customer serivce

 1.All items have 24 month quality guarantee.
2. Custom design shape and logo,for large amount, custom logo available for free.
3. Supported by professional engineers.
4. Special discount of our distributors or agents in their area.
5. Packing in standard export carton, suggest you pack it by wooden case to protect the products
6. CE, ROSH available.

 Leading time
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer


Company image:





Company's brief introduction

1. with over 9 years professional experience in parking system, barries, access control system,  attendance system, wing gates, eletronic door,security post, and traffic facilities., etc

2. Joined in with numerous scientific research institution, universities, and relied on our own professional R&D engineers, producing team, patient & professional service team, we can satisfy the customers individual requirements at highest level...

3. Executing ISO 9001:2000 management system, together with professional costing & quality control, which ensure us offer competitive prices together with standard quality products

4. Humanistic design products, easy installation and maintenance.

5. Steady andd widely customers base, built many typical municipal projects in local market and exported to overseas countries.

6. Quick delivery: within 7-30 days production lead time,based on order quantity



Sewo Electric Barcode/Card Tripod Turnstile Access Control System . manufactory price, high quality, welcome you inquiry!
