Security RFID Access Control Electric Magnetic Door Lock ID Card Password System New Arrival Durable Quality

Support card password, card plus password & password plus card.

Technical Feature

  • Guangdong, China (Mainland)
  • ZVEPOWER
  • ky32794862404
  • MIX
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
ZVEPOWER
Model Number
ky32794862404
Color
MIX

DETAIL DESCRIPTION

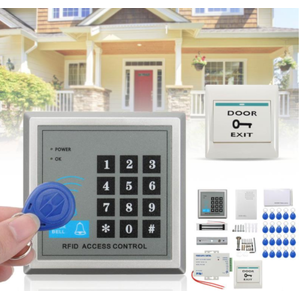

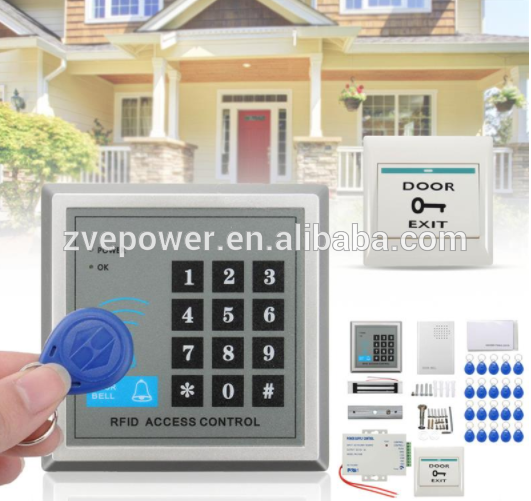

Package include:

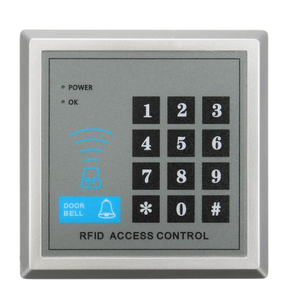

1 x RFID Proximity Door Entry keypad
20 x RFID Key Fobs
1 x Doorbell
1 x Instruction manual (in Chinese and English)
1 x Exit Button
1 x Screws set
10x ID Key Card
1 x Power supply
1 x Magnetic Lock


Access Control:

Features:
1. Sensitively and response quickly.
2. Support 500 standard users.
3. Support card password, card plus password & password plus card.
add card number and delete card number as your requirement.
4. Classical Appearance with useful function.
5. Professional design for Home and Office.
Specifications:
1. Memory: 500 standard users
2. Card read distance: 0-10 cm
3. RF type: EM card
4. Door open options (admin user selectable): Card (Key Tag) & Password/ Card (Key Tag) Only/ Password Only
5. Item dimension: 11.7*11.7*2.1cm


Power supply:

Specification:
1. This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.
2. Can reduce the load of access controller, save wiring to reduce the hidden trouble
3. Set NC / NO outputs, can control various types of electric locks
4. Based delay control circuit, lock time can be in 0-15 seconds
5. The circuit board has remote control port.
6. Outer Dimension: 103 x 68 x 33mm

Magnetic Lock:

1. NC Mode - (Locked while supplied with power) Fail Safe Mode
2. Performance Testing: 1000000 times aging test
3. Safety function: Built-in voltage spike suppressor
4. Anti-Residual Magnesium Designed
5. Lock Size: 170Lx41.4Wx20.5H(mm)
6. Armature plate: 130Lx33Wx9.3H(mm)
7. Holding Force: 180kg(300Lbs)

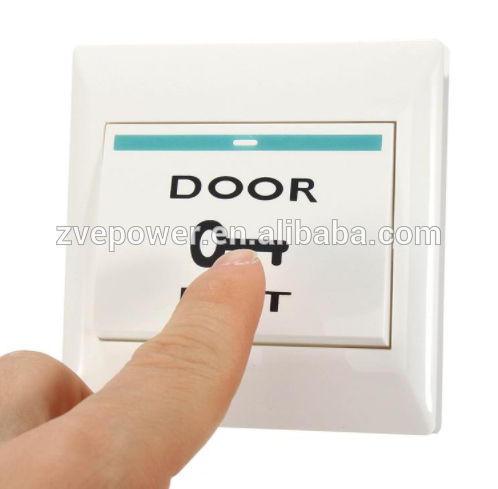

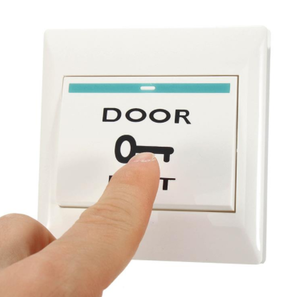

Exit Button:
1. Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
2. Performance Testing: 1000000 times aging test.
3. Maximun Power Rating: 3A/36VDC
4. Faceplate Dimension : 85Lx85W (mm)
5. Material: Hard Plastic

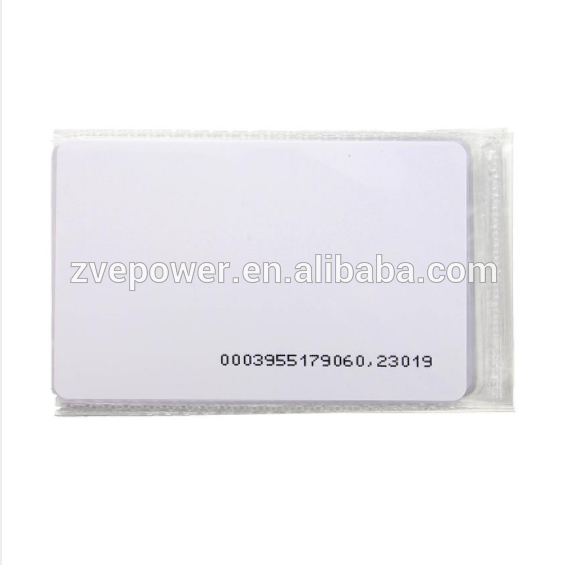

Key Card:
1. Each card has an uniqe ID number.
2. Perfect for attendance system, access control system, identification, low frequency tag card, etc.
3. Water resistant
4. Detecting distance: 3-10cm
5. Compatible with all RFID ID card reader to gain access
6. Each token pre-programmed with unique ID which is printed on it.
