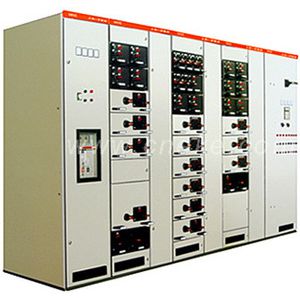

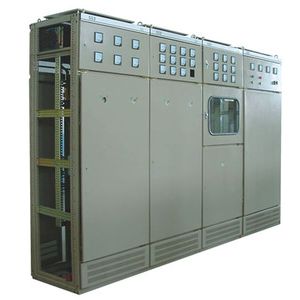

LV Indoor Type Switchgear

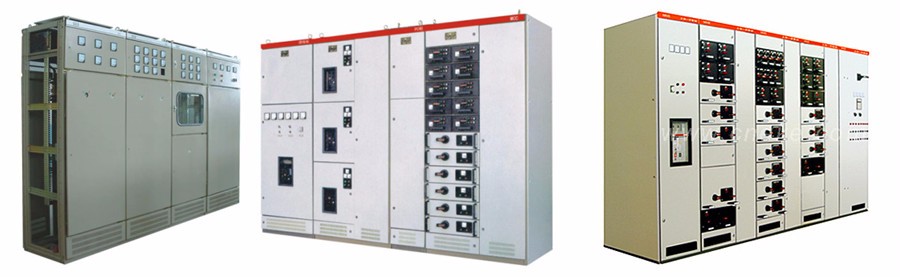

MNS/GCK/GCS/GGD model LV switch-gear is suitable for AC 50~60Hz, 660V power system or below . It is applied into power plant, substation, oil field, chemistry industry, metallurgy, mineral enterprise etc. Different types of switch is used inside of the cabinet to receive and distribute power with the function of controlling, protecting and monitoring.
The LV Switch-gear conforms to IEC60439 VDE0660, part five, GB7251 " LV Switch-gear and control-gear " standard and JB/ T9661 " LV draw out switch-gear " standard.
| Item | Unit | Parameter | |
| Main Circuit Rated Voltage | V | DC 380(400/600) | |
| Auxiliary Circuit Rated Voltage | V | DC 220/380(400);AC 110/220 | |
| Rated Frequency | Hz | 50/60 | |
| Rated insulation Voltage | V | 660/1000 | |
| Rated Current | Horizontal Busbar | A | ≤4000 |
| Vertical Busbar | A | 1000 | |
| Busbar Rated Short Time Withstand Current | KA/1s | 50/80 | |
| Busbar Rated Peak Withstand Current | KA/0.1s | 105/175 | |
| Power Frequency Test Voltage(1 min) | Main Circuit | V | 2500 |
| Auxiliary Circuit | V | 1760 | |
| Protection Level | Enclosure IP40 |

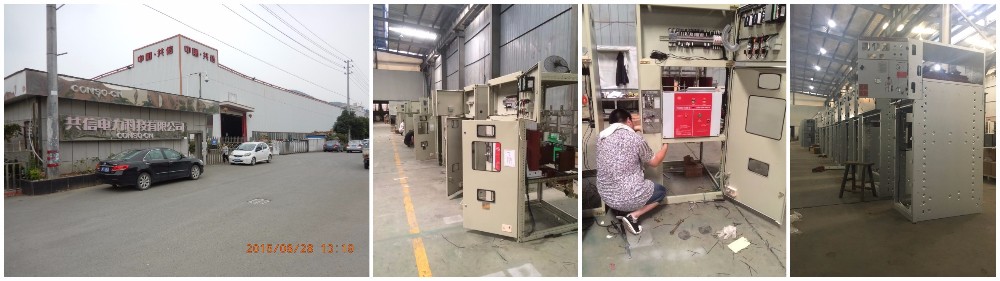

Conso Corporation (Conso Electrical Science and Technology Corporation CO.,Ltd) founded in 2006, which handquartered in the central industry park of Yueqing, of which the city is named as the capital of power distribuitons in China. The Factory owned about 15000 m2 land. The three main products of Conso Corporation is Medium Voltage Breaker (indoor&outdoor) 10kv to 35kv Distribuiton Transformer (oil type & dry type) and 10kv to 35kv Cabinet Substation (wind power&solar).
