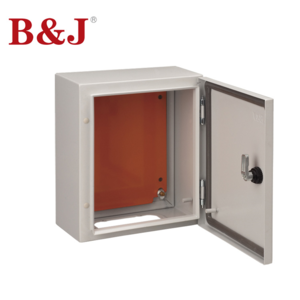

Waterproof Metal Enclosures Ip65 Ip66 Customized Wall Mounted Metal Electrical Network Cabinet / Box
Material:
Enclosure: sheet steel 1.2mm till size BJS1-88/300 then 1.5mm
Door: sheet steel 1.2mm till size BJS1-66/300 then 1.5mm
Mounting plate:2.0mm
Surface finish:
Enclosure and door:Dipcoat-primed,powder-coated in textured Ral7032 or Ral7035 outside
Mounting plate: RAL2000 or galvanized
RAL2000 or galvanized
Protection:
Protection degree:IP66
Impact resistance:IK10
Supply includes:
Enclosure of all-round solid construction
gland plate with sealing gasket,door with lock.
Warranty Service:
We 100% Gurantee your Satisfaction
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 3 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial
factors within 1 YEAR; however photos are needed for us to find the factors of damaging them.
3. Shipping and handling fees are not refundable for return or exchange items.
Our Advantages:
1. 20 year's OEM & ODM experience
2. Spain Design
3. the color can remain for over 5 years
4. professional team
Dimensions(mm):
| Reference | Height | Width | Depth |
| BJS1-2020/150 | 200 | 200 | 150 |
| BJS1-3025/150 | 300 | 250 | 150 |
| BJS1-3025/200 | 300 | 250 | 200 |
| BJS1-33/150 | 300 | 300 | 150 |
| BJS1-33/200 | 300 | 300 | 200 |
| BJS1-34/200 | 300 | 400 | 200 |
| BJS1-43/150 | 400 | 300 | 150 |
| BJS1-43/200 | 400 | 300 | 200 |
| BJS1-44/200 | 400 | 400 | 200 |
| BJS1-46/250 | 400 | 600 | 250 |
| BJS1-46/300 | 400 | 600 | 300 |
| BJS1-54/150 | 500 | 400 | 150 |
| BJS1-54/200 | 500 | 400 | 200 |
| BJS1-54/250 | 500 | 400 | 250 |
| BJS1-55/250 | 500 | 500 | 250 |
| BJS1-64/150 | 600 | 400 | 150 |
| BJS1-64/200 | 600 | 400 | 200 |
| BJS1-64/250 | 600 | 400 | 250 |
| BJS1-65/150 | 600 | 500 | 150 |
| BJS1-65/200 | 600 | 500 | 200 |
| BJS1-65/250 | 600 | 500 | 250 |
| BJS1-66/250 | 600 | 600 | 250 |
| BJS1-66/300 | 600 | 600 | 300 |
| BJS1-68/300 | 600 | 800 | 300 |
| BJS1-75/200 | 700 | 500 | 200 |
| BJS1-75/250 | 700 | 500 | 250 |
| BJS1-86/200 | 800 | 600 | 200 |
| BJS1-86/250 | 800 | 600 | 250 |
| BJS1-86/300 | 800 | 600 | 300 |
| BJS1-86/400 | 800 | 600 | 400 |
| BJS1-88/200 | 800 | 800 | 200 |
| BJS1-88/300 | 800 | 800 | 300 |
| BJS1-810/300 | 800 | 1000 | 300 |
| BJS1-106/250 | 1000 | 600 | 250 |
| BJS1-106/300 | 1000 | 600 | 300 |
| BJS1-108/250 | 1000 | 800 | 250 |
| BJS1-108/300 | 1000 | 800 | 300 |
| BJS1-108/400 | 1000 | 800 | 400 |
| BJS1-1010/300 | 1000 | 1000 | 300 |
| BJS1-1012/300 | 1000 | 1200 | 300 |
| BJS1-128/300 | 1200 | 800 | 300 |
| BJS1-128/400 | 1200 | 800 | 400 |
| BJS1-1210/300 | 1200 | 1000 | 300 |
Other sizes avaliable on request .Cut-outs and drilled holes to your specifications.
Should you have any questions or problems, please send e-mail,call us or talk with us by Skype
Packing Details: Cartons/Pallets
Delivery Time:10-30days after prepayment
Q1.Could i put my own logo on it?
A:Sure, customers' logo can be made by silk-screen printing,;embossed.
Q2.Should i pay extra for logo printing ?
A:according to different situation.
Q3.How about the quality ?
A:We have the CE & IP66 Certification issued by TUV.
> 100% QC in produce process and before package.
Q4.Could i buy 1pc sample first and small order ?
A:Of course, we accept trial order and small order, especially for new customers.
Q5.How much for 1pc sample ?
A:For small size sample 1pcs is free but need to check the actual stock.
Q6.If i have custom-made requirement, do you have person to design according to my concept?
A:Certainly,our design team will do for you.
Q7.How long to make a sample?
A:7~21days which depends on the samples' complexity.
Q8.Is the sample fee refundable or not?
A: Sure, refundable once order confirmed.
Thanks for your attention. If there is any product meet your requirement, Welcome to send us an email. We are sure your request will be respond without delay.
