PRODUCTS SHOW
Manufacturing & Facility

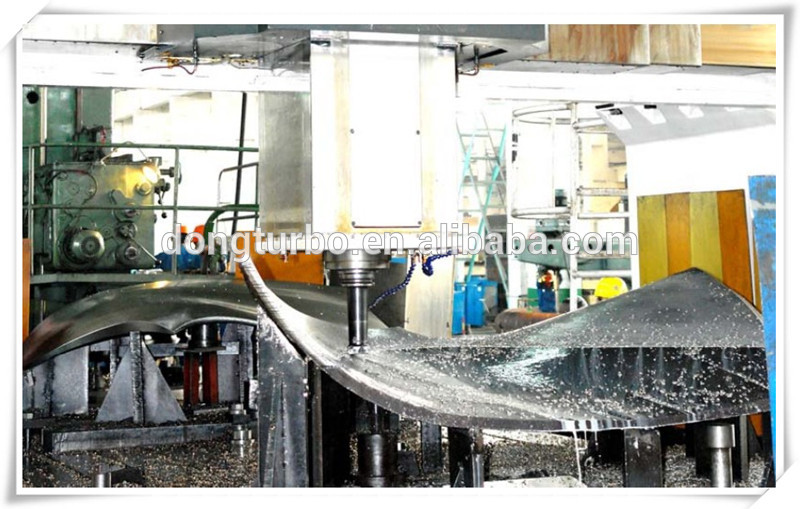

1. GMB2550r CNC gantry miller is processing runner blade

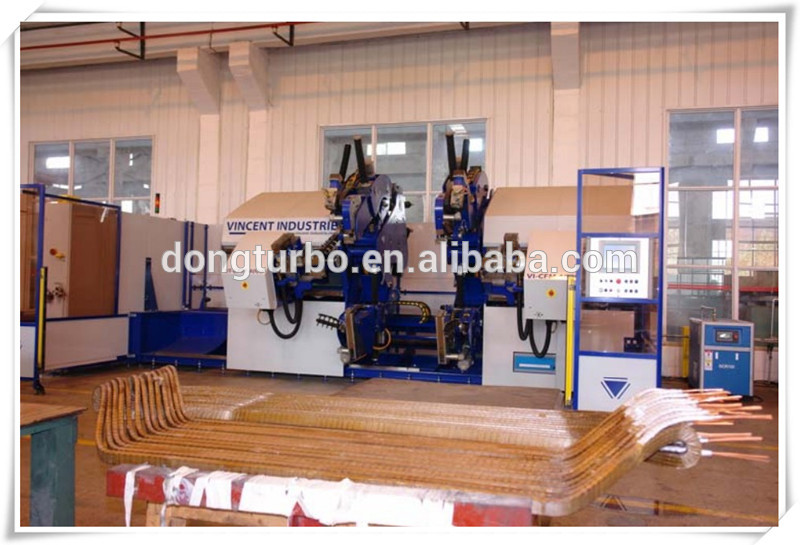

2.CNC coil 12-axis expander imported from France
3. Dovetail miller
4. 10m Vertical lathe

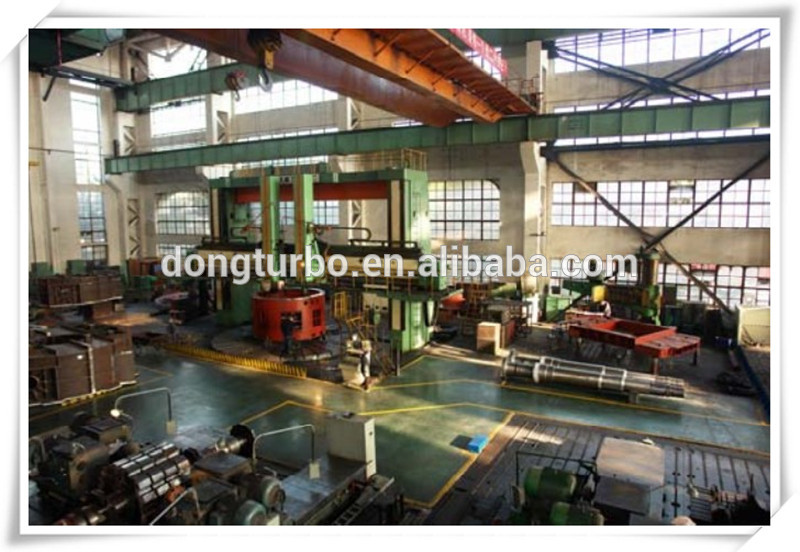

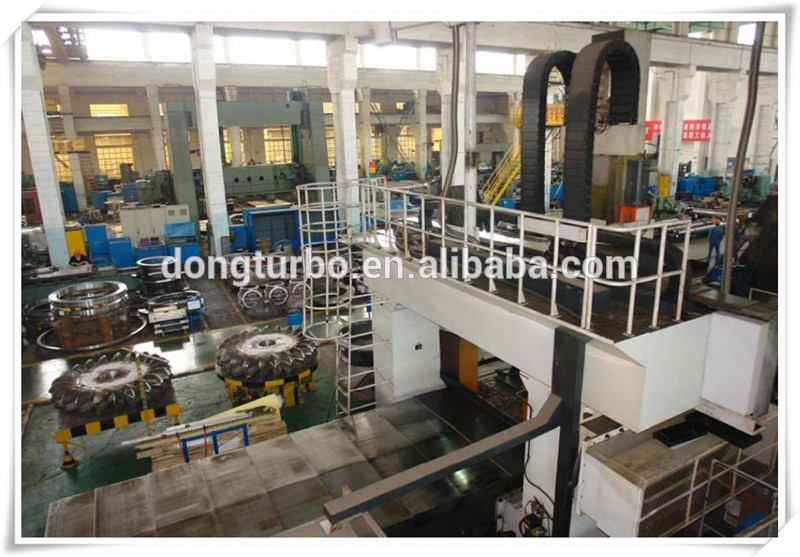

5. A corner of workshop
Project Experience

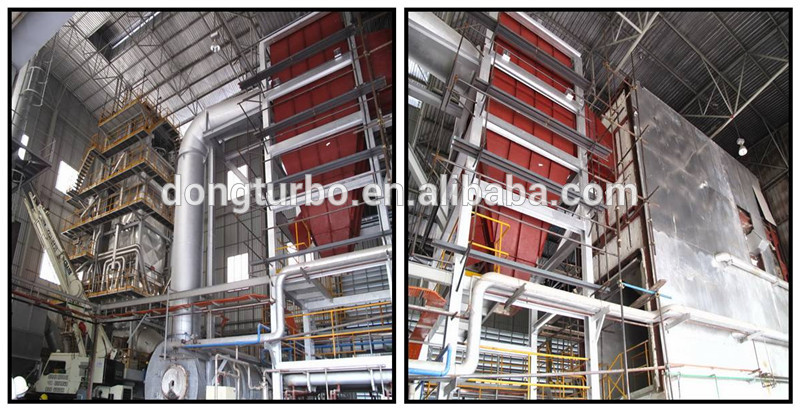

Fuel Handling & Feeding System And Mechanical Works Of Incineration Plant At VSPP Amata Industrial Park Bangkok,Thailand

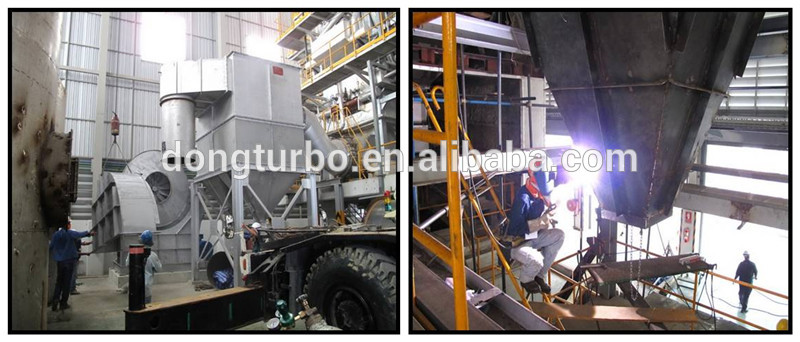

Installation Of Air Mixer Installation Of ID Fan

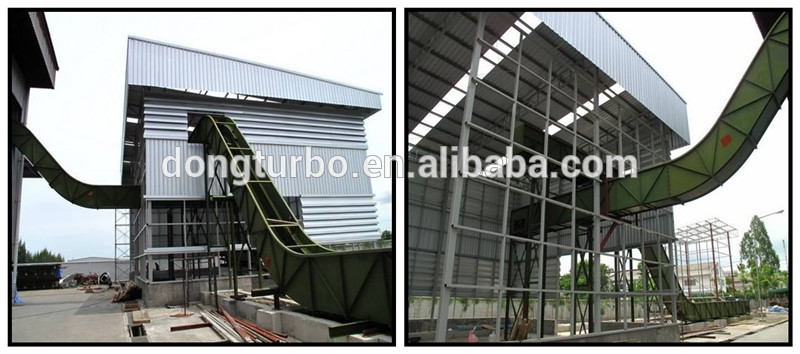

Conveyor System For FPP
Air Mixer and Boiler Air Mixer & Incineration Plant
SPECIFICATION
S N | Type Technical Parameter | N1.5-0.637 | N0.8-0.637 | N6-3.43 | N12-3.43 | N25-3.43 | N50-8.83 |
1 | Type | LP condensing | LP condensing | MP Condensing | MP Condensing | MP Condensing | HP Condensing |
2 | Factory number | D1.5C | D0.8A | D25 | D26 | D25A | D34 |
3 | Arrangement type | Single | single | double | double | double | double |
4 | Rated Output KW | 1500 | 800 | 6000 | 12000 | 25000 | 50000 |
5 | Max. Output KW | 1650 | 1000 | ----- | ----- | ------- | 55000 |
6 | Rated Speed r.p.m | 5600/1500 | 5600/1500 | 3000 | 3000 | 3000 | 3000 |
7 | Admission Pressure MPa/ata | 0.637 / 6.5 | 0.637 / 6.5 | 3.43 / 35 | 3.43 / 35 | 3.43 / 35 | 8.83 / 90 |
8 | Admission Temperature °C | 305 | 305 | 435 | 435 | 435 | 535 |
9 | Rated Steam Flow T/h | 13 | 6.5 | 29.6 | 55 | 115 | 190 |
10 | Exhaust Pressure KPa/ata |
|
| 7.85 / 0.08 | 6.9 / 0.07 | 6.86 / 0.07 | 5.5 / 0.054 |
11 | Heat Rate KJ/KW.h |
|
| 12570 | 11856 | 11417 | 9399 |
12 | Cooling Surface of Condenser M2 | 9.8 / 0.105 | 9.8 / 0.105 | 560 | 1000 | 2250 | 3500 |
13 | Overall Dimension L×W×H | 280 | 140 | 4.84×2.7×2.7 | 5.37×3.6×3.7 |
| 8.7×6.9×3.4 |
14 | Weight of Turbine Proper T | 4.14×3.4×2.4 | 3.7×2.2×2.1 | 38.12 | 49 |
| 141 |
15 | Remarks | 13.5 | 9.5 |
|
|
|
|
S N | Type Technical Parameter | N3-2.35 | N3-2.35-1 | N1.5-2.35 | N3-1.27 | N2-1.08 | N2-0.98 | N1.5-1.08 |
1 | Type | Sub MP Condensing | Sub MP Condensing | Sub MP Condensing | LP Condensing | LP Condensing | LP Condensing | LP Condensing |
2 | Factory number | D24 | D3E | D30 | D3C | J01 | D2A (D2B) | D1.5D |
3 | Arrangement type | Single | Single | Single | Double / single | Single | Single | Single |
4 | Rated Output KW | 3000 | 3000 | 1500 | 3000 | 2300 | 2000 | 1500 |
5 | Max. Output KW | ----- | ----- | ------- | 3500 | ---- | 2300 | 1650 |
6 | Rated Speed r.p.m | 5600/3000 | 5600/1500 | 6500/3000 | 5600/3000 | 5600/3000 | 5600/3000 | 5600/1500 |
7 | Admission Pressure MPa/ata | 2.35 / 24 | 2.35 / 24 | 2.35 / 24 | 1.176 / 13 | 1.08 / 11 | 0.98 / 10 | 1.08 / 11 |
8 | Admission Temperature °C | 390 | 312 | 390 | 260~350 | 310 | 300 | 315 |
9 | Rated Steam Flow T/h | 16.3 | 17.6 | 8.6 | 19.5 | 16.2 | 16.2 | 11 |
10 | Exhaust Pressure KPa/ata | 10.3 / 0.105 | 11.3 / 0.115 | 10.3 / 0.105 | 9.8 / 0.1 | 9.8 / 0.1 | 9.8 / 0.1 | 9.8 / 0.1 |
11 | Heat Rate KJ/KW.h | 15072 | 15973 | 15491 | 17580 | 17748 | 17748 | 17618 |
12 | Cooling Surface of Condenser M2 | 280 | 280 | 140 | 420 | 280 | 280 | 280 |
13 | Overall Dimension L×W×H | 4.14×3.4×2.5 | 4.14×3.4×2.5 | 3.74×2.2×2.1 | 3.5×2.4×2.2 | 4.14×3.4×2.5 | 4.1×3.4×2.4 | 4.1×3.4×2.4 |
14 | Weight of Turbine Proper T | 13.5 | 17 | 9.5 | 15.3 | 13.5 | 13.5 | 13.5 |
Remarks |
|
|
|
|
|
|
|
What Else Can We Offer You ?
Spare parts of steam turbine include:
Rotor;
- Moving Blades of Rotor;
- HP/IP/LP Gland Sealings;
- HP/IP/LP Diaphragms;
- Seal Rings;
- Couplings between Steam Turbine and Generator;
- Spcial Studs and Nuts;
- Bolts and Nuts of Turbine Casings;
- Bolts and Nuts of Diaphragms;
- Thrust Bearings and Surport Bearings;
- Gaskets, Srews, Keys, Pins, Washers, Grooved gaskets;
- Turning Gear;
- Babbit Metal Lined Bearings;
- Stem, Disc, Pilot and Sleeve of Main Steam Stop Valves, Combined Steam Valves, Governing Valves;
- Actuators of Control System;
- Steam Strainer;
- Start up Oil Pump and Spare Parts;
- Jacking Oil Pump and Spare Parts;
- Main Oil Pump and Spare Parts;
- Emergency Oil Pump and Spare Parts;
- Condensate Pump and Spare Parts;
- Jet Water Pump and Spare Parts;
- Drainage Pump and Spare Parts;
- Spare Parts of Circulating Water Pump;
- Spare Parts of DEH, TSI, ETS;
Know more about our company
We, Dongturbo Electric Company Ltd.(DTEC). DTEC is an international corporation, with its headquarter in Chengdu, China, and manufacturing bases in Deyang and Kunming, China, mainly engaged in the manufacturing of power & electric equipments, EPCC (engineering, procurement, construction, commissioning), and export and import business. DTEC also has branches and joint venture in Malaysia, Thailand, and Philippine. Our business scope covers EPC, supply equipment and materials for thermal power inc luding boiler, turbine, generator and their auxiliaries, BOP, electric and C& I etc.; EPC and equipment supply for PV, thermal solar power, Wind & PV hybrid and energy storage system.; spare parts supply and power plant overhaul and maintenance;
We have established close partner relationship with design institute, manufacturers, erection company, traders and end customers both in China and all over the world.
We actively and continuously engaged in the domestic and global electrical markets. Our professional Engineering, Project Management etc. contributed to the success of the contracted projects, meanwhile, we also shared a lot from those success, we became one of the technical expertise for systematic solution for power industry.
We are willing to grow with our customers, and we always believe our success can only rely on the success of our customer. We are always prepared to provide the best solution to our customer, provide the best service to our customer, and make the most gain to our customer.
