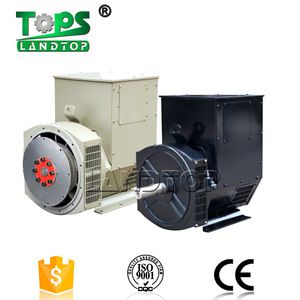

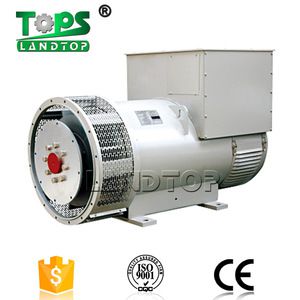

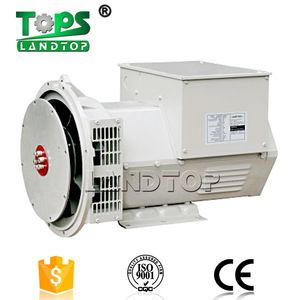

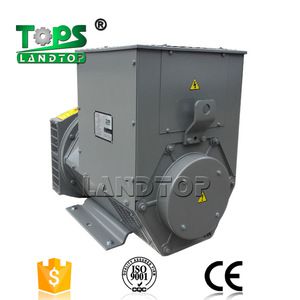

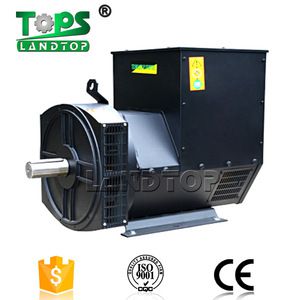

Stanford/Brushless Alternator /generator
Stanford Series three-phase A. C. Synchronous brushless generator impor, digest and absorb international advance technology of manufacturing electric machinery. It's the new-type designed and developed A. C. Synchronous generators by ourselves. The series generators accord with most of international standards. They alos accord with the following standards: International Electrician Command standard IEC 34 interntional standardization. Organization command standard ISO8528 NEMA Standard.
The products have outstanding performance, reliable quality, convenient maintenance. The generator and the engine can be connected with steel or flexible materialas a small-type generating station, it can be used in factories, buildings and worksites for lightening and electric power source.
Operating Conditions:
| Alternator Model | LTP |
| Power | 8.1kva-2500KVA |
| Exciter type | Brushless, Self-excited |
| Power factor | 0.8 |
| Speed | 1500/1800Rpm |
| Characters | Double bearing, 4poles |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±0.5% |
| THF/TIF | THF<2%, TIF<50 |
| Insulation Grade | H |
| Protection Grade | IP21 |
Technical Data:
| TYPE | Rated Power(1500rpm 50HZ 400V) | KG | ||||||
| Continuous/40 | Stand by/40 | Stand by/27 | ||||||
| H125K | H150K | H163K | ||||||
| KVA | KW | (%) | KVA | KW | KVA | KW | ||
| LTP164A | 8.1 | 6.5 | 73.6 | 8.5 | 6.5 | 6 | 7.2 | 86 |
| LTP164B | 9.4 | 8 | 78.8 | 11 | 8.8 | 12 | 9.6 | 90 |
| LTP164C | 12.5 | 10 | 80.6 | 13.8 | 11 | 15 | 12 | 96 |
| LTP164D | 15 | 12 | 81.2 | 17.5 | 14 | 20 | 16 | 100 |
| LTP184E | 20 | 16 | 84.5 | 22.5 | 18 | 25 | 20 | 120 |
| LTP184F | 25 | 20 | 86 | 27.5 | 22 | 30 | 24 | 150 |
| LTP184G | 30 | 24 | 86.3 | 32.5 | 26 | 35 | 28 | 160 |
| LTP184H | 37.5 | 30 | 86.6 | 40 | 32 | 41.3 | 33 | 216 |
| LTP224C | 42.5 | 34 | 87 | 45 | 36 | 47.5 | 38 | 250 |
| LTP224D | 50 | 40 | 88 | 52.5 | 42 | 55 | 44 | 270 |
| LTP224E | 60 | 48 | 86.8 | 62.5 | 50 | 65 | 52 | 290 |
| LTP224F | 72.5 | 58 | 90 | 77.5 | 62 | 80 | 64 | 320 |
| LTP224G | 85 | 68 | 90.2 | 87.5 | 70 | 91.3 | 73 | 360 |
| LTP274C | 100 | 80 | 90.4 | 106.3 | 85 | 110 | 88 | 395 |
| LTP274D | 117.5 | 94 | 90.8 | 127.5 | 102 | 131.3 | 105 | 420 |
| LTP274E | 140 | 112 | 91.5 | 145 | 116 | 150 | 120 | 470 |
| LTP274F | 160 | 128 | 92.3 | 170 | 136 | 175 | 140 | 510 |
| LTP274G | 181.3 | 145 | 92.5 | 187.5 | 150 | 193.8 | 155 | 560 |
| LTP274H | 200 | 160 | 93.3 | 212.5 | 170 | 220 | 176 | 610 |
| LTP314C | 250 | 200 | 92.4 | 270 | 216 | 275 | 220 | 850 |
| LTP314D | 300 | 240 | 92.7 | 320 | 256 | 330 | 264 | 915 |
| LTP314E | 350 | 280 | 93.3 | 370 | 296 | 400 | 320 | 960 |
| LTP314F | 394 | 315 | 93.5 | 418.8 | 335 | 437.5 | 350 | 1123 |
| LTP354C | 450 | 360 | 94.1 | 477.5 | 382 | 495 | 396 | 1275 |
| LTP354D | 500 | 400 | 94.4 | 515 | 412 | 530 | 424 | 1330 |
| LTP354E | 600 | 480 | 94.6 | 640 | 512 | 665 | 532 | 1530 |
| LTP354F | 662.5 | 530 | 94.8 | 700 | 560 | 725 | 580 | 1690 |
| LTP404C | 750 | 600 | 93.3 | 775 | 620 | 790 | 632 | 1960 |
| LTP404D | 800 | 640 | 93.6 | 825 | 660 | 840 | 672 | 1980 |
| LTP404E | 900 | 720 | 93.8 | 937.5 | 750 | 957.5 | 766 | 2040 |
| LTP404F | 1000 | 800 | 94.3 | 1030 | 824 | 1050 | 840 | 2210 |
| LTP404G | 1125 | 900 | 94.7 | 1163 | 930 | 1187.5 | 950 | 2430 |
| LTP404H | 1250 | 1000 | 95 | 1288 | 1030 | 1312.5 | 1050 | 2670 |
Product Line:

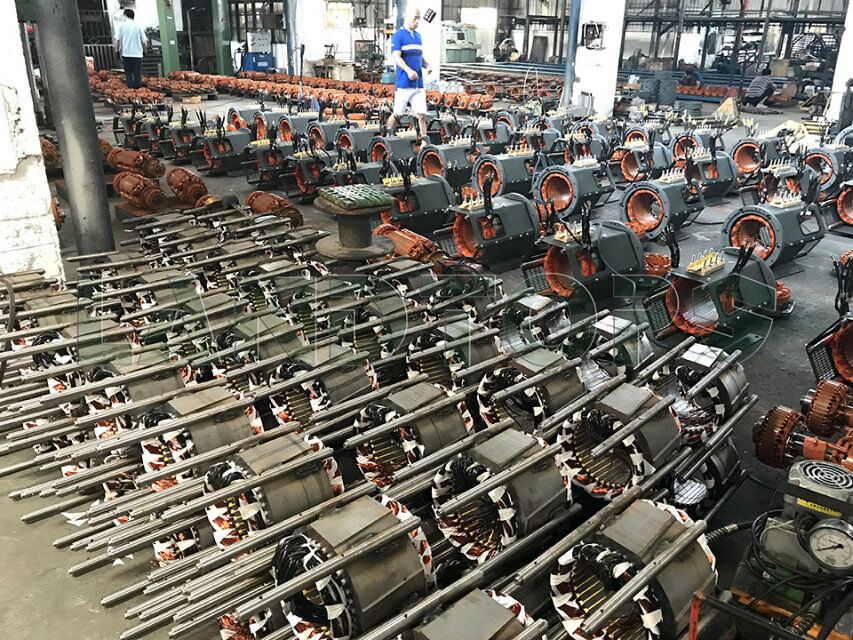

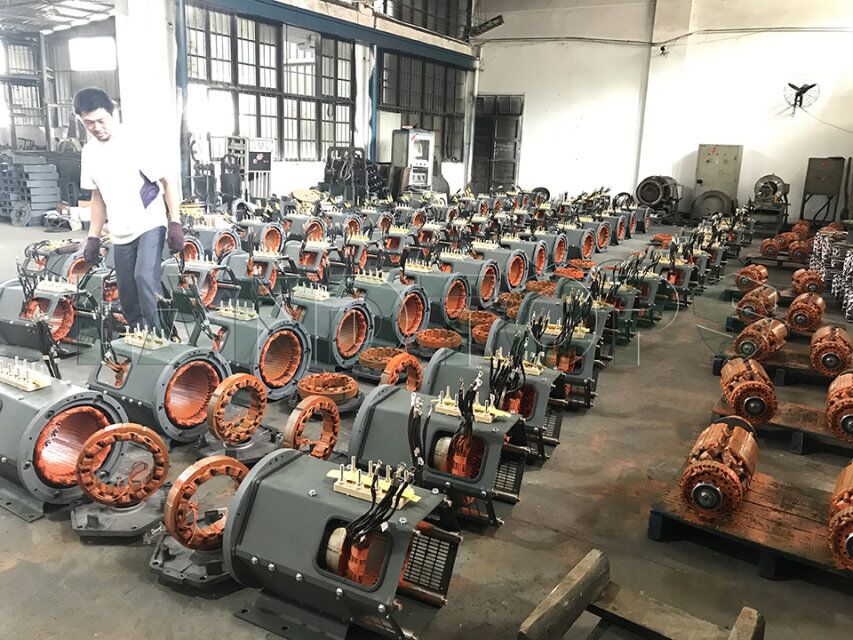

With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong (Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.

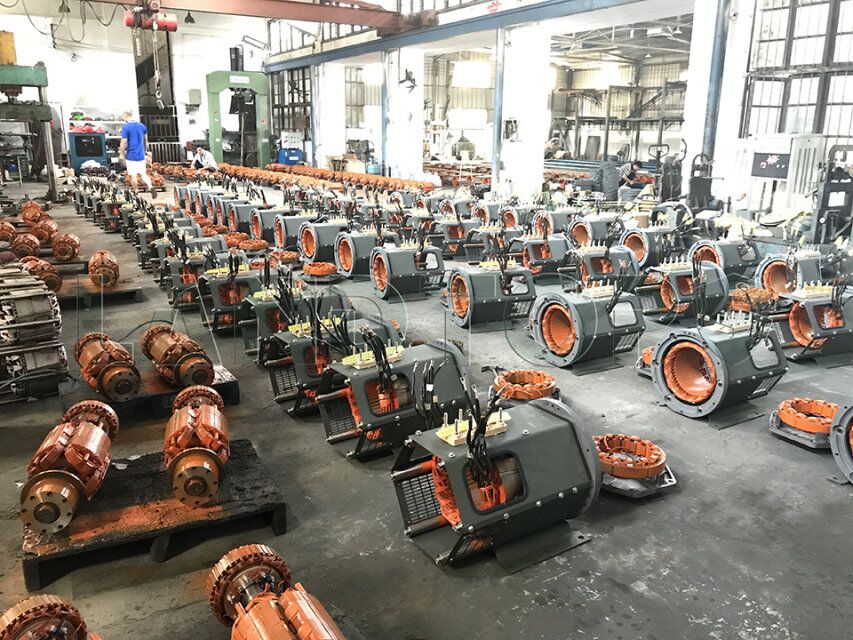

1.Stamping of lamination
2.Rotor die-casting
3.Winding and inserting – both manual and semi-automatically
4.Vacuum varnishing
5.Machining shaft, housing, end shields, etc…
6.Rotor balancing
7.Painting – both wet paint and powder coating
9.Packing
10.Inspecting spare parts every processing
11.100% test after each process and final test before packing.
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
