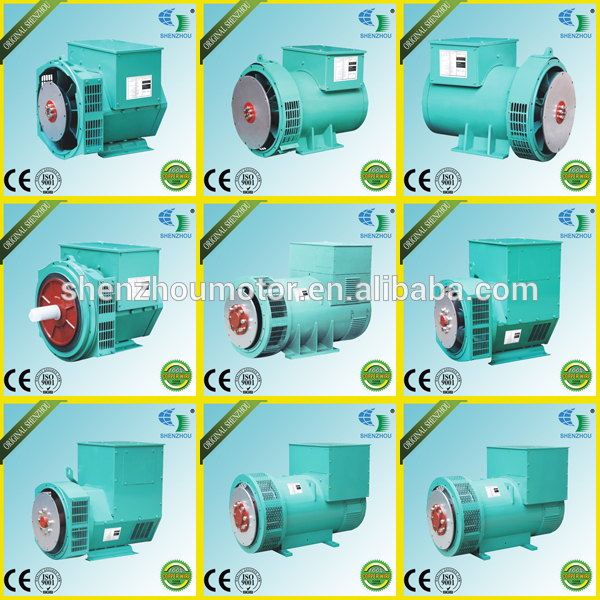

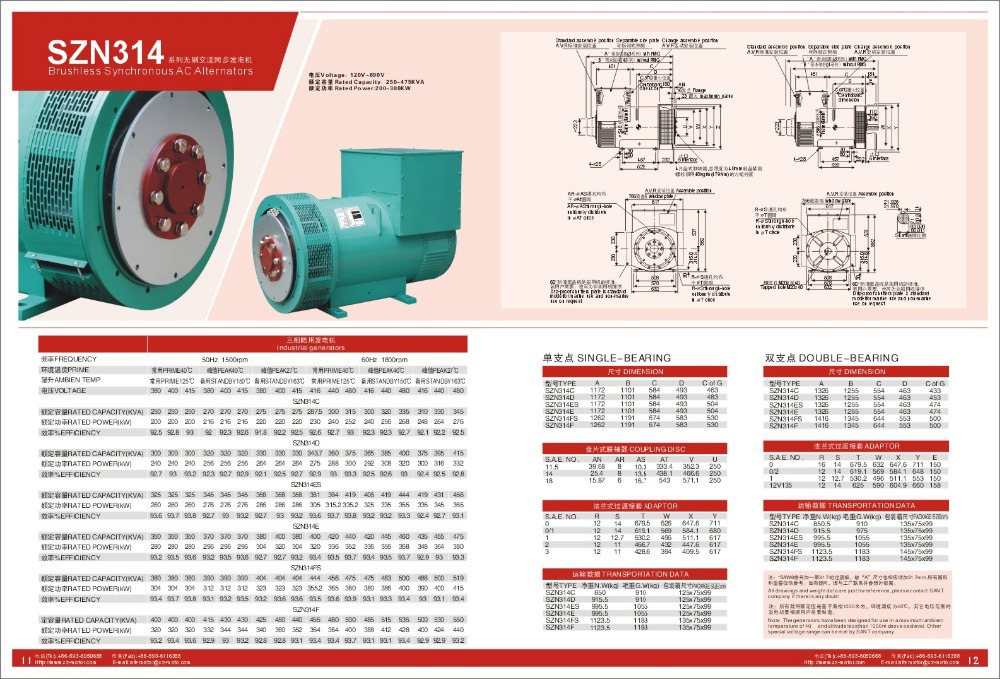

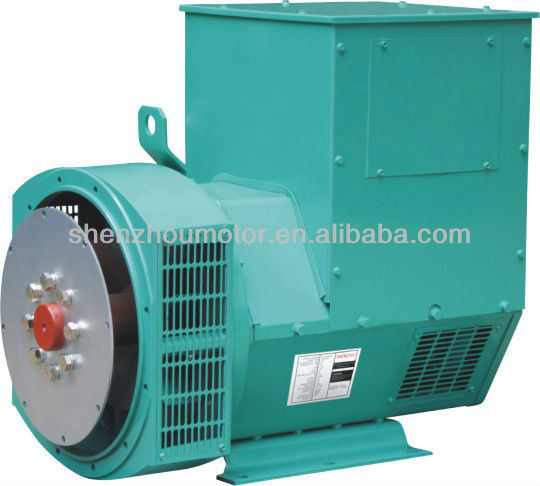

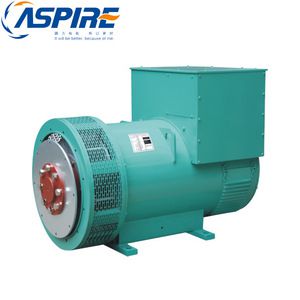

Replacement Brushless Electric Generators Prices 314 Series
Features:
1. Optional permanent magnecitc generators providing invariable excitation on all occasions.
2. Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3. Balanced rotor. Single or two sealed ball bearings.
4. Convenient installation and maintenance with easy access to terminal, rotating diodes and coupling bolts.
5. Wide range of Flange adaptor and single bearing couping disc.
6. Meet leading industry and Marine standards. Special voltage generators can be manufactured accoring to end users' requirement.
Single-phase generators minimum voltage can be 110V. Three-phase generators maximum voltage can be 690V.
| Model | Output (kW) 50Hz/4pole/400V | Output (kW) 60Hz/4pole/480V | ||
| KVA | KW | KVA | KW | |
| SZN164A | 8.1 | 6.5 | 8.9 | 7.2 |
| SZN164B | 11.0 | 8.8 | 12.1 | 9.7 |
| SZN164C | 13.5 | 10.8 | 14.9 | 11.9 |
| SZN164D | 16.0 | 12.8 | 17.6 | 14.1 |
| SZN184E | 22.5 | 18 | 24.8 | 19.8 |
| SZN184F | 27.5 | 22 | 30.3 | 24.2 |
| SZN184G | 31.3 | 25 | 34.4 | 27.5 |
| SZN184H | 37.5 | 30 | 41.3 | 33.0 |
| SZN184J | 42.5 | 34 | 46.8 | 37.4 |
| SZN224C | 42.5 | 34 | 46.8 | 37.4 |
| SZN224D | 50.0 | 40 | 55.0 | 44.0 |
| SZN224E | 60.0 | 48 | 66.0 | 52.8 |
| SZN224F | 72.5 | 58 | 79.8 | 63.8 |
| SZN224G | 85.0 | 68 | 93.5 | 74.8 |
| SZN274C | 100.0 | 80 | 110.0 | 88.0 |
| SZN274D | 120.0 | 96 | 132.0 | 105.6 |
| SZN274E | 140.0 | 112 | 154.0 | 123.2 |
| SZN274F | 160.0 | 128 | 176.0 | 140.8 |
| SZN274G | 180.0 | 144 | 198.0 | 158.4 |
| SZN274H | 200.0 | 160 | 220.0 | 176.0 |
| SZN274J | 230.0 | 184 | 253.0 | 202.4 |
| SZN274K | 250.0 | 200 | 275.0 | 220.0 |
| SZN314C | 250.0 | 200 | 275.0 | 220.0 |
| SZN314D | 295.0 | 236 | 324.5 | 259.6 |
| SZN314E | 325.0 | 260 | 357.5 | 286.0 |
| SZN314F | 380.0 | 304 | 418.0 | 334.4 |
| SZN354C | 450.0 | 360 | 495.0 | 396.0 |
| SZN354D | 500.0 | 400 | 550.0 | 440.0 |
| SZN354E | 600.0 | 480 | 660.0 | 528.0 |
| SZN354F | 670.0 | 536 | 737.0 | 589.6 |
