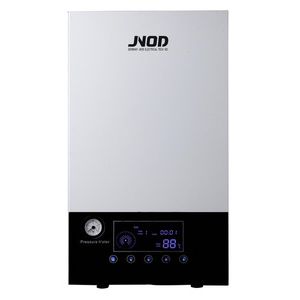

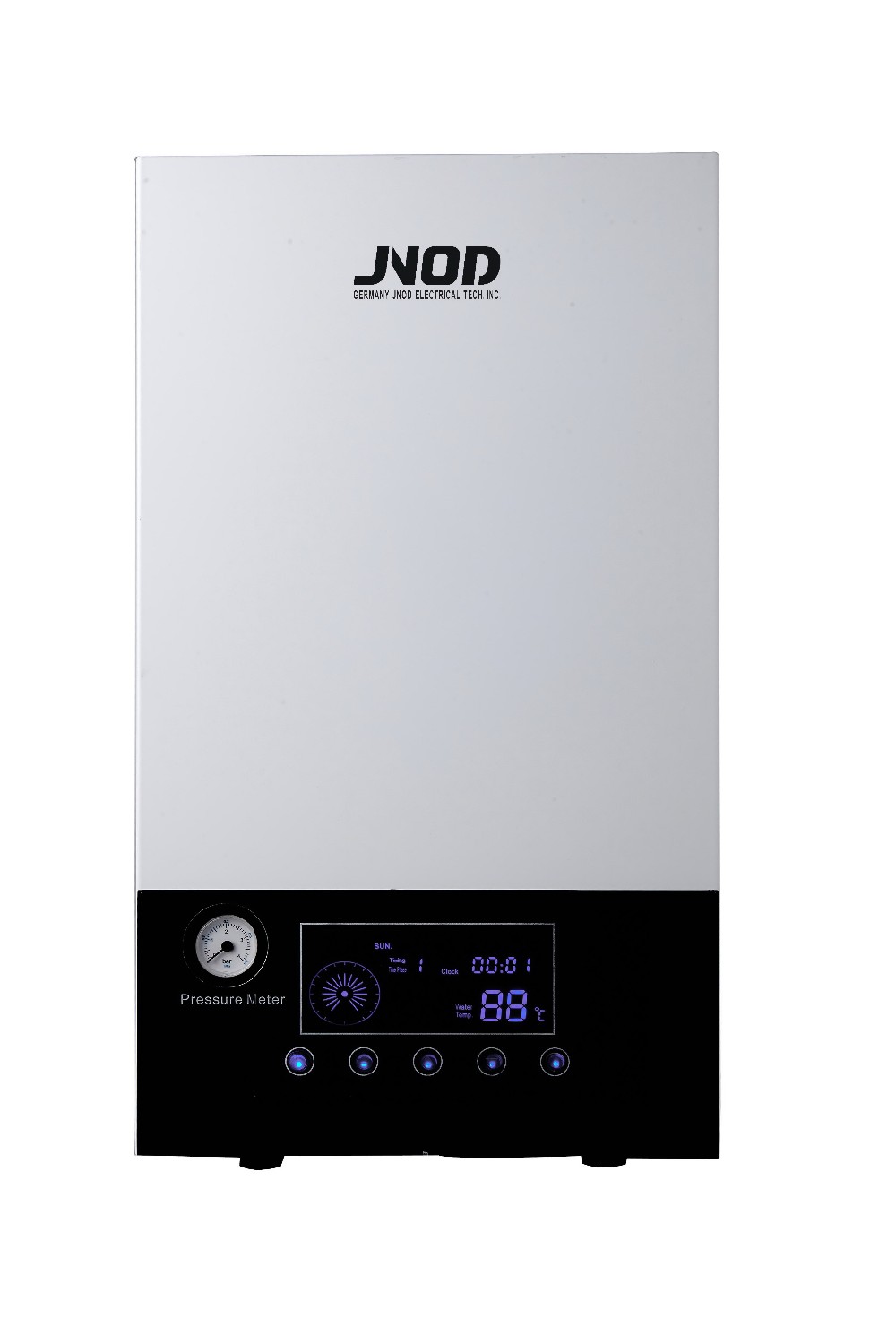

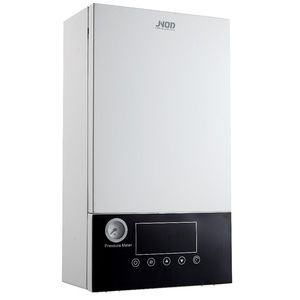

Main Features
1) LED digital temperature display, toch screen for operation
2) Multi water supply, endless hot water.
3) Easy installation, wall mounted installation mode.
4) Compact design, save space.
| Technology Data | ||
| Model No. | GFEB212 | GFEB318 |
| Phase | 1 | 3 |
| Voltage | 220~240V | 380~400V |
| Power | 12kW | 18kw |
| Rated current | 54.5A | 3*17.3A |
| Connection wire section | 3*10mm2 | 5*2.5mm2 |
| Temp. Setting Range | 35-80 oC | |
| Overheat Protetion | 65 oC | |
| Thermal Cut-out | 90 oC | |
| Safety Class | IPx4 | |
| Working Preasure | 0.02-0.6MPa | |
| Inlet & Outlet section | G1/2" / G3/4" | |
| Product Size | 620*350*200mm |
Product Specification
* Metal out case with white paint. Convenient installation structure.
* Unique patent Heating Element, high heating efficiency,
* Touch operation panel, blue LED display
* Infrared remote control & the remote control distance can be 10 meters.
* The boiler is equipped with optional control unit interface. It can connect an external controller.

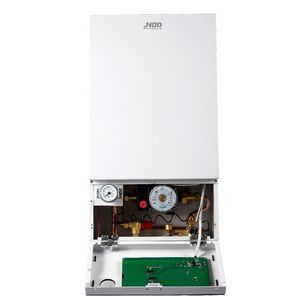

* Built-in expansion tank & pump to avoid complicated system installation.
* Timing start up and shutdown function. Weekly cycle set the program.
* Double dry-heating protection function.
* Automatic anti-freezing function to ensure the continuous heating in whole winter.
* Fault auto-detection technique, the fault code will be displayed automatically while failure.
* Ultra low noise working, no effect on environment.

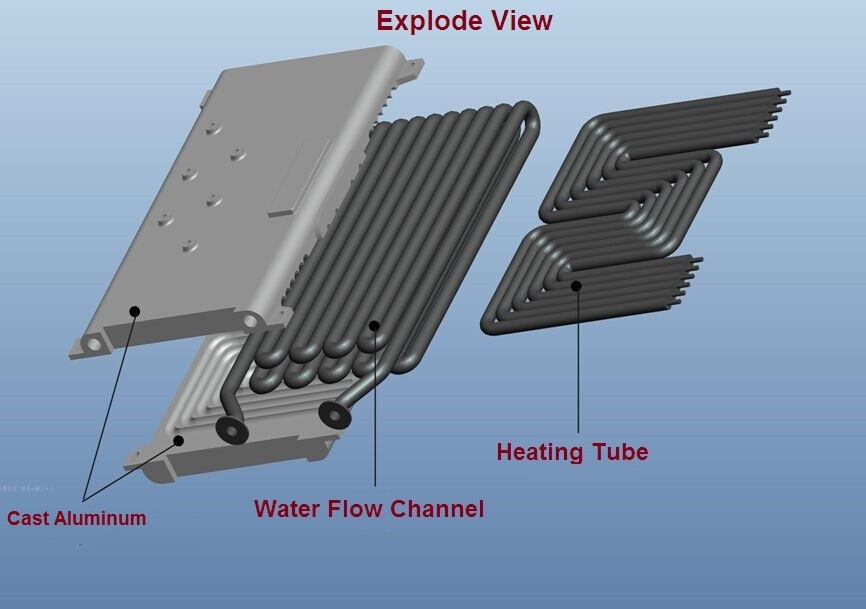

Patent Heating Technology
Heating Material: nickel-chromium
Material of Heating Tube: SS316L
Material of Water flow channel: SS304
Length of Water flow channel: 5.5m
Surface Thermal Load: 13.5w/cm2
Material of Out Case: Die-cast Alumium
_____________________________________________________

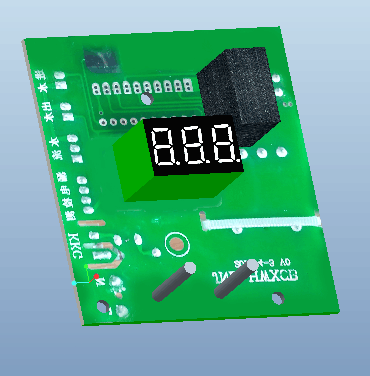

Control System
Control Mode: Electronic Control
Working Mode: Automatic Thermostat
Power Supply Mode: Transformer
_____________________________________________________

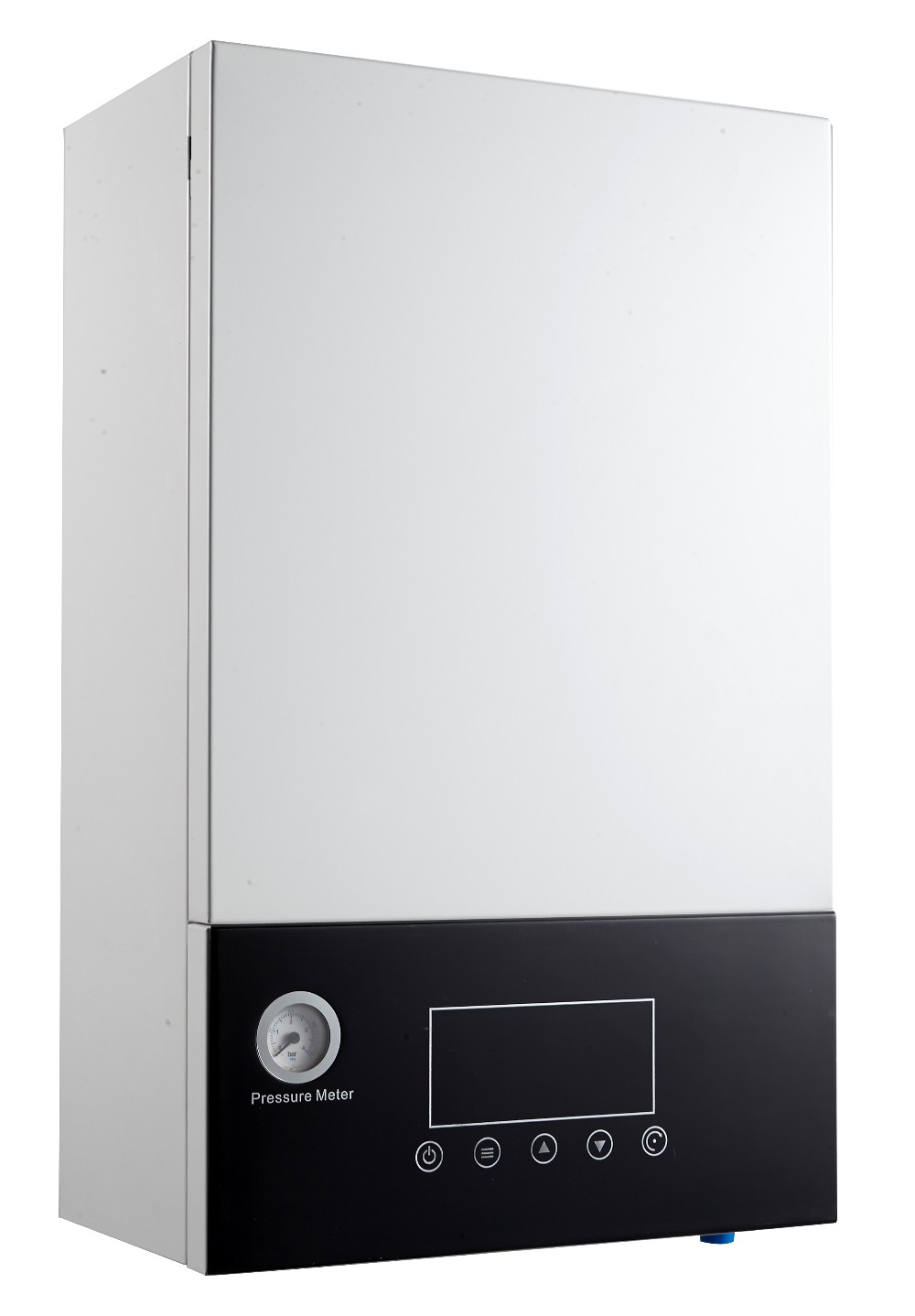

Out Case & Display
Front Case: In-Mode Decoration for Transparent ABS
Operation Model: Touch Screen
Display Screen: LED digital display
Temp. Display: Celsuis (°C)
Optional Color for LED: RED/BLUE
_____________________________________________________

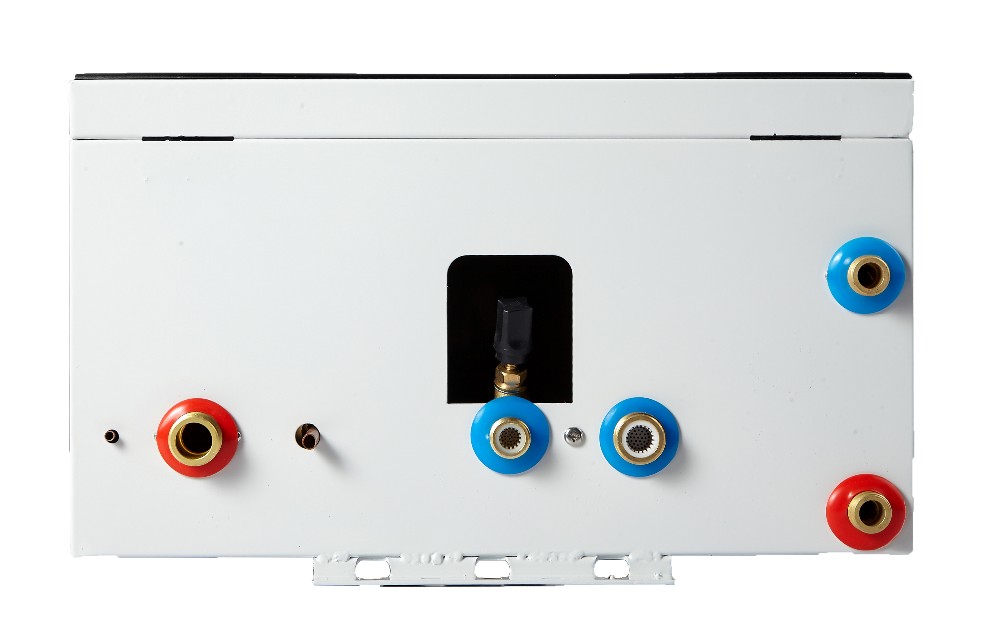

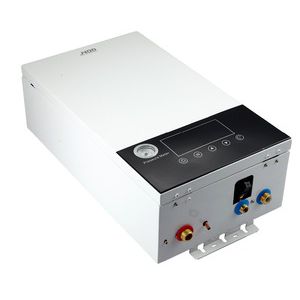

Water Connectors
Pre-Sales Service
* Inquiry and consulting support.

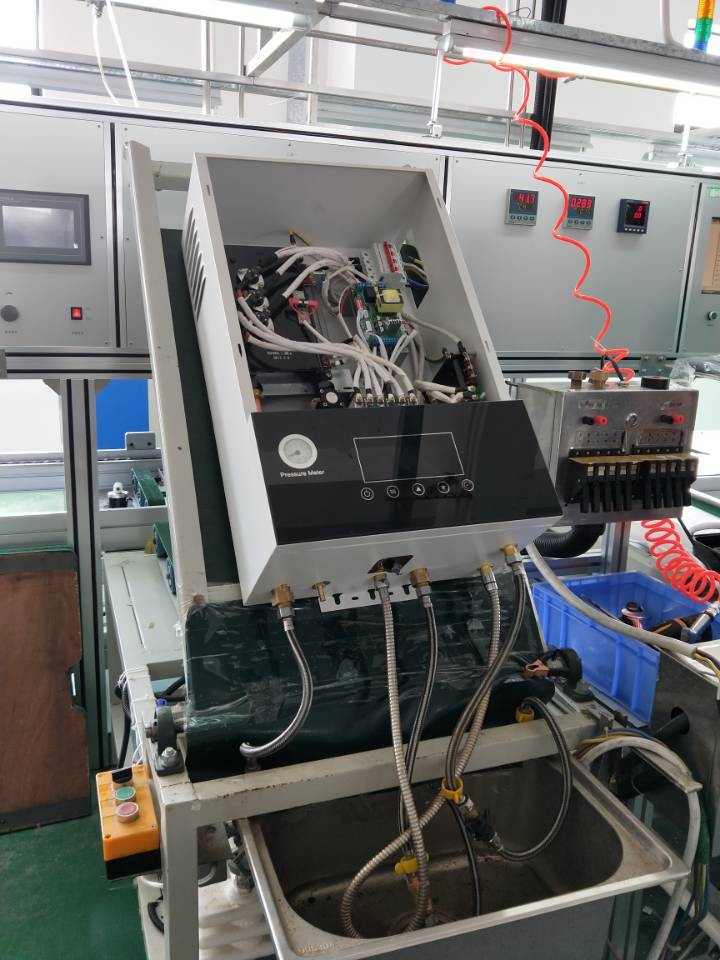

* Sample testing support.

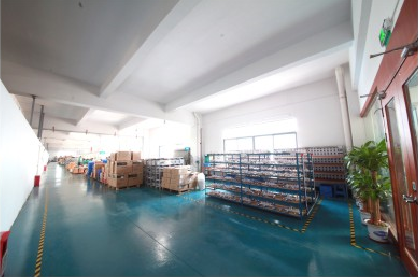

* View our Factory.
After-Sales Service
* Serivce & Maintenaince Manual
* Service & Mantenaince vedio
* Full set of Mantenaince tool
* Certain rate of spare parts free of charge

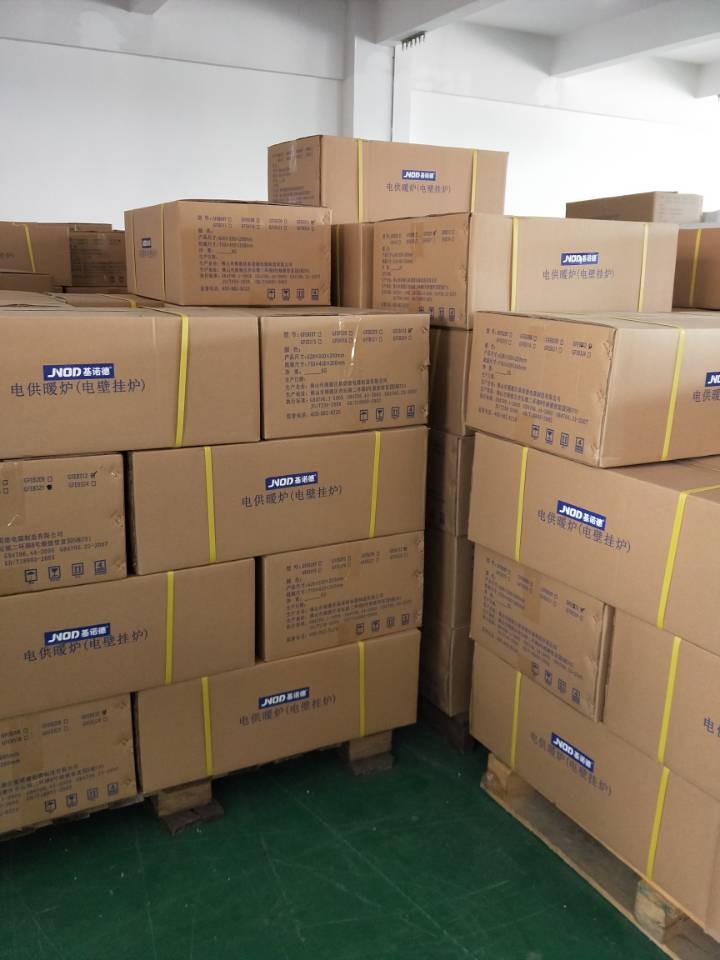

| Inner Packaging | |
| Product Size | 620(L) * 350 (W) * 200 (D)mm |
| Inner Box Size | 700(L) * 420 (W) * 258 (D)mm |
| N. W. | 32kgs |
| Product Portect Packing | Foam |
| Gift Box Material | 5 layer corrugated paper |
| Remark | Color Packing will be free of charge base on 500pcs for each series. |
| Out Carton | |
| Carton Size | 720(L) * 438 (W) * 278 (D)mm |
| Units in CTN | 1 units/CTN |
| G. W. | 35kgs |
| Package Material | 3 layer corrugated carton |
| Loading Quantity | 20 'GP: 300pcs 40 'GP: 600pcs 40' HQ: 730pcs |
Open Type
Voltage / Power: 7/8/9/12kw @ 220V
12/15/18/21/24KW @ 380V
Heating Material: nickel-chromium
Single Heating
Voltage / Power: 7/8/9/12kw @ 220V
12/15/18/21/24KW @ 380V
Heating Material: nickel-chromium
Dural Purpose
Voltage / Power: 7/8/9/12kw @ 220V
12/15/18/21/24KW @ 380VHeating Material: nickel-chromium
Floor Stand Type
Heating Material: nickel-chromium
