DAF system for Suspended Solid Waste Disposal Waste Water Treatment

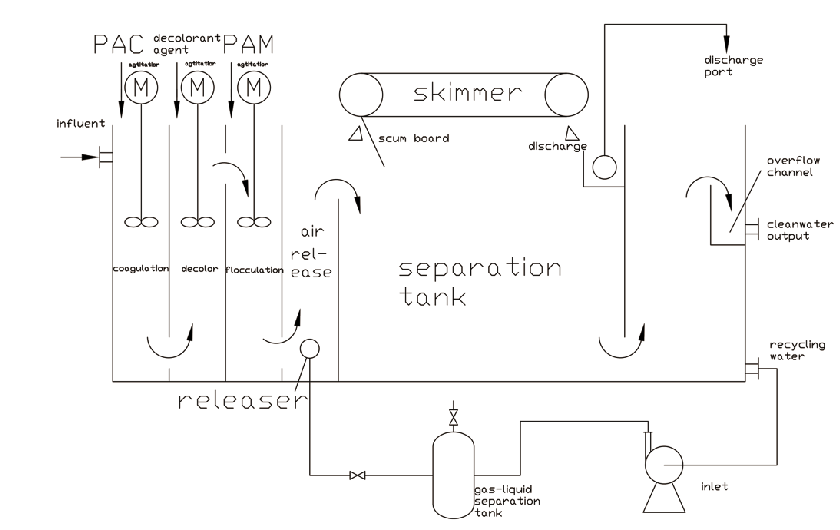

DAF system for Suspended Solid Waste Disposal Waste Water Treatment is an efficient flotation method for water clarification. The term refers
to the method of producing flotation by dissolving air in the water under pressure and then releasing
the pressure. When the pressure is released the solution becomes supersaturated with air as millions
of small bubbles form. These bubbles attach to any particles in the water causing their density to
become less than that of water. The particles then rapidly float to the surface for collection and
removal, leaving the clarified water behind.

DAF system for Suspended Solid Waste Disposal Waste Water Treatment

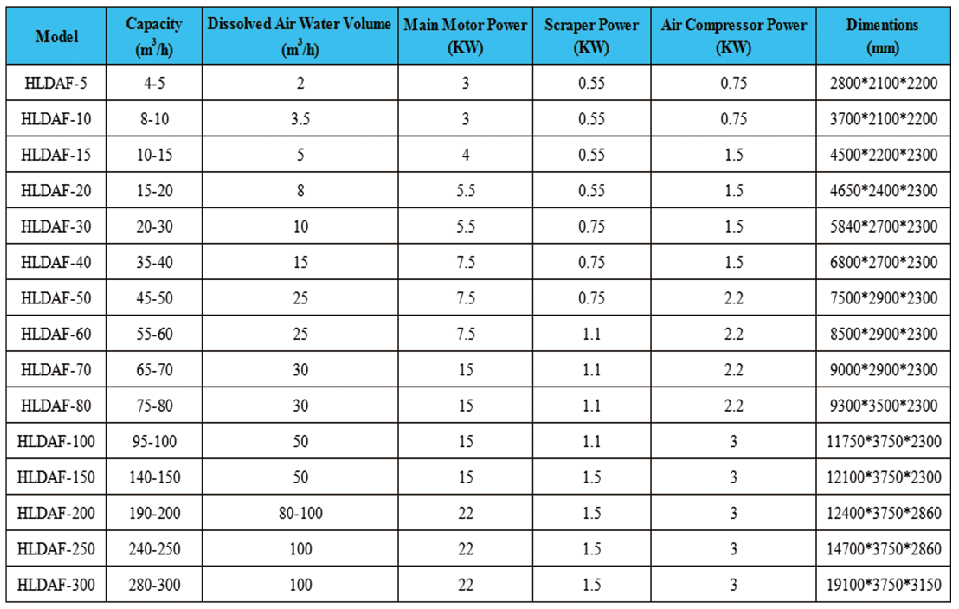

1. Flow rate of one set: 1-300 m³/h.
2. Recycle flow dissolved air flotation.
3. High efficiency pressurization system providing high quantity dissolved-air water to create large
quantities of small bubbles.
4. Custom design on different dissolved air flotation equipment and recycle flow ratio according to
the type of wastewater and treatment requirement to achieve target removal effect and stability.
5. Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
6. Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is
available to save the space and cost.
7. Automatic and remote controllable.
8. Material of construction: carbon steel epoxy painted, carbon steel FRP line, stainless steel
SS304/SS316L.

DAF system for Suspended Solid Waste Disposal Waste Water Treatment

DAF is a proven, and effective physical-chemical technology commonly used for many
industrial and municipal applications,including :
•Product recovery and reuse
•Pretreatment to meet sewer discharge limits
•Pretreatment to reduce loading on downstream biological systems
•Polishing of biological treatment effluent
•Removing silt and grease from industrial water

DAF is used extensively in the following industries:
•Meat, poultry, and fish processing
•Dairy industry
•Petrochemicals
•Pulp and paper
•Food and beverage

Key DAF features of  DAF system for Suspended Solid Waste Disposal Waste Water Treatment

Total suspended solids (TSS) reduction up to 97%
•Chemical oxygen demand (COD) removal up to 85%
•Low-cost operation and maintenance
•Standard and customized units meet a variety of application and flow ranges
•Designed for ease of installation and use
•Suitable for high-salinity water
