ALD FRP septic tank for hotel waste water treatment

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin

Hebei, China (Mainland)

Brand Name

ALD

Model Number

ALD-BL

Material

fibreglass

Application

building

Type

round, square, rectangle etc.

Usage

Health safety

Function

Anti-corrosion

Capacity

1-9m3

Product name

frp, grp septic tank

Name

fiberglass septic tanks,Glass Reinforced Plastic Biochemical Pool

Color

any color available

Certification

ISO9001

DETAIL DESCRIPTION

Product Description

Product Application

Used in chemical, petroleum, construction, textile, aviation, navigation, traffic, electric power, metallurgy, machinery, medical, food, paper making, environmental protection and other fields.

Type	V（m）	L（mm）	Ø(mm)	H(mm)	h1－h2(mm)	actual V（m）
HZSB－1	3	1750	1700	1730	1500—1400	3.42
HZSB－2	6	3000	1700	1730	1500—1400	6.36
HZSB－3	9	4250	1700	1730	1500—1400	9.2
HZSB－4	12	5500	1700	1730	1500—1400	12.04
HZSB－5	16	3800	2300	2430	2200—2100	15.82
HZSB－6	20	5500	2300	2430	2200—2100	20.84
HZSB－7	25	6700	2300	2430	2200—2100	25.91
HZSB－8	30	5500	2800	2830	2600—2500	31.85
HZSB－9	40	7000	2800	2830	2600－2500	40
HZSB－10	50	8500	2800	2830	2600－2500	50.31

Application:

• Homehouse
• Townhouse
• Aquaculture, Fish Farming Filtration System
• Centralized Filtration System
• Environmental Water Treatment
• Industrial Water Treatment

Features:

· Eco-friendly
· Rust proof and Leak proof
· Durable
· Light weight and easy to transport
· Easy to install

· Excellent performance on reduction of BOD

Work Principle

Septic tank is primary treatment structures which remove the suspended matter in domestic sewage by adopting sediment and anaerobic
fermentation principle, domestic sewage contain plenty of feces, Paper Scrap, parasite etc impurity, the suspended solid concentration is
100-350mg, organism concentration BOD5 is between 100 to 400mm, the suspended organism BOD is 50 to 200mg among of them. sewage enter into septic tank will remove 50% to 60%suspended matter after 12 to 24h sediment , the sediment sludge will anaerobic digestion above 3 month, which will make the organism decompose stable inorganics, corruptible raw sludge translate to ripe sludge , it changed sludge structure, reduce sludge water ratio , clear it and transport out regular. Landfill or reuse it as fertilizer.

Certifications

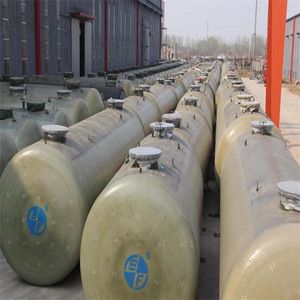

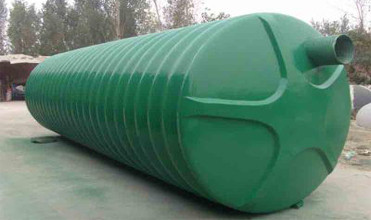

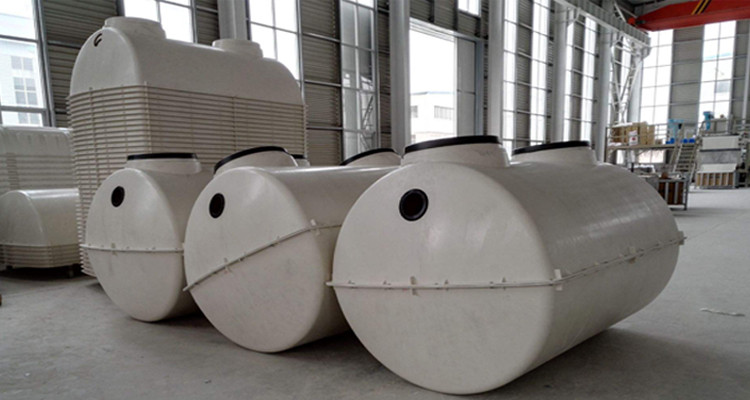

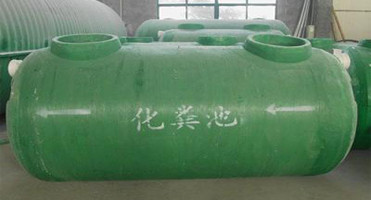

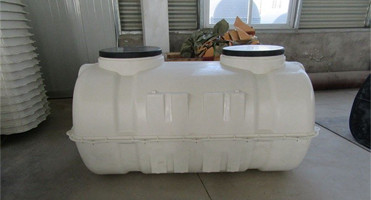

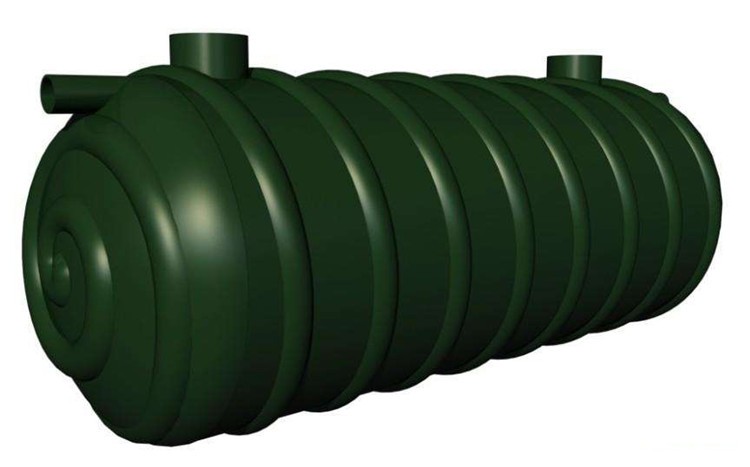

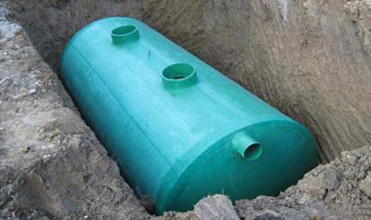

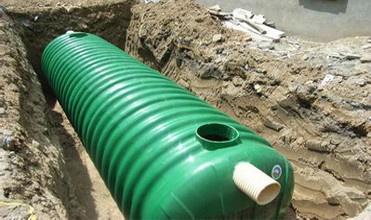

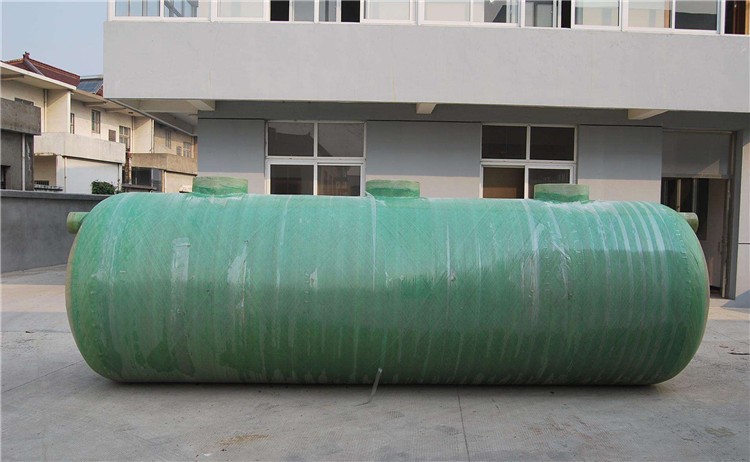

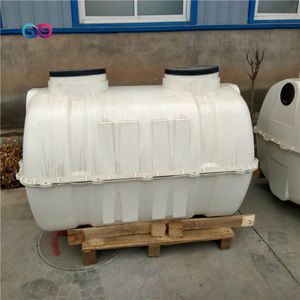

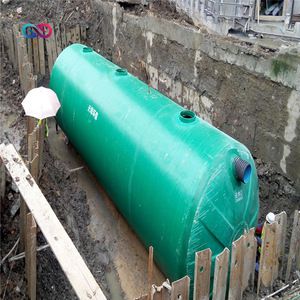

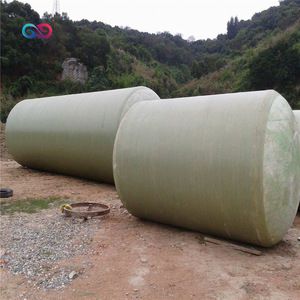

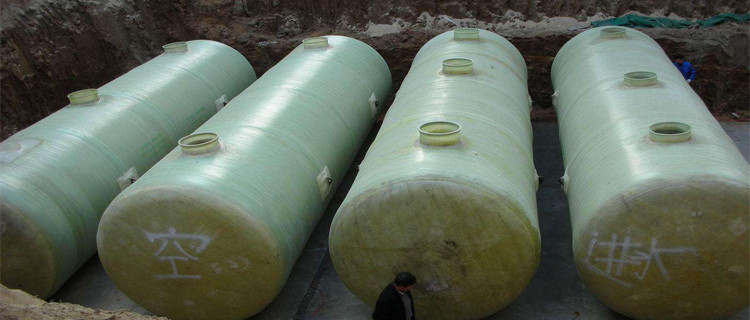

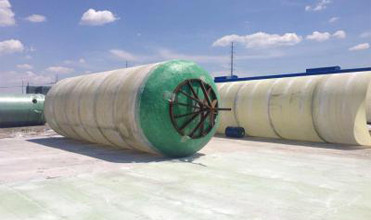

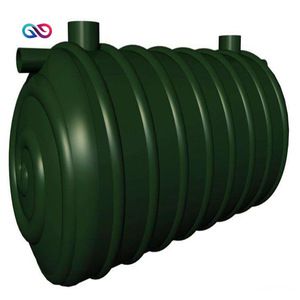

Detailed Images

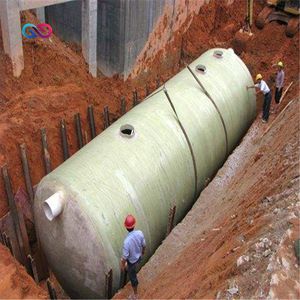

Glass fiber reinforced plastic septic tanks is mainly suitable for industrial enterprises living area and urban residents living community and so on sewage purification treatment of MingYong architecture

Glass fiber reinforced plastic septic tanks refers to synthetic resin as matrix and glass fiber reinforced materials produced by the special equipment used for treatment of sewage.

Glass fiber reinforced plastic septic tanks refers to synthetic resin as matrix and glass fiber reinforced materials produced by the special equipment used for treatment of sewage.Glass fiber reinforced plastic septic tanks is actively promote composite materials products, its light weight, high strength, good toughness, corrosion resistance, bright colors, bright and clean degree, the advantages of mirror effect, has been far more than the ceramics, hard plastic, steel and other materials of similar products.

Glass fiber reinforced plastic septic tanks industrial between corporate life and city residents living community and so on civil construction of the sewage purification treatment equipment.Glass fiber reinforced plastic septic tanks for storage of waste, make preliminary decomposition within the pool, to reduce the discharge of solid content.

Our Service

CELL:13303314492

Packing & Delivery
