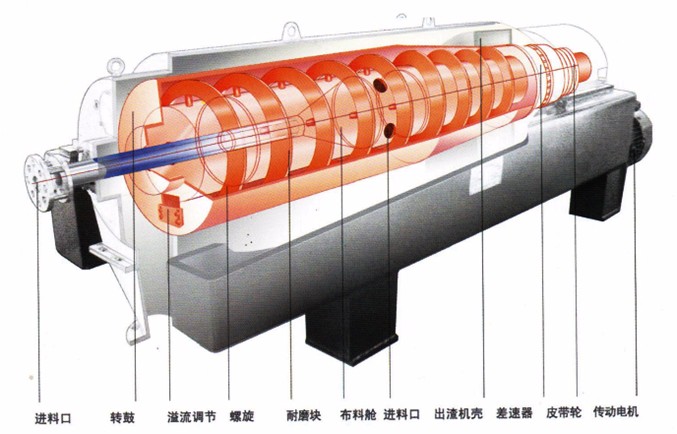

LW horizontal screw discharging centrifugal separator

LW horizontal screw discharging centrifugal separator is fully automatic running settling centrifugal machine. Realize feeding, settling, drying, discharging, unloading under high speed. It is suitable for separating crystal and short fiber type material with particles in 5um-5mm, material ds 0.5%-30%, density difference(liquid&solid) higher than 0.05g/cm3. Can be used for clarifying, sorting and dewatering.

Structure and performance character,

1. Compact structure, small space, easy to install, operate and maintain

2. Closed structure, can avoid leakage, better environment

3. Double motor with frequency control, can adjust the rotary speed

4. Using exclusive energy saving tech, the energy can be collected and feed back the machine, it can save electricity 20-30%.

5. Drum outlet, screw inlet, blades are all assembled with hard alloy cover, increase the working life.

6. Screw blade is banding blade, decrease the effect of agitating, guarantee the good separation effect.

Apply: Chemical, environment protection, food, medicine, light industry.

Typical application materials: Barium sulfate, barium carbonate, magnesium sulfate, aluminum hydroxide, calcium carbonate, calcium fluoride, calcium sulfate, sodium hydroxide, cellulose derivatives, cryolite, dimethyl terephthalate, epoxy resin, graphite, gypsum, iron hydroxide, nickel hydroxide, zirconium oxide, zinc oxide, kaolin, diatomite, lead oxide, zinc oxide, lime, calcium phosphate, mica, silicate, sodium chloride, aluminium powder, polypropylene, polystyrene, urban sewage, industrial wastewater, drilling mud, starch, milk, wheat starch, animal fat, blood meal, casein, corn residue, alcohol is bad, the soil bean dregs, potato protein, sorbic acid, soybean meal, fruit juice, vegetable juice, lactose, protein, etc..
