Factory price prefabricated steel structure workshop building and steel structure fabrication

is made of light steel as steel structure and sandwich panels for wall and roof.

Technical Feature

  • GB
  • steel
  • Requested
  • Guangdong, China (Mainland)
  • Moneybox
  • Custom Made
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Standard
GB
Grade
steel
Dimensions
Requested
Place of Origin
Guangdong, China (Mainland)
Brand Name
Moneybox
Model Number
Custom Made
Type
Light
Application
Steel Fabricated House
Steel Frame
C120x50x20x2.0
Anchor bolts
M16
Ceiling
Sandwich Panel Ceiling
Floor
Wooden Floor
Ordinary Bolt
4.8S,Galvanized
Steel Column
120x120x2.5
Wall Purlin
C120x50x20x2.0
Life Span
30 years
Wind Speed
Grade 7
Waterproof
Yes

DETAIL DESCRIPTION

Detailed Images
Product Description

Moneybox Prefab House

Prefabricated house (prefab house) is made of light steel as steel structure and sandwich panels for wall and roof. The insulation of sandwich panel can be polystyrene, polyurethane, rock wool and fiber glass. As a standardized construction product, it has below main features: Dry installation, no construction garbage caused; Environment protective materials adopted, repeated use and low cost; Flexible size and easy to assemble and disassemble with elegant appearance; Safe and durable .It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc...

Technical Parameter of standard prefabricated house
1. Wind resistance: Grade 11(wind speed≤111.5km/h)
2. Earthquake resistance: Grade 7
3. Live load capacity of roofing: 0.5kn/m2
3. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
4. First floor load capacity: 150 kg/m2
5. Live load of corridor is 2.0kn/ m2
6. Four skilled workers can finish installation of 100sqm in 8 hours for the light steel structure.
7. Most components of the house are recycled, so the shelf life is over 20 years without any building garbage.
8. We can design and produce the house according to customer’s request.
9. We can provide the service of installation, supervision and training by extra.

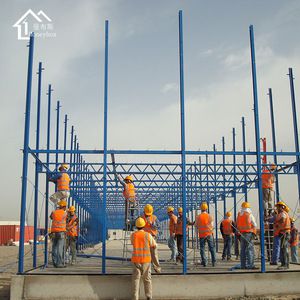

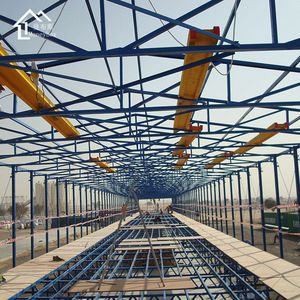

Steel Structure
1.1
Steel column
120x120x2.5
1.2
Steel structure beam
C120x50x20x2.0
1.3
Roofing Purlin
C140x50x20x2.0
Steel Structure
1.4
Wall Purlin
C120x50x20x2.0
1.5
Anchor Bolts
M16
1.6
Ordinary Bolts
4.8S, Galvanized
Roof and Wall
2.1
Roofing-PU board
Or Fiber glass board or EPS panel
100mm,40kg, 0.5/0.5mm, heather transfer≤0.021w/mk, anti press≥210Kpa;
OR
100mm,60kg, 0.5/0.5mm, heat transfer≤0.028w/mk, anti press≥180Kpa
2.2
Ceiling upon the door
100mm,40kg, 0.5/0.5mm, heather transfer≤0.021w/mk, anti press≥210Kpa;
OR
100mm,60kg, 0.5/0.5mm, heat transfer≤0.028w/mk, anti press≥180Kpa
2.3
Exterior wall-PU board
OR
Rockwool board or EPS panel
100mm,40kg, 0.5/0.5mm, heather transfer≤0.021w/mk, anti press≥210Kpa;
OR
100mm,60kg, 0.5/0.5mm, heat
Ceiling and Ground
3.1
gypsum ceiling-for room
600*600*6mm, including frame
3.2
PVC ceiling-for toilet
PVC Board
3.3
Flooring Tile
600*600mm
Door and Window
4.1
Exterior Door
Light Steel Door
4.2
Interior Door
Sandwich Panel Door or Light Steel Door
4.3
Window
PVC, With double glass 4+6+4mm
Electric Cable
5.1
Electric Cable
lighting 2.5mmm2, air conditioner : 4.0mm2
5.2
PVC Wire Channel
5.3
Light
5.4
Switches
With Junction Box
5.5
Socket
16A Universal Socket
5.6
Water Heater
5.7
Power Distribution Cabinet
5.8
Bidet
5.9
Closestool
5.10
Washbasin
5.11
Shower
Our Client

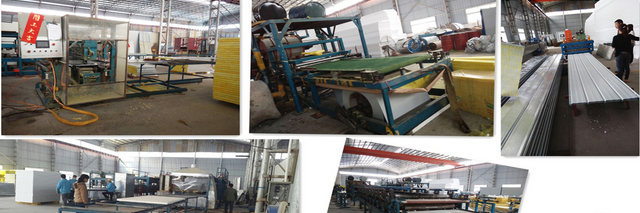

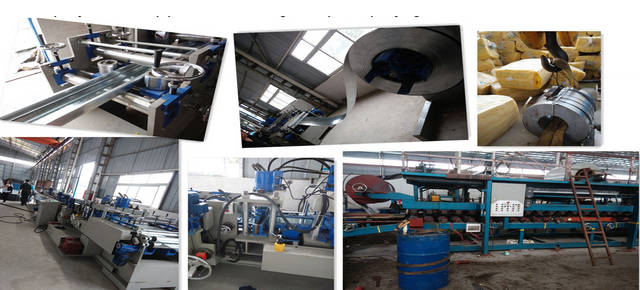

Our Production Line

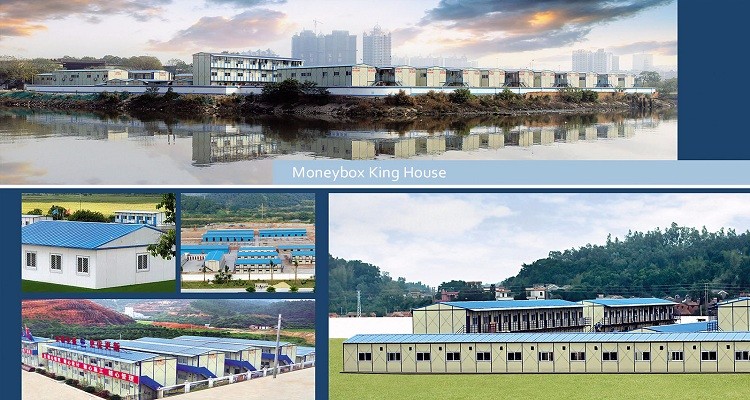

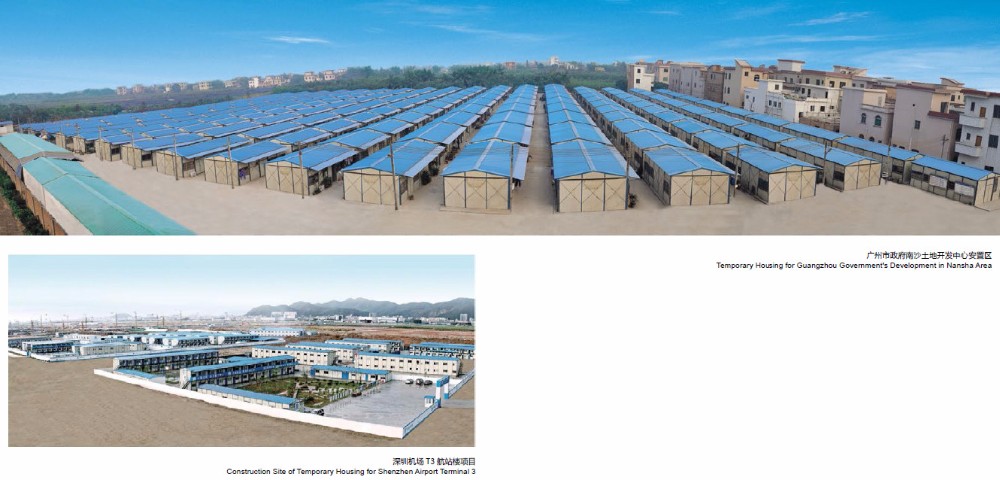

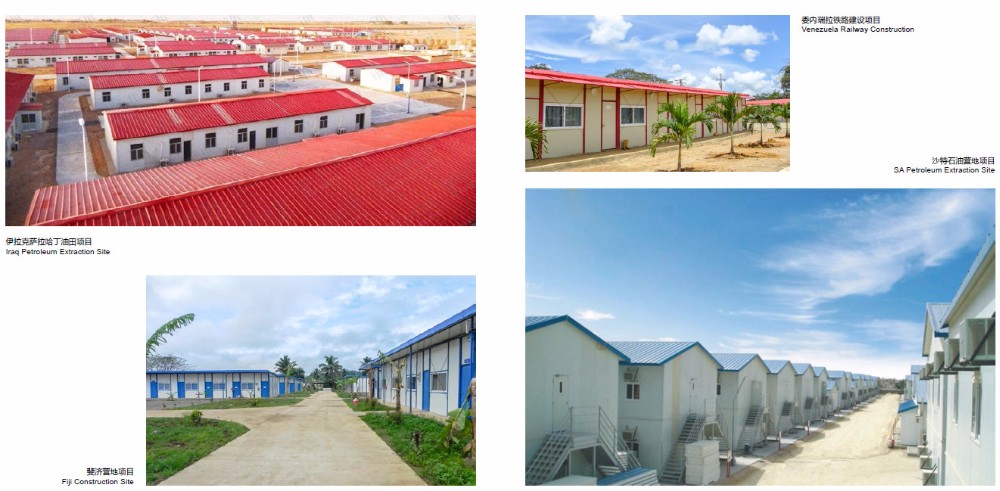

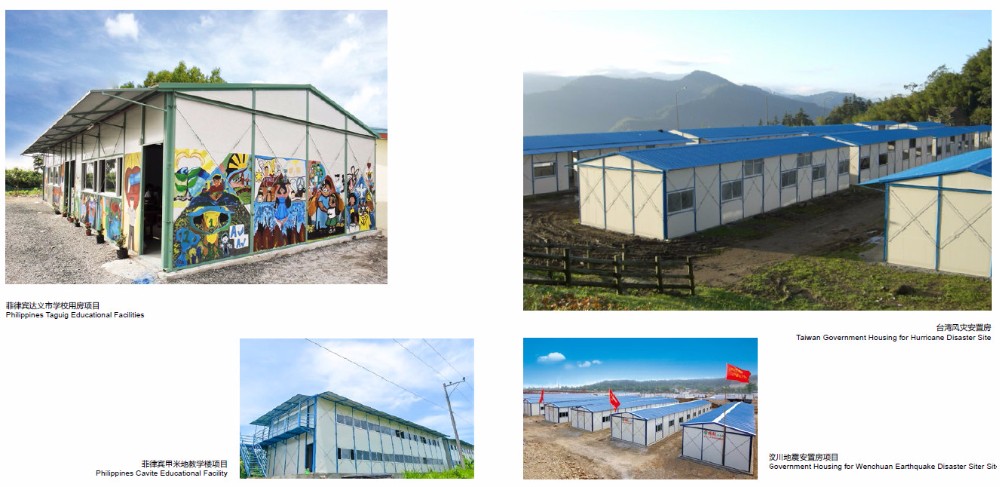

Our Project
