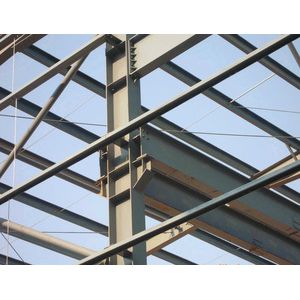

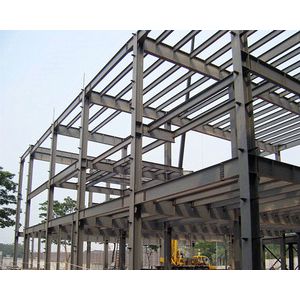

Steel frame

Welded or hot rolled H section column and beam are used to build up the steel frame and steel pllatform.  Less weight but much more strong for prefab hotel tall building.

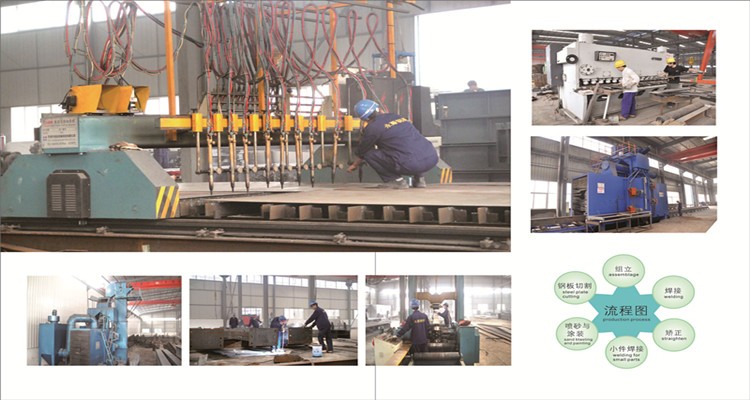

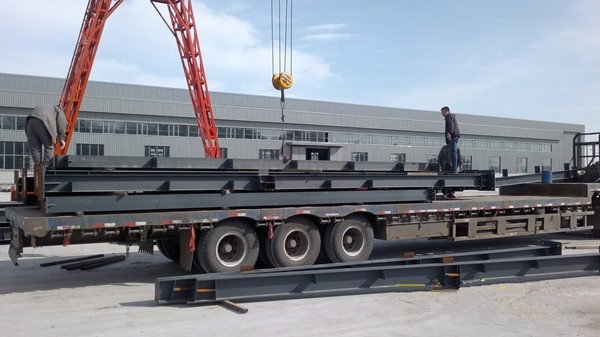

All small components are welded together in our facoty, no further re-work on the job site.  Easy to install and disassemble.

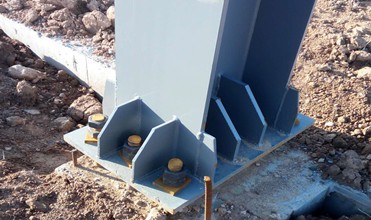

Connection with the foundation

Anchor bolts are used to connect steel column with the foundation.

Sriffeners are used to enhance the links bwtween columns and foundation.  Strength the connection to foundation foor commercial residential steel platform..

Models of the anchor bolts are customized based on different projects.

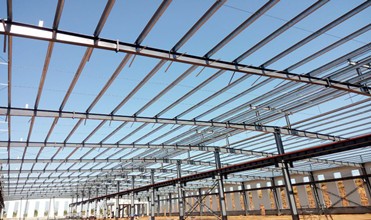

Roof steel frame--with roof slope

C or Z section channels (surface treatment is galvanized, no easy to rust) are used to build up the roof steel frame.  Cable bracing are used to enhance the links bewteen two steel frame.

Steel rod and steel pipe's (surface treatment is galvanized) function is to enhance each purlins.  Steel angle is used between purlin and beam.

single sheet or sandwich panel is used for Roof cladding system.

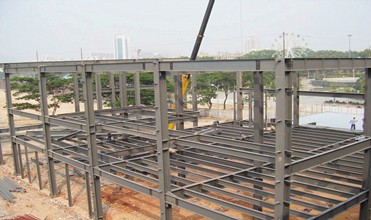

Roof steel frame--without roof slope

Steel frame is similar with the floor frame, H section beam is used to build up steel platform.  Connection between cloumns and beams are high strength bolts.

Galvanized steel floor decking sheet or steel rod floor trusses are used for concrete of Roof.  Roof water proof and insulation treatment is the same as the civil work.

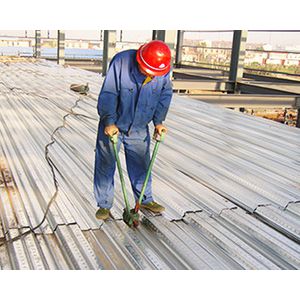

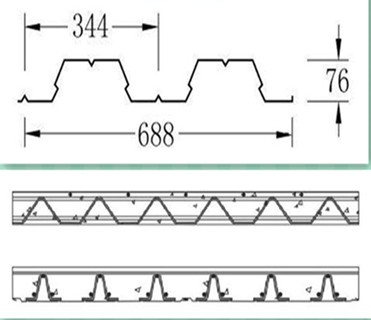

Floor decking sheet

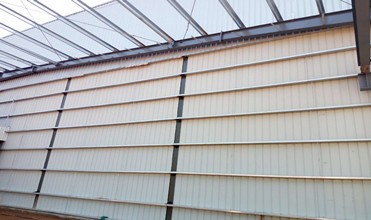

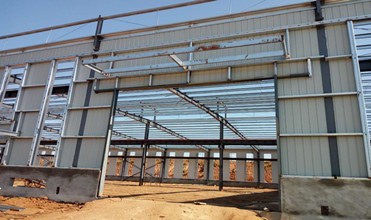

Wall framing elevation--not brick wall

Both sidewall and endwall use C ection channels (surface treatment is galvanized) for the cladding system.

Connection type is plain bolts, usually model M12 is widely used.

Frame for door and window used steel tube or DOUBLE C channels.  Steel rod, steel pipe and angle steel will also be used to strengthen wall framing elevation.

Cladding system

For cladding system, there are four types:

1. Single corrugated sheet, thickness and model are customized.

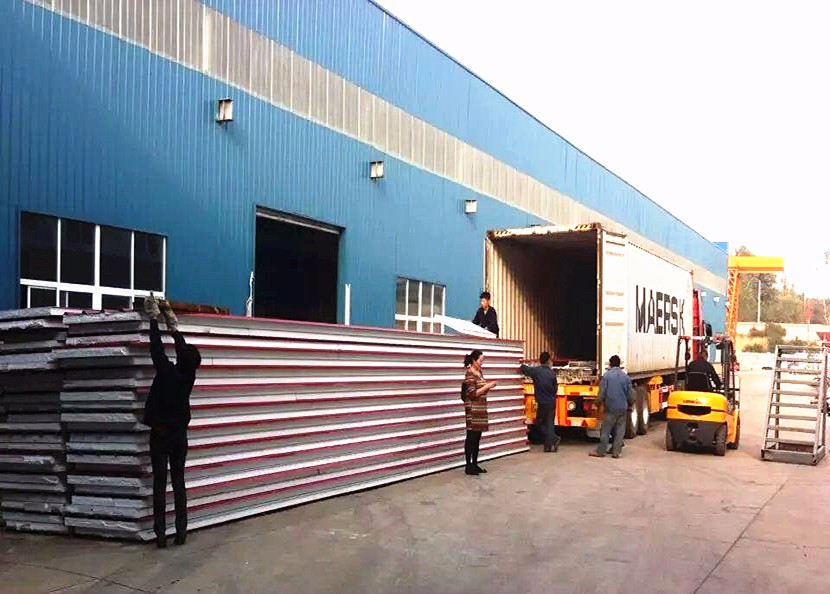

2. Sandwich panel with the insulation of EPS, rock wool, or PU.

3. Double corrugated sheet with the insulation of glassfiber wool or rock wool.

4. For roof, single corrugated sheet and fiberglass wool are used, but for wall only use single corrugated sheet.

Professional design

50+ managerial and technical staff, 15 years experience in steel projects , 3 years experience of overseas construction projects. As a professsional team, we will give you professional design and service..

Excellent construction quality

160+ experienced workers in steel components production, 90+ experienced workers on job site of steel frame construction, we provide excellent construction quallty by meeting the standard requirement.

Low cost

As a manufacturer and contractor, we have our won factory and constructionn team. Offer the integrated system solution from designing , manufacturing and installation.

Short building cycle

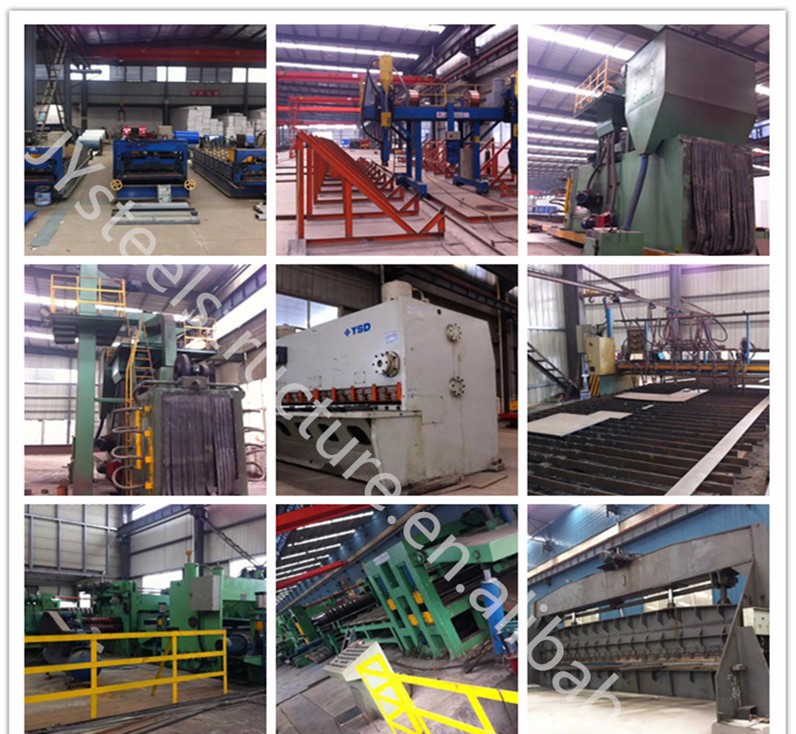

All components are prefabricated and finished in our factory, no need re-work on the job site. Also, detailed drawings and construction drawings will give you as installation instructions.

Enviromental protection

Components for steel frame are made of carbon steel. Cldding system is made of single sheet or sandwich panel. All items are made of environmental protection materials with good guality.

High secure and reliable

By using steel materials, which is less weight but strong enough, the whole steel frame has thermal insulation, wind performance, rainproof and earthquake resistance.
