HME animal feed pellet mill machine with CE/ISO9001/GOST/BV Certificate

Enlarged and strengthened full stainless steel feeder and frequency – convertible speed-adjustable controller with built-in high performance magnet.

Technical Feature

  • New
  • Jiangsu, China (Mainland)
  • HME
  • SZLH
  • Feed Pellet Machine
  • 220/380/400/415/420v
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
Place of Origin
Jiangsu, China (Mainland)
Brand Name
HME
Model Number
SZLH
Type
Feed Pellet Machine
Voltage
220/380/400/415/420v
Power(W)
15-315kw
Dimension(L*W*H)
Depands on the model
Weight
4500 kg
Certification
CE/GOST/ISO9001
Warranty
one year guarantee
After-sales Service Provided
Overseas service center available
Raw materials
fish feed,chicken feed,wheat and so on
Processing Types
grain,wheat,maize,ect
Motor
Siemens
Bearing
SKF
Brand
HME
Color
White and Blue
Drive
Coupling Driving
Screw feeder
Frequency Control
Ring Die
Stainless steel
Cutting knife
Stainless steel

DETAIL DESCRIPTION

We are manufacturing Animal Feed Pellet Mill , fish Feed Pellet Mill, animal feed plant, and our all products have go CE and IS9001:2000 Certificate



Product Description



Feature

1.Enlarged and strengthened full stainless steel feeder and frequency – convertible speed-adjustable controller with built-in high performance magnet.

2.Full stainless steel conditioners with axial jacket steam spraying device and liquid inlet and bolted door for inspection and cleaning.External discharging unit.

3.High – precision gear driving system for overload protection with strong impact to ensure full load running and long service life.

4.Imported SKF or NSK bearing and oil seal.

5.High power flexible couple with strong compensation displacement,full stainless steel cutting unit with dial.

6.Fast and convenient positioning, loading and unloading of die. Die lift device can be supplied. High quality stainless steel die processed with world advanced technology.

7.Suitable for producing all kinds of high quality livestock and poultry feed and aqua feed.



Main Technical Parameter





Model

Power(Kw)

Capacity(T/H)

Power of conditioner (Kw)

Power of feeder (Kw)

Inner Diameter of Die (mm)

Pellet Size(mm)

SZLH250

11/15

0.5-2

2.2

0.55

250

Φ2-12

SZLH320

37

2-4

2.2

0.75

320

Φ2-12

SZLH350

55

3-6

2.2

0.75

350

Φ2-12

SZLH400

75/90

6-12

5.5

1.5

400

Φ2-12

SZLH420

110

6-14

5.5

1.5

420

Φ2-12

SZLH508

132/160

6-20

7.5

1.5

508

Φ2-12

SZLH600

185/200

8-25

11

1.5

600

Φ2-12

SZLH800

280/315

15-28

15

1.5

800

Φ2-12

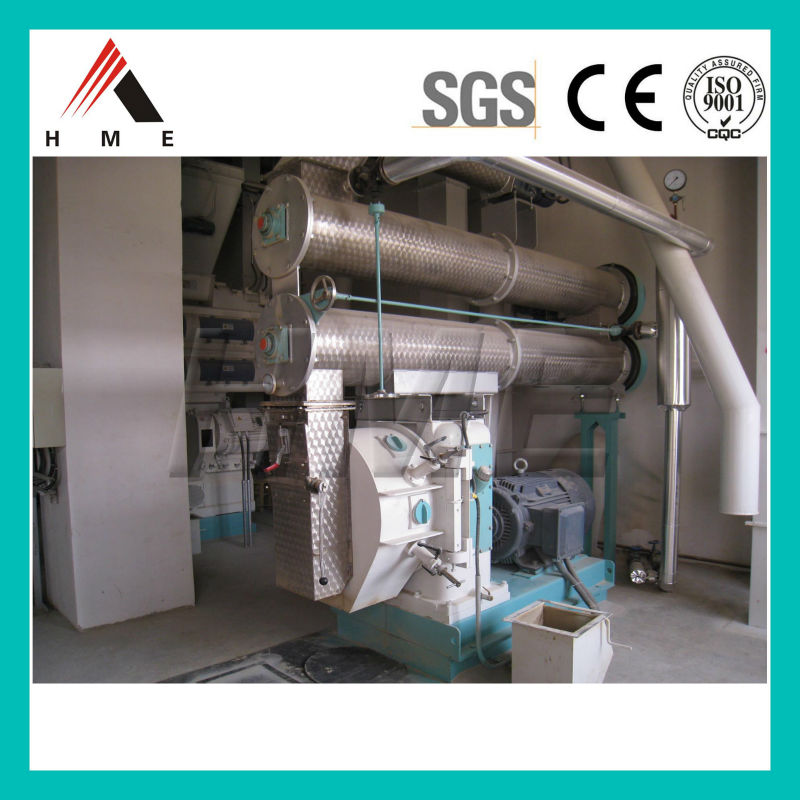

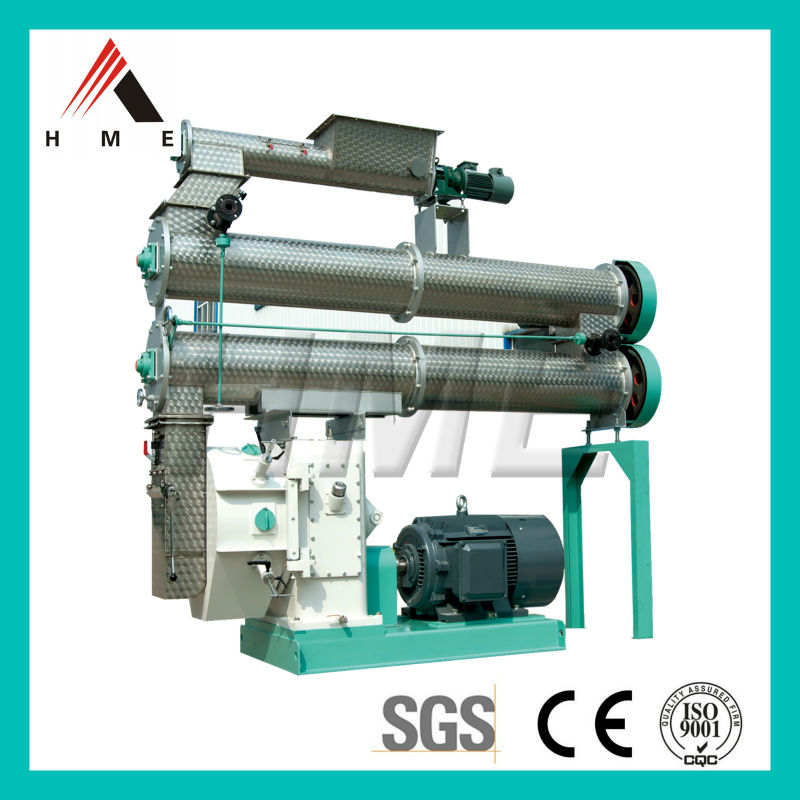

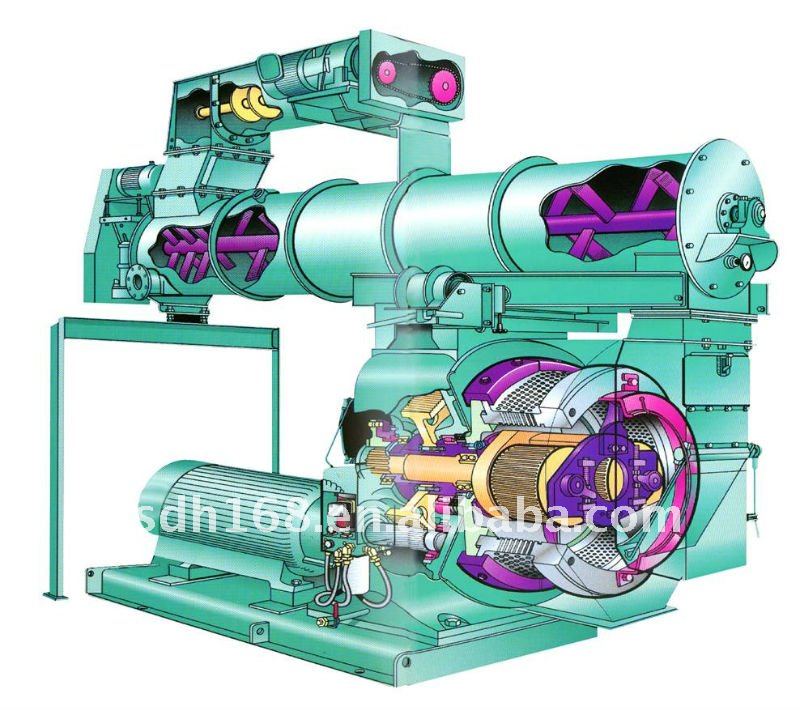

               SZLH Feed Pellet Machine



















Company Information

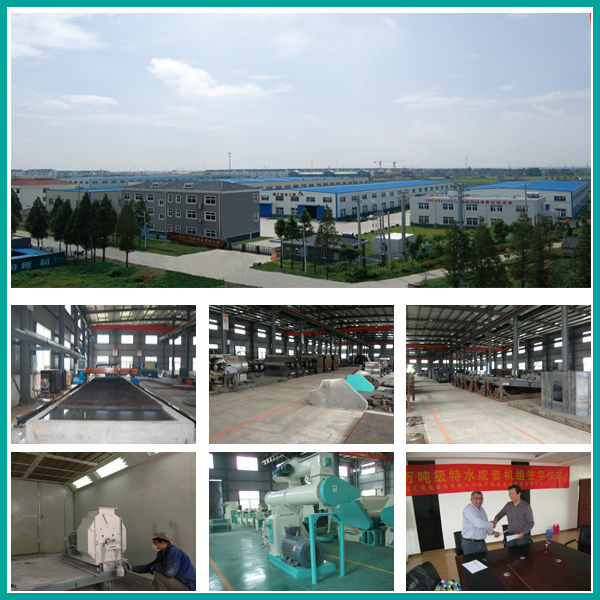

About HME

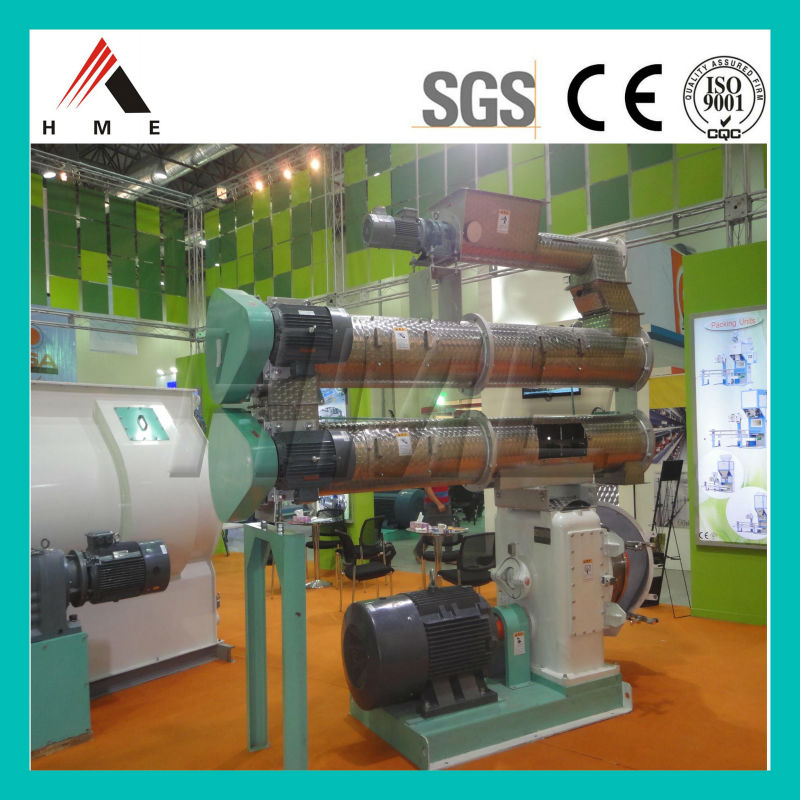

Overseas Exhibition



Overseas Exsibition

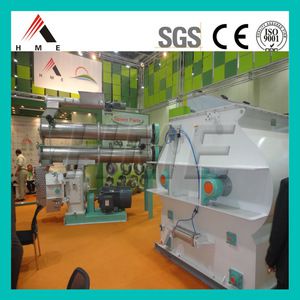

We attended the Agrena Fair in Egypt,  A lot of Africa and Middle east customers interested our products  and come to our booth to discuss their case





FAQ



Questions

1. Q: Are you a trading company or a manufacturer?

    A: We are a manufacturer, which has almost 20 years of experience in this industry.

2. Q: How can I get to your company?

    A: You can get a flight to Nanjing Airport. We are just about 40-50mins away from Nanjing Airport.

3. Q: How long is your guarantee?

    A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.

4. Q: Will you send engineers to install the plant?

    A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.

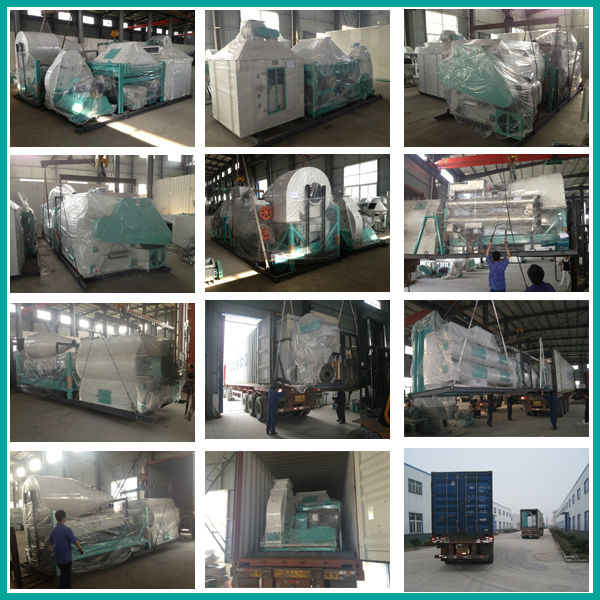

Packaging & Shipping

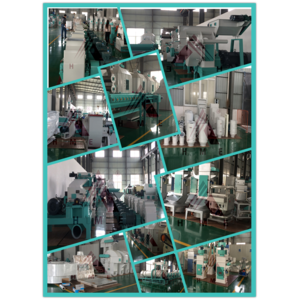

Exported Equipment

HME products have been exported to South Korea, Irag, Denmark, Egypt, South Africa, Vietnam etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is making your business to the top level.











Our Services



Our Project

JIANGSU DEHUI MACHANICAL AND ELECTRICAL CO.,LTD is a comprehensive manufacturer of feed machinery, bio-energy machinery, organic fertilizer machinery and turn key projects. We are dedicated to service for domestic feed industry customers. HME has worked in this field for almost 20 years and wins an outstanding reputation in feed machinery. Clients from home and abroad give a high praise to HME products.





Certificates

1.The quality assurance system of HME Yongli Machinery Co., Ltd is authenticated with ISO9001 quality assurance system.

2.The products of HME are issued CE certification by European Union.





Certification











Contact us



 If you are interested in our products, please click "send" now! Pls kindly tell us the following information:

1. What's the capacity you want?

2. What's the raw material?

3. What's the size of the raw material?

4. What's the moisture content?

5. What's the final pellet size do you want?

6. Automatic packing or manual packing needed?

7. What's your country voltage?
