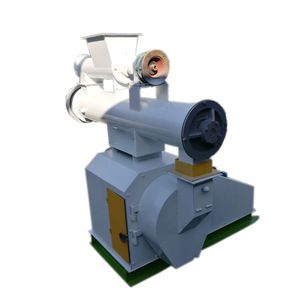

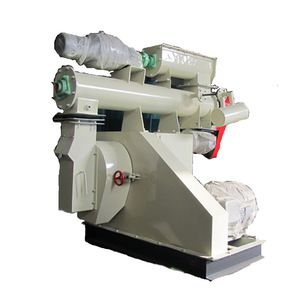

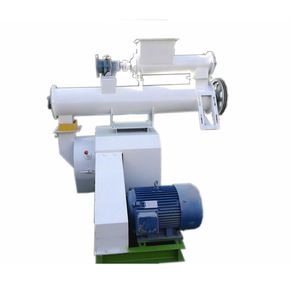

Ring Die Chicken Food Pellet Processing Machinery For Sale
The Ring Die Chicken Food Pellet Processing Machinery For Sale is widely used to produce feed pellets and biomass fuel pellets. Wide Application Range: Any kind of biomass materials containing wood fiber, such as peanut shell, bagasse, castor shell, straw, sawdust, coffee grounds, rice husk, sunflower shell, cotton stalk, tobacco residue, leaf mustard stalk, bamboo, jute residue, tea residue, wheat-straw, palm shell, bean shell, coconut shell, dregs of decoction, and wood waste, etc.
Features:
(1) Adopt reduction box with low noise, long lifespan gear and can rotate forward and reverse. Other manufacturers adopt low cost bevel gear that cannot rotate reverse.
(2) The pressing die and main shaft adopt Cr12, which is more wear-resisting because of high Cr content. The special heat treatment makes their hardness to be 60HRC. Other manufacturers use 45# instead with low hardness and wear-resistance.
(3) The roller, pressing die, main shaft and roller shaft are processed by vacuum heat treatment other than carburizing and quenching (that other manufacturers use) to have higher hardness, wear-resistance and longer lifespan.
(4) The sealing of spare parts for small pellet machine is excellent. The roller shaft is sealed on both sides, while other manufacturers only seal one side.
(5) The feeding hopper applies whole sheet metal edge instead of welding to be more stable and firm.
(6) The compression ratio of small pellet press determines the quality of your pellets. We have professional team doing the raw material test and have obtained best compression ratio for over 20 kinds of common seen biomass.
(7) The electric components adopt top brands in China to guarantee stable performance.
Specifications:
| Model | Motor(kw) | Capacity(t/h) | Pellet Size(mm) | Dimension(cm) | Weight(kg) |
| RDK-250 | 22 | 0.8-1.5 | 1.5-12 | 155*115*175 | 1000 |
RDK-300 | 45 | 1.5-2.5 | 1.5-12 | 160*135*225 | 1500 |
| RDK-350 | 55 | 3-5 | 1.5-12 | 235*190*210 | 2000 |
| RDK-420 | 90 | 4-8 | 2-12 | 240*220*225 | 3000 |
| RDK-610 | 150 | 6-12 | 2-12 | 240*220*225 | 3800 |

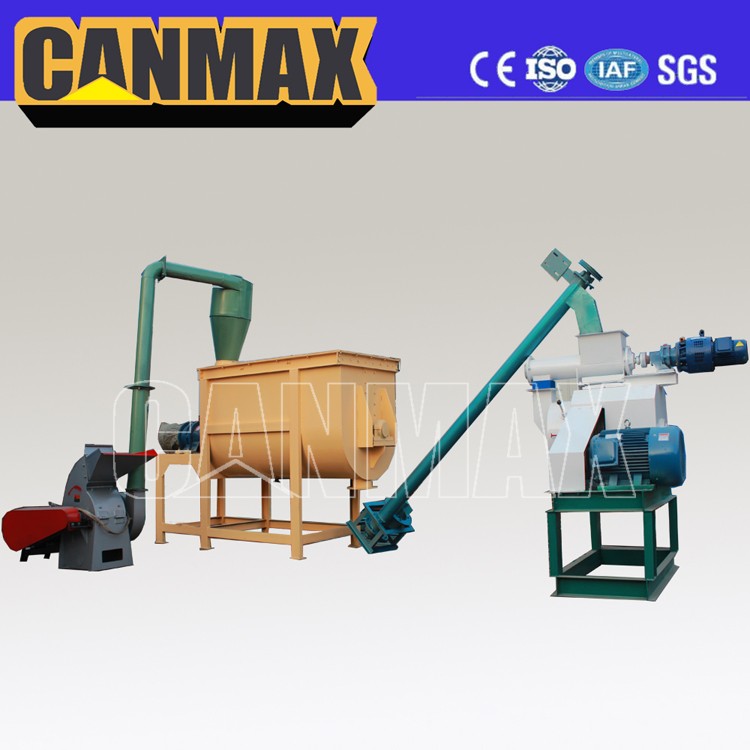

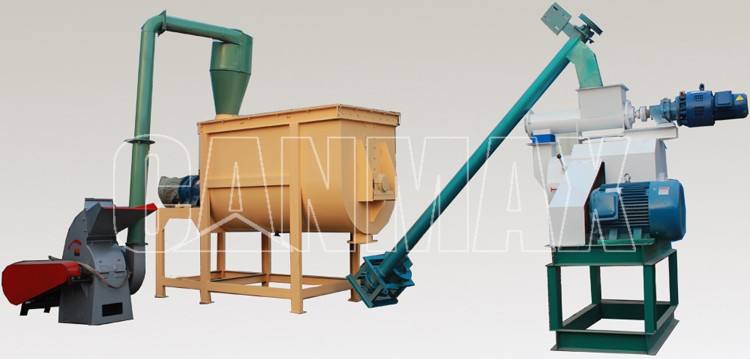

Equipment List:
Detailed Images:

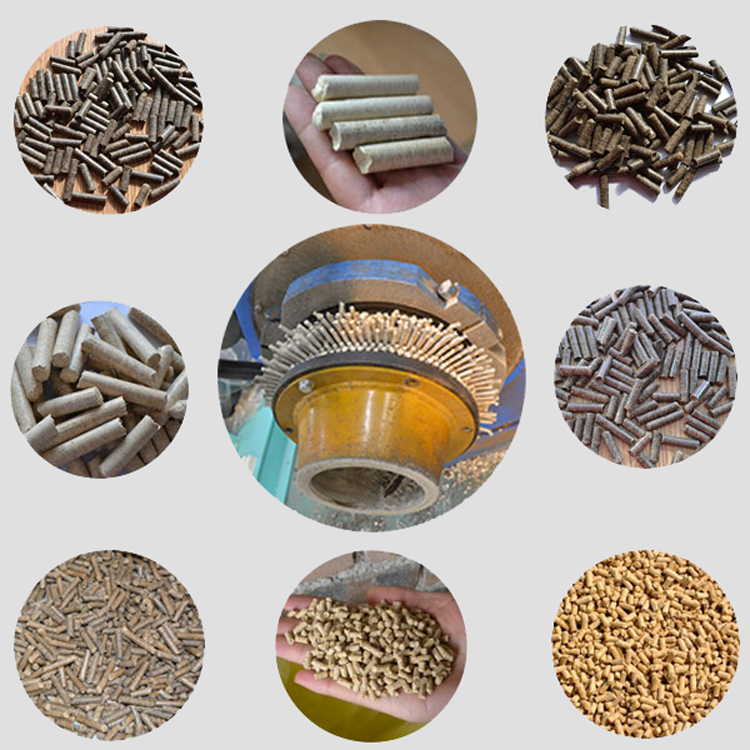

Application:

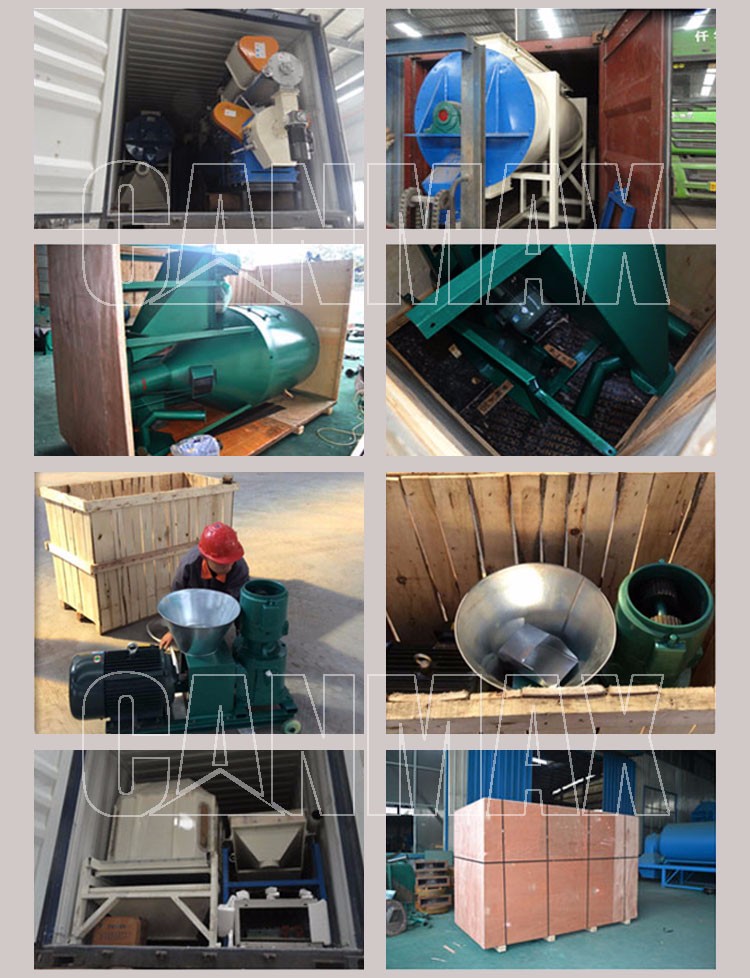

Package & Shipping:
Certificate:
About CANMAX:
We are a professional manufacturer of various machines for 14 years. Our main products includes Block making machine, concrete mixer, dry mortar mixer, charcoal machine, Coal briquette machine, Wood Crusher, Oil press machine, Biomass briquette machine, food machinery, etc.
With 6 years exporting experience, we are now the leading supplier in middle China now, our products has been exported to more than 55 countries in the world. Clients profits go first is our principle. We have good faith in working with you and we are sure CANMAX team is one of your best Choices in China.
