Animal feed processing machines feed pellet machine to make food of chicken duck goose

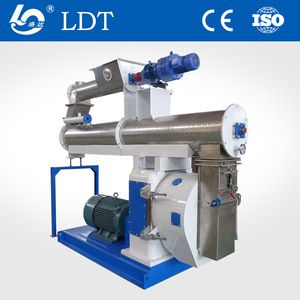

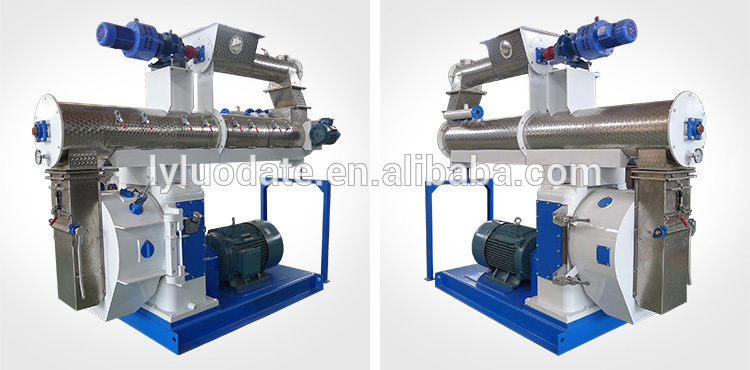

Pellet Mill Show:
1. Main drive adopts high accuracy gearbox for high efficiency.
2. Full stainless steel increased conditioning device ensure high quality of feed pellet.
3. Frequency conversion (Electromagnetic speed control) feeder, with overload protection device,equipped strong magnetic security device.
4. High output, low noise, convenient operation and maintence.
5. Main parts of the bearing and standard parts are imported.
Technical Parameter:
| Model | Main Power (kw) | Feeder Power (kw) | Modulator Power (kw) | Capacity(t/h) | Overall dimension (mm) |
| SZLH320 | 37/45 | 1.1 | 2.2 | 2-4 | 2300*1700*2000 |
| SZLH350 | 55 | 1.5 | 3 | 3-6 | 2600*1000*2050 |
| SZLH400 | 75/90 | 1.5 | 5.5 | 4-11 | 2880*1140*2220 |
| SZLH420 | 90/110 | 1.5 | 5.5 | 5-12 | 3000*1300*2350 |
| SZLH508 | 132/160 | 2.2 | 7.5 | 6-20 | 3400*1300*2500 |
1. Pellet size depends on the die aperture, we can provide the pellet diameter 1.5-12mm.
2. The granulation room installs the adjustment blade tool, may control the pellet length.

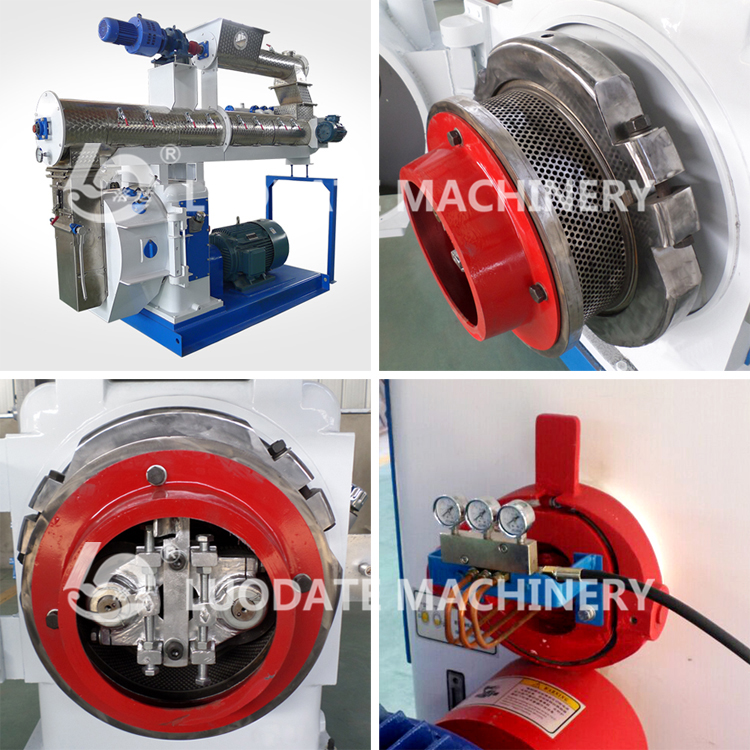

1. Lower Left: Granulating Chamber System
2. Upper Right: Pellet Molding System
3. Lower Right: Machine Lubrication And Maintenance System

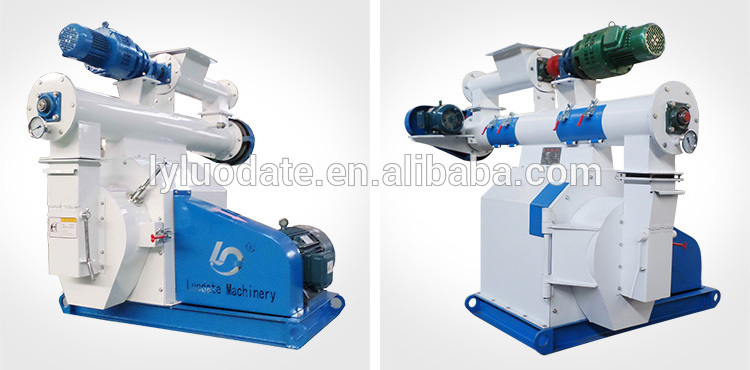

Small Pellet Mill:
If you need small output capacity feed machine. we have SZLP218, SZLP250
| Model | Main Power (kw) | Feeder Power (kw) | Modulator Power (kw) | Capacity(t/h) | Overall dimension (mm) |
| SZLP218 | 15 | 0.75 | 2.2 | 0.4-0.6 | 1700*1300*1500 |
| SZLP250 | 22 | 0.75 | 2.2 | 1-1.5 | 2000*1400*1550 |

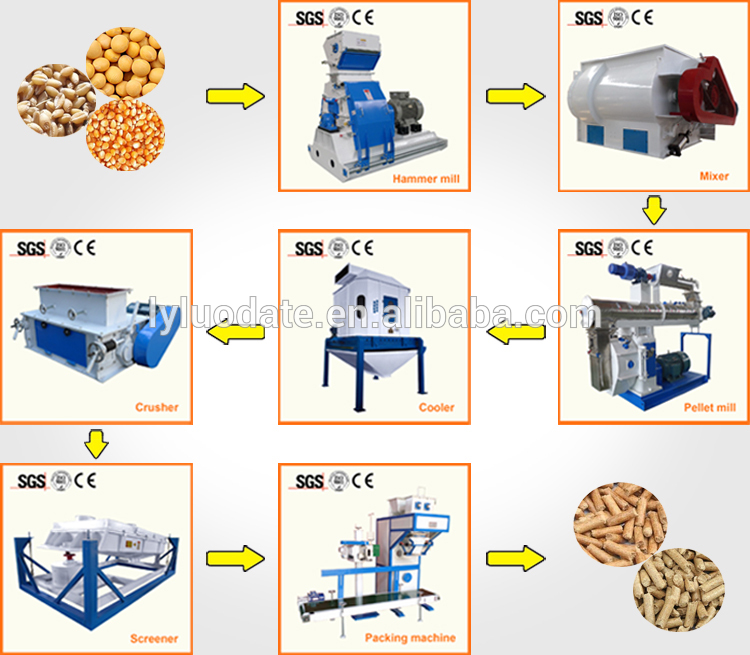

Flowchart of complete pellet feed production line:
Animals & Pellet Feed:

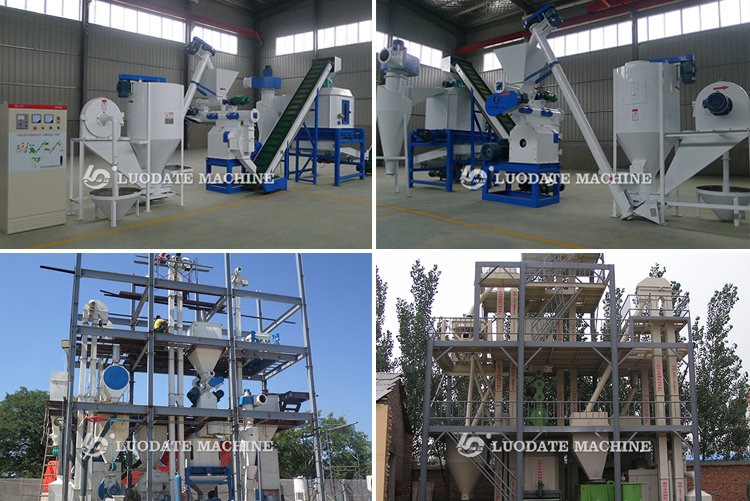

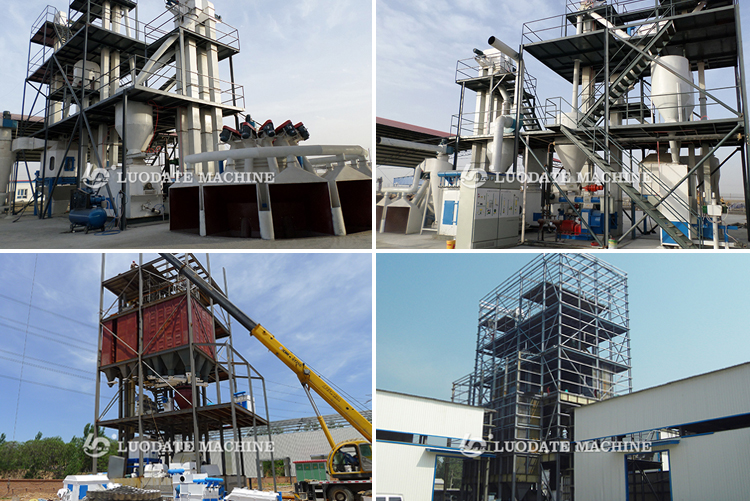

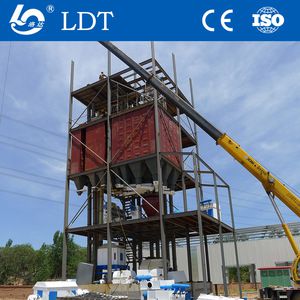

Case:
Capacity:1-20TPH per line
Finished Product:Pellet or powder feed(chicken,duck,cattle and sheep,etc.)
Batching System: Manual or computer
According to the different feed type of customers, made different output configuration.
We are engaged in all the animals feed production line from 1-20TPH and supply many valued-added service for all customers.
Luodate - is a eligible manufacture, specialized in development, manufacture and sales the first-rate machinery equipment. Now we focus on hammer mill, mixer, pellet machine, cooler, packing machine, extruder, etc
1. 23 years factory production experience of the feed & biomass pellet production field.
2. Have the ISO9001, CE & SGS.
3. Alibaba 5 years Gold Supplier, have more than 10 national patent.
4. Export to more than 40 countries and finished more than 1000 turn-key feed production project.
5. Specialized in research, design, development, manufacture and export.
According to the specific demands of customers who are tailormade to provide true application intergration solutions.
LUODATE MACHINERY 23 YEARS FACTORY HISTORY
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
Certification & National Patent:
*According to the specific demands of customers who are tailormade to provide true application intergration solutions.
Luodate Machinery products have been exported to Algeria, South Korea, Pakistan, India, Egypt, Burma, Bulgaria, Kuwait South Africa, France, Greece, Vietnam, Russia, Indonesia, Philippine, Turkey, Kazakhstan, Outer Mongolia etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is making your business to the top level.
You may ask:
1.When we only building one poultry feed machine, can we use it to produce feed for other kinds of animal or poultry?
Yes, you can. It depends on your feed formulation and the ring die size.
(According to your production requirement, you can choose the different size ring die.)
2.How to know more about thepoultry feed machine power, capacity, dimension or weight?
Please refer to the detail parameters, or leave your contact information at below, we will according to your requirement to send the details for you in 4 hours.
3.Will you dispatch the engineer to guide installation the poultry feed pellet machine ?
Yes, according to the customer’s requirement, we will dispatch the engineer to guide installation the xxx .
4.How about you to ensure the poultry pellet machine normal running?
Except the installation engineer, we also provide the production engineer to guide how to keep a good production.
5.How long is the warranty of the feed pellet machine ?
One year warranty and comprehensive after-sales service.
