5t/h Starch making line
This machine is used to extract starch from sweet potato, potato, cassava, the root of kudzu vine, canna edulis ker, Acorn, lotus root and so on.
1: High efficency in starch extraction and can make fiber and starch separate fully
2 High quality starch.Special crushing way can avoid the damage of starch caused by high temperature.and also avoid the brown stain caused by oxidation.
3 Energy-Saving,low labour cost.
4 Automatic operation from wash,crush.separate,filter
This starch extracting includes below steps: Washer and conveyer (4 level washer) - Slurry separator (Starch maker) – Purifier-Refine- drying –Packing
No. | Name | Spec.(mm) | Power(Kw) | Remark |
|
|
|
|
|
1 | Cassava conveyor-10 | 0.6*10 | 2.2 | Mild steel |
2 | Cassava Dry Washing machine -800 | 4000*1000*1200 | 2.2 | Mild steel |
3 | Second step cassava washing machine | 4200*1000*1200 | 4×2 | Mild steel |
4 | New Model cassava clean machine | 4300*1000*1200 | 3 | Mild steel |
5 | The curved mesh extrusion pulverizing | 4300*1500*1500 | 26 | Contact part |
6 | starch refined filter machine | 2200×1000×400 | 1.1 | Contact part |
7 | Series of De-Sand Cyclone Washers | 1300*500*1500 | 3 | Contact part |
8 | hydrocyclone | 6000*1300*1300 | 52 | Contact part |
9 | Centrifugal Separator | 1800×1200×1300 | 30 | Contact part |
10 | Vacuum filter | 2000×1800×1800 | 14 | Contact part |
11 | Air dryer | 45 | Contact part stainless steel, include hot air generater, material feeding machine, cyclone , and electric | |
12 | Sift separator | 3 | ||
13 | Automatic packing machine | 4 |

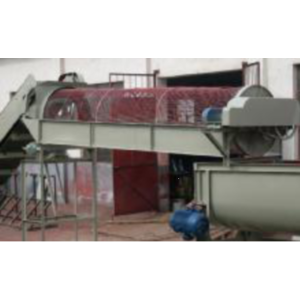

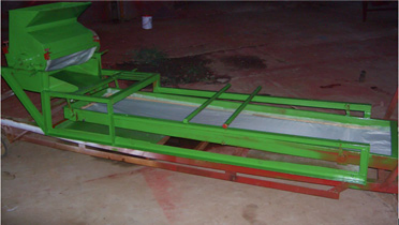

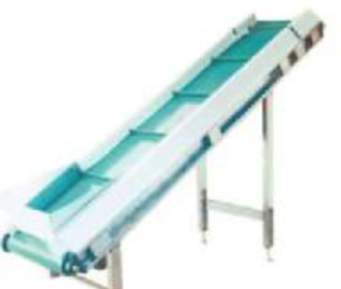

- 1. Belt conveyer and washer
Width 0.6meter,
Belt totally length 10meters
Power:2.2Kw

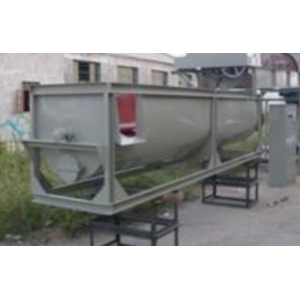

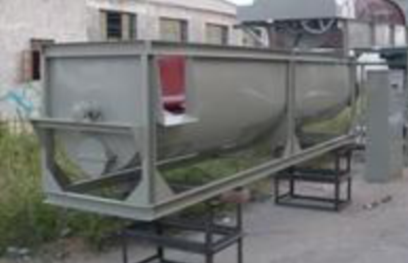

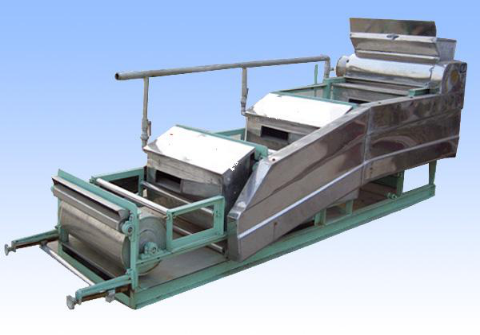

2 Cassava Dry washing machine
Size: 4000*1000*1200
Power:2.2Kw

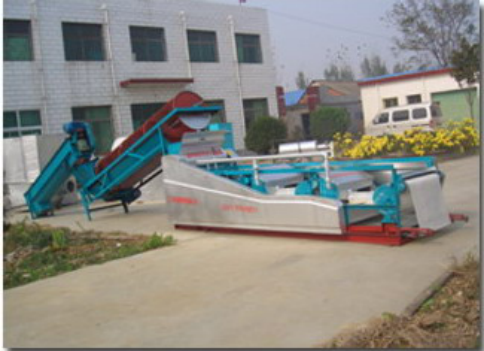

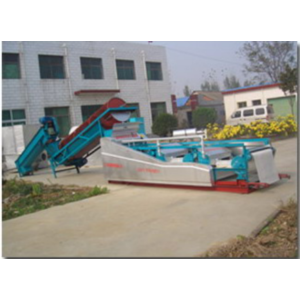

3 Second step cassava washing machine (2units)
Size: 4200*1000*1200
Power:4KW

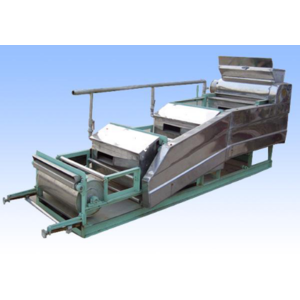

4 New Model cassava clean machine
Size: 4300*1000*1200
Power:3Kw
5 Main unit: The curved mesh extrusion pulverizing
The completion of the sweet potato/cassava pieces with the potato /cassava starch residue of the separation.
Technology: a broken solution - filtering - broken secondary solution - filter - filtration - Squeeze (filter) - washing - filtration - Squeeze (filter) - washing - filtration - Squeeze (filter ). It only at home that, through the Ministry of Agriculture, and a number of national patents
Size: 4300*1500*1500
Power:26Kw
6: starch refined filter machine
Fine filtration:Further removal of starch in the small residue
Removal sand machine:
According to the principle of separation of proportion, emulsion starch slurry with pressure pumping into the swirling sand in addition, at the end of Desanding flow, the pulp out of the top, remove the starch slurry of fine sand, to further improve the accuracy of starch.
Size:2200×1000×400
Power:1.1KW

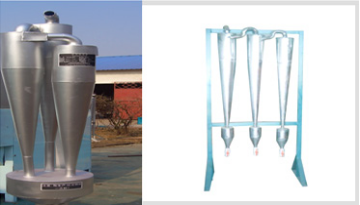

7: Series of De-Sand Cyclone Washers
Size : 1300*500*1500
Power :3Kw

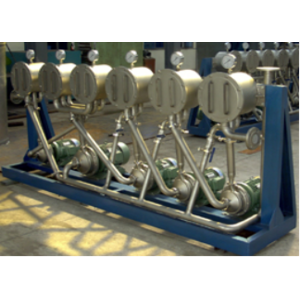

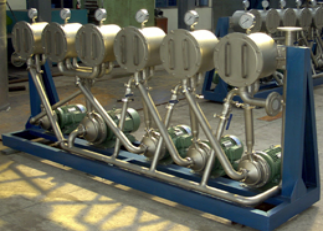

8 hydrocyclone
Size: 6000*1300*1300
Power :52kw
According to the water, starch, yellow pulp in different proportions of protein, starch slurry milk isolated remnants of insoluble protein and soluble protein and other impurities in order to reach the starch washing milk, refined and concentrated. Simple, trouble-free operation. Starch on further refining, enrichment and improve the quality of starch
9 Centrifugal Separator
Size: 1800×1200×1300
Power :30Kw
10 Vacuum Dryer
Vacuum dryer: Pre-filter vacuum suction linked to the principle of enrichment of refined starch for the dehydration, so as to achieve the necessary dry water content (40%), can also be used to replace the blade centrifuges
Size :2000×1800×1800
Power :14KW
11Air Dryer
materials into finished products to meet the requirements of the starch
Power:45kw
12 Sift separator
Power:3Kw

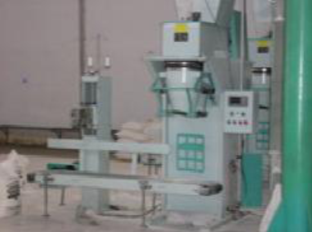

13 Automatic Packing machine
Power:4KW
