Goodway factory is a professional starch engineering factory in China combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc.
Why Choose us?

ü   ISO 9001:2008 Certified
ü   20 National Patents Owned up to now
ü   A Supplier in Starch Machinery for over 20 years.
ü   More than Machinery, Engineering and projecting for each of our customers,.
ü   An Superior Cooperator with latest technology resources, such as Henan Agricultural University and Chinese Academy of Agricultural Sciences.
ü   Reliable not only in quality and services, but also cost saving.

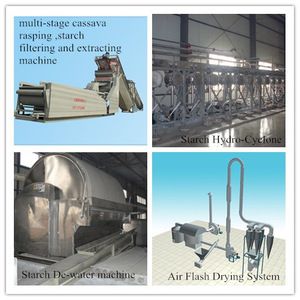

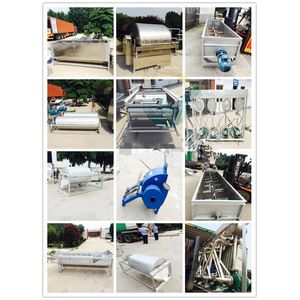

  Key equipment of small capacity modified cassava starch processing turnkey project  :

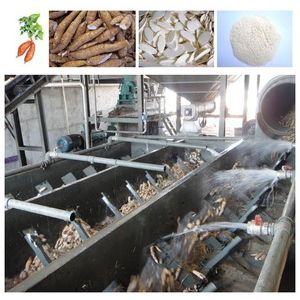

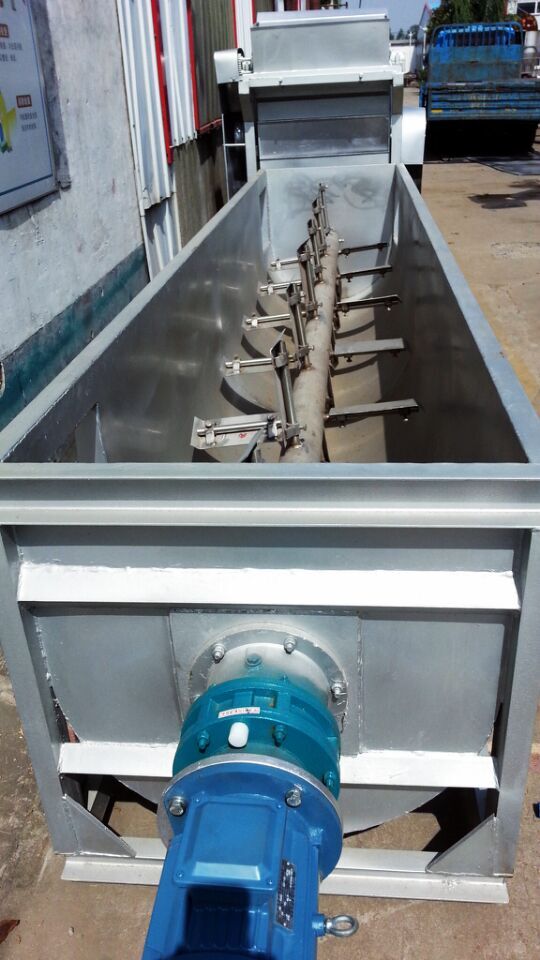

* Paddle type washing machine:

Paddle type  Washing Machine

Model No. GD-JY-350 Main Material: CS Overall Size: 4350*850*1000mm Setting up Weight: 400KG Processing Ability: Connected Power:4KW LV6

1. Rotating by paddles  2. Full of water 3. Small defects are cleaning up Material to the next stage automatically.

*inclined squirrel cage washing machine:

cage type  Washing Machine

Main Material: CS Overall Size: 4400*1000*1280 Setting up Weight: 410 Power: 2.2KW LV6

1. 2 ways of washing 2. Washing length reach to 20m 3. Washing and lifting Material to the next stage automatically.

2> Milling &  grinding section:

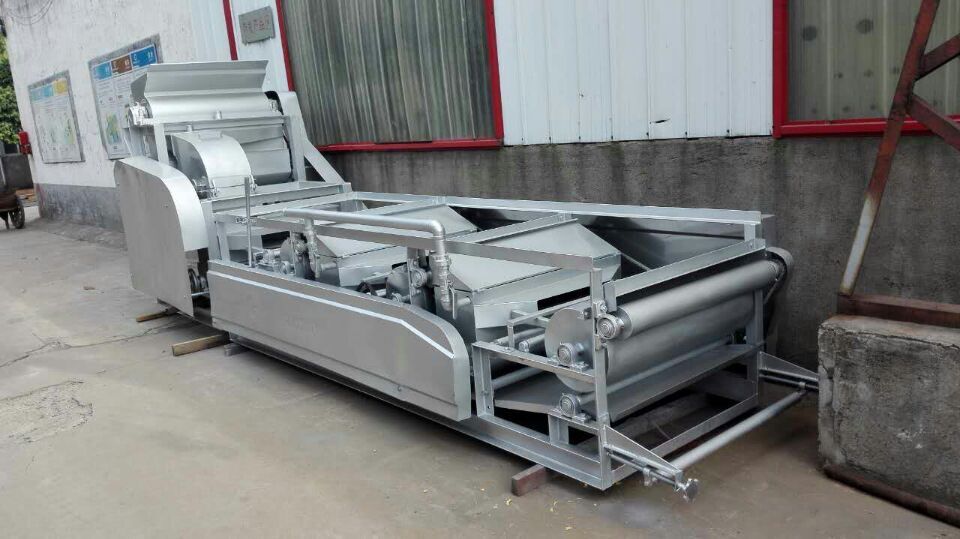

Curved Mesh  Crushing Machine

Main Material: SS Overall Size: 5000*1300*1500/1800 Setting up Weight: 800 Processing Ability: 3.5-4 Tons/Hour                  4-6 Tons/Hour                  6-8 Tons/Hour  Power: 7.5 LV4+7.5 LV6+15 LV4(660)

1. 2 ways of crushing 2. 3 steps of compressing 3. 4 times of washing 4. Several national patents owned 5. Extraction rate is over 98%.

Grinding clean cassava root into cassava slurry to make it easy dewatering and drying.

3>  Extraction & Concentration & Refining Section:

The crashed material is sent to centrifugal sieve through pump to extract cassava starch and separate cassava residues.Centrifugal sieve group are 4 or 5 stages, the front stages is to extract starch and the last stage is to dewater the cassava residues. The whole stage adopts countercurrent washing to get the best results and saving water.

Starch Hydrocyclone:

Starch HydroCyclone

Main Material: SS Overall Size: 625*960*1700/Unit Setting up Weight: 250 Processing Ability: Connected Power: 7.5, 5.5LV2,  4LV2

1. Refining, concentration, whiten,  quality better and high efficiency 2. Remove yellow from the starch milk.  3. Makes the work flow 2-3 times faster 4. Replace precipitation pools to reduce  cost

4> De-watering section:

Sending the fine slurry to dewatering machine to remove the moisture inside the slurry, and then send it to the air dryer.

Compared with other starch, it is  suitable for cassava starch to dewater by vacuum filter.

Moisture content of dewatered starch is 38~40%. Wet starch is sent to drying system through belt conveyer.

Vacuum filter  Dehydrator

Main Material: SS Overall Size: 1400*1680*1800 Setting up Weight: 526 Processing Ability: 1.5-3t/h Power: 11 LV4, 3 adj.

1. Step less speed  2. Stainless steel 3. High concentration ability, 40% moisture max.  4. Only suitable for liquid materials Micro condense on the mesh firmed on surface.

5> Drying section:

Drying the de-watered cassava starch in the air dryer to get dry product.

starch reaches sieving system. High efficiency cooling starch sifter is used to cool starch

and get the best starch viscosity.

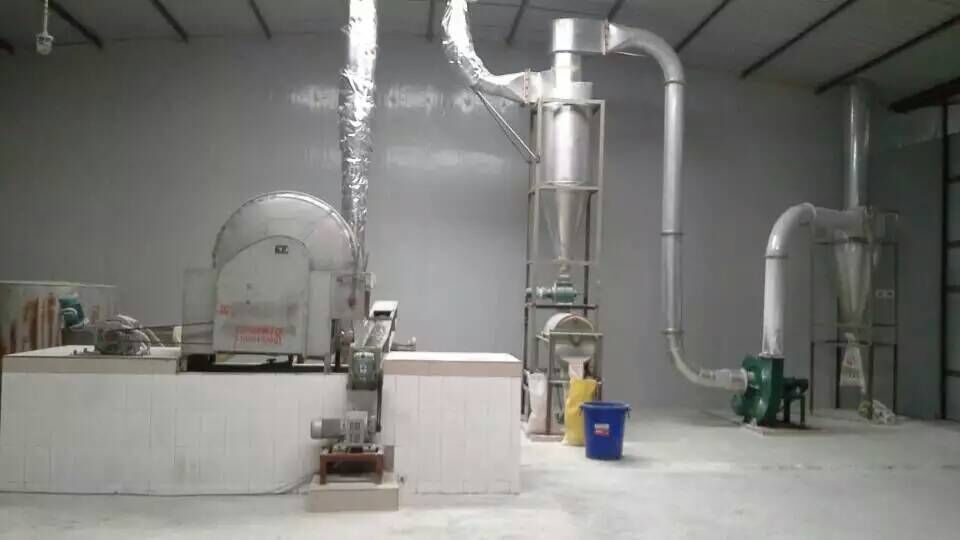

Air flash  Drying System

Main Material: Alum. or SS Overall Size: Around 60 M2 Setting up Weight: 1500 Output Ability: 0.3-1 Tons/Hour

1. Moisture max. 13% for the ready-to-pack powders Heat resource can be built by yourself or  use steam boiler.

6> Packing section:

Packing machine

Weighing range: 5-50kg Production accuracy: 100-240bag/h Power : 2.2kw

Suitable for starch, flour, glucose,  base class, chemical raw materials,  building materials, super  fine powder and so on packing.

 Certificate:

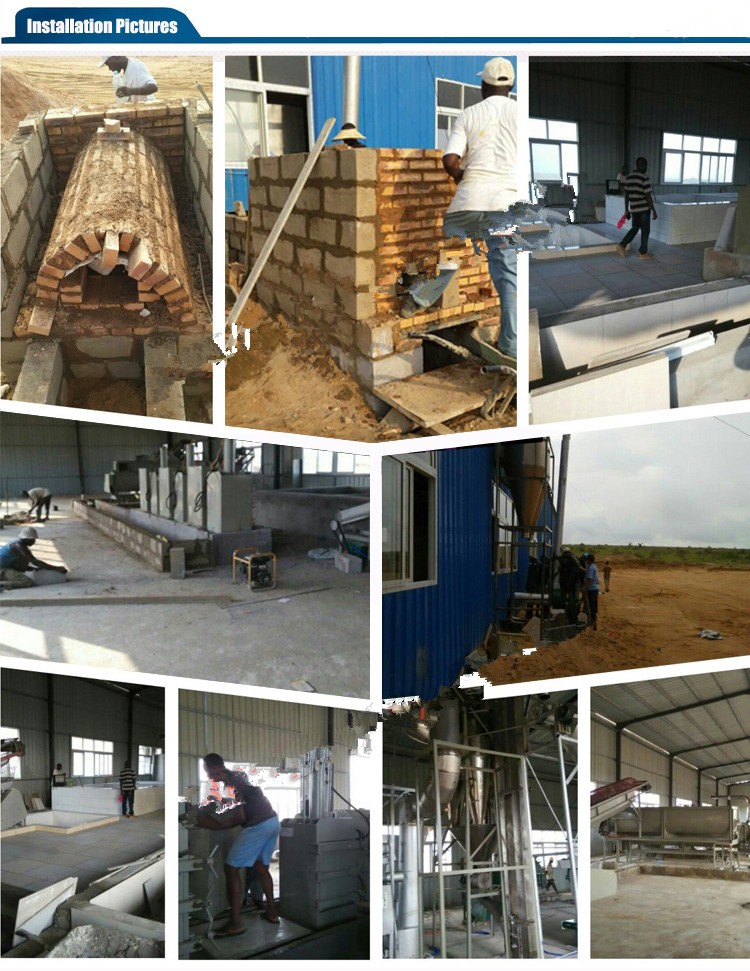

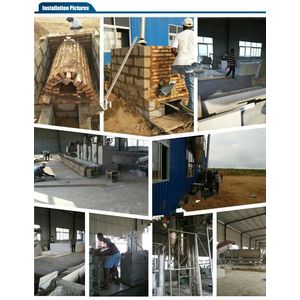

Installation :
