Professional sweet potato starch production line/cassava starch production line|tapioca processing machine
http://youtu.be/hNMWt1MkgBI
Goodway factory is a professional starch engineering factory in China combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc.
Why Choose us?
ü ISO 9001:2008 Certified
ü 20 National Patents Owned up to now
ü A Supplier in Starch Machinery for over 20 years.
ü More than Machinery, Engineering and projecting for each of our customers,.
ü An Superior Cooperator with latest technology resources, such as Henan Agricultural University and Chinese Academy of Agricultural Sciences.
ü Reliable not only in quality and services, but also cost saving.
Key equipment of Professional sweet potato starch production line/cassava starch production line|tapioca processing machine :

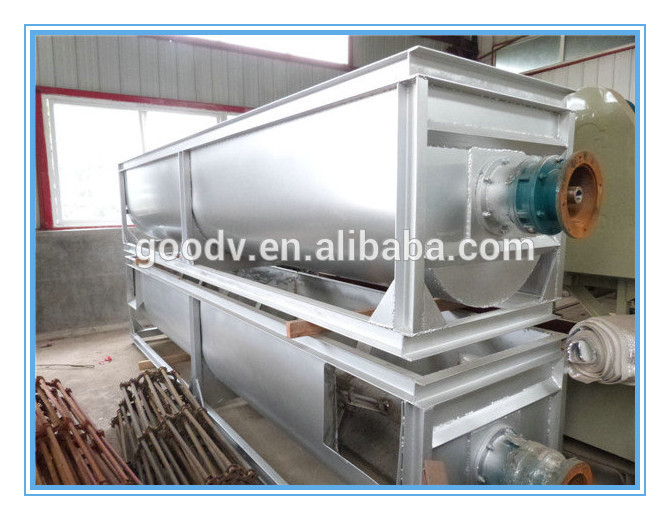

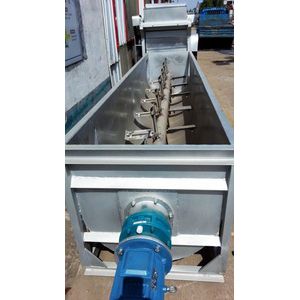

* Paddle type washing machine:
Parameters of paddle type washing machine:
Model No. | GD-JY-350 |
Main Material | Carbon Steel |
Overall Size | 4350×850×1000mm |
Setting up Weight | 400KG |
Power | 3KW LV6 |
Processing Ability | Connected |

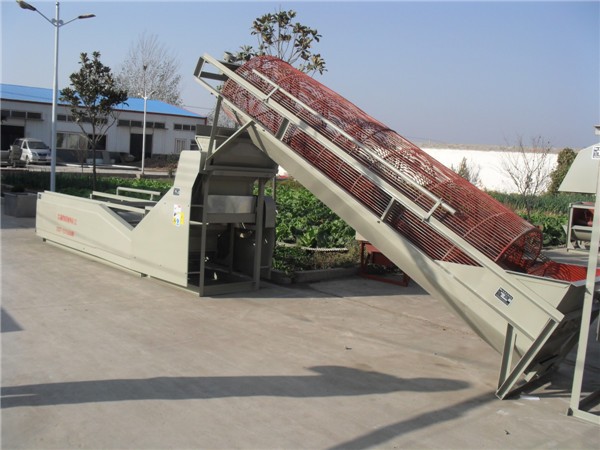

*inclined squirrel cage washing machine:
Parameters of inclined squirrel cage washing machine:
Model No. | GD-SL-800 |
Main Material | Carbon Steel |
Overall Size | 4400×1000×1280mm |
Setting up Weight | 410KG |
Power | 2.2KW LV6 |
Processing Ability | Connected |
2> Milling & grinding section:
Grinding clean cassava root into cassava slurry to make it easy dewatering and drying.

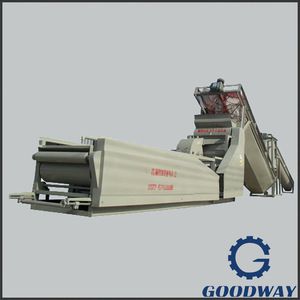

Curved Mesh Extrusion Potatoes Pulverizing Machine:
Parameters of Curved Mesh Extrusion Potatoes Pulverizing Machine:
Model Number | Model Number | Power |
GD-HS-Q-660 | 2-3t/h | 26kw |
GD-HS-Q-900 | 4-5t/h | 37kw |
GD-HS-Q-1200 | 6-8t/h | 60kw |

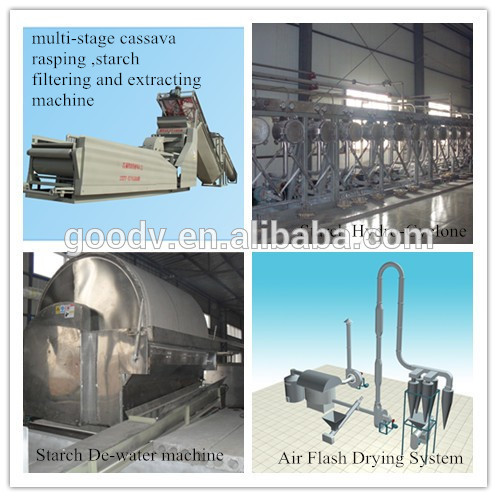

3> Extraction & Concentration & Refining Section:
The crashed material is sent to centrifugal sieve through pump to extract cassava starch and separate cassava residues.Centrifugal sieve group are 4 or 5 stages, the front stages is to extract starch and the last stage is to dewater the cassava residues. The whole stage adopts countercurrent washing to get the best results and saving water.

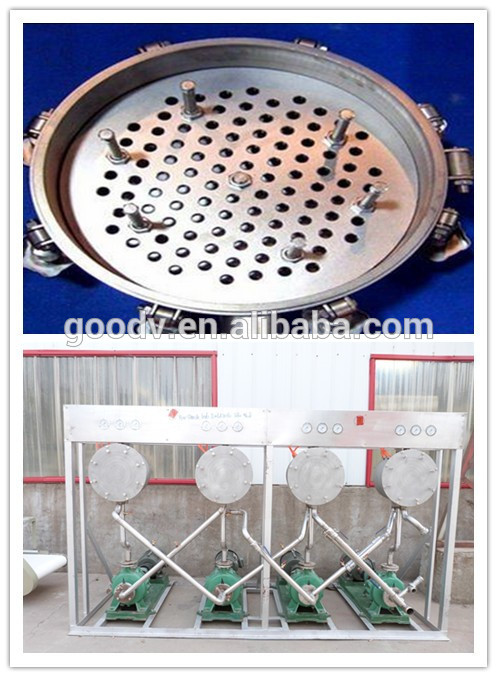

Starch Hydrocyclone:
Parameters of Starch Hydrocyclone:
Model Number | Specification(mm) | Flow | Power | Degree |
GD-XL-273 | 10/15/30 | 7-12.5 | 4-7.5 | 8,12,21 |
GD-XL-350 | 10/15/30 | 12-25 | 5.5-15 | 8,12,21 |
GD-XL-430 | 10/15/30 | 15-30 | 7.5-18.5 | 12,21 |
GD-XL-600 | 10/15/30 | 80-110 | 30-45 | 12,21 |
4> De-watering section:
Sending the fine slurry to dewatering machine to remove the moisture inside the slurry, and then
send it to the air dryer.
Compared with other starch, it is more suitable for cassava starch to dewater by vacuum filter.
Moisture content of dewatered starch is 38~40%. Wet starch is sent to drying system through belt
conveyer.

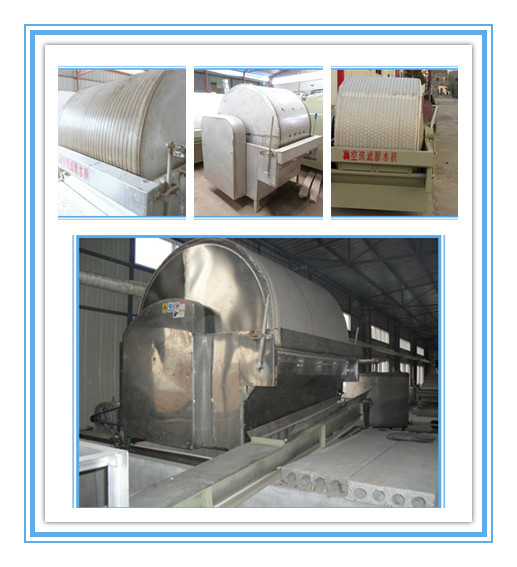

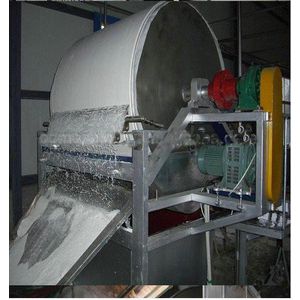

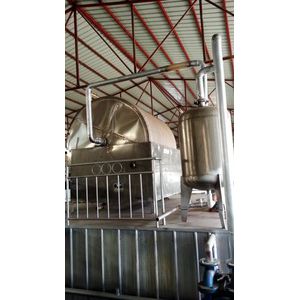

Vacuum Drum Dehydrator:
Parameters of Vacuum Drum Dehydrator:
Model Number | GD-TS-05 | GD-TS-06 | GD-TS-10 | GD-TS-16 | GD-TS-25 |
Filtration Area | 5m2 | 6m2 | 10m2 | 16m2 | 25m2 |
Vacuum Degree | >-0.099 | ||||
Discharge Moisture | ≤40% | ||||
Feed Concentration | 10-17BE° | ||||
Output | 0.2-0.3t/hm2 | ||||
Power | 1.5kw | 3kw | 3kw | 5.5kw | 7.5kw |
Dimension(m) | 2.5×1.1×1.1 | 1.6×1.8×1.9 | 2.2×1.8×1.9 | 4.2×1.9×2.1 | 4.3×2.8×3.0 |
5> Drying section:
Drying the de-watered cassava starch in the air dryer to get dry product.
starch reaches sieving system. High efficiency cooling starch sifter is used to cool starch
and get the best starch viscosity.
Parameters of Airflow Flash Dryer:
Model Number | Cylinder Diameter (mm) | Size (mm) | Power (kw) | Air Volume (m3/h) | Evaporation of water (kg/h) |
SG-2 | 200 | 250×2800 | 5-9 | 300-800 | 10-20 |
SG-3 | 300 | 400×3300 | 8-15 | 600-1500 | 20-50 |
SG-4 | 400 | 500×3500 | 10-17.5 | 1250-2500 | 25-70 |
SG-5 | 500 | 600×4000 | 12-24 | 1500-4000 | 30-100 |
SG-6 | 600 | 700×4200 | 20-29 | 2500-5000 | 40-200 |
SG-8 | 800 | 900×4600 | 24-35 | 3000-8000 | 60-600 |
SG-10 | 1000 | 1100×5000 | 40-62 | 5000-12500 | 100-1000 |
SG-12 | 1200 | 1300×5200 | 50-89 | 10000-20000 | 150-1300 |
SG-14 | 1400 | 1500×5400 | 60-105 | 14000-27000 | 200-1600 |
SG-16 | 1600 | 1700×6000 | 70-135 | 18700-36000 | 250-2000 |
6> Packing section:
Suitable for starch, flour, glucose, base class, chemical raw materials, building materials, super
fine powder and so on packing. To avoid the corrosive and guarantee absolute health, material
from import to export all adopt pure stainless steel material structure.

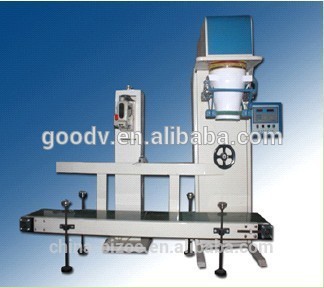

Parameters of Automatic Packaging Machine:
Model Number | Weighing Range | Production | Accuracy | Voltage | Air Source | Power |
GD-D25-A | 20—40kg | 100—240 bag/h | OIMR61×(0.2) | Ac380v±10% Ac220v±10% Ac50HZ±10% | 0.4Mpa 1m3/h | 2.2kw |
Certificate:

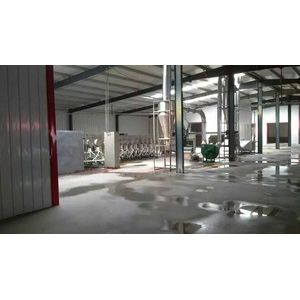

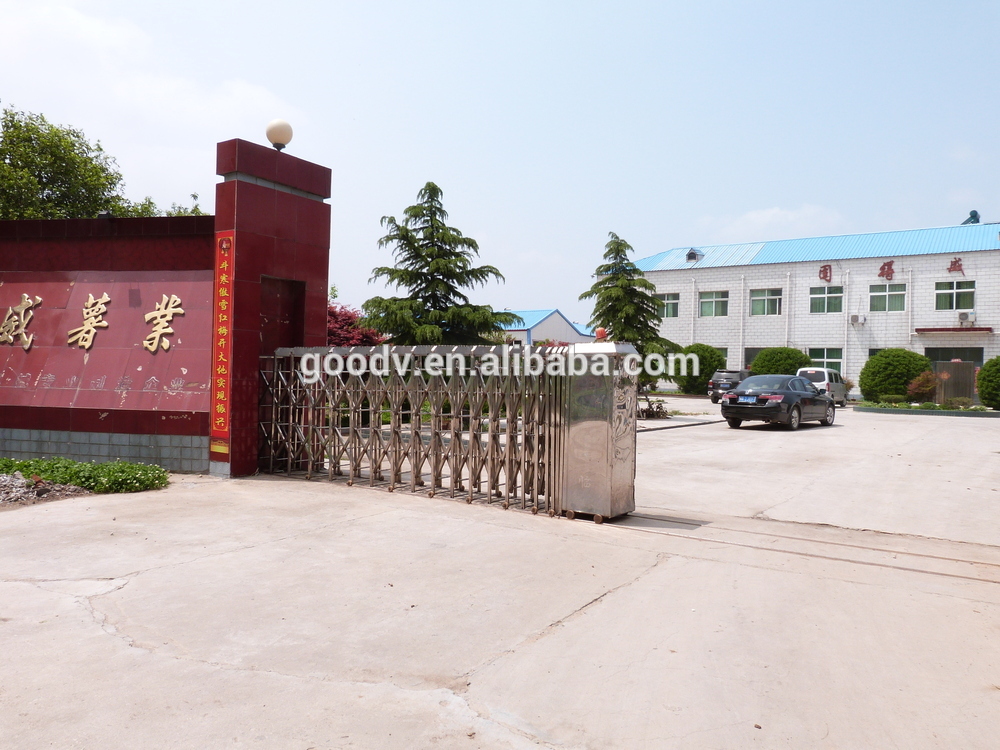

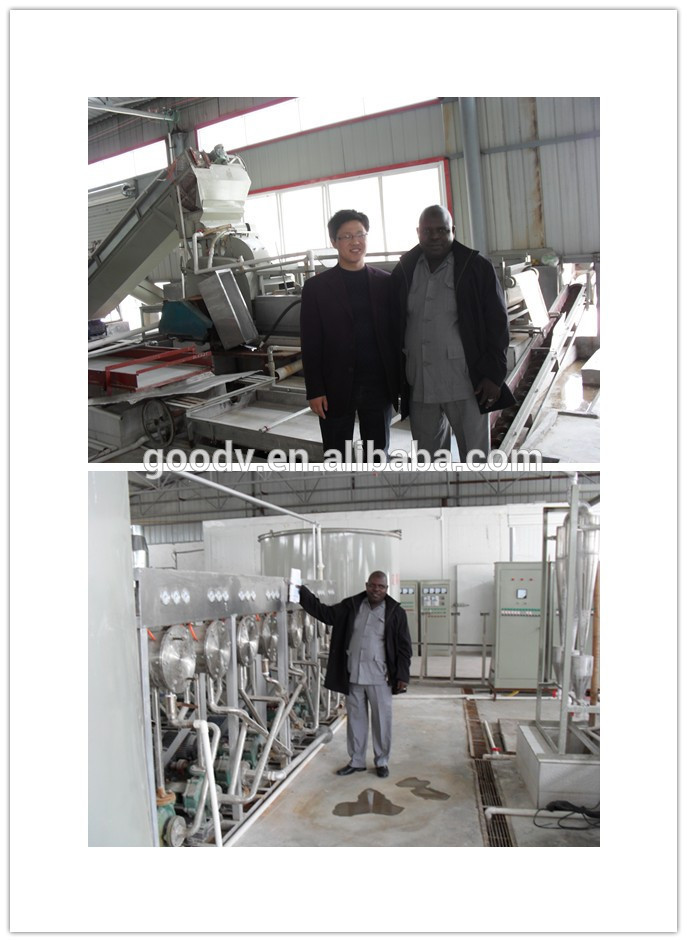

About our factory:
