Brief information:
This line is specially designed for pet dog /cat food by use the pre-conditioner to increase the quality
and capacity.Various molds to help making novel shapes.
We have a dedicated R & D team with rich experience to meet your specific needs--the double screw extruder machine and the dryer.After purchasing the equipment, professional production of guidance and after-sales service to solve your worries.
Technical parameters:
Model | Installed power | Power consumption | Main power | Capacity | Dimension |
SPH-65 | 35KW | 22-30KW | 22KW | 100-200KG | 15*2.5*4M |
SPH-70 | 45KW | 25-35KW | 30KW | 250-400KG | 27*2.5*4.5M |
SPH-80 | 90KW | 35-45KW | 45KW | 500-800KG | 29*2.5*4.5M |
SPH-90 | 105KW | 70-80KW | 55KW | 800-1200KG | 39*2.5*5M |
SPH-115 | 200KW | 128-150KW | 110KW | 1500-2000KG | 43*2.5*6M |
SPH-130 | 280KW | 200-240KW | 132KW | 3000-4000KG | 50*6*8M |
The machine parts:
No. | Flow chart | Equipment list |
1 | Raw material receiving system | Receive Hopper |
2 | Proportion system | Quantitative mixing bin |
3 | Grading system | Grinder |
4 | Mixing system | Mixer |
5 | Screw conveyor | |
6 | Extrusion system | Double screw extruder machine |
7 | Air conveyor | |
8 | Drying system | Dryer |
9 | Elevator | |
10 | Coating system | Oil-sprayer |
11 | Rotary Mixer | |
12 | Elevator | |
13 | Cooling system | Cooling conveyor |
14 | Elevator | |
15 | Packing system | Packing machine |
Remark | For the low capacity line, some of the equipment is unnecessary. |
Samples:

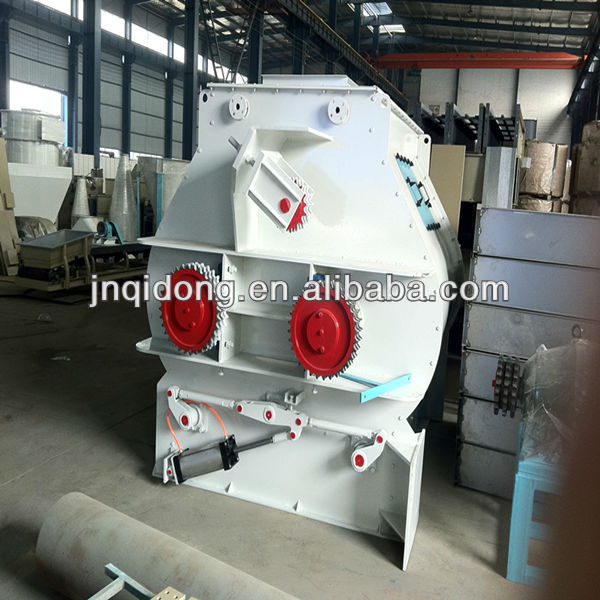

1.Mixer

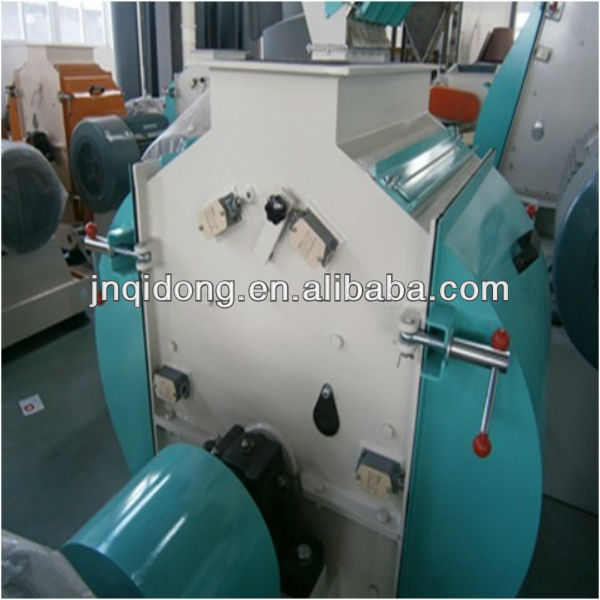

2.Hammer Grinder

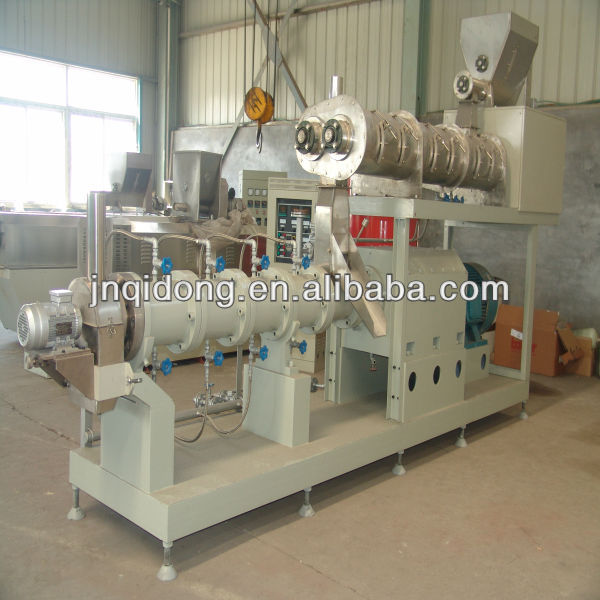

3.SPH-90 Double screw extruder machine

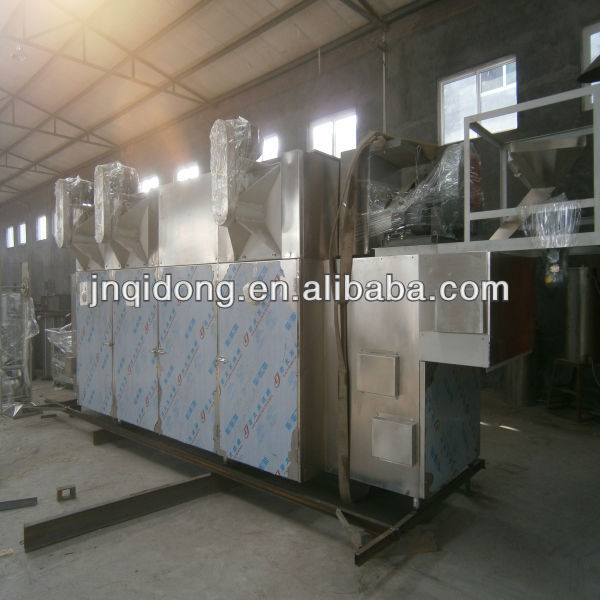

4.Steam dryer
5.Cooling machine
Sample of food:
