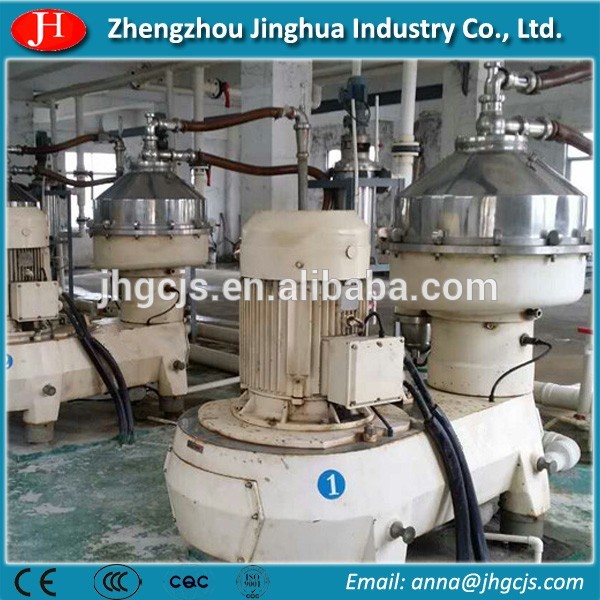

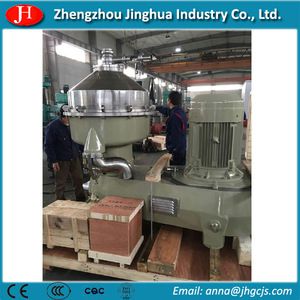

DPF series disc separator
Disc separator is mainly used in the starch production that coming from maize, manioc, wheat, potatoes or other material sources for separating, concentrating and washing of starch and protein. The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to the functions of this machine.
This machine is used to refine the starh milk and remove protein, gum from starch slurry.
1. Fully stainless steel.
2. Speed, vibration display. Convenient operation.
3.Continuous running.
4. High rotating speed, high separating factor.
5. Low power and water consumption.

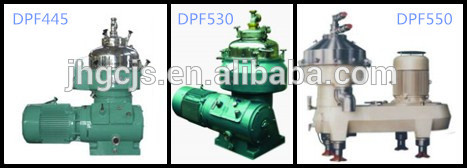

Main parameter | DPF445 | DPF530 | DPF550 |
Bowl Inner Diameter | 445 mm | 530 mm | 550 mm |
Disc Number | 73 | 80 | 110 |
Bowl Rotating Speed | 5100 rpm | 4650 rpm | 4500 rpm |
Separating Factor | 6480 | 6400 | 6230 |
Disc: Diameter | 310 mm |
| 429 mm |
Throughput Capacity | 35000~40000 L/h | 45000 L/h | 75000 L/h |
Starting Time | ≈2 min | ≈ min | ≈4 min |
Motor Power Nominal Speed | 37 Kw 1470 rpm | 37 Kw rpm | 55 Kw 2920 rpm |
Nozzle | 10 | 10 | 12 |
Overall Dimension (L×W×H) mm | 1503×1129×1516 | 1430×1174×1544 | 2044×1320×1954 |
Weight (kg) | 1100 | 1550 | 2100 |
