Purpose:

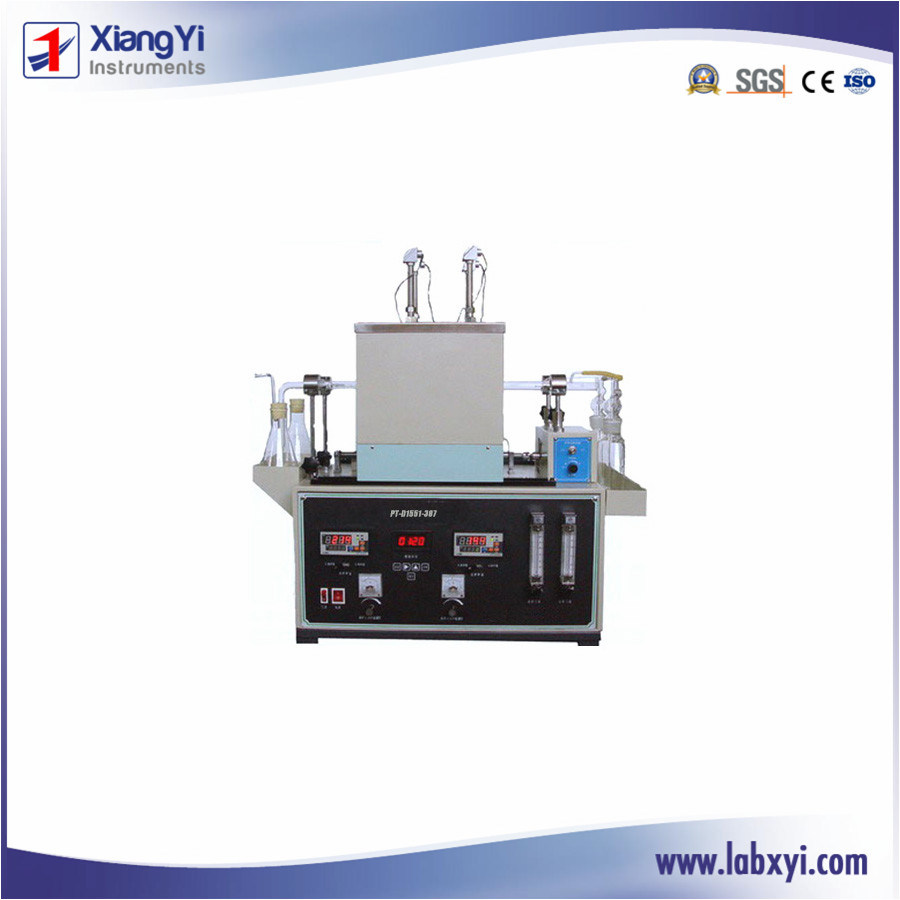

PT-D1551-387 Dark Petroleum Products Sulphur Content Tester (Tubular Oven Method) is designed and made as per the National Standard GB/T387 "Test Methods for Sulfur Content of Dark Petroleum Products (Tubular Oven Methods)" and ASTM D 1551. It is suitable to determine sulfur content of dark petroleum products. Place sample in a quartz boat and completely burn sample in the high temperature air at a stipulated flow rate. Absorb sulfurous anhydride and sulfuric anhydride produced from combustion using peroxide and sulfuric solution. Then make titration for sulfuric acid produced using sodium hydroxide solution.
Technical characteristics
- The instrument is mainly composed of tubular oven, oven temperature controller, flow meter, and display.
- Adopt microprocessor to form the intelligent controlling system, it can control determination time, oven movement, and alarm system automatically.
- After preset oven moving mode, the oven can move, stop moving and return back to initial state automatically as per the requirement of test procedures.
- It has two parallel tubular ovens in horizontal type, so it can make determination for 2 samples at the same time. It is efficient, accurate and reliable.
- Equipped with air source and a joint for outer air source, so you can use inner air source of the instrument or outer air source.
Technical parameters
1. Power supply: AC 220V±10%, 50Hz;
2. Type and quantity of heating oven: parallel tubular ovens in horizontal type;
3. Chamber diameter of oven: Φ22mm;
4. Heating power of oven: 1400W×2;
5. Max. Temperature of oven: 950°C;
6. Moving distance of oven: not less than 135 mm;
7. Air flow rate: not less than 150 L/h;
8. Max. Preset time: 99 min 59 s (100 min);
9. Dimensions (m): 0.72*0.62*0.63, 0.56*0.41*0.67, 0.82*0.5*0.29
Standard Accessories
| No. | Item | Unit | Qty | Remarks |
| 1 | Valveless gas washing bottle, 250mL | Set | 4 | Valveless Straight |
| 2 | Receiving bottle, 250mL | Set | 3 | Triangle bottle |
| 3 | Quartz elbow | Piece | 3 | Then quartz heating tubes |
| 4 | Quartz tube | Piece | 3 | Placed in the furnace |
| 5 | Quartz boat | Piece | 4 | Sample bloom |
| 6 | Bent glass tube | Piece | 3 | Washing cylinder |
| 7 | Straight quartz tube | Piece | 3 | Then quartz heating tubes |
| 8 | Hook for quartz boat movement | Piece | 1 | |
| 9 | Latex tube outer diameter Φ8 × 1.5 | Meter | 3 | |
| 10 | Rubber stopper | Piece | 4 | Receiving bottle |
| 11 | Cork (Φ18 × Φ12 × L18) | Piece | 4 |
