2SD965/A
NPN SILICON TRANSISTOR
LOW VOLTAGE HIGH CURRENT TRANSISTOR
FEATURES
Collector current up to 5A
UTC 2SD965: Collector-Emitter voltage up to 20 V
UTC 2SD965A: Collector-Emitter voltage up to 30 V
APPLICATIONS
Audio amplifier
Flash unit of camera
Switching circuit
ABSOLUTE MAXIMUM RATINGS (TA=25°C unless otherwise specified)
| Parameter & Symbol | Rating & Unit |
| Collector-Base Voltage VCBO | 40 V |
| Collector-Emitter Voltage c | 30 V |
| Emitter-Base Voltage VEBO | 7 V |
| Collector Current-Continuous IC | 5 A |
| Collector Power Dissipation PC | 750 mW |
| Junction & Storage Temperature TJ, TSTG | 150, -55~150 °C |

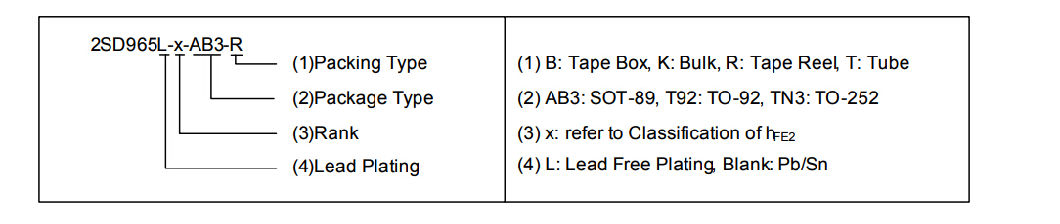

ORDERING INFORMATION
| Order Number | Package | Packing | |
| Normal | Lead Free Plating | ||

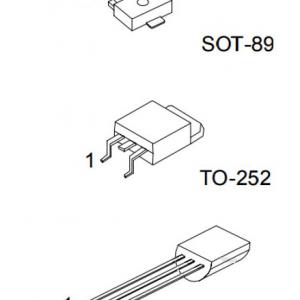

| 2SD965-x-AB3-R | 2SD965L-x-AB3-R | SOT-89 | Tape Reel |
| 2SD965-x-T92-B | 2SD965L-x-T92-B | TO-92 | Tape Box |
| 2SD965-x-T92-K | 2SD965L-x-T92-K | TO-92 | Bulk |
| 2SD965-x-TN3-R | 2SD965L-x-TN3-R | TO-252 | Tape Reel |
| 2SD965-x-TN3-T | 2SD965L-x-TN3-T | TO-252 | Tube |
| 2SD965A-x-AB3-R | 2SD965AL-x-AB3-R | SOT-89 | Tape Reel |
| 2SD965A-x-T92-B | 2SD965AL-x-T92-B | TO-92 | Tape Box |
| 2SD965A-x-T92-K | 2SD965AL-x-T92-K | TO-92 | Bulk |
| 2SD965A-x-TN3-R | 2SD965AL-x-TN3-R | TO-252 | Tape Reel |
| 2SD965A-x-TN3-T | 2SD965AL-x-TN3-T | TO-252 | Tube |
