I Product Introduction
Based on precise pressure transmitter platform, smart wireless pressure transmitter is a high-precision wireless communication pressure meter, which combines low power consumption technology and high reliability RF communication modules as well as high-capacity Lithium battery. With the ASC4000/ASC4001 data collection terminal, PC can read the transmitter' s real-time pressure
data through USB or MODBUS interface.
The ASP2002CW can work without external power supply, thus eliminating the need for arranging local wires and greatly reducing the manpower and construction costs. It's particularly suitable in the occasion that real-time data transmission is needed but without power supply, such as: the pipeline output of oil fields, oil wells, heating supply
and the regularly examination of well pressure.
II Performance Parameters
III Application in Digital Oil Fields
IV Structural Drawing
V Selection Guide
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are A professional manufacturer of Pressure/Temperature sensor, wireless transmitters, gateways, even the total solutions of IIOT for more than 11 years in China. With 4~20mA, Hart, Rs485 & Modbus protocols, pressure sensors with 4~20mA, 0.5~4.5V, UARTand etc, also wireless IOT measurement transmitters. We provide high quality products with high competitive factory price.
2. Q: What's your quality control system?
A: As an ISO9001:2008 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
3. Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing is acceptable.
4. Q: Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM & customization are welcomed.
5. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
6. Q: What is lead time of your product?
A: We are factory, our lead time is always within 10~15 working days for products without customization, but lead time will vary based on different products. You can check detail lead time with our sales.
7. Q: What international certificates do you have for your products?
A: we have gained CE, RoHs certificates, and are in the process of gaining ATEX & UL certificates now.
Based on precise pressure transmitter platform, smart wireless pressure transmitter is a high-precision wireless communication pressure meter, which combines low power consumption technology and high reliability RF communication modules as well as high-capacity Lithium battery. With the ASC4000/ASC4001 data collection terminal, PC can read the transmitter' s real-time pressure
data through USB or MODBUS interface.
The ASP2002CW can work without external power supply, thus eliminating the need for arranging local wires and greatly reducing the manpower and construction costs. It's particularly suitable in the occasion that real-time data transmission is needed but without power supply, such as: the pipeline output of oil fields, oil wells, heating supply
and the regularly examination of well pressure.
II Performance Parameters
| Power supply: | 3.6V Lithium battery |
| Accuracy: | 0.25%F.S |
| Ambient temperature: | -25ºC ~ 60ºC |
| Frequency band: | 470MHz ~ 510MHz |
| RF transmitted power: | 17dBm |
| RF received power: | -105dBm |
| Power consumption: | Peak current ≤ 100mA Static current≤ 100Ua |
| Wireless delivering distance: | 300~1500m(open area) |
| Process connection: | M20×1.5, G1/2, 1/2NPT |
| Lifespan: | 1~2 years |
| Ingress Protection: | IP68 |

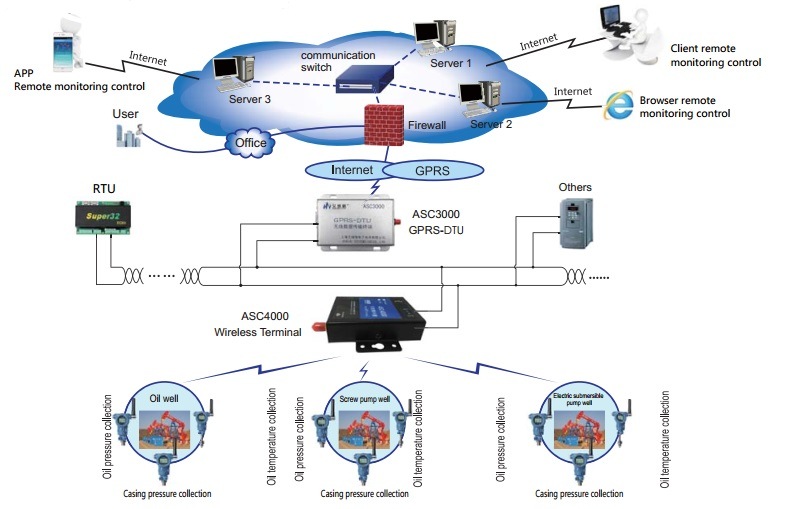

III Application in Digital Oil Fields

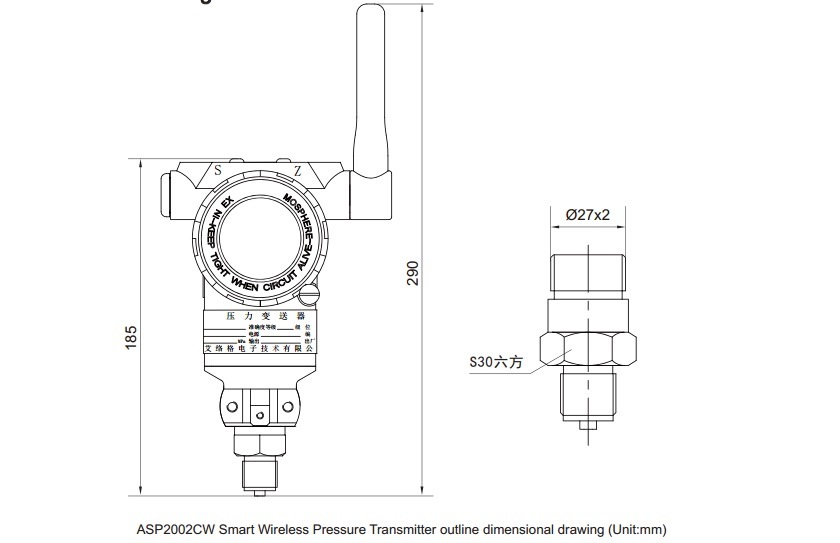

IV Structural Drawing
V Selection Guide
| Code 1 3 4 5 6 7 8 9 0 | Measuring Range (0 ─ 1.0 ~ 7.5)kPa (0 ─ 0.4 ~ 40)kPa (0 ─ 1.86 ~ 186)kPa (0 ─ 6.9 ~ 690)kPa (0 ─ 0.02 ~ 2)MPa (0 ─ 0.069 ~ 6.9)MPa (0 ─ 0.2 ~ 20)MPa (0 ─ 0.4 ~ 40)MPa |
| Code 2 N Q S M G F R C | Process connection NPT 1/4 Female NPT 1/2 Female NPT 1/2 Male(NPT1/4 Female) M20*1.5 Male G1/2 Male G1/4 Male Remote Customize |
| Code 3 2 3 | Isolating Diaphragm 316L stainless steel Hastelloy C |
| Code 4 N F P | O-ring material process flange Perbunan(NBR) Viton(FKM) Teflon(PTFE)Process connection |
| Code 5 0 1 2 | Mounting Bracket No Bracket Carbon bracket Stainless steel bracket |
| Code 6 C E | Nameplate Chinese English |
| Example: Smart Wireless Pressure Transmitter ASP2002CW-3N2F0C [3]: Measuring Range: (0-1.0~7.5)kPa [N]: Process Connection: NPT 1/4 Female | [2]: Isolating Diaphragm:316L stainless steel [F]: O-ring material process flange:Viton(FKM) [0]: Mounting Bracket:No Bracket [C]: Nameplate:Chinese |
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are A professional manufacturer of Pressure/Temperature sensor, wireless transmitters, gateways, even the total solutions of IIOT for more than 11 years in China. With 4~20mA, Hart, Rs485 & Modbus protocols, pressure sensors with 4~20mA, 0.5~4.5V, UARTand etc, also wireless IOT measurement transmitters. We provide high quality products with high competitive factory price.
2. Q: What's your quality control system?
A: As an ISO9001:2008 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
3. Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing is acceptable.
4. Q: Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM & customization are welcomed.
5. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
6. Q: What is lead time of your product?
A: We are factory, our lead time is always within 10~15 working days for products without customization, but lead time will vary based on different products. You can check detail lead time with our sales.
7. Q: What international certificates do you have for your products?
A: we have gained CE, RoHs certificates, and are in the process of gaining ATEX & UL certificates now.
