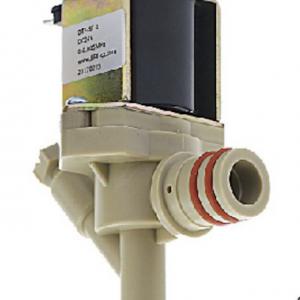

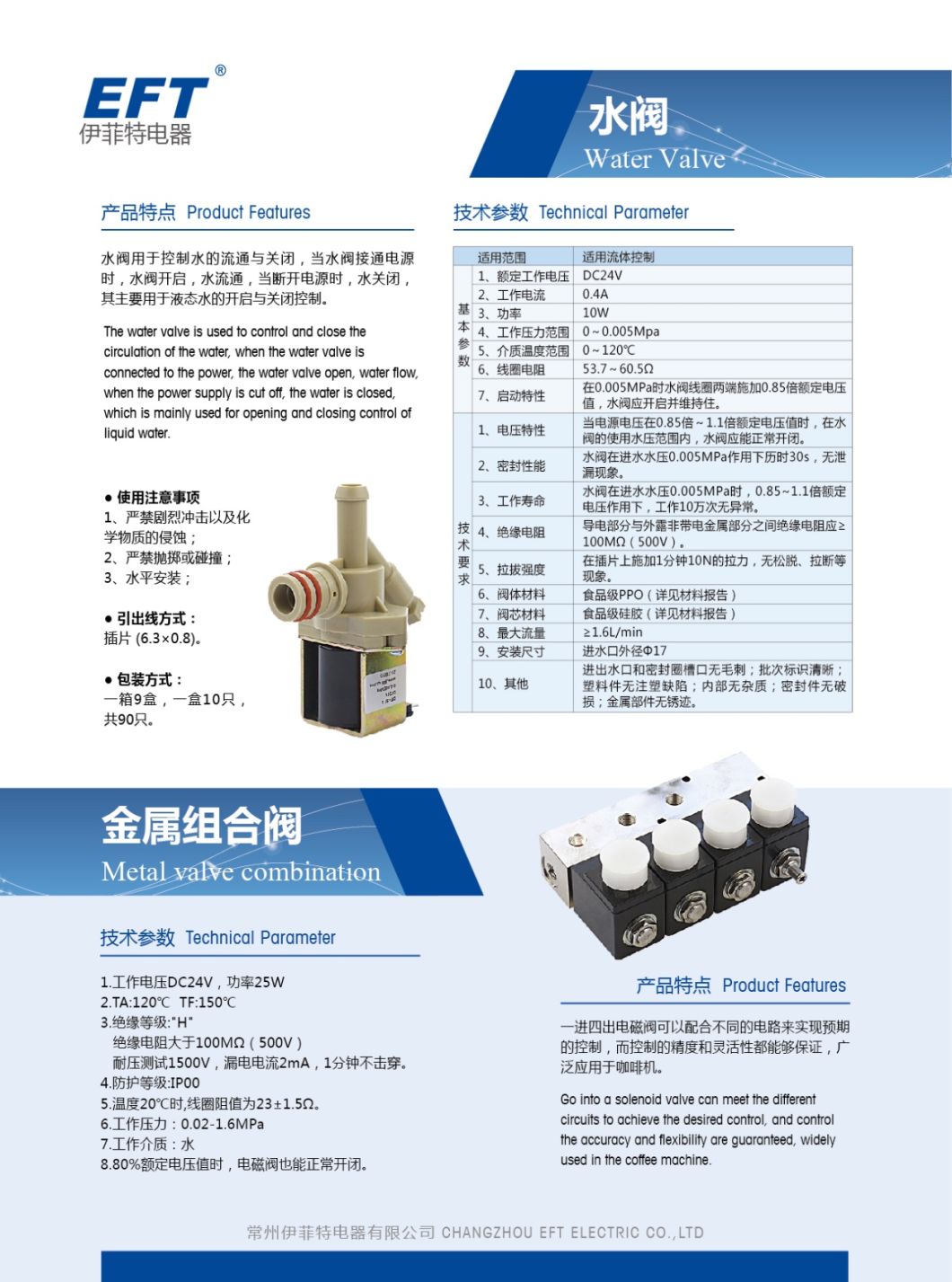

Dtf series solenoid valve consists of the valve body and the solenoid coils,pass off through the solenoid coil to control the valve opening and closing,ultimately to control the water in the system off and flow.
Mainly used in drinking machine industry,application on coffee machine,ice machine,cola mixing machine.
| valve type | normal close |
| operating valtage | AC220V/DC24V |
| power consumption | 10W |
| working pressure | 0-0.05MPa |
| Inner leaking amount | no leaking under thepressure 0.05Mpa |
| suitable temperature of fluid | 0ºC-120ºC |
| duramax | more than 100000 times |
| valve material | PP |
| material of valve core | silica gel |
| Insulation resistance | 100MΩ |
| max flow rate | ≥1.5L/minute |
Q1: What is the Warranty for the solenoid valves?
A1: For the valves,we have one and half year warranty.If any quality problems on our side occured in this period ,we will make replacement.
Q2:: What is NO and NC?
A2: NO stands for normally open, that is , valve keeps open without power.If connect it with power, the valve will get closed.NC stands for normally closed,that is valve keeps closed without power.If connect it with power, the valve will get open.
Q.3: What is the assembly way of solenoid valves?
A.3 we suggest to make horizontal installation to enlarge life time,but it can be vertical installation if have special request.
Q4:Is there cheap shipping cost to import to our country?
A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.
Q5:Can we make customized product?
A5: Yes, we are good at making customized products.More than 30% of our products are customized products. We have successfully customized for customer from various fields from USA,Norway.Australia, Germany ect.
