DETAIL DESCRIPTION

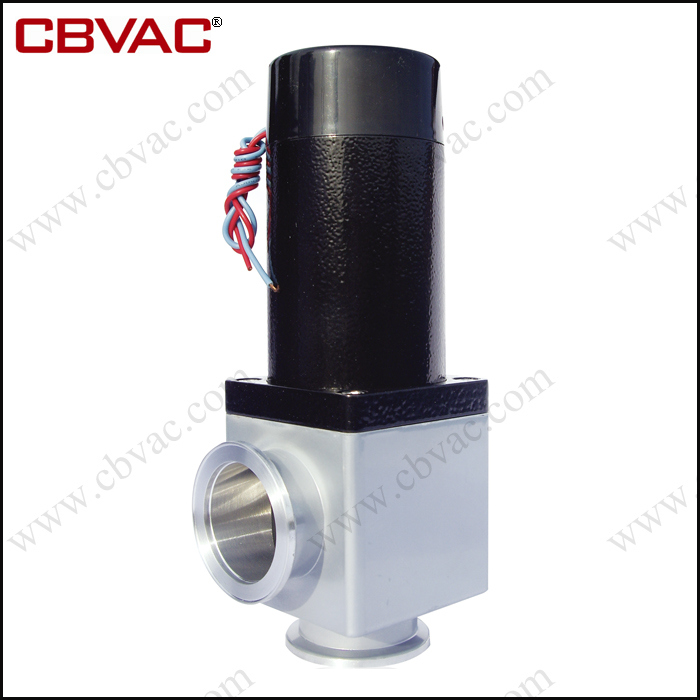

Electromagnetic vacuum valves

Brief Introduction

This series valves are applicable to the vacuum line's start and stop of ultra-high vacuum system. They are two different vacuum block valves; these are manual ones and pneumatic ones. They have many advantages, such as stability, durability, great sealing, and long service life and so on, so they are one of initial optional valves in ultra-high vacuum equipment. Manual valves take manual rotating handle as motivity, and helical transmission to make valves start and stop. The direction of start and stop takes marks on the handles as the standard. Pneumatic valves take compressed air as motivity to make valves start and stop. Valve plates will close automatically depending on spring force when losing air source. Applicable medium can be pure air and non-corrosive gas.

Features

Design in a standard and moduling way. Easy to change and maintain.
Easy to clean up.
Adopt stainless steel bellows and viton O-ring, no lube.
The inner of valves' body is welded by stainless steel and the leak rate is low.

Order Information

The order numbers of each product are as follows. Customers can search the numbers according to the operation mode of valves and DN.
Order Example: 2089
High Vacuum Manual Block Straight Valves, DN=16mm, CF flange

DN (mm)	Order No.	Weight/kg
Manual	Pneumatic	Manual	Pneumatic
16	2089	2297	0.50	0.70
25	2090	2298	1.80	1.70
40	2091	2299	2.20	2.10
50	2092	2300	2.70	3.55

Major Capacity Targets:

Application scope:1×10^-6pa~1.2×10⁵Pa
Differential pressure before open valve plates:≤1.2×10⁵a any direction
Leak rate of valves' body and base: <1.3×10^-7Pa·L·s^-1
Cycling numbers before initial repair:200,000times
Baking Temperate of valve bodies:Open≤200ºC;Close≤150ºC
Position of installation: Any direction
Power supply:AC 220V 50Hz,6W or DC 24V,3W()(Cycles until first service)
Compressed air(only supply to pneumatic valves):0.4~0.7MPa
)Speed of closing and opening (only supply to pneumatic valves):≤1s
Indications of valves' position

-manual valves: with indication of start and stop's positions
- pneumatic valves: with indication of start and stop's positions(magnet switch)

Valves' weight: Referring to the above table.

External Dimensions

Manual

Model	DN	Connecting flange	Manual
A	B	C	D	E	F	G
CD-J16B	16	CF16	106	16	40	48	64	40	28
CD-J25B	25	CF25	137	25	55	69	89.5	50	40
CD-J40B	40	CF35	153	35	63	69	97.5	63	40
CD-J50B	50	CF50	192	50	80	92	126	63	40

Pneumatic

Model	DN	Connecting flange	Pneumatic
A	B	C	D	E	F	G
CDQ-J16B	16	CF16	125	16	40	48	85	113	28
CDQ-J25B	25	CF25	149	25	55	69	111	140	40
CDQ-J40B	40	CF35	167	35	63	69	118	150	40
CDQ-J50B	50	CF50	207	50	80	92	144	210	50

CF flange are subject to GB/T 6071-2003
Optional Parts: Magnet switch.

We can OEM and ODM as the drawing and your requirement

Packaging & Delivery

Packaging Details: Inner: plastic bag. Outer: carton or wooden case or according to customers' need.
Delivery Detail: Shipped in 3 days after payment
