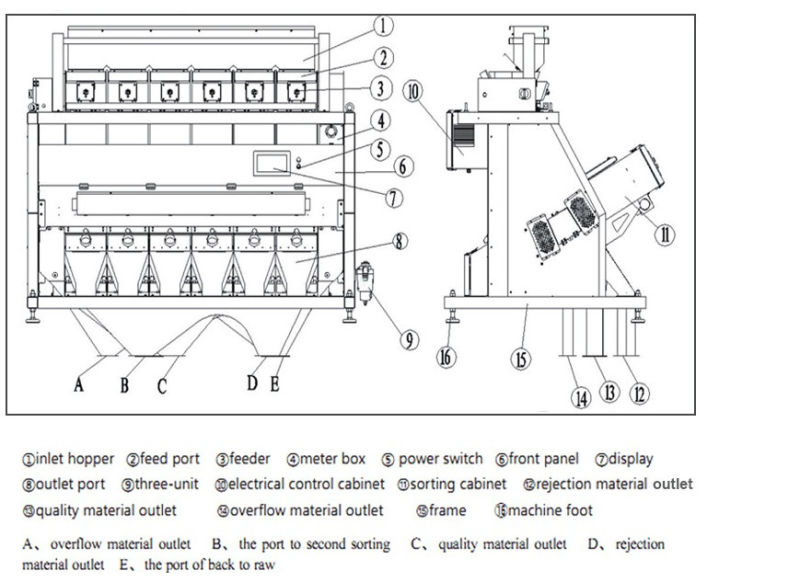

Rice Mill Color Sorting Machine/Grain Color Sorting Machine


Products description

1. The Color Sorter uses 2048 high-performance CCD image sensor with resolution up to 0.04mm2, to perceive the tiny color difference of material.
2.The Sorter adopts high quality special industrial lens,its working parameters according to the various materials color requirements, and optimize the optical path design, to ensure the each size has a perfect image on the image sensor.
3.The high speed DSP Digital image processing technology provides the sorter with fast detection and high identification rate.
4.According to the spectra characteristics and identification of characteristics of rice.specifically design flexibility and robustness of both special grain detection algorithm start from the spectra analysis to meet slight color detection to improve robustness, to avoid interference with other factors of material surface.
5.The main control system adopts ARM9 high-end embedded processor.it effectively enhances processor speed and color selection precision.
6.The machine adopts intelligent closed-loop control, industrial data bus line can ensure the reliability of the communication and control system, strong anti-interference ability.
7.Super 10 inch screen for color and black-and-white,more flexible in touch and quick in operation. Many setting modes to meet the demand for the more color sorting algorithm.
8.The professional high speed solenoid valve , with more speed and high frequency, low power consumption and longer service life.
9.Double sides cameras and multiple modes can adapt to different demands. and high stability,high precision and low carryover.
10.Using intelligent temperature and pressure control technology to ensure the machine runs in the best working condition.
11.Auto fault-alarming ,modular structure and easy to maintain.

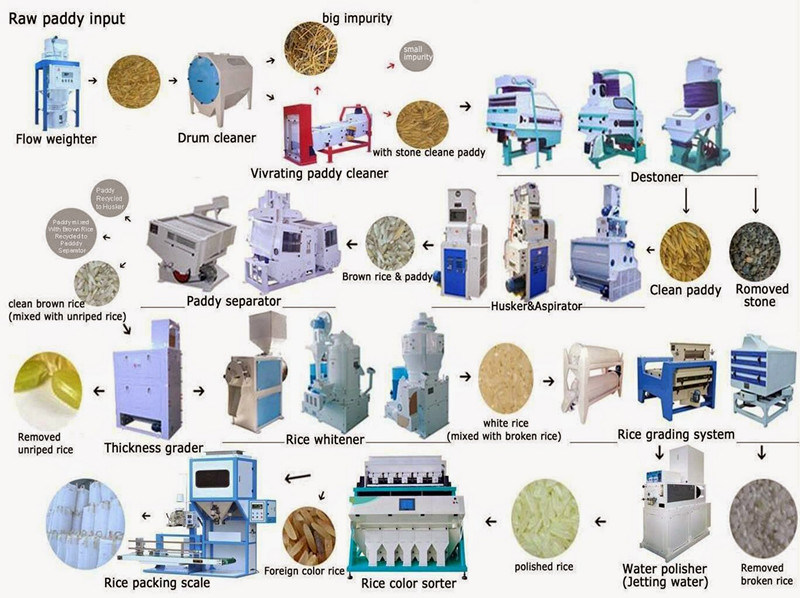

The basic rice milling processes :

Pre Cleaning	Removing all impurities and unfilled grains from raw paddy
De-stoning	Separating small stones from paddy
Parboiling (Optional)	Improving the nutritional quality and milling recovery percent during husking and polishing / whitening operation
Husking	Removing husk from paddy
Husk Aspiration	Separating the husk from brown rice/ unhusked paddy
Paddy Separation	Separating the unhusked paddy from brown rice
Whitening	Removing all or part of the bran layer and germ from brown rice
Polishing	Improving the appearance of milled rice by removing the remaining bran particles and by polishing the exterior of milled kernel
Color Sorting (Optional)	Removing foreign materials such as colored, broken, immature and insected grains from milled rice
Length Grading	Separating small and large brokens from head rice
Blending	Mixing head rice with predetermined amount of brokens, as required by the customer
Weighing and Bagging	Preparing the milled rice for transport to the customer

Optional :


Paddy Dryer	Drying raw paddy with high moisture
Thickness Grader	Removing broken and immature grains from brown rice before whitening
Flow Scale	Flow controlling and incontinuous accumulating measure of white rice
Hammer Mill	Milling chaff into grainy materials
Rice Hull Separator	Separating paddy and broken brown rice from husk
Bran Separator	Separating broken rice from rice bran



Introduction for rice milling method

The Rice milling is the process that helps in removal of hulls and bran's from paddy grains to produce polished rice. The objective of a rice milling system is to Remove the husk and the bran layers from paddy rice to produce whole white rice Kernels that are sufficiently milled free of impurities and contain a minimum number Of broken kernels

 Feature and Special service for our rice milling processing line

1. Full automatic rice mill production line

2. Capacity of the the production line can be  15T/D, 30T/D, 50T/D, 60-70T/D,  80T/D,  100T/D,  120T/D and 200-240T/D

3. Whole line configuration can be customized as your requests

4. Warranty: main body is for one year except wear parts and motors

5. Easy operate, we provide English version operation instructions

6. BV, CCIC and EME Certificate

7. Engineer can be overseas for instructive installation and training

 Rice Mill Machine list

1. Drum Cleaning Sieve (from 80-200)

2. Vibrating Cleaning Sieve

3. Destoner ( single layer and double layer)

4. Paddy Husker ( nomal type and pneumatic type)

5. Paddy Separator ( single body and double body)

6. Rice Whitener ( horizontal type and vertical type, iron type and emery type)

7. Water Polisher ( single roller and double roller)

8. Rice Grader Machine ( biggest type 7-10T/H)

9. CCD Color soter ( air compressor, air tank, air drier,air filter and so on)

10. Packing Machine (packing machine, conveyor, sewing machine,DCSs-DCS100)

11. Accessories: elevator, pipeline, airlock, blower etc

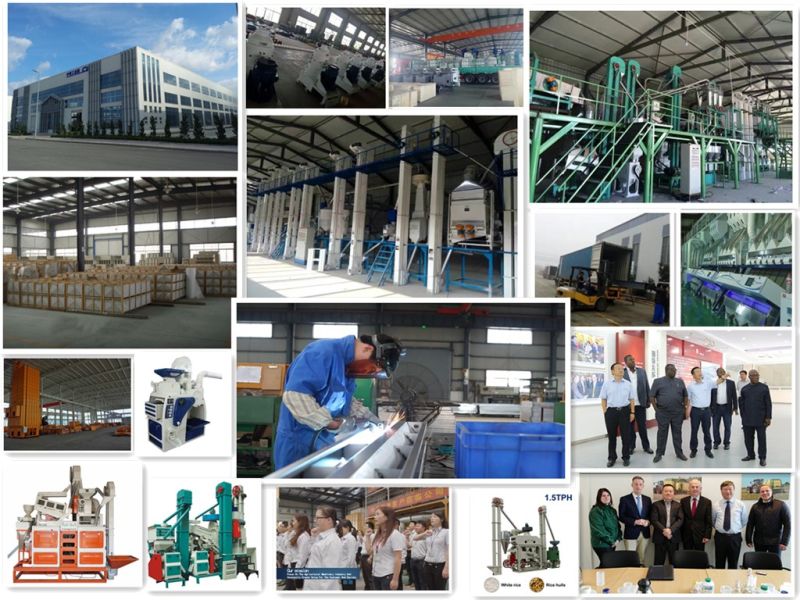

Our factory
