1,Technical parameters of machine
Width of material sheet:≤200 mm
Thickness of material sheet: 1.5~3.0mm
Material of sheet:Low carbon,etc
Line production speed:8m/min including punching
Length of the work piece:2000-6000 mm
Total Power:41KW.

2,General structure of equipment

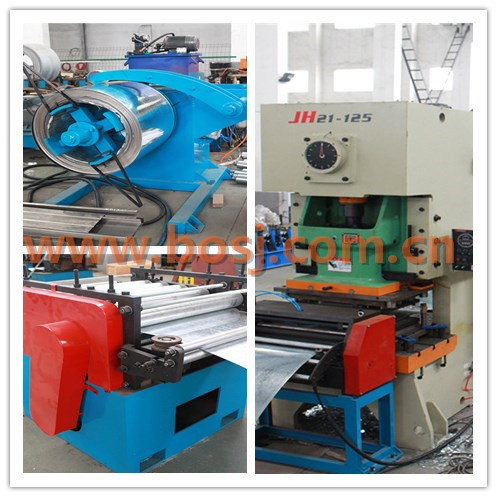

2.1Passive De-coiler
Width of material sheet:≤250 mm;Thickness of material sheet:≤2.5mm;
Inner diameter: 508mm   Range of expanding: ф480-520 mm
Maximum outer diameter: φ1300mm, loading: ≤3T

2.2  Leveler
Working roller: Five rollers type leveling machine
Motor:380V 5.5KW 4 grade

2.3Servo feeder
Function:material feeding
Motor: 380V 3KW 4grade,additional air compressor(Air pressure0.5m3/min pressure0.6MPa )

2.4 Punching press
Structure:JF21-80
Punching press: Uses the steel plate welding fuselage, the rigidity is strongwith good appearance .Uses the combined type air operated friction clutch.
Motor:380V 2.5KW 4grade

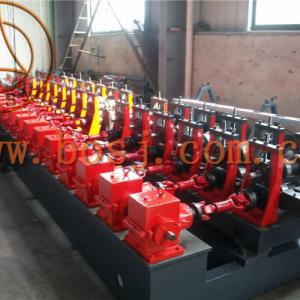

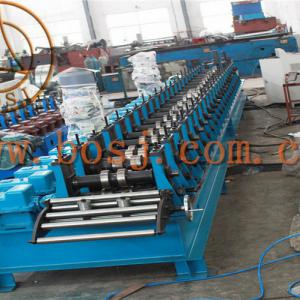

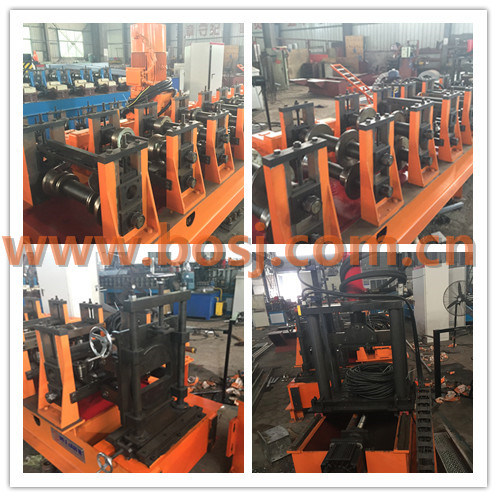

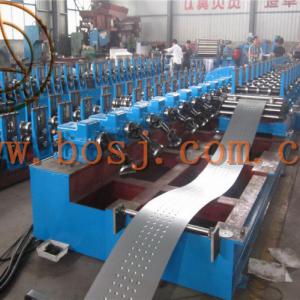

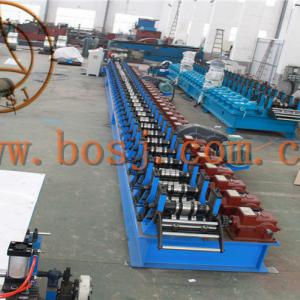

2.5 Main forming machine

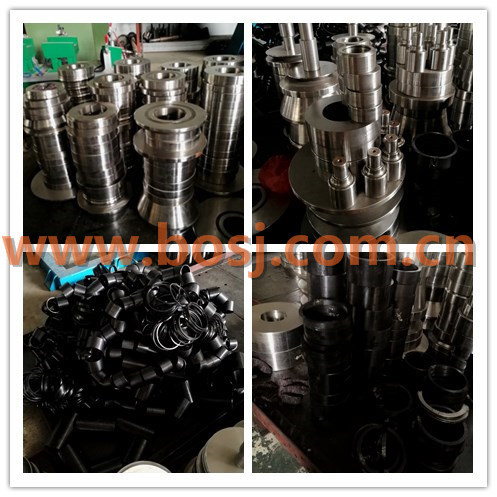

Forming stations:24stations(roller)
Forming machine:C channel

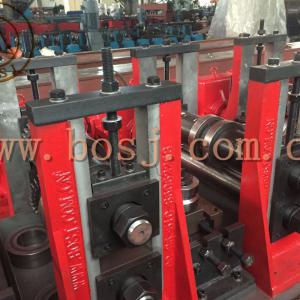

Forming frame:Dragon-type,gearbox drive
Max. Feeding width:≤200mm
Max. Feeding thickness:2~2.5mm


2.6 Cutting machine
Flying saw cutting without bur
Motor power: 2.2KW
Quantity of cutting blades: 1sets Cutting type:Flying saw cutting without bur


3.Main Machine Technical parameter
